Begin with a microcontroller-driven relay configuration for precise motor management. A PIC16F877A or ATmega328P handles signal processing, while four 5V relays toggle power to the traction unit based on floor selection. Ensure each relay operates at 10A/250VAC to accommodate the motor’s startup surge, typically 1.5–2.5 kW for residential shafts. Include a current sensor (ACS712) to detect overloads–shut down operations if readings exceed 120% of rated load.
Integrate limit switches at terminal floors: normally open (NO) for position confirmation, normally closed (NC) for emergency stops. Use magnetically actuated reed switches spaced at 20 cm intervals along the shaft to avoid mid-floor dwells. Wire each to an interrupt pin on the microcontroller–prioritize falling-edge triggers to prevent false activations from noise.
For power distribution, employ a transformer-rectifier setup: 230VAC → 12VDC for control logic, 24VDC for relays. Add a bridge rectifier (KBPC3510) and 4700µF smoothing capacitor to eliminate ripple in sensitive components. Isolate high-voltage lines with optocouplers (PC817) to protect low-voltage circuits from induced transients.
Implement a watchdog timer in the firmware–reset the system if the main loop stalls for more than 500 ms. Route all safety-critical signals (door locks, emergency stop, overspeed governor) through hardware AND gates (74HC08) before microcontroller input to ensure fail-safe operation even during controller failure.

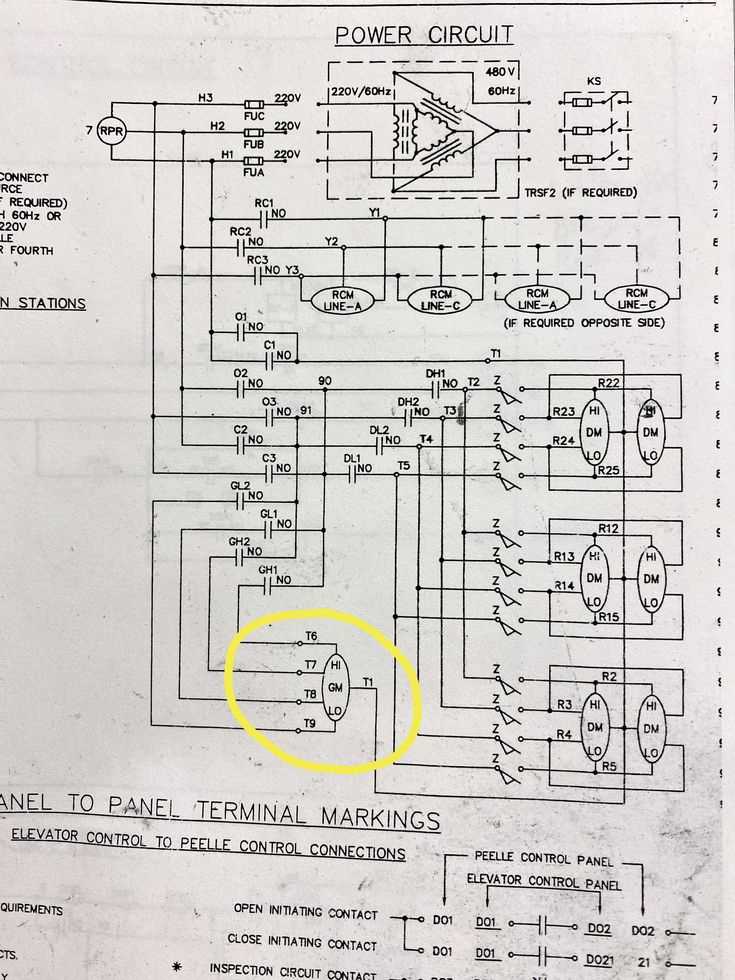

Basic Vertical Transport System Wiring Blueprint
Use a single-phase motor rated for 220V with a capacitor-start configuration for consistent lifting operations. Connect the power supply directly to a double-pole circuit breaker (16A) to isolate the system during maintenance or overloads. The motor should interface with a 3-position rotary switch (up, neutral, down) wired through limiters–adjustable micro-switches set at 5cm from the shaft ends to halt carriage movement automatically.
Integrate a relay (24V DC coil, 10A contacts) to manage the safety chain: link it to an emergency stop pushbutton, door locks, and overload protector. Configure the relay to cut power if any interlock fails. For multi-floor setups, replace the rotary switch with momentary pushbuttons (one per floor) paired with latching relays; each button should energize a separate relay to maintain position memory without continuous current draw. Include a delay timer (1-2 seconds) to prevent abrupt starts/stops, reducing mechanical stress on cables and pulleys.
- Wire gauge: 1.5mm² for motor circuits, 0.75mm² for control signals.
- Ground all metallic components to a dedicated earth busbar.
- Test limiters with a 100g load at 0.1m/s to verify response time <0.5s.
- Avoid daisy-chaining control circuits; use separate returns to prevent noise-induced faults.
- Label every wire connection with heat-shrink tubing (color-coded: red=live, blue=neutral, yellow=ground, black=control).
Critical Elements for a Foundational Vertical Transport Electrical System
Select a bidirectional motor rated for at least 1.5 times the load capacity of the cabin. For a 500 kg cabin, a 7.5 kW three-phase induction motor with 1440 RPM and IP55 protection ensures reliable operation under continuous duty. Pair it with a variable frequency drive (VFD) that supports regenerative braking–models like the Mitsubishi FR-A800 or Siemens SINAMICS G120 handle torque control and energy recovery precisely, reducing wear on mechanical brakes.
Integrate redundant limit switches at both extreme positions of the shaft. Use industrial-grade micro switches with gold-plated contacts (e.g., Omron D4V) to prevent signal degradation from oxidation. Position upper and lower switches with a 50 mm safety margin beyond the intended stop points; add an additional emergency stop switch at mid-shaft for immediate power cutoff during misalignment.
Design the call panel interface using membrane keypads with tactile feedback. Each button should trigger a 24V DC signal routed through optocouplers (e.g., PC817) to isolate the control logic from voltage spikes. Include a seven-segment LED display for floor indication, driven by a MAX7219 chip to multiplex signals efficiently and reduce wiring complexity.
Incorporate a weight sensor utilizing a load cell with a 1,000 kg capacity and 0.1% full-scale accuracy. Mount it between the cabin frame and the suspension ropes, connecting to a strain gauge amplifier (e.g., HX711) to convert analog readings into a digital signal. Calibrate the system to trigger overload protection at 110% of rated capacity, cutting power to the drive before mechanical stress occurs.
Use relay-based logic for fail-safe operation. Install DPDT relays (e.g., Omron MY2N) with 10A contacts for each direction, wired in a normally open configuration. Add a master control relay with a latch circuit to maintain power state during brief interruptions; include a manual reset button to clear faults after tripping. Ensure all relays are housed in a DIN-rail enclosure with surge protection modules (e.g., Phoenix Contact VAL-MS).
Wire the brake system with dual-solenoid release coils (220V AC) to prevent unintended descent. Connect the solenoids in parallel and add a thermal overload relay to each coil, set to trip at 1.2 times nominal current. Use sheathed cables (e.g., 1.5 mm² flexible PVC) for all high-current paths, securing them every 300 mm with nylon straps to prevent vibration-induced fatigue. Test brake engagement time under full load–it should not exceed 0.3 seconds from power cutoff.
Step-by-Step Wiring of Lift Drive and Operational Switches
Identify the main power supply terminals–typically marked L1, L2, and L3 for three-phase systems–and verify voltage with a multimeter before proceeding. Connect the incoming power lines directly to a dedicated safety disconnect switch or circuit breaker rated for at least 125% of the motor’s full-load current. For a 5 HP motor, this translates to a minimum breaker size of 30A; consult the motor’s nameplate for precise specifications.
Wire the motor windings to a magnetic starter’s T1, T2, and T3 terminals, ensuring alignment with the corresponding power phases. Use 10 AWG copper conductors for motors up to 7.5 HP, upgrading to 8 AWG for higher loads. Secure each connection with a torque screwdriver set to 25 in-lbs to prevent loosening under vibration. Install a thermal overload relay in series with the starter, calibrating it to the motor’s amp rating–commonly 115% of FLA for continuous duty.
Run conduits from the starter to the operational panel, housing the up/down selector switch and emergency stop button. For a two-wire control circuit, connect one side of the selector switch to the starter’s coil (A1) and the other to the common terminal (A2) via the stop switch, ensuring the coil activates only when the circuit is complete. For three-wire control, add a maintaining contact across the start button to latch the coil until the stop switch breaks the circuit.
Integrate limit switches at the shaft’s extreme ends, wiring them in series with the direction switches to cut power when the carriage reaches the top or bottom. Use normally closed contacts for redundancy–failure of a single switch should halt operation. Test each switch’s actuation with a continuity meter before finalizing connections, adjusting mechanical links to trigger at least 100mm before physical stops to prevent overtravel.
Label every conductor at both ends with heat-shrink sleeves or adhesive markers, using alphanumeric codes matching a schematic (e.g., U1 for up direction, D1 for down). After powering the system, measure phase currents with a clamp meter, confirming balanced load across all three legs–deviation exceeding 10% indicates miswiring or faulty motor windings. Secure all junction boxes with tamper-proof screws and apply warning decals for voltage hazards near access points.
Designing a Call Button Panel with Relay Logic Integration
Start by selecting momentary pushbuttons rated for 24V DC or 110V AC, depending on the system’s power requirements. Use illuminated buttons with built-in LEDs (20–30 mA per segment) for visual feedback, ensuring the current draw aligns with relay coil ratings. For a four-floor vertical transport system, arrange buttons in a linear or matrix layout, with each floor assigned a dedicated relay. Avoid multiplexing if response latency must stay below 50ms–direct wiring to relays ensures immediate signal propagation.
Integrate DPDT relays with coil voltages matching the button circuitry (e.g., 24V DC relays for 24V pushbuttons). Use relays with a minimum switching capacity of 5A at 250V AC to handle inductive loads from solenoids or auxiliary mechanisms. Wire the button’s normally open (NO) contact to the relay coil via a 1N4007 diode (for back-EMF suppression) and a series resistor if the coil current exceeds the button’s rating. Below is a reference configuration for a three-floor system:
| Floor | Button Pin | Relay Coil Pin | Diode (1N4007) | Resistor (Ohms) |
|---|---|---|---|---|
| 1 | NO to COM | Coil A1 (+) | Anode to A1 | 47Ω (1W) |
| 2 | NO to COM | Coil A1 (+) | Anode to A1 | 100Ω (0.5W) |
| 3 | NO to COM | Coil A1 (+) | Anode to A1 | None |
Implement latching logic using relay contacts to maintain floor requests until serviced. Connect the relay’s NO contact in parallel with the button’s NO contact–when the button is pressed, the relay energizes and latches via its own contact. Add a normally closed (NC) pushbutton or limit switch to reset the relay, breaking the latch circuit. For multi-floor queuing, cascade relays so each request holds until the transport mechanism reaches the floor, preventing duplicate signals.
Use a separate 3A fuse for the button panel to isolate faults without disrupting the entire system. Shield wires with twisted pairs or CAT5/6 cabling if runs exceed 10 meters to minimize electromagnetic interference (EMI). Ground the panel’s metal enclosure to the system’s common ground busbar, using 14 AWG wire for low-impedance paths. Test button bounce with an oscilloscope; if chatter exceeds 20ms, add a 0.1µF ceramic capacitor across the button contacts to debounce.
Diagnosing Common Issues
If relays fail to latch, verify the diode orientation (cathode to positive coil terminal) and check for cold solder joints on button leads. For erratic operation, measure coil resistance–values above 1.5kΩ indicate degraded windings. Replace illuminated buttons if LEDs flicker at currents below 15mA, as this suggests excessive series resistance or failing internal circuitry. Use a multimeter in continuity mode to confirm button contacts close fully under pressure; incomplete closure requires mechanical adjustment or replacement.
