Begin with a series resistor layout containing no more than five components: two fixed resistors, one voltage source, and a single switch. Label each element using standard IEC notation–R1, R2, Vs, S1–and position the power symbol at the top left. Include an unfilled circle at every node where three or more lines meet; this prevents ambiguity when students calculate current division.
Assign numerical values that yield clean arithmetic results: Vs = 12 V, R1 = 470 Ω, R2 = 1 kΩ. Avoid fractional ohms; keep decimals to two places maximum. Direct learners to measure voltage across R2 first–this reading must be 8.24 V when S1 is closed. Verify calculations with a digital multimeter before proceeding to the next task.
Introduce a second voltage source in parallel to the first, but reverse its polarity. Use Vs2 = 5 V and instruct students to redraw the network without altering the physical layout. The new potential at the junction between R1 and R2 becomes 3.73 V. Mark this node with a triangular ground symbol to reinforce common reference conventions.
Replace R2 with a 10 µF capacitor and set S1 to toggle at 1 kHz. Students must sketch voltage waveforms across the capacitor terminals; the rising edge should approximate an RC time constant of 4.7 ms. Ensure all waveforms start at 0 V and end at 12 V, showing the exponential charge curve.
Add a bipolar junction transistor in common-emitter configuration, connecting its base through a 10 kΩ resistor to a third 3.3 V source. Label the collector current IC path, then calculate collector-emitter voltage VCE; final value must be 6.5 V. Use standard transistor symbols and place an arrow on the emitter to indicate conventional current flow.
Include a final exercise combining a diode, LED, and piezoelectric buzzer in series. Specify a 1N4007 diode, a 5 mm red LED with 2 V forward drop, and a 3 V buzzer rated at 15 mA. Configure the layout so the buzzer sounds only when the LED illuminates, demonstrating series current path. Measure total forward voltage–it must equal 7 V–and confirm all loads share identical current.
Building Basic Electrical Plans for Education

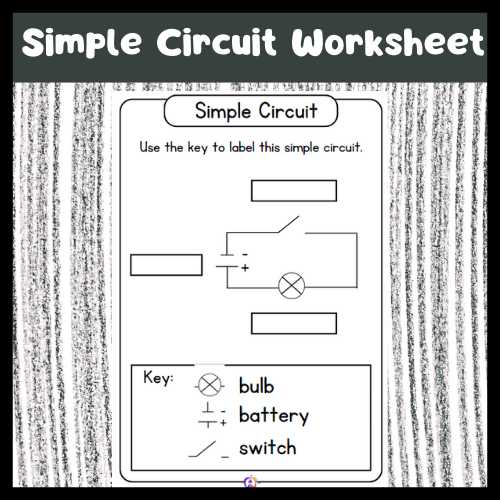

Begin with a clear set of objectives for each task sheet. Define whether students should identify components, calculate current, or trace paths. Use a mix of closed loops–battery, switch, resistor, and LED–and vary their arrangements. Include at least one parallel branch to highlight differences in voltage distribution. Label every part with legible, concise symbols following IEEE standards; avoid custom icons unless teaching proprietary systems.
- Battery: two parallel lines, longer positive
- Switch: break in line, lever or arc
- Resistor: zigzag or rectangle
- Light-emitting component: arrow from resistor

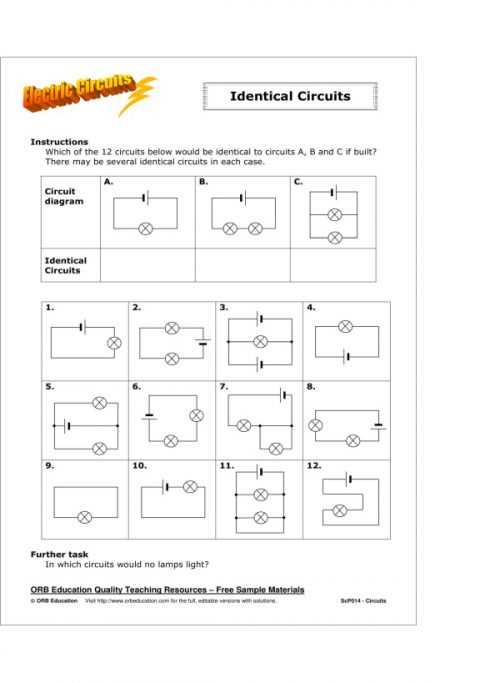

Provide a two-tier progression on each sheet. First tier: pre-drawn pathways where students add annotations–current direction, voltage drops, and component values. Second tier: blank grids where learners sketch full layouts from scratch. Limit grid cells to 1 cm squares; this scale balances detail with space constraints. Use consistent units–volts, amperes, ohms–and require calculations only where computing aids comprehension.
Include troubleshooting prompts that require no physical prototyping. Ask how an open switch affects LED brightness, or which resistor dissipates more power in a branched path. Offer partial answers on a separate key–never the same sheet–to prevent pattern-copying. Rotate component positions across multiple sheets to ensure understanding, not memorization. Keep color use minimal; reserve red for positive, black for negative, and blue for neutral paths.
Key Elements for Your Electrical Schematic
Start by placing a power source at the beginning of your layout–batteries for DC or an AC outlet for mains-powered systems. Label voltage ratings directly on the symbol (e.g., 9V, 12V, 230V) to avoid ambiguity. For multi-voltage designs, use distinct lines or color-coding to differentiate rails. Include a fuse or breaker symbol near the source with its current rating (e.g., 500mA, 10A) to indicate protection thresholds.
Use resistors, capacitors, and inductors with precise values and tolerances. Mark resistors in ohms (Ω), kilohms (kΩ), or megohms (MΩ), and capacitors in microfarads (µF), nanofarads (nF), or picofarads (pF). Polarized components like electrolytic capacitors require clear anode/cathode indicators. For active parts, specify transistor types (NPN, PNP, MOSFET) and pinouts–BC547 vs. 2N3904, for example, have swapped emitter/collector positions.
Integrate switches and pushbuttons with their functional states: normally open (NO), normally closed (NC), or momentary. For relays, depict coil voltage separately from contact ratings, using dashed lines to show the magnetic coupling. Connectors should show pin numbers or lettering (e.g., JST-XH 2.54mm) and mating orientation–misalignment can cause shorts or open circuits.
Ground symbols must follow a consistent hierarchy: earth ground (⏚), chassis ground (⏋), or signal ground. Avoid mixing them without isolation components like optocouplers or ferrite beads. For digital logic, use VCC, VDD, or VEE labels tailored to the IC family (e.g., 3.3V for ARM, 5V for TTL). Add test points (TP1, TP2) at critical nodes like clock signals or regulated outputs to simplify debugging.
Annotate each element with part numbers or datasheet references–e.g., “R1: 1kΩ 5% 0.25W” or “U1: ATmega328P-PU.” For microcontrollers, list essential pins: reset, clock (XTAL), and programming interfaces (ISP, UART). Use net labels (e.g., “SDA,” “SCL,” “PWM_CH1”) instead of drawing every wire across the schematic to reduce clutter. Cross-reference related sections (e.g., “Power Section: See Page 2”) if splitting the design into sheets.
How to Construct a Sequential Electrical Path Sketch
Begin by selecting four components: one power supply (e.g., 9V battery), two resistors (e.g., 470Ω and 1kΩ), and one LED. Position the battery at the left edge of your workspace–ensure the positive terminal faces upward. Align the resistors and LED in a straight line, leaving 2 cm gaps between each element. Draw a straight horizontal line connecting the battery’s negative terminal to the first resistor’s lead. Continue this line through each component, ensuring all connections follow a single uninterrupted path back to the power source.
Add polarity indicators to avoid errors: mark the LED’s anode (longer lead) facing the current flow from the resistors. Include voltage drops near each component if analyzing behavior–label the 9V supply, then subtract 2V for the LED and proportionally divide the remaining voltage between resistors based on their resistance values. Verify connections with a multimeter set to continuity mode before finalizing the sketch.
Common Mistakes When Labeling Electrical Schematic Symbols
Always verify the polarity of components like diodes, LEDs, and electrolytic capacitors before annotating them. Incorrect marking–such as swapping anode and cathode labels–causes reverse biasing, leading to immediate failure or misdiagnosis during troubleshooting. For example, a diode labeled with the cathode (+) instead of the anode (+) on a breadboard layout will block current instead of allowing it, disrupting the intended flow. Use the industry-standard band or stripe to denote the cathode side (e.g., a single line on a diode or the shorter leg of an LED) and cross-reference with datasheets if unsure.
Avoid ambiguous abbreviations when naming nodes, power rails, or signal paths. Labels like “V+” or “GND” are acceptable, but terms such as “PWR,” “INPUT,” or “OUT” lack precision. Instead, specify exact voltages (e.g., “+5V,” “VCC_3V3”) or signal types (e.g., “CLK_IN,” “DATA_TX”). Overlapping or generic labels create confusion in multi-layer schematics–especially when integrating microcontrollers or sensors where distinct signals require unique identifiers. Maintain a consistent naming convention: use uppercase for power rails (“VCC”), lowercase for signals (“cs_pin”), and underscores or hyphens for clarity (“uart_tx”).
- Mixing AC and DC notations: Never label a DC power source with an AC symbol (e.g., a sine wave for a battery). This misleads during prototyping, as AC sources imply alternating voltage while DC sources deliver constant potential.
- Omitting unit symbols: Writing “12” instead of “12V” or “5k” instead of “5kΩ” forces readers to infer values, increasing error risk. Always include Ω, V, A, F, or H where applicable.
- Ignoring reference designators: Failing to prefix components with letters (R for resistor, C for capacitor, Q for transistor) violates standard practices. A resistor labeled “100” instead of “R3” makes it untraceable in a bill of materials.
- Overlapping text with lines: Ensure labels don’t intersect with connectors or traces, as this obscures readability and complicates PCB routing.
- Incorrectly labeling ground types: Differentiate between chassis ground (⏚), earth ground (⏛), and signal ground (⏜). Using ⏛ for a floating signal return causes grounding loops or noise coupling.
How to Apply a Training Sheet for Parallel Electrical Paths
Begin by labeling each branch in your exercise sheet with a unique identifier: B1, B2, and so forth. Assign a fixed voltage value–such as 12V–to the power source shared across all branches. This eliminates ambiguity when calculating current splits later.
Measure or record the resistance values for every pathway directly on the sheet. Use a multimeter if working with physical resistors, or refer to provided figures if solving theoretically. Convert kilohms to ohms immediately (e.g., 2.2 kΩ → 2200 Ω) to prevent decimal errors in subsequent steps.
Calculate total resistance using the formula 1/Rtotal = 1/R1 + 1/R2 + ... + 1/Rn. For three branches with 100 Ω, 220 Ω, and 470 Ω, compute 1/Rtotal = 1/100 + 1/220 + 1/470 ≈ 0.01 + 0.0045 + 0.0021 ≈ 0.0166 S, yielding Rtotal ≈ 60.2 Ω.
Determine the current through each branch by dividing the source voltage by the branch’s resistance. For 12V and 220 Ω, I = 12/220 ≈ 0.0545 A or 54.5 mA. Validate your results by ensuring the sum of all branch currents equals the total current (Itotal = V/Rtotal).
| Branch | Resistance (Ω) | Current (mA) | Power (mW) |
|---|---|---|---|
| B1 | 100 | 120.0 | 1440 |
| B2 | 220 | 54.5 | 655 |
| B3 | 470 | 25.5 | 306 |
| Total | 60.2 | 200.0 | 2400 |
Add a fault-checking column to your sheet. For each branch, disconnect one pathway at a time (open it) and recalculate currents. If B2 opens, currents redistribute: IB1 = 12/100 = 120 mA, IB3 = 12/470 ≈ 25.5 mA, totaling 145.5 mA instead of 200 mA. This confirms expected behavior.
Sketch current flow arrows on the sheet next to each branch, pointing toward the negative terminal. Color-code them: red for high current (≥100 mA), yellow for medium (50–99 mA), blue for low (≤49 mA). Update these if recalculations shift current ranges.
Validating with Physical Components
Build the network on a breadboard matching your sheet’s layout. Use identical resistor values. Connect an ammeter in series with each branch; readings should closely match calculated currents (±5 mA tolerance). If discrepancies exceed this, recheck resistor color codes or solder joints–common errors include reversed leads or misplaced decimal points.
