Connect the battery positive (+) directly to the ignition switch using 12-gauge wire with heat-resistant insulation (such as cross-linked polyethylene). Avoid common mistakes like under-sizing conductors–4 mm² minimum cross-section prevents voltage drops in 12V systems under 10A loads. For the negative (-) return, ground the frame at a single point near the regulator to eliminate stray current interference.
Install a 30A fused link between the ignition switch and the main relay to protect downstream circuits. Regulator-rectifiers require separate 14-gauge wires for AC input (from stator leads) and DC output (to battery). Route all cables away from moving parts–use loom tubing near the swingarm pivot and engine block. Secure every 30 cm with spiral wrap or nylon ties to prevent chafing.
For turn signals, combine a 10A flasher relay with momentary push-button switches on each handlebar. LED indicators should have inline resistors (1.5W, 270Ω) to ensure proper blink rate without hyper-flashing. Brake lights demand a dual-contact pressure switch–test operation at 3–5 psi engagement threshold. Color-code wires: red (power), black (ground), yellow (stator), blue (lights), green (accessories).
Use crimp connectors with adhesive-lined heat shrink for all joints; soldering alone risks corrosion. Verify continuity with a digital multimeter–0.5Ω or less resistance across any completed circuit indicates a sound connection. After assembly, spray exposed terminals with dielectric grease to repel moisture. Avoid spade terminals in high-vibration zones; opt for ring terminals tightened to 8–12 Nm torque.

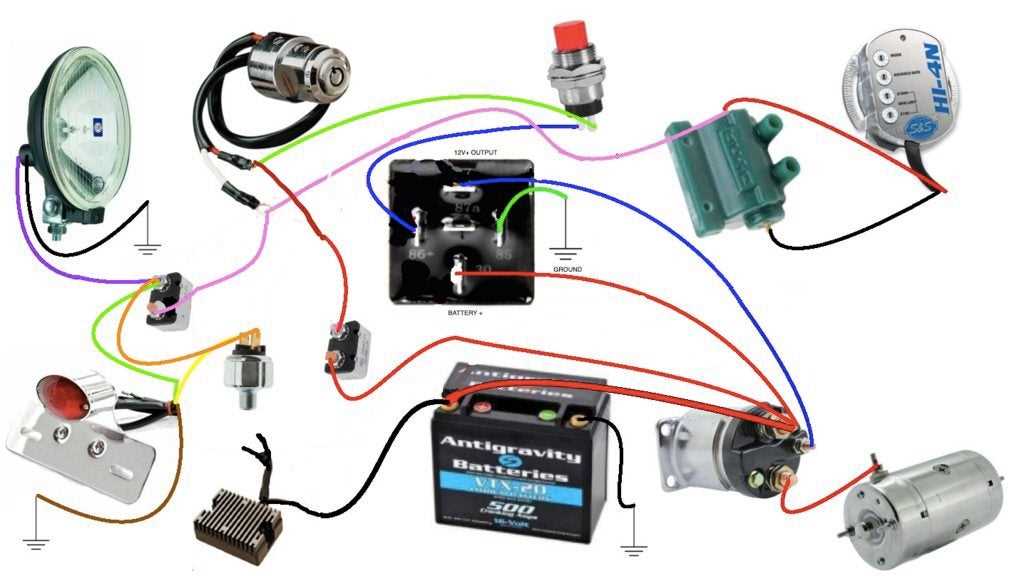

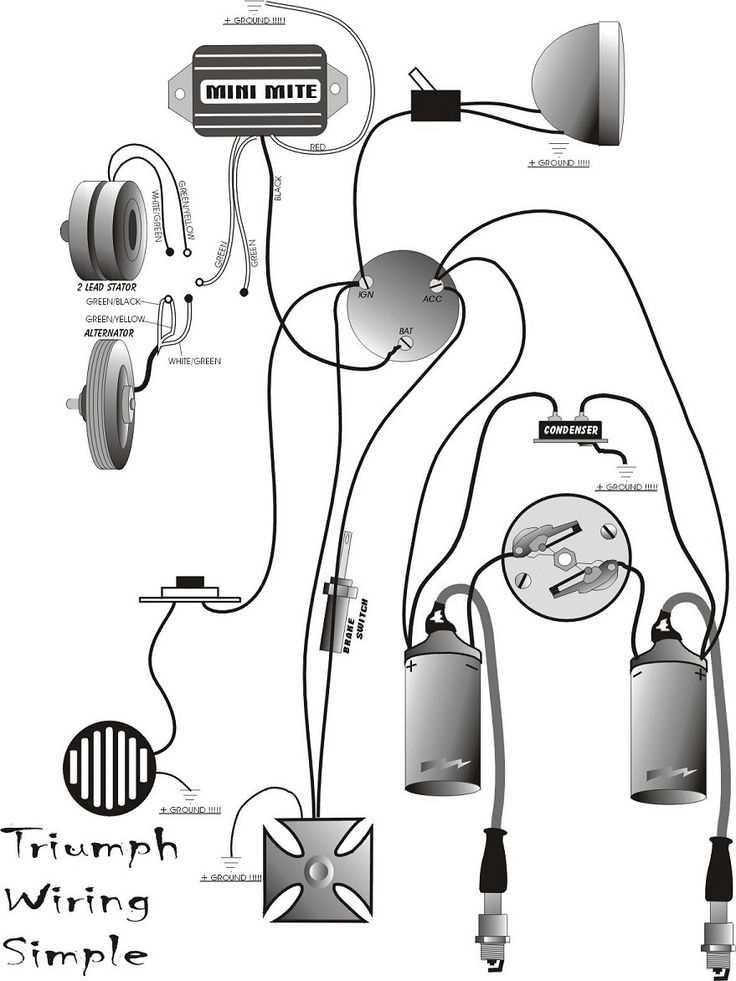

Basic Motorcycle Electrical Circuit Layout
Start with a 12V battery as the power source–ensure it delivers at least 10Ah for reliable performance. Connect the positive terminal directly to a 30A fuse using 14-gauge wire to prevent overload. From the fuse, route the line to a heavy-duty switch rated for 20A; this component acts as the primary cutoff for the entire setup.
After the switch, split the circuit into two branches. The first branch powers the ignition system–link it to the coil’s positive terminal, then ground the negative side to the frame for a clean return path. Verify resistance between coil terminals; values between 3-5 ohms indicate proper function. The second branch supplies current to auxiliary components like lights or a horn, but limit total draw to 15A to avoid voltage drops.
Ground connections demand attention. Use the motorcycle’s frame as the return path for all negative terminals–but avoid relying on painted or coated surfaces. Sand down contact points to bare metal and secure with M6 bolts, ensuring zero resistance. For components mounted on rubber bushings, run a dedicated 12-gauge ground wire straight to the battery’s negative terminal.
Component Placement and Routing
Position the battery near the engine to minimize voltage loss over distance. Keep high-current wires (10A+) under 30cm in length where possible; longer runs require thicker 12-gauge wire to maintain efficiency. Route wires away from heat sources like exhaust pipes–use split loom tubing for protection if exposure is unavoidable.
Integrate a voltage regulator if using an alternator. Wire it between the alternator’s stator output and the battery, adjusting the field coil resistance to maintain 13.8-14.4V under load. Test output with a multimeter at different RPMs: idle should show at least 13V, while full throttle should not exceed 15V to prevent battery damage.
For turn signals, pair a 20A flasher relay with LED bulbs to reduce current draw. Connect each signal’s positive side to a shared 10A fuse, then split to individual switches. Ground each light separately–shared grounds can cause erratic flashing under load. Use a test bulb to verify functionality before finalizing connections.
Document every connection with labels or color-coded wires. Record wire gauge, fuse ratings, and component specs in a reference sheet–this speeds up troubleshooting. If voltage drops below 12V at any point, check for corroded terminals or loose connections first; these account for 80% of electrical faults in custom builds.
Core Elements for a Fundamental Power Switching Assembly
Begin with a power MOSFET (e.g., IRFZ44N) or an IGBT for high-current applications–ensure the device’s voltage rating exceeds the input by at least 30%. Pair it with a gate driver IC (such as IRS2104 or TC4427) to isolate control signals from high-voltage switching, critical for preventing shoot-through and ensuring clean transitions. A fast-recovery diode (e.g., MUR1560) snubber circuit protects against inductive voltage spikes, while a low-ESR capacitor (minimum 470µF, 63V) stabilizes input voltage under load transients.
Regulate logic signals with a PWM controller (e.g., TL494 or SG3525), which dictates duty cycle and switching frequency–opt for 20–50 kHz to balance efficiency and thermal losses. Include a current-sense resistor (0.01Ω, 5W) in series with the load for feedback, and pair it with an operational amplifier (LM358) to scale signals for the controller. For galvanic isolation, a pulse transformer or optocoupler (e.g., HCPL-3120) separates high-voltage sections from low-voltage logic, mandated in applications exceeding 50V to comply with safety standards like IEC 60950.
Single-Switch Power Circuit Assembly Guide
Start by identifying the input voltage source–ensure it matches the motor’s rating (±10%). Connect the positive terminal of the battery to the MOSFET’s drain (middle pin on most TO-220 packages). The negative terminal should route directly to the motor’s negative lead. For a 12V system, use a 10A fuse inline with the battery’s positive lead to prevent overloads. Verify continuity with a multimeter before powering on.
Gate Control Setup
Attach a 10kΩ resistor between the MOSFET’s gate and ground to prevent floating voltages. Connect a momentary push button between the gate and the battery’s positive terminal, ensuring the button’s default state is open. For PWM control, replace the button with an Arduino or 555 timer, setting the frequency between 500Hz–2kHz for optimal efficiency. Confirm the gate voltage never exceeds ±20V to avoid damaging the MOSFET.
Secure the motor’s positive lead to the MOSFET’s source (left pin). Add a flyback diode (1N4007) across the motor terminals, cathode to positive, to clamp voltage spikes during switching. Test the configuration at 25% duty cycle first–observe current draw (should not exceed motor’s rated amps). Adjust heatsink size if the MOSFET’s case temperature exceeds 60°C under load.
Secure Load and Power Source Integration for DC Switching Circuits
Use a multimeter to verify polarity before connecting terminals. Set the meter to DC voltage mode and probe the power supply outputs–red to positive, black to negative. A reversed connection risks immediate component failure, particularly with MOSFETs or IGBTs where even brief backflow can exceed thermal limits. For 12V systems, confirm no more than 0.5V ripple under load; higher values indicate insufficient capacitance or ground noise.
Critical Connection Steps
- Fuse placement: Install a fast-acting fuse rated at 125% of the maximum load current directly on the positive line. For a 5A load, use a 6.3A fuse. Ceramic fuses respond faster than glass types in transient events.
- Ground return: Route the negative return path separately from signal grounds. Star grounding prevents common-impedance coupling; splice load grounds at a single point near the supply to minimize voltage offsets.
- Thermal relief: Mount semiconductor devices on heatsinks with thermal compound (0.1–0.2mm thickness). For TO-220 packages, apply 20–30 lb·in torque–overtightening cracks the die, undertightening increases junction temperature by 15–20°C.
- Load coupling: Connect inductive loads (motors, solenoids) with a flyback diode (1N4007 for
Test the assembly under 50% of rated load for 10 minutes while monitoring case temperatures. Silicon devices tolerate up to 125°C, but sustained operation above 85°C reduces lifespan by 50%. Use a non-contact infrared thermometer for spot checks–thermal cameras add unnecessary complexity for small-scale builds. If temperatures exceed thresholds, double-check heatsink mounting pressure or recalculate switching frequencies; 20kHz to 50kHz balances efficiency and thermal performance for most PWM-controlled systems.
Common Mistakes to Avoid When Creating Custom Bike Electrical Setups
Overloading circuits by ignoring the fuse rating relative to wire gauge causes immediate failures. A 16 AWG conductor handles 10A continuously; pairing it with a 20A fuse violates NEC and ISO 8849 standards, leading to thermal degradation within minutes. Use the table below to match conductors to protection devices:
| Wire Gauge (AWG) | Max Current (A) | Recommended Fuse (A) |
|---|---|---|
| 18 | 7 | 5 |
| 16 | 10 | 10 |
| 14 | 15 | 15 |
| 12 | 20 | 20 |
| 10 | 30 | 25 |
Ground loops formed by daisy-chaining multiple components off a single return path introduce voltage drops and electromagnetic interference. Route each device’s ground directly to the battery negative terminal using dedicated conductors–never splice grounds or rely on chassis metal. Verify each connection with a multimeter set to continuity mode: resistance between any ground point and the battery post must read below 0.1Ω. Failure to isolate grounds causes erratic LED behavior, unpredictable solenoid engagement, and corrosion at poorly bonded surfaces.
Incorrect Terminal Crimping
Using pliers instead of a ratcheting crimper compresses terminals unevenly, creating micro-fractures in copper strands. A 2.5mm² terminal crimped with pliers loses 37% tensile strength compared to proper tooling, measured per DIN 46248. Strip insulation precisely–exposing 6mm of conductor for a 6.3mm terminal–then apply solder flux before crimping; solder alone without mechanical compression fails vibration tests under ISO 11898-2.
