For troubleshooting or modifications, begin with the underhood fuse block diagram–this critical reference maps power distribution to the instrument panel, lighting circuits, and engine control modules. Locate fuse F25 (20A) feeding the Body Control Module (BCM); incorrect voltage here disables dashboard indicators, door locks, and keyless entry. Verify continuity between the BCM and ground point G103 (driver’s side fender) before proceeding further.

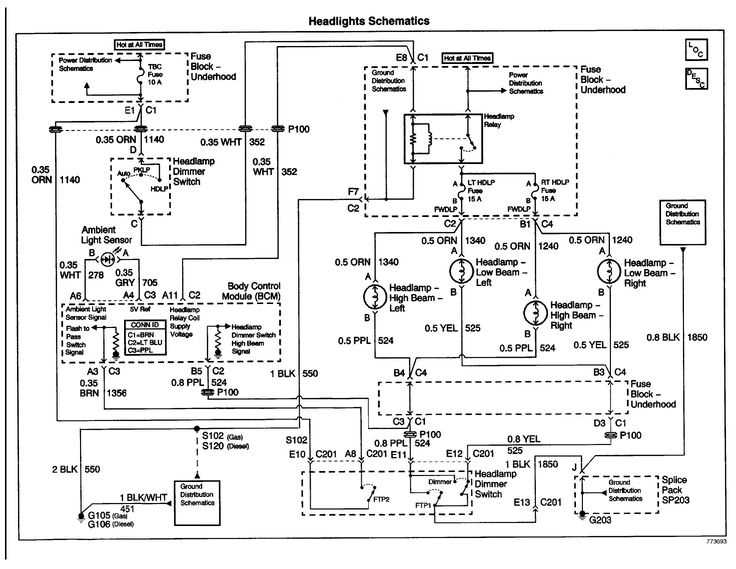

Trace the headlight circuit from the Headlight Switch Assembly (pin 1, blue wire) through the Headlight Relay (pin 86) to the IP Dimmer Switch. A common failure point is the 14-gauge orange wire (pin 9 at the underhood fuse block) supplying high-beam filaments–test for 12V with the lights activated. If voltage is absent, inspect the Headlight Bulb Socket (terminal 56b) for corrosion or the Multifunction Switch for internal breaks.
Download the OEM schematic manual (section 8D-20 for 2014–2018 variants) from the manufacturer’s technical portal–it segments circuits by page (e.g., Engine Compartment, Interior Lights, Trailer Wiring). Cross-reference wire colors and gauge sizes with physical connectors: pink/10 AWG for ignition-switched power, brown/18 AWG for park lamp feeds. Isolate faults by probing connector C1 (instrument cluster), pin 1 (purple) for Battery Voltage or pin 12 (gray) for Data Link Communications.
For aftermarket installations (winches, auxiliary lighting), insert a 120-amp relay between the battery and accessory to prevent wire overheating–use red/4 AWG cable for LOAD and yellow/12 AWG for grounding. Confirm the alternator’s B+ terminal (black/6 AWG) output reaches 13.8–14.4V under load before connecting high-drain devices. Always disconnect the negative terminal before servicing fused circuits to avoid shorting Airbag Control Module (ACM) or Transmission Control Module (TCM).

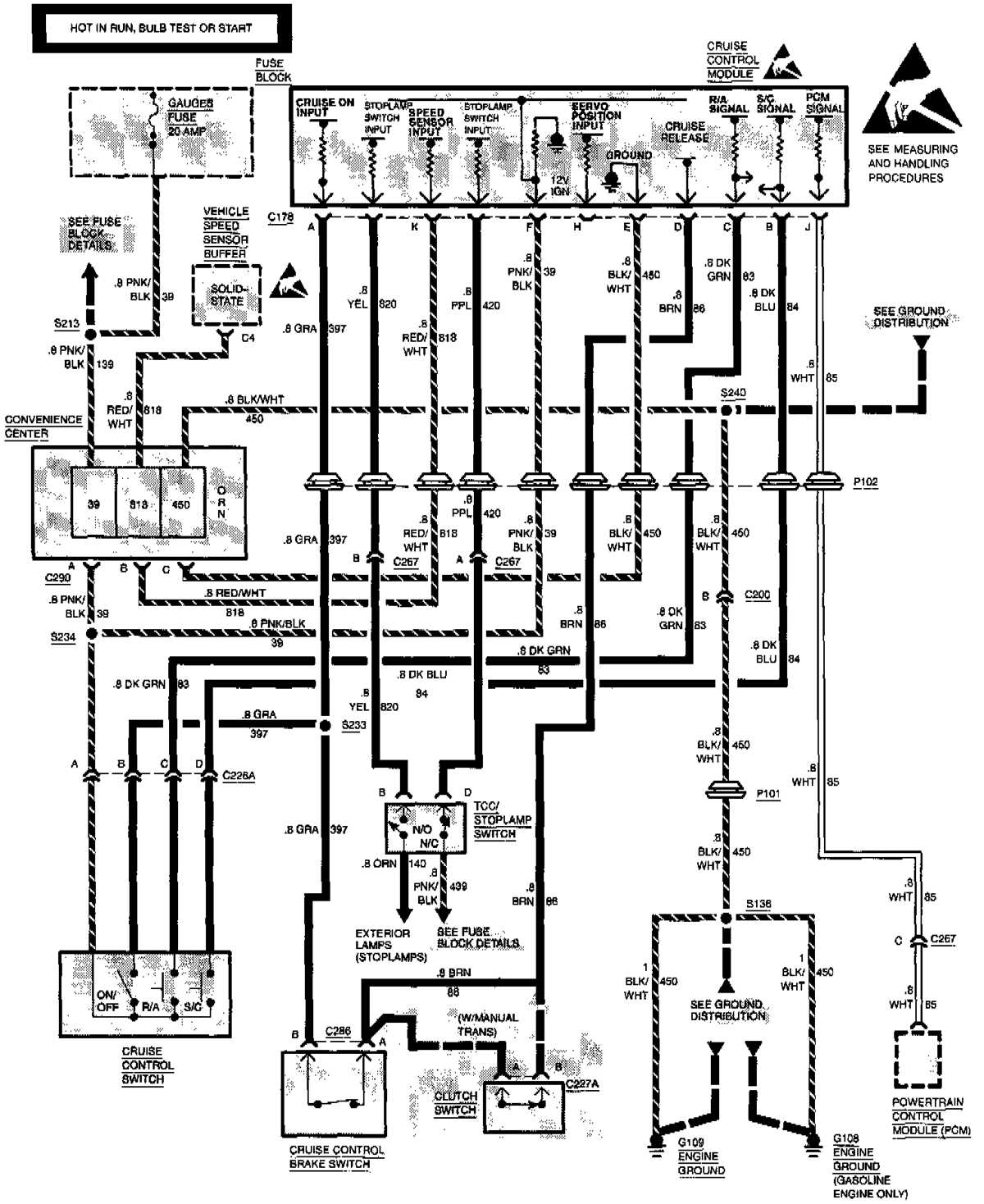

Full-Size Pickup Electrical Schematics: Hands-On Reference
Begin by locating the fuse block inside the cabin–it sits left of the steering column under a removable cover. Label each fuse position with small adhesive tags before pulling any connector; this saves time during reinstallation.
- Ignition-sourced circuits: red (12V constant), orange (switched), and yellow (accessory) wires.
- Lighting feed: white base wire, brown stripe for trailer tow markers.
- Sensor grounds: black or green, terminated to chassis bolts near each module.
Use a digital multimeter set to 200 Ω scale when probing terminals. A reading above 5 Ω between the sensor pin and ground indicates corrosion–clean with a wire brush and dielectric grease.
For trailer harness retrofits, splice the 7-pin connector directly into the rear bumper harness clip. Match the factory color codes: purple (reverse lamps), green (right turn), and blue (electric brake output). Secure splices with solder and heat-shrink tubing to prevent moisture ingress.
When tracing HVAC circuits, follow the actuator motor blue wire cluster beneath the dashboard. Disconnect the battery negative terminal first to avoid shorting the climate control module; reconnect only after verifying all plug connections are fully seated.
Replace dimmed dashboard bulbs by removing the instrument cluster trim bezel (four 7 mm screws). Twist each bulb socket counterclockwise to release; new #194 bulbs press-fit into the same slots without tools.
- Download OEM schematics from the manufacturer’s service portal–search by VIN for exact build sheet variations.
- Print actual-size pages and laminate them for grease-proof field reference.
- Highlight critical circuits in contrasting colors (red for power, blue for ground) to simplify troubleshooting loops.
Finding the Right Electrical Schematic for Your Pickup Variant
Begin by identifying the exact production run of your vehicle. The manufacturer’s build sheet, typically located in the glovebox or door jamb, lists the VIN and trim specifics. Cross-reference this data with the official service manual published for that year–available through authorized dealers or subscription-based automotive repair platforms like ALLDATA or Mitchell1. Avoid generic PDFs from forums; discrepancies between model years often involve minor but critical differences in fuse box layouts or connector pinouts, especially in pre-2014 and post-2018 revisions.
Key Resources for Accurate Schematics
- OEM Repair Manuals: Contain factory-approved diagrams with color-coded circuits, wire gauge details, and splice locations. Use only the edition matching your VIN’s 10th digit (model year).
- Vehicle-Specific Forums: Search threads tagged with your trim level (e.g., SLE, Denali) and year. Verify posts against OEM documents–user-uploaded schematics frequently omit ground paths or mislabel sensor wires.
- Aftermarket Guides: Haynes or Chilton manuals offer simplified overviews but lack the precision needed for advanced systems like the K9 body control module or adaptive cruise interfaces.
Narrow your search by focusing on the subsystem requiring repair. For instance, the trailer brake controller circuit appears in the “Electrical – Chassis” section, while HVAC blower motor details are under “Heating and Air Conditioning.” Printed manuals often organize content this way; digital versions may require keyword searches like “left tail lamp harness” or “transfer case encoder motor.” Pay attention to revision dates–mid-year updates sometimes alter alternator wiring or infotainment ground points.
Validate the diagram’s accuracy by probing connections with a multimeter. Compare meter readings to the labeled wire colors and pin assignments on the schematic. Discrepancies often indicate a mismatched year or aftermarket modifications, such as swapped ECUs or LED retrofit kits, which may reroute power feeds. For late-model variants (2020+), note that hybrid powertrain diagrams are separate from conventional gasoline system schematics–both appear in distinct sections of the OEM manual.
Step-by-Step Process for Retrieving Original Electrical Blueprint Data
Begin by locating the official manufacturer’s service portal. For General Motors vehicles, this is the GM Service Information (SI) website. Log in using a valid subscription–free trials are often available for short-term access. If no subscription exists, authorized dealerships can provide temporary credentials with a VIN-specific query.
Navigate to the “Documentation” or “Electrical Systems” section once logged in. Use the vehicle identification number (VIN) to filter results, ensuring accuracy. Select the model year and trim level to narrow down the correct schematics–generic diagrams may omit critical module-specific connectors or pinouts. Bookmark the exact page URL for future reference.
Download the PDF schematic files directly from the portal. These files are typically named with a combination of system codes (e.g., BCM, ECM, IPC) and numerical identifiers. Save them in a structured folder hierarchy:
| Folder Name | Contents |
|---|---|
| Power Distribution | Fuse box layouts, relay centers |
| Module Connections | BCM, TCM, ECM pinouts |
| Lighting Circuits | Headlamp, brake lamp, and turn signal diagrams |
| Chassis/Body | Ground points, sensor wiring |
Compress the folder into a ZIP archive for portability.
Use specialized software to annotate the schematics for troubleshooting. Tools like AutoCAD Electrical or PDF-XChange Editor allow overlaying notes, highlighting circuits, and adding reference markers. For complex repairs, cross-reference the schematic with a multimeter checklist:
- Red probe: Power source (e.g., battery positive)
- Black probe: Ground or neutral
- Voltage test: 12V at key-on, 0V at rest
- Continuity test: 0 ohms between linked pins
Print critical sections at 11×17 inches for better readability.
Verify the schematic’s revision date–manufacturers update documentation quarterly. Discrepancies between older and newer versions may include:
- Relay pin assignments
- Connector terminal numbering
- Harness routing changes
- New module integrations (e.g., adaptive cruise control)
Check the footer for a “Revision A/B/C” label. Outdated schematics can mislead diagnostics, especially for post-factory updates like TSBs (Technical Service Bulletins).
For offline access, install the manufacturer’s mobile app or desktop software. Examples include GM Global Connect or third-party tools like Mitchell 1 DIY. These applications cache schematics locally, enabling real-time cross-referencing without internet. Ensure the vehicle’s firmware matches the schematic version–OEM updates occasionally alter circuit paths due to recalls or software reflashes.
Pinpointing and Resolving Electrical Faults Using Schematic Charts
Locate the vehicle’s fuse panel schematic–typically found under the driver-side dashboard or hood–to verify circuit protection values. Compare each fuse rating against the manufacturer’s specifications; a 20A fuse in a 15A slot often signals an overload or short downstream. Use a multimeter set to continuity mode to probe fuse terminals without removing them; a closed circuit indicates proper function, while an open circuit demands immediate replacement.
Trace connector pins using a harness map before disassembling components. Label each wire’s origin and destination with masking tape–color codes alone can mislead due to factory variations. For instance, an orange wire in a 2010 model may differ from an identical hue in a 2014 variant. Cross-reference pin numbers with the electrical diagram to confirm correct routing; a single misrouted wire can disable multiple systems.
Isolating Ground Faults
Attach a voltmeter’s negative lead to a known clean ground–like the battery negative terminal–and probe suspected ground points with the positive lead. A reading above 0.1V suggests corrosion or loose connection; common culprits include the engine block, chassis, or dedicated ground straps. Remove, clean, and reattach grounds using dielectric grease to prevent oxidation. For bolted grounds, secure with torque specifications (usually 12-15 ft-lbs); overtightening strips threads.
Verify sensor circuits by backprobing connectors with a scan tool or oscilloscope. For example, a throttle position sensor should output 0.5V at idle and 4.5V at wide-open throttle. Deviations point to faulty wiring, not just the sensor–check for chafed insulation near suspension components or sharp edges. Use a power probe to inject voltage at the sensor’s connector; if the component functions, the issue lies upstream in the harness or ECM.
Inspect relay-controlled circuits by swapping the suspect relay with a known-good one from a non-critical system (e.g., horn relay). If the problem persists, remove the relay and jumper pins 30 and 87 with a fused wire to bypass it. If the circuit now operates, the relay is faulty; if not, focus on the switched or power feeds using the schematic to trace color-coded wires back to their source.
Diagnosing Parasitic Draws
Disconnect the negative battery terminal and insert a multimeter in series set to 10A mode to measure draw. Normal values should not exceed 50mA. If higher, pull fuses one by one while monitoring the meter–when the draw drops, the circuit on that fuse is the culprit. Refer to the schematic to identify all components on the affected circuit, then disconnect them sequentially (e.g., modules, motors) until the offending device is found.
