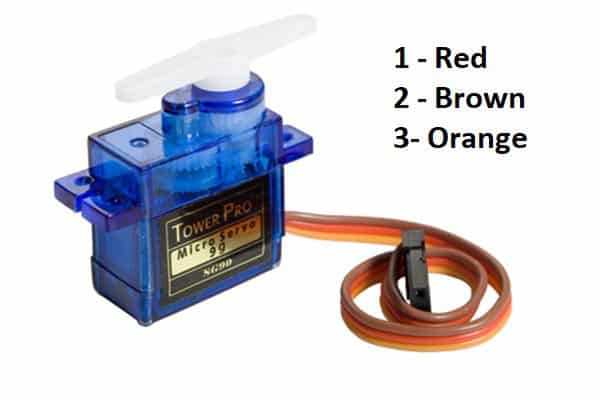

For reliable small-scale rotation control, use a 5V PWM signal input configured at 50Hz (20ms cycle) with pulse widths between 1ms (0°) and 2ms (180°). Connect the positive wire (typically red) to a regulated power supply, the ground (brown) to the common negative rail, and the control line (orange) directly to a microcontroller output pin. Avoid exceeding 6V on the power rail to prevent permanent damage–insert a 1N4007 diode across the input terminals as reverse polarity protection if voltage spikes are likely.
To minimize electrical interference, keep the signal trace short–ideally under 15cm–and route it away from high-current paths. A 100nF ceramic capacitor soldered between the power and ground terminals at the actuator eliminates voltage fluctuations during rapid movements. For high-load applications, distribute ground currents via a star topology to prevent ground potential rises that distort control pulses. Verify signal integrity with an oscilloscope: stable square waves should show clean transitions, with no overshoot exceeding 0.5V.
When integrating into a larger assembly, use a logic-level MOSFET like the IRLZ44N to gate power from a separate 5–6V bus if current demands exceed 500mA. This isolates the microcontroller from inductive kickback, which can reset attached ICs. Calibrate neutral position empirically: pulse widths outside the 1.25–1.75ms range may cause binding due to mechanical tolerances in analog feedback potentiometers.
Connecting the SG90 Actuator: Wiring Guidelines

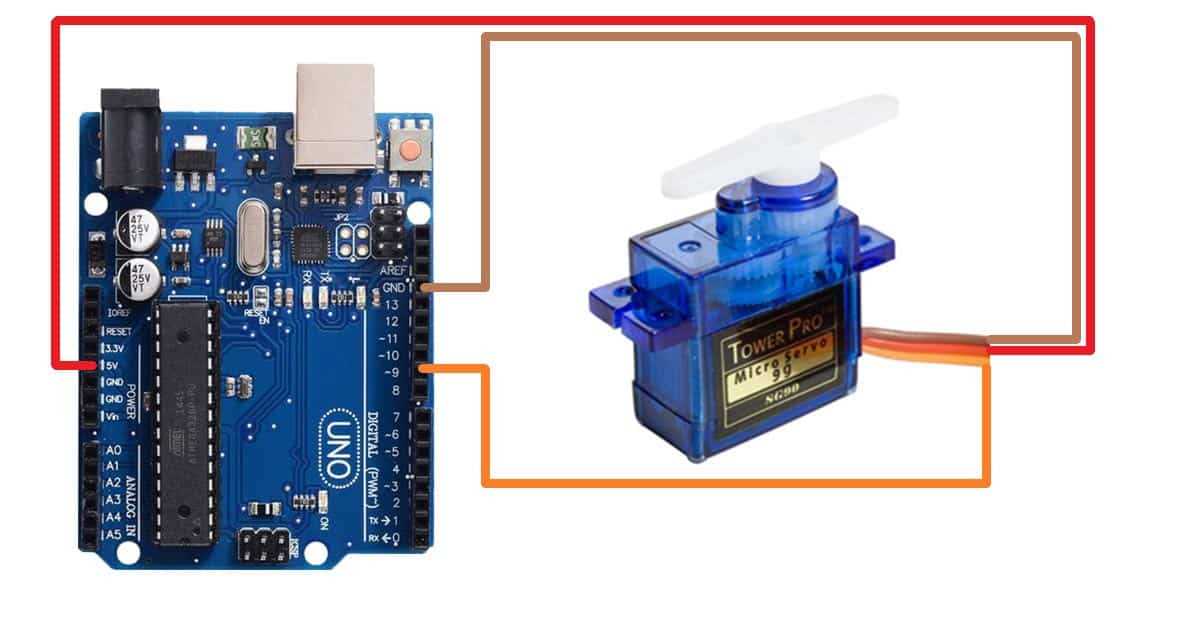

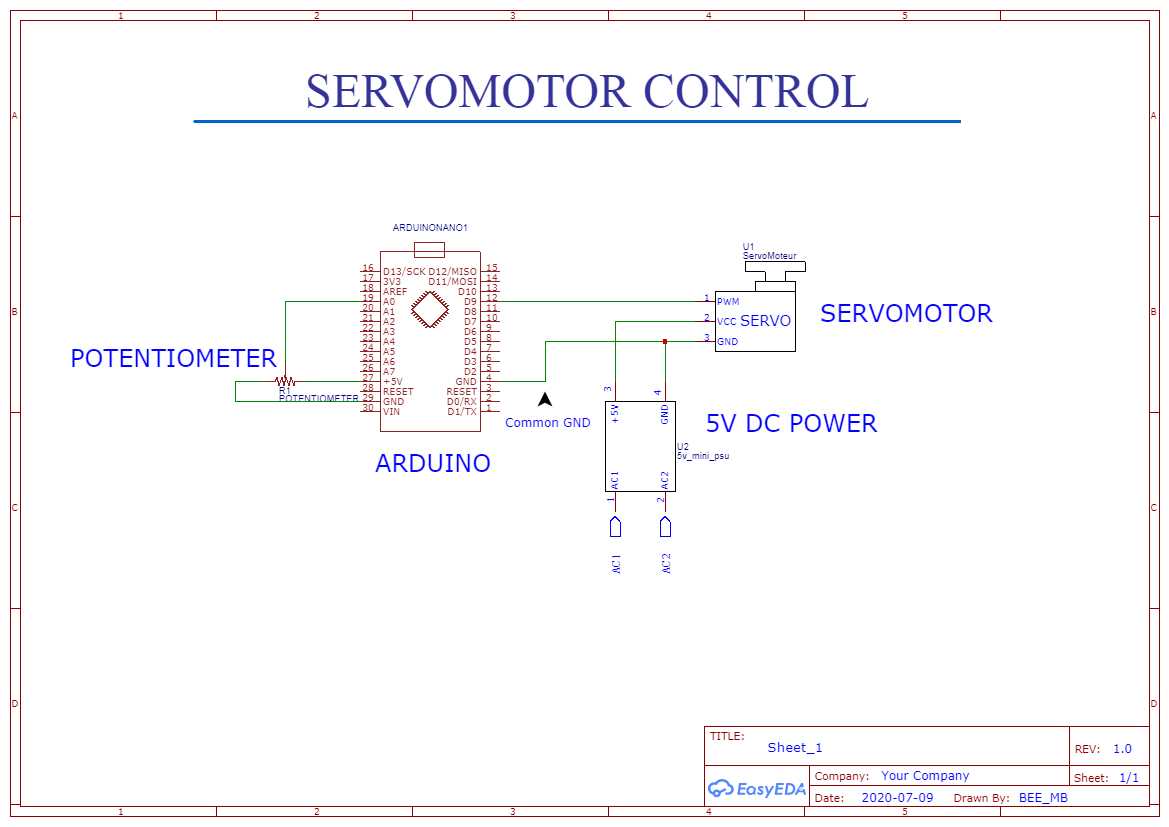

Begin by linking the control pin of your compact rotary mechanism to a PWM-enabled output on your microcontroller–Arduino’s digital pins 3, 5, 6, 9, 10, or 11 work reliably with 5V logic levels. Ensure the ground wires from both the actuator and power source are directly tied together to prevent erratic movement or signal noise, which often stems from floating reference voltages.
The red lead (5V) connects to an external power rail if driving multiple units to avoid brownouts–an on-board regulator can handle one unit, but current draw peaks at 600mA during stall. For stable operation, insert a 470µF electrolytic capacitor between power and ground near the connection point; this filters voltage spikes that may disrupt positioning accuracy.
Signal pulses must follow a 20ms cycle with a 1-2ms duty range: 1.5ms centers the output shaft, while 1ms and 2ms set ±90° limits. Use a dedicated library (e.g., Arduino’s Servo.h) or manually adjust `analogWrite()` frequency if precise timing is required–jitter below 5µs typically yields ±2° repeatability.
Verify torque limitations: the gear train handles 1.8 kg·cm at 4.8V but may skip teeth under abrupt load changes. For high-torque applications, swap the final nylon gear for a metal replacement or reduce mechanical resistance–lubricating the shaft with lightweight grease cuts friction by ~15%.
Avoid exceeding 6V input; the internal regulator dissipates excess voltage as heat, which can warp the plastic housing over prolonged use. For 12V systems, add a buck converter or linear regulator with adequate heatsinking to maintain 5V at the actuator’s terminals.
Connecting the Tiny Actuator to a Control Board
Attach the brown wire to the ground pin of your development board immediately–this is non-negotiable for stable operation. The red wire supplies power and must connect to a 5V output capable of delivering at least 500mA, though brief spikes may reach 1A during load shifts. Blue or orange signal wires carry PWM instructions and require a digital I/O pin with 50Hz refresh capability, typically found on GPIO headers.
Voltage fluctuations can cause jitter, so avoid powering the actuator from the same rail as high-current devices. A 470μF electrolytic capacitor across the power and ground lines near the connector smooths transient drops, reducing unintended movements. Never exceed 6V input, as internal circuitry lacks overvoltage protection, and thermal shutdown occurs around 85°C–monitor heat during prolonged full-torque operations.
Different boards have varying current ratings; consult the table below to match your setup:
| Board | Max Current per Pin | Recommended PWM Pins |
|---|---|---|
| Arduino Uno | 40mA | 3, 5, 6, 9, 10, 11 |
| ESP32 | 12mA | 2, 4, 12–19, 21–23, 25–27, 32–33 |
| Raspberry Pi Pico | 16mA | 0–28 (all capable) |
| STM32 Blue Pill | 25mA | PA0–PA15, PB0–PB15 |
Pulse width modulation precision dictates positional accuracy. A 1ms pulse yields full clockwise rotation, 1.5ms centers the shaft, and 2ms moves it counterclockwise. Deviations as small as 5μs alter position by roughly 1.8°, so use timers with 1μs resolution or better. Hardware PWM peripherals on chips like ESP32 or STM32 outperform software-generated signals in consistency.
For prototyping, breadboard jumper wires introduce resistance–replace them with AWG22 solid-core wires for lengths over 10cm to prevent voltage sag. Shielded cables reduce interference in noisy environments, though ferrite beads near the actuator connector offer cheaper mitigation. Calibration routines should account for mechanical dead zones, typically 2–3° at extremes, by testing motion ranges before finalizing control logic.
Firmware Considerations
Initialization code must set the pulse width to 1.5ms for 500ms before issuing positional commands to prevent abrupt starts. Libraries like Servo.h for Arduino abstract PWM generation but add overhead; direct register manipulation on ARM cores gains 20–30% speed. For multi-actuator setups, either multiplex signals with a 74HC4051 or allocate dedicated timer channels–shared timers risk cross-talk.
Step-by-Step Power Supply Connection for Miniature Actuators
Begin by verifying the input voltage range of your compact rotary drive–most models accept 4.8V to 6V DC, with 5V being optimal for consistent torque. Exceeding 6V risks permanent damage to internal gears; voltages below 4.5V may cause erratic motion or stalling under load.
Select a regulated power adapter rated for at least 1A current output. Linear regulators (LM7805) work for single-unit setups, but switch-mode buck converters (MP1584EN) are 85% more efficient for multiple drives or battery-powered systems. Measure output voltage with a multimeter before connection–fluctuations above ±0.2V can degrade lifespan by up to 40%.
- Cut the red (positive) and brown/black (negative) control wires 3cm from the unit’s housing.
- Strip 5mm of insulation from each wire using precision wire strippers.
- Twist the exposed strands clockwise to prevent fraying during soldering.
- Apply rosin flux to the stripped ends to improve solder adhesion.
- Pre-tin both the actuator wires and the power supply leads with a 1mm solder bead.
For temporary testing, use alligator clips with insulated jaws–never expose bare connections. Secure permanent setups with 30AWG silicone sleeves over soldered joints to prevent short circuits. Heat-sensitive adhesive-lined shrink tubing (Ø2.5mm) provides mechanical strain relief when heated with a 500°C heat gun for 10 seconds.
Ground loops manifest as jitter or phantom movements–eliminate them by:
- Connecting all negative terminals to a single star-point on the chassis.
- Avoiding daisy-chaining grounds through multiple actuators.
- Separating signal ground (orange wire) from power ground if using microcontroller inputs.
Battery selection depends on application:
| Power Source | Runtime (typical) | Voltage Stability | Recharge Cycles |
|---|---|---|---|
| NiMH (2000mAh) | 2.5 hours @ 0.5A | ±0.1V | 500 |
| LiPo (1000mAh) | 1.2 hours @ 0.5A | ±0.05V | 300 |
| Alkaline (1500mAh) | 4 hours @ 0.5A | ±0.3V | N/A |
Always include a 10µF ceramic capacitor across battery terminals to suppress voltage spikes during stall conditions.
For high-precision applications, add a 1N4007 diode in series with the positive lead to block reverse current. When daisy-chaining units:
- Calculate total current draw: Itotal = N × 300mA (where N = number of drives).
- Verify power source can supply 125% of Itotal.
- Use 18AWG stranded copper wire for runs exceeding 30cm to prevent voltage drop.
- Insert a 10A polyfuse between the power source and first unit to prevent cascading failures.
Controlling Micro Actuators with PWM Signals
Use a 50Hz PWM frequency (20ms period) for precise angle control. Signal pulses between 1ms (0°) and 2ms (180°) dictate positioning; 1.5ms centers the mechanism. Atypical pulse ranges outside 0.8–2.2ms may cause erratic behavior or strain the device. Ensure microcontroller timers generate clean square waves without jitter–10-bit resolution (Arduino’s default) offers 1024 steps for smooth transitions.
Hardware Considerations
Power the actuator directly from a regulated 5V source, not logic pins. Maximum current draw reaches 600mA during stall; bypass capacitors (100μF electrolytic + 0.1μF ceramic) prevent voltage drops. Avoid daisy-chaining multiple units–dedicated voltage rails eliminate interference. Signal lines should be kept under 30cm to minimize noise; twisted pairs or shielded cable improve reliability in noisy environments.
Fine-tune pulse widths empirically. Factory defaults assume 1500μs centers, but mechanical tolerances may shift this by ±50μs. Calibrate by sending a 1500μs pulse and adjusting linkage alignment–never modify the linkage under load, as this damages internal gears. For continuous rotation hacks, fix pulse widths to 1ms (full reverse) or 2ms (full forward), discarding angle feedback.
Implement failsafe routines. If the signal cuts off, most actuators freeze in last position–override this by storing a safe default angle in EEPROM and triggering it on brownout detection. For battery-powered setups, monitor voltage sag; below 4.8V, torque drops sharply. Use interrupt-driven PWM generation to free CPU cycles, especially in multitasking systems–direct port manipulation (e.g., AVR’s OCR registers) avoids Arduino’s delay() overhead.
