Use a 16-gauge wire for circuits under 10 amps, such as tail lights or clearance markers, to balance durability and signal integrity. For 12-volt auxiliary functions–like electric brakes or battery charging–opt for 14-gauge wire to handle the higher current without voltage drop over extended lengths. Measure the total distance from the vehicle’s power source to the farthest connection point on the load; add 20% to that length when cutting wires to account for routing and securing slack.
Ground first. Attach the white return wire directly to the towing vehicle’s frame using a 3/8-inch stainless steel bolt and star washer. Avoid paint or undercoating; clean bare metal with a wire brush to ensure a low-resistance path. If corrosion is visible, apply dielectric grease before tightening to prevent future oxidation.
Label every circuit at both ends with heat-shrink color-coded tubing or adhesive tags: brown for marker lights, green for right turn, yellow for left, white/black stripe for ground, blue for brakes, red for hot lead, and purple for auxiliary. Secure loose strands every 18 inches with nylon ties; leave no loops that could catch debris or chafe against moving parts.
Test continuity with a multimeter before connecting the coupler. Set the meter to ohms, touch probes to each pin and its corresponding wire end; a reading below 0.5 ohms confirms solid connection. Check each function–turn signals, brake lights, and running lamps–while watching for flicker or dimming, which indicates a loose ground or incorrect fuse rating.
Use a weatherproof cover on the connector when not in use to block moisture and road salt. Inspect the plug’s spring-loaded pins monthly; clean with electrical contact cleaner if dirt accumulates. Replace the entire unit if any pin shows pitting or deformation–partial repairs risk intermittent failure under load.
Standard 7-Way Plug Electrical Layout for Heavy-Duty Towing
Match wire colors precisely to prevent signal conflicts: brown (marker lamps) must terminate at the rear clearance lights, yellow (left turn/brake) and green (right turn/brake) split via a dedicated relay if the tow vehicle lacks separate brake output. Ground (white) requires a minimum 10 AWG conductor directly bolted to bare metal; avoid daisy-chaining through bolted panels or paint-coated surfaces.
Connect the blue auxiliary circuit only if the tow rig supplies a dedicated charge line; otherwise, cap it to prevent backfeeding into the brake controller. Use dielectric grease on all terminals to repel moisture–failure here causes intermittent ABS faults in trailers equipped with electric-over-hydraulic brakes. Insulate splices with adhesive-lined heat shrink; standard electrical tape degrades within 18 months under UV exposure.
Test continuity under load with a multimeter: probe the harness while activating each function (turn signals, brakes, running lights). Voltage should remain within 0.5V of the vehicle’s battery reading–any drop exceeding 0.7V indicates corrosion or undersized wire gauge. Replace factory crimp connectors with soldered joints and rosin flux for high-vibration applications.
Route harnesses away from suspension components and exhaust manifolds; use split-loom tubing or spiral wrap with zip ties spaced every 6 inches. Avoid routing near CAN bus modules–magnetic interference can corrupt TPMS or engine controller signals. Secure the main plug with a safety clip to prevent unintended disconnection at highway speeds.
Adhere to SAE J2863 standards for pin assignments when modifying older setups; mixing configurations risks fusing braking and charging circuits, potentially destroying ECUs. For modular adapters, verify compatibility with the trailer’s mating connector–OEM plugs often use proprietary keying that standard adapters ignore, leading to shorted reverse lamps or disabled trailer brakes.
How to Match the Right 7-Way Plug Configuration for Your Vehicle

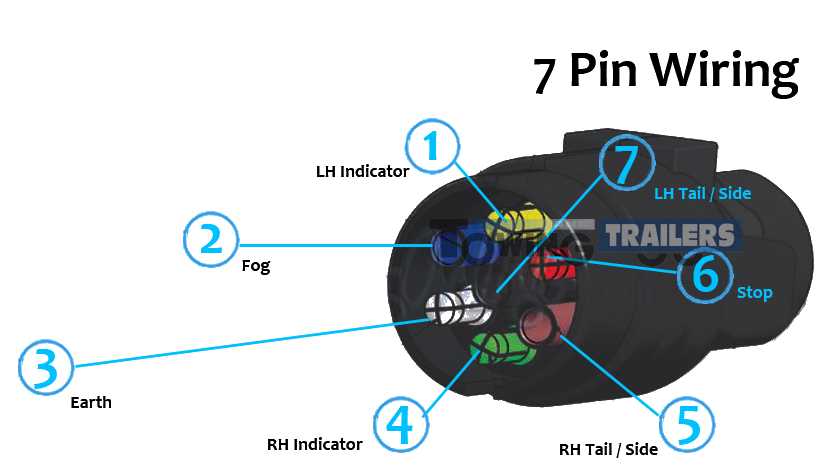

Start by inspecting the connector’s physical shape. North American standards (SAE J560) use a round plug with a flat edge and locking tab, while European types (ISO 1185) are fully round with a notch. Australian models often include an additional 12V auxiliary circuit not found in U.S. versions. If the plug has a smooth, symmetrical barrel, it’s likely European; if it has a flat spot or locking mechanism, it’s almost certainly North American.

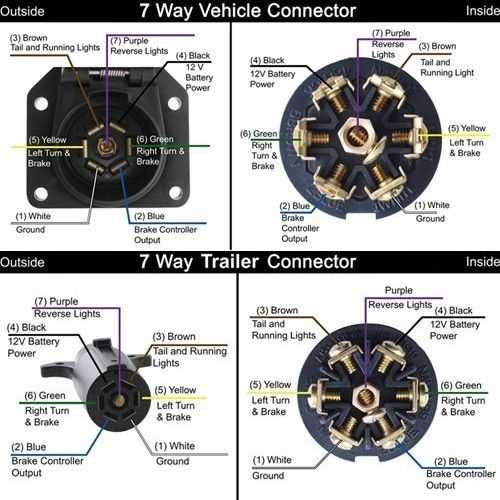

Check the terminal arrangement. The U.S. configuration follows this order (viewed from the frontend):
| Position | Function | Wire Color (Standard) |
|---|---|---|
| Top center | Electric brakes | Blue |
| Top left | Tail lights | Brown |
| Top right | Auxiliary power | Black |
| Bottom left | Ground | White |
| Bottom center | Left turn/brake | Yellow |
| Bottom right | Right turn/brake | Green |
| Center | Reverse lights | Purple (optional) |
European layouts swap the auxiliary power and reverse light positions. Use a multimeter to confirm pin functions–miswiring risks damaging the towing vehicle’s electrical system. Set the meter to DC voltage (20V range) and probe each contact while activating the corresponding light or brake signal from the cab.
Adapters and Cross-Compatibility
Never assume universal compatibility. A U.S.-to-European adapter must reroute the auxiliary circuit (often labeled “battery” or “charge”) from the top-right slot to the bottom-center position. Many off-the-shelf adapters omit this correction, leading to failed trailer batteries or blown fuses. For mixed fleets, label connectors clearly–OEM plugs from Ford, GM, and Ram may appear identical but use different pinouts for options like trailer stability control.
Step-by-Step Connector Wire Color Coding and Purpose Guide
Begin by locating the standard 7-way plug on your vehicle. Each cable serves a distinct role–miswiring risks faults or damage. Refer to this breakdown during installation or troubleshooting:
- White (Ground): Connects to the chassis or designated ground point. Ensure a clean, corrosion-free bond–use dielectric grease on terminals. A faulty ground causes erratic behavior in all other circuits.
- Brown (Running Lamps): Powers all side markers, tail lights, and license plate illumination. Verify polarity–reverse wiring blows fuses. Test with a multimeter set to 12V DC.
- Green (Right Turn/Brake): Carries signal for right-side turn indicators and brake lights. If reverse lights are integrated, this wire may split–use a circuit tester to confirm.
Isolate each wire before splicing. Strip 6mm of insulation, then crimp or solder connections. Heat-shrink tubing prevents moisture ingress–apply before finalizing joins. Never twist wires directly; corrosion forms quickly.
- Yellow (Left Turn/Brake): Handles left-side signals and braking. If combined with a reverse light function, expect a dual-purpose output–check vehicle specs before combining circuits.
- Blue (Electric Brakes): Links to brake controller output. Voltage varies by controller–typically 0-12V PWM. Test with an oscilloscope or dedicated brake tester. Bare minimum 10AWG wire gauge prevents voltage drop.
- Black (Auxiliary Power/Battery): Supplies 12V+ direct from the vehicle’s battery or fuse box. Fuse within 7 inches of the power source–use a 20A-30A fuse depending on load. Avoid overloading–most systems support 7-10A continuous draw.
For dual-function circuits (e.g., brake/turn signals), use a diode isolation kit. Common anode diodes prevent feedback loops–install per manufacturer directions. Without isolation, signals bleed between circuits, causing false activation.
Testing and Validation
After wiring, test each function sequentially:
- Activate running lamps–verify all side/taillights illuminate evenly.
- Toggle left/right turn signals–check for proper blinking and brake light override.
- Engage brakes–confirm both tail lights brighten. If equipped, test reverse lights.
- Trigger brake controller–measure voltage at the plug (should modulate smoothly).
- Apply auxiliary power–ensure no voltage drop under load.
Use a circuit tester for pinpoint accuracy. If issues persist, trace each wire from plug to source–common faults include crushed cables or poor grounds.
Common Pitfalls and Fixes
Avoid these errors to prevent malfunctions:
- Skipping diode isolation: Causes merged signals (e.g., turn signals flashing during braking).
- Undersized wire gauge: Black/blue wires require 10AWG minimum–thinner wires overheat.
- Corroded connections: Clean terminals with wire brush, apply anti-corrosion paste.
- Reversed polarity: Brown/white or black/white mix-ups blow fuses instantly.
For vehicles with factory tow packages, pre-wired harnesses may include additional pins (e.g., 8th pin for backup cam). Consult OEM schematics before modifying.
Essential Gear for Connecting Your Heavy-Duty Plug Setup
Begin with a circuit tester–a multimeter with a 12V DC setting or a dedicated voltage probe rated for automotive use. This tool verifies live connections, grounds, and ensures no shorts exist before powering the system. Without it, troubleshooting becomes guesswork.
Gather crimping pliers designed for insulated terminals. Standard wire cutters won’t suffice; look for ratcheting models with interchangeable dies. Pro models include built-in wire strippers and bolt cutters for larger gauge cables. Brands like Knipex or Klein Tools offer durability.
- Heat-shrink tubing (polyolefin, 2:1 or 3:1 shrink ratio) in diameters matching your cables–typically 3/16″ to 1/4″ for standard harnesses. Avoid adhesive-lined variants unless sealing against moisture is critical.
- Butt connectors (non-insulated or heat-shrink) sized for 12–10 AWG wire. Use gold-plated copper for corrosion resistance in marine or off-road environments.
- Ring and spade terminals for chassis grounds–choose tin-plated steel for steel mounts, stainless for aluminum.
A wire gauge (AWG) chart is non-negotiable. Mismatched cables cause voltage drops; for example, 10 AWG copper wire supports 30 amps over 10 feet, while 14 AWG drops to 15 amps. Carry a printed reference to avoid errors.
For cutting, use scissor-style cable shears with compound leverage. Diagonal cutters crush strands, while sharp shears cleanly slice even 6 AWG wire. Test the blades on scrap before committing to cuts on your harness.
- Obtain a terminal disconnect tool for existing connectors. Automotive-grade kits include forked and hooked probes for locked tabs, preventing damage to plastic housings.
- Store hardware in a divided organizer–separate screws, nuts, and terminals by size. Magnetic trays help secure tiny parts like #10 self-tapping screws or M5 nuts.
- Keep electrical tape (PVC, 1.5 mil thickness) for temporary insulation, but prioritize heat-shrink for permanent installs. Vinyl tape degrades under UV exposure.
For rust-prone connections, apply dielectric grease or anti-oxidant paste. CRC or Permatex formulations resist water washout at -40°C to 200°C. A thin film on pins prevents corrosion without impeding conductivity.
Finally, secure cables with Nylon zip ties (UV-stabilized, 6″–12″ lengths). Avoid metal ties–they chafe insulation over time. For vibration-heavy applications, pair ties with adhesive-mount tie bases to prevent movement.
