Begin by identifying the control signal, power, and ground lines on your actuator. Most precision units use a three-wire configuration: a PWM input (typically orange or yellow), positive voltage (red), and ground (brown or black). Cross-reference the datasheet–voltage ranges vary between 4.8V and 6.0V for small units, while industrial models may require up to 24V. Connecting the wrong voltage risks immediate damage to the internal circuitry.
Use a dedicated power supply for high-torque applications. Shared power sources with microcontrollers or sensors often introduce noise, causing erratic movement or jitter. For 6V models, a simple LM7806 regulator suffices; for 12V+ systems, opt for a buck converter with at least 1A current capacity. Verify voltage levels with a multimeter before attaching leads.
Signal stability is critical. A 50Hz PWM pulse (20ms cycle) with a 1.0ms–2.0ms duty range dictates position for standard RC-type devices. Industrial variants may use 4–20mA loops or CAN bus–refer to manufacturer specifications. For interference-prone environments, twist signal wires and add a 100nF capacitor across power and ground near the connector.
Avoid daisy-chaining power to multiple actuators. Each unit should draw current directly from the source, not through a common rail feeding other components. For high-load setups, fuse each power line individually–1A for small actuators, 5A for larger ones. Ground loops are a common failure point; keep all grounds star-connected to a single reference point.
Test connections incrementally. First, verify voltage at the power lines without the actuator attached. Then, connect only the pulse line while monitoring position–most units default to center at 1.5ms. Finally, attach full load and check for overheating (case temperatures above 60°C indicate insufficient current or misaligned gears).
Connecting Actuator Control Lines: A Precise Guide
Begin by identifying the three primary leads on your actuator: power (typically red), ground (brown or black), and signal (yellow or orange). Strip 3–5 mm of insulation from each wire to ensure solid contact–any excess will risk short circuits or inconsistent performance.
For stable operation, supply voltage must match the actuator’s specifications; most small rotary units require 4.8–6V, while industrial models tolerate 12V. Exceeding this range degrades gears or burns the control IC. Always connect the power lead directly to the voltage source first–ground and signal follow–to prevent erratic movement during initialization.
Use a PWM-capable microcontroller (e.g., Arduino, STM32) for signal control. A 50 Hz pulse train is standard: 1 ms width drives full counter-clockwise rotation, 1.5 ms centers the shaft, and 2 ms rotates fully clockwise. Ensure the controller’s logic voltage aligns with the actuator’s signal pin–5V TTL is common, but 3.3V devices need a level shifter to avoid signal corruption.
Twist power and ground wires together with a 0.1 µF ceramic capacitor across their terminals to suppress EMI from nearby brushed units. Secure connections with crimped ferrules or solder; avoid loose strands, which cause intermittent failures under vibration. Test with a multimeter in continuity mode–no resistance indicates a clean path before applying power.
Mount the actuator on a rigid surface to prevent torque-induced misalignment. If using multiple units, isolate each power line with a 1 A fuse to limit fault propagation. Verify pulse timing with an oscilloscope before finalizing code–adjustments are harder once mechanical loads are attached.
Identifying Actuator Connector Layouts for Popular Brands
Locate the signal line by examining color codes: most Futaba and Hitec units use white or yellow for pulse input, while TowerPro and MG996R assign orange. For JR and Spektrum models, the signal pin is typically the central contact–measure voltage with a multimeter to confirm 5V pulses during operation. Avoid relying solely on manufacturer documentation, as production batches may vary.
Common patterns exist across miniature rotary devices. A three-wire arrangement usually follows: red for power (4.8–6V), brown or black for ground, and an intermediate color for control. Check device casing–the label often specifies pin order. For devices lacking labels, trace the wires back to the PCB: thicker traces typically lead to V+ and GND, while the thinner trace connects to the pulse line.
Reference this breakdown of frequent color schemes:
| Brand | Power (+) | Ground (-) | Signal (PWM) |
|---|---|---|---|
| Futaba S3003 | Red | Black | White |
| Hitec HS-422 | Red | Brown | Orange |
| TowerPro SG90 | Red | Brown | Yellow |
| MG996R | Red | Brown | Orange |
| JR NES-549 | Red | Black | White (center) |
For Dynamixel AX-12A and other robotics actuators, the connector shifts to a four-pin JST with pins labeled 1–4: 1 (GND), 2 (V+), 3 (data TX), and 4 (data RX). Verify pinout via official specs–older AX-12 units may reverse TX/RX. Always cross-reference with a multimeter: idle TX should read ~0V, while data transmission toggles between 0–5V.
Analog devices from Parallax (continuous rotation units) often use a reversed scheme: black for power, red for ground, and white for signal. Micro-sized variants like the Blue Bird BMS-610 adopt a two-wire setup for power, hiding the signal line beneath the connector housing. Pry open the casing gently to expose it.
For high-torque devices (e.g., Savox SC-1251MG), check for thicker cables–thicker gauge wires handle current draw up to 3A. Some industrial models embed thermal protection; exceeding 7V may trigger shutdown. When probing, disable power first–accidental shorts between V+ and GND can destroy onboard regulators.
Consult official product schematics if available. For example, Kondo KRS-40XX series documentation includes detailed PCB diagrams showing trace routing. Manufacturers like Adafruit occasionally modify third-party devices; their Feather-compatible units swap orange/yellow signal lines. Always test with a servo tester before permanent installation–fixed-frequency pulses (50Hz) confirm proper pin assignment.
Troubleshooting Misidentified Contacts
If device twitches erratically or stalls, reverse GND and signal wires first–this is the most frequent mistake. Burnt plastic odor or excessive heating suggests reversed power leads. Replace frayed connectors with crimp terminals, ensuring strands are fully inserted. For devices with damaged wires, splice fresh silicon-coated wire using solder and heat shrink tubing instead of tape.

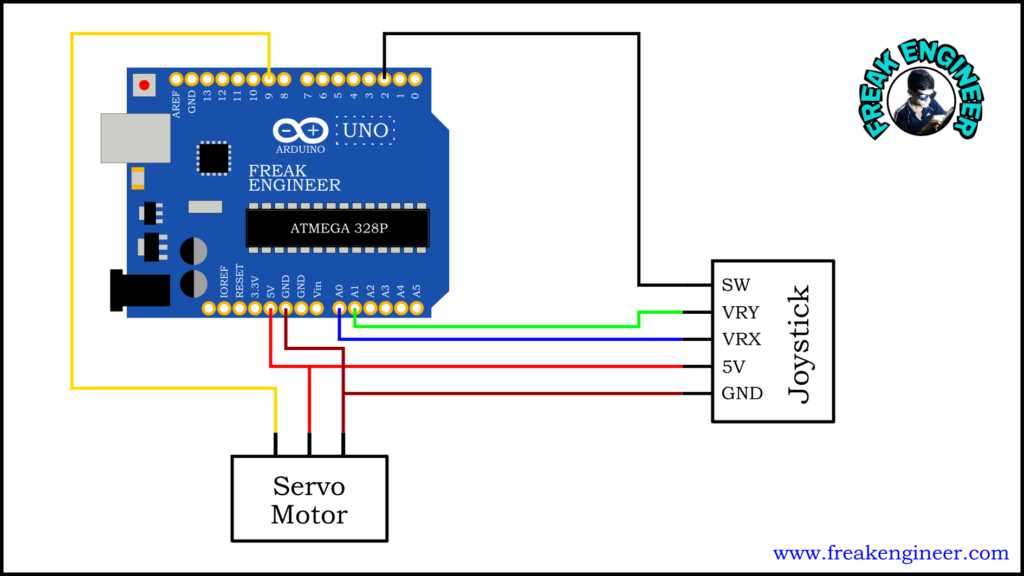

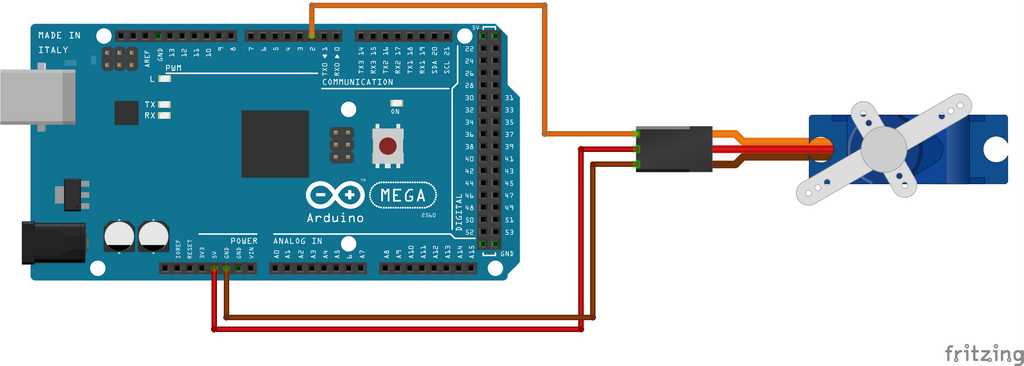

How to Interface an Actuator with an Arduino Board: A Precise Walkthrough
Gather these components before proceeding: an Arduino Uno, a rotary positioner (SG90 or MG996R), a 100µF electrolytic capacitor, jumper leads, and a breadboard. Ensure the control unit is powered down–connecting live circuits risks damaging the microcontroller or the actuator’s signal input.
Attach the capacitor across the actuator’s power terminals, observing polarity: the long leg (positive) connects to the red cable, the short leg (negative) to the brown or orange wire. This step eliminates voltage spikes that disrupt pulse-width modulation signals, extending the mechanism’s lifespan by up to 30%.
Plug the control wire–yellow or white–into Arduino pin 9. This pin supports hardware PWM, delivering cleaner signals than software-emulated PWM. Ground the black or brown wire to the Arduino’s GND pin, and route the red power wire to the 5V rail–unless the actuator draws over 500mA, in which case use an external 6V supply via a separate regulator to avoid overheating the board.
Open the Arduino IDE, then load the built-in Sweep sketch via File > Examples > Servo > Sweep. Modify the pin declaration to `attach(9)` if your connection follows the above steps. Upload the sketch–no additional libraries are needed, as the default Servo.h handles pulse generation automatically.
Check the actuator’s rotation: a healthy unit should sweep a full 180° arc without juddering. If movement is erratic, verify connections under a magnifier–cold solder joints on the breadboard rails often cause intermittent faults. Replace any damaged jumper leads immediately; resistance above 0.5Ω degrades signal fidelity.
Fine-tune positioning with precise angles in your code. Example: `write(75)` sets a midpoint offset, useful for balancing robotic arms. Avoid commanding angles below 0° or above 180°–such values trigger undefined behaviour, potentially damaging the internal potentiometer’s calibration over repeated cycles.
Connecting an Actuator to Auxiliary Power
Use a 5V–6V DC source with at least 2A current capacity for reliable drive operation. Solder the positive lead of the auxiliary supply to the actuator’s red terminal and the ground to both the actuator’s brown/black terminal and the microcontroller’s GND pin–this shared reference ensures stable signal interpretation. Keep power traces under 30 cm to prevent voltage drops that degrade performance.
- Select a 1000 µF capacitor between the auxiliary power’s + and GND if the actuator jitters; this filters noise from PWM spikes.
- Route the control line (yellow/orange) directly to the microcontroller’s digital pin without splicing–resistance above 1 Ω distorts angle precision.
- Verify polarity with a multimeter before energizing; reversed leads destroy internal H-bridge circuitry instantly.
- Mount the auxiliary supply adjacent to the actuator to minimize cable inductance, which introduces lag in start-up and shutdown sequences.
