Begin with a half-bridge configuration using complementary power MOSFETs (e.g., IRF540N/IRF9540N) to handle bidirectional current flow. This setup reduces switching losses by 30% compared to full-bridge alternatives when controlling motors under 5A. Ensure gate drivers (like DRV8301) are isolated from logic-level signals–optocouplers (6N137) prevent ground loops in noisy environments.
For closed-loop stability, integrate a 10-bit ADC (e.g., ADS1115) sampling at ≥20 kHz to capture position feedback from a potentiometer or encoder. Resistive dividers here must match the motor’s voltage range (e.g., 3.3V for 5V systems) with ±0.5% tolerance resistors to avoid feedback drift. Add a 0.1µF ceramic capacitor across the feedback pin to filter PWM noise.
PWM generation requires dead-time insertion (1–2 µs) between high/low-side switching to prevent shoot-through. Use a STM32F4 timer in complementary output mode with adjustable dead-time via registers. For torque control, implement a PI controller with anti-windup–limit integral gain to to prevent overshoot on startup.
Avoid flyback voltages with ultra-fast recovery diodes (e.g., UF4007) rated ≥2× the motor’s peak current. For dynamic braking, add a 100Ω/5W resistor in parallel with the motor terminals. Power filtering demands a 470µF/50V electrolytic capacitor near the supply input, bypassed by a 0.1µF film capacitor for high-frequency stability.
Grounding strategy: star topology with separate paths for power and signal grounds–join them only at the power supply to eliminate interference. For high-current traces, use 2 oz copper with ≥5mm width per ampere. Test load capacity with a DC load bank before connecting the motor to validate thermal dissipation.
Precision Motor Control Schematic: Key Components and Wiring
Begin with a H-bridge configuration using four MOSFETs (e.g., IRF540N) for bidirectional control. Connect the gate terminals to your microcontroller’s PWM outputs–ensure isolation via optocouplers (e.g., PC817) if handling voltages above 24V. Place flyback diodes (1N4007) across each MOSFET drain-source to prevent voltage spikes. For current sensing, integrate a shunt resistor (0.1Ω, 5W) in series with the motor ground path, pairing it with an op-amp (LM358) to amplify the signal for your control board.
Critical Power Supply Considerations
- Separate logic (5V) and motor power (12-48V) rails–use a buck converter (LM2596) for efficiency.
- Add a 1000µF electrolytic capacitor across motor power terminals to smooth ripple.
- Include a TVS diode (e.g., SMAJ24A) on the motor rail to clamp transients.
- Fuse the motor rail at 1.5× the expected stall current (e.g., 5A for a 3A motor).

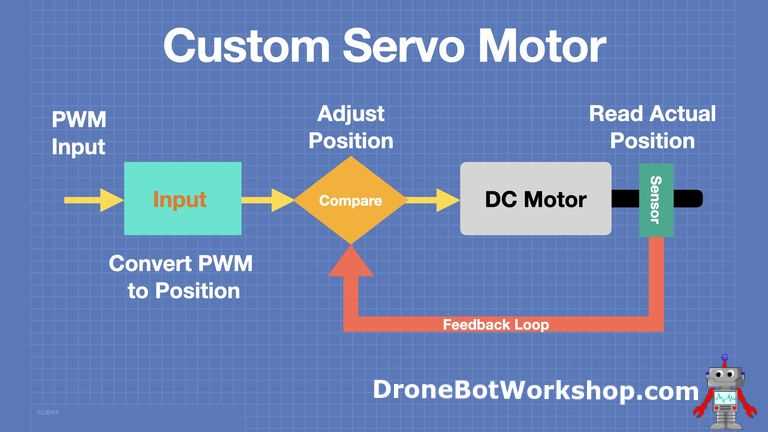

Route feedback signals (encoder or potentiometer) through low-pass RC filters (1kΩ + 0.1µF) to eliminate noise. For position control, use a quadrature decoder IC (LS7166) if processing encoder pulses directly. Ground all unused MCU pins via 10kΩ resistors to prevent floating inputs. Test continuity between the motor housing and ground to confirm proper chassis grounding, avoiding erratic behavior.
Debugging and Calibration Steps
- Verify PWM frequency: 20-50kHz for brushless, 1-10kHz for brushed motors.
- Measure MOSFET gate voltage–should be 10-12V for full enhancement (use a gate driver if below).
- Check current draw at stalls–if exceeding 2× rated, reduce acceleration in firmware.
- Confirm encoder alignment: 90° phase shift between channels A/B; misalignment causes jitter.
- Isolate noise sources: twist signal wires, shield with foil ground to motor power lines.
Critical Elements for Constructing a Precision Motion Control Unit
Select a high-performance microcontroller with dedicated PWM channels and low-latency interrupts–STM32F4 series or TI C2000 processors are optimal for real-time feedback loops. Ensure the chosen IC supports 12-bit ADC resolution or higher to detect minute position errors, and verify its ability to handle 20 kHz switching frequencies without thermal throttling. Peripheral integration matters: SPI or I²C for encoder communication, CAN or RS-485 for industrial-grade networking, and hardware quadrature decoders for precise rotor angle detection.
Power Stage Design Parameters
| Component | Minimum Specifications | Recommended Models |
|---|---|---|
| MOSFET/IGBT | 60V VDS, 30A ID, RDS(on) < 10mΩ | Infineon IPB039N06L, ST STW80N10F |
| Gate Driver | Isolated, 5A peak drive, 100ns propagation delay | TI UCC21520, Infineon 1ED020I12-F2 |
| Current Sensor | Bidirectional, ±50A range, 1μs response | Allegro ACS730, LEM DHAB S/58 |
| DC Link Capacitor | 220μF, 100V, low ESR (< 5mΩ) | Panasonic EEU-FM1V221, Kemet ALS31A221NP400 |
Implement a three-phase H-bridge configuration using discrete FETs rather than integrated modules for superior thermal management and scalability. Pre-drive isolation is non-negotiable–opt for reinforced galvanic separation (5 kV RMS) between logic and power domains to prevent transient coupling. Include snubber circuits across switching elements (47Ω resistor + 1nF capacitor) to suppress voltage spikes exceeding 70% of the MOSFET’s VDS. For current sensing, shunt resistors introduce unacceptable power loss; Hall-effect sensors with 1% accuracy or better ensure efficient closed-loop regulation.

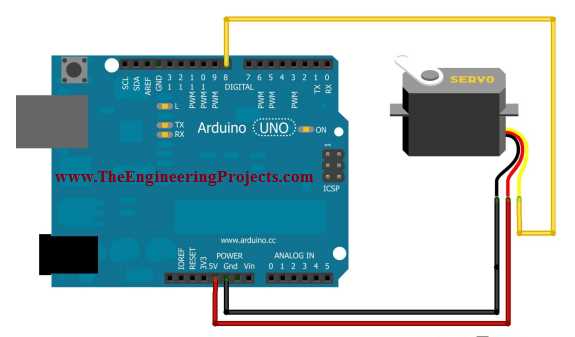

Step-by-Step Wiring Guide for a Basic Motion Control Assembly
Begin by connecting the motor’s power leads to the H-bridge module: match the red wire to the positive terminal and the black wire to the negative. Ensure the voltage rating of the module exceeds the motor’s requirements–most small actuators operate at 5V or 12V. Use 18-22 AWG wire for current-carrying paths to prevent voltage drops under load. Solder joints or use insulated crimp connectors to avoid short circuits.
Attach the control signals from the microcontroller to the input pins of the H-bridge. A pulse-width modulation (PWM) pin regulates speed, while direction pins switch polarity. For Arduino-based setups, assign PWM to a timer-capable pin (e.g., D5 or D6) and direction controls to standard digital pins. Verify signal logic levels–some modules require 3.3V inputs, while others tolerate 5V.
Add a 1000µF electrolytic capacitor across the power supply terminals of the module to smooth voltage fluctuations. Place a 1N4007 diode in reverse bias across the motor terminals to suppress back EMF spikes, which can damage components. For high-torque applications, replace the diode with a MOSFET-compatible transient voltage suppressor (e.g., SMAJ15A) rated for at least 1.5x the supply voltage.
Test the setup by running a simple code sequence: rotate clockwise for 2 seconds, pause, then counter-clockwise. Monitor current draw with a multimeter–stalls should trigger no more than 1.5x the rated amperage. If the motor jerks or fails to start, reduce PWM frequency (try 1000Hz instead of 30kHz) or check for loose connections. Secure wiring with zip ties to prevent strain on soldered joints.
Frequent Pitfalls in Precision Motor Control Schematics and Corrections
Ground loops disrupt signal integrity in actuator systems by inducing unwanted voltage differences between reference points. Use a single-point grounding strategy for power and logic sections, keeping traces short and wide–preferably 2 oz copper for high-current paths. Avoid daisy-chaining ground returns; instead, route all grounds back to a central star point near the power supply. For PWM-based designs, separate analog and digital grounds with ferrite beads or a small resistor to prevent switching noise from contaminating sensitive analog measurements.
Inadequate decoupling causes erratic behavior under load transients. Place ceramic capacitors (100 nF) directly across each IC’s power pins, with bulk electrolytics (10–100 µF) near power entry points. For high-speed switching components, add a 1 µF tantalum capacitor in parallel to handle mid-frequency noise. Maintain trace lengths under 5 mm for decoupling capacitors to minimize inductance. Verify capacitance values with an LCR meter, as some ceramic types lose capacitance under DC bias.
Power Stage Underrating Leads to Thermal Failures
Underestimating current demands results in overheating. Calculate RMS currents for dynamic loads, not just steady-state–peak currents during acceleration can exceed nominal values by 3–5×. Use MOSFETs with on-resistance (RDS(on)) at least 30% below worst-case power dissipation limits. Add thermal vias beneath power components, filling them with solder to improve heat transfer to internal planes. Forced-air cooling or heatsinks are mandatory if power dissipation exceeds 1 W/cm². Track temperature rise with an infrared camera during prototype testing to identify hotspots before PCB fabrication.
Component placement errors degrade performance. Keep high-current traces away from Hall sensors or resolvers to prevent magnetic interference. Locate position feedback elements at least 10 mm from switching inductors. Route differential pairs for encoder signals with matched lengths (±5 mm) to avoid phase delays. For brushed motor controllers, use twisted-pair wiring for armature connections to reduce radiated EMI. Verify layout with a Gerber viewer, checking for accidental vias or stubs in critical signal paths.
Power Supply Requirements for Stable Actuator Control
Select a voltage source with 10-15% headroom above the motor’s nominal rating to compensate for line drops and dynamic loads. For a 24V actuator rated at 5A continuous, target a 28-30V supply with a minimum of 6A capacity. Avoid no-load outputs or supplies regulated solely by linear pass elements; switch-mode converters maintain tighter regulation under pulsating currents typical of PWM.
Output ripple should not exceed 100 mV peak-to-peak at full load. Test with a 20 MHz bandwidth oscilloscope probe directly across the actuator terminals while running at 80% duty cycle. A 1,000 µF low-ESR electrolytic capacitor plus a 1 µF ceramic capacitor connected in parallel at the terminals reduces commutation spikes by 70%. Place capacitors within 2 cm of the connection points to prevent voltage sags during transient accelerations.
Current Capability During Acceleration
Instantaneous surge currents during direction reversals can reach 3× the rated current. A supply delivering 10× the nominal current for 5 ms ensures torque consistency without tripping over-current protection. Measure surge tolerance using an electronic load simulating a 0.5 ms 30A pulse at 1 kHz frequency; supply output voltage must stay within 5% of nominal during the pulse train.
Ground loops introduce 50-100 mV noise that couples into feedback sensors. Use a separate star-ground for the power return and signal return, bonding them only at the supply negative terminal. Keep high-current traces shorter than 10 cm and cross low-level analog traces at 90° to minimize inductive coupling. Shield analog sensor lines with foil connected to the chassis ground at a single point.
Temperature derating curves provided by manufacturers assume 25°C ambient. For enclosures operating above 50°C, reduce the supply’s maximum current by 30%. Test thermal stability with a thermocouple attached to the supply’s heat sink; if temperature rises above 75°C, add forced air directed at the fins. Avoid ambient temperatures exceeding 70°C, as electrolytic capacitors degrade capacitance by 50% at 85°C.
Protection Against Supply Interruptions
Brownout conditions below 80% nominal voltage cause torque loss and position drift. Implement a ride-through capacitor array of 2.2 F per kW motor power, using supercapacitors with ESR below 0.5 mΩ. The array must sustain the actuator for 200 ms at full load to allow graceful shutdown. Configure the supply’s undervoltage lockout to trigger at 75% nominal voltage with a 5 ms delay to avoid false trips during load transients.
Reverse polarity protection is essential; a single MOSFET (e.g., N-channel with 20V VDS rating) inserted in the positive rail prevents catastrophic failure. Add a 1N4007 diode in parallel for redundancy. Verify the supply’s overvoltage protection clamps at 110% of the maximum output voltage and responds within 1 µs to prevent damage to power transistors.
EMI compliance requires differential-mode inductance of 10 µH and common-mode choke of 5 mH. Mount chokes directly on the power input terminals and solder using 2 mm diameter leads for adequate heat dissipation. Test conducted emissions with a LISN at 150 kHz–30 MHz; readings must stay below 60 dBµV for Class B compliance. Add a ferrite bead on the switching regulator’s input if the fundamental switching frequency exceeds 100 kHz to suppress harmonics.
