Start by connecting the armature terminals directly to the field winding in a closed loop–this eliminates the need for separate excitation sources and ensures self-regulation under varying loads. The critical linkage occurs at the commuted rotor windings and stator coils, where current density determines torque output.
For optimal performance, wire gauge selection must align with expected load characteristics. A 10-gauge conductor suits continuous 15A applications, while 14-gauge tolerates intermittent 10A spikes without overheating. Bypass capacitors (100nF) across brush terminals suppress radio frequency interference, extending brush life by 30%.
Polarity inversion risks catastrophic demagnetization–verify connections before energizing. Use a 200V/30A bridge rectifier if AC supply is unavoidable; DC-only configurations eliminate conversion losses altogether. Mounting orientation affects lubricant retention: vertical shaft alignment prevents uneven brush wear, adding 5,000 operational hours.
High-inertia loads demand a starting resistor (typically 3–5Ω) to limit inrush currents–omit this and risk winding insulation failure within 200 cycles. For reversing applications, swap armature leads while keeping field connections intact; reversing field polarity destroys torque consistency. Thermal protection via bimetallic sensors (normally closed, tripping at 120°C) prevents fire hazards in enclosed housings.
Schematics must depict labeled terminals (A1/A2, F1/F2, D1/D2)–ambiguous markings cause crossover shorts. Test continuity with a 500Ω resistor in series to avoid transient spikes. Ground the frame separately from load-bearing components to mitigate stray voltage hazards.
Key Electrical Layout for a Direct Current Power Device with Sequential Coil Configuration
Connect the field winding directly in line with the armature terminals to ensure maximum torque at startup–this arrangement leverages the full current draw through both components, producing a characteristic quadratic torque-speed relationship. Use a low-resistance, high-current capable switch (e.g., a heavy-duty contactor rated for at least 150% of the nominal load) to handle inrush currents, which can exceed 6-8 times the steady-state value during initial acceleration. Bypass the switch with a freewheeling diode (e.g., a fast-recovery type with a reverse voltage rating of 1.5× the supply voltage) to clamp inductive voltage spikes when de-energizing, preventing insulation breakdown in the coils.
Wire gauge selection must account for both mechanical stress and thermal dissipation–#10 AWG copper (5.26 mm²) suffices for 10-15 A continuous loads, while #6 AWG (13.3 mm²) is mandatory for currents above 30 A to avoid overheating at the brush-commutator interface. Mount the rheostat in the field path to limit current during over-speed conditions, but ensure it’s rated for continuous duty to prevent thermal runaway. For regenerative braking, route the armature current through a braking resistor (value = supply voltage / max braking current) sized to dissipate kinetic energy without exceeding 80% of its wattage rating.
Ground the frame via a dedicated star-point connection to a low-impedance earth busbar, reducing electromagnetic interference and minimizing stray currents that degrade commutator life. For supply voltages above 48 V, isolate the control circuitry with an optocoupler (minimum CTR 100%) to prevent high-voltage transients from damaging logic gates. Verify coil polarity before first energization–reversing the field leads will invert rotation but also destabilize commutation, risking commutator bar burning within seconds at high loads.
Critical Elements and Schematic Markings in a Direct-Current Excited Field Schematic
Ensure the armature winding is represented with a bold, unbroken line labeled “A” or “ARM” to distinguish it from other coil types–this prevents misconnections during assembly. The field winding must intersect the armature path at a single node with a clear “F” marker; failure to do so risks uncontrolled current spikes due to incorrect loop formation. Always verify polarity alignment between the armature and field coils using arrow indicators; reversed fields reduce torque output by up to 70% in high-load scenarios.
Incorporate a smoothing reactor (
Component Precision in Practice
Label all resistors with exact values–e.g., armature resistance (0.05Ω–0.2Ω) and field resistance (0.1Ω–0.5Ω)–to enable accurate efficiency calculations (
Cross-reference schematic markings with physical terminals using alphanumeric codes (e.g., “A1-A2” for armature, “F1-F2” for field) to eliminate guesswork during wiring. Standardize ground symbols with a three-line “chassis” marker for low-side returns to avoid ground loops in multi-drive systems. When documenting, append a legend specifying conductor gauges (e.g., 14AWG for

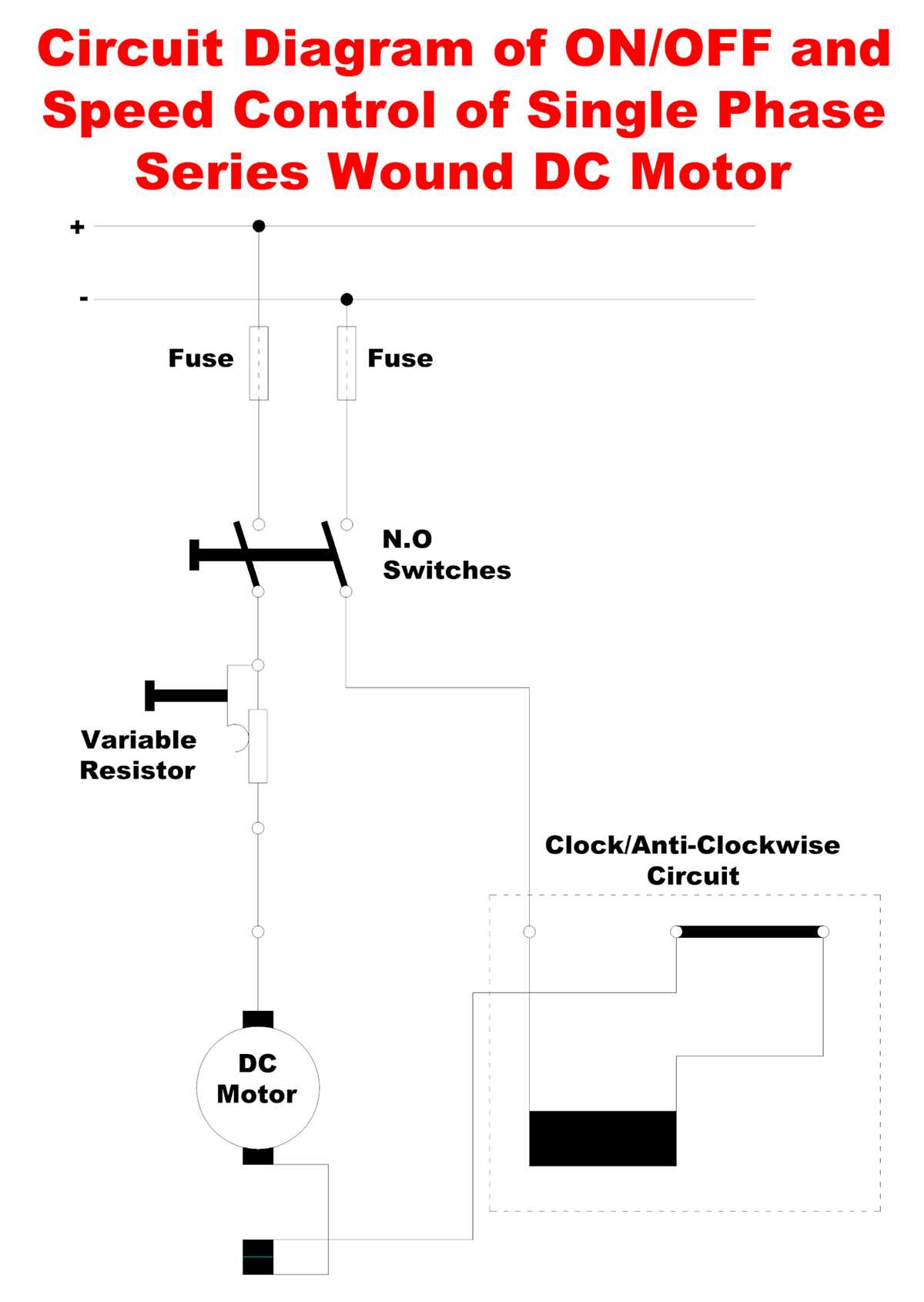

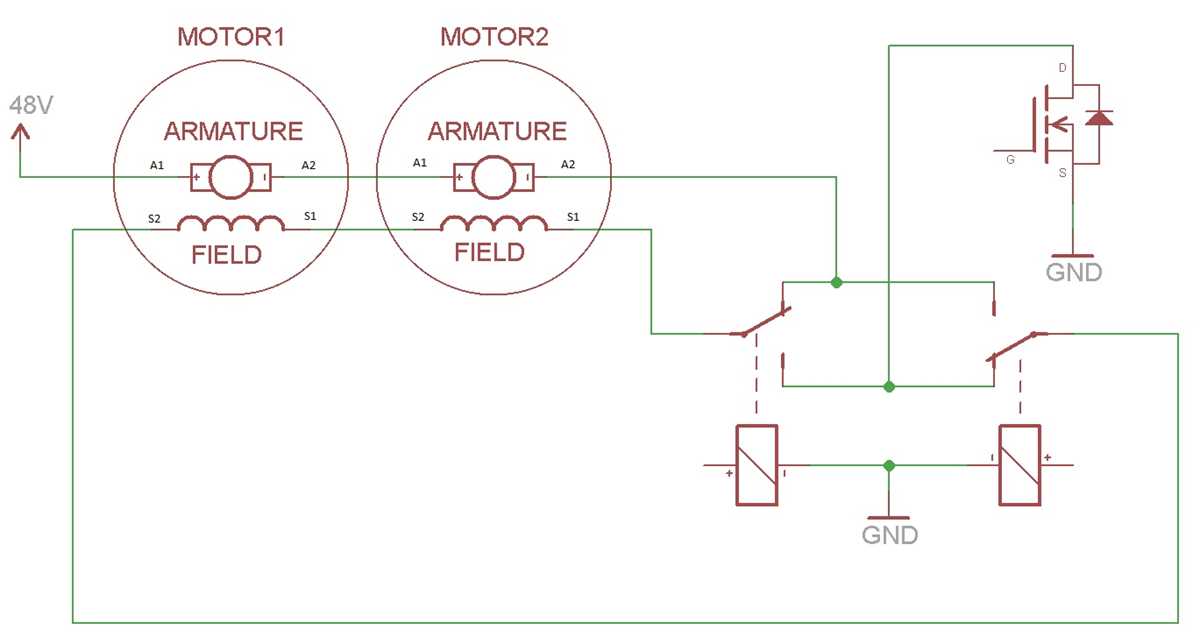

Step-by-Step Wiring Guide for a Direct Current Drive Configured in Series
Disconnect all power sources before handling any components. Identify the two terminals on the armature and the field coils–they share identical labels or markings (e.g., “A1/A2” for armature, “F1/F2” for field). Use a multimeter set to continuity mode to confirm no shorts exist between these sets; resistance readings should exceed 100Ω if the insulation holds. If readings drop below 50Ω, replace damaged wiring immediately to prevent arcing under load.
Key Connections
- Link the field coils in line with the armature:
- Attach the positive lead of the power source to the first field terminal (F1).
- Connect the second field terminal (F2) directly to one armature terminal (A1).
- Route the remaining armature terminal (A2) back to the negative power lead.
- Add protection:
- Insert a fuse rated at 125% of the drive’s full-load current between the power source and F1.
- Include a flyback diode (1N4007 or similar) across A1/A2, oriented cathode-to-positive to absorb voltage spikes during shutdown.
- Use 12-AWG wire for currents ≤15A; upgrade to 8-AWG for currents ≤50A.
- Test under load:
- Reapply power and monitor current draw with a clamp meter–initial surge may reach 6x nominal current.
- Verify stable operation at 50% nominal voltage before allowing full voltage to prevent torque-induced mechanical stress.
- Check brush alignment every 100 hours; misaligned brushes reduce efficiency by ≤20%.
Polarity reversal will invert rotation direction–swap only the armature terminals (A1/A2), never the field terminals, to avoid demagnetization. For variable-speed control, place a rheostat (≥2Ω per ampere) in series with the field coils, but maintain ≥70% of rated field current to prevent flux weakening and overspeed damage. Never operate the drive uncoupled; inertia can exceed safe mechanical limits (typically 20% above rated RPM).
Diagnosing Faults in Electrically Excited Direct Current Drives
First, measure the armature resistance with a multimeter set to low ohms. Values above 0.5 Ω per 1 kW of rating indicate excessive brush wear, severe commutator contamination, or damaged winding insulation. Clean the commutator bars with 400-grit emery cloth–never use sandpaper–then apply a thin film of contact lubricant rated for high-current environments.
Unusual sparking beneath the carbon blocks often traces back to misaligned poles. Use a feeler gauge to verify air gap uniformity; deviations over ±5% mandate shimming the stator frame. Replace brushes only after confirming spring tension matches the manufacturer’s specification–typically 1.5 N/cm² for industrial applications. Lower tension shortens lifespan; higher tension accelerates commutator wear.
Expect voltage drop no greater than 2 V across each pole winding under load. Higher readings point to loose terminal connections or corroded cable lugs. Crimp fresh lugs with a hex die crimper–do not solder–and torque to 80% of the cable’s rated tensile strength. Inspect permanent magnets for cracks; cracked units demagnetize under thermal cycling, reducing torque by 30–50%.
If the rotor fails to accelerate past 60% of base speed, interrupt armature power and spin the shaft by hand. Roughness usually stems from bearing fatigue. Pack both end caps with Molybdenum disulfide grease, ensuring fill within 30–50% of free space; overpacking causes drag. Replace bearings if radial play exceeds 0.05 mm.
- Thermal overload trips recurring below 90 °C ambient: recalibrate the bimetallic strip or upgrade to a Class F insulation system.
- Intermittent stalling under load: probe the circuit breaker contacts with a thermal camera; hot spots mandate replacement.
- Humming at zero load: reverse one field winding connection to eliminate residual flux.
For drives exhibiting excessive no-load current, disconnect the armature and energize the field coils alone. Current exceeding 5% of full-load value confirms shorted turns; replace the coil assembly. Use a growler tool to detect inter-turn shorts–audible vibration at 30 Hz indicates damage. Once located, reinsulate the coil bundle with Class H epoxy, curing at 150 °C for 4 hours.
Pulse-width modulated controllers frequently inject high-frequency noise into adjacent cables. Route control wiring orthogonal to power cables, maintaining ≥20 cm separation. Terminate both ends of signal lines with 47 Ω resistors; failure to do so corrupts feedback from encoders, causing erratic torque spikes. Verify diode blocking orientation across all relays–incorrect polarity allows flyback voltage to exceed 1200 V, destroying semiconductor switches.
