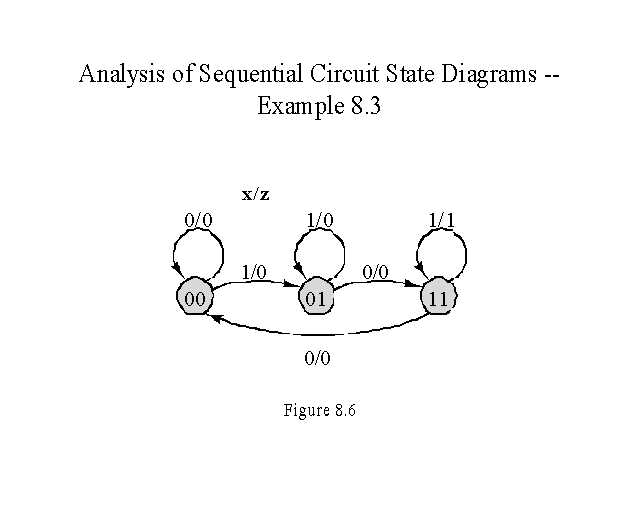

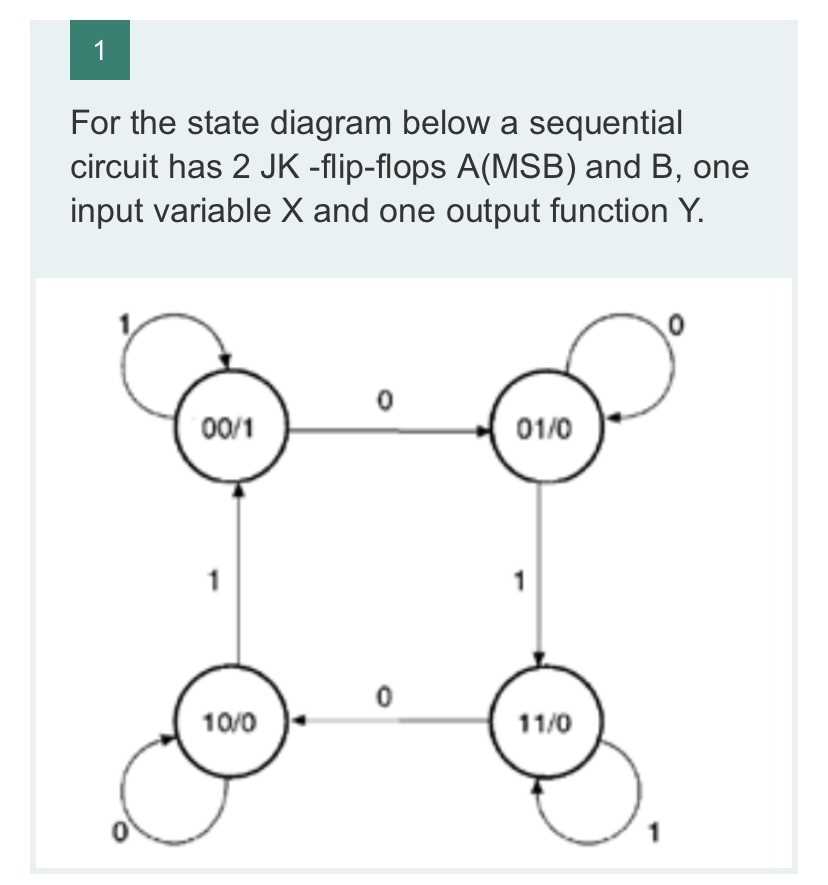

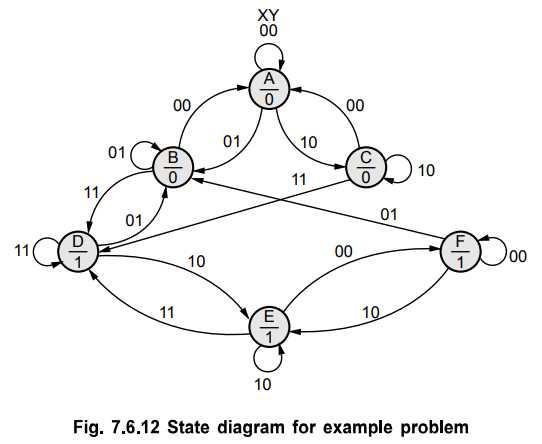

Start with a clear definition of transitions between logic conditions. Define each input combination that triggers a move from one operational mode to another and label these shifts with exact binary or symbolic values. Use Mealy notation if outputs depend on both current mode and inputs–prefix transitions with input/output pairs split by a slash. For Moore behavior, tie outputs directly to operational modes and annotate nodes instead.
Limit the model to 4–8 distinct modes. More granular divisions obscure control flow without improving clarity. Group logically related transitions into clusters and color-code paths sharing common inputs. Avoid redundant loops: if a cycle repeats the same input sequence, collapse it into a single self-transition annotated with timing constraints.
Test every path before finalizing. Inject transitions into a simulation tool and verify that each sequence produces expected outputs within one clock cycle. Trap unsupported input combinations by routing them to a dedicated “invalid” mode with a self-transition–preventing undefined behavior.
Minimize crossings when drawing flow lines. Arrange operational nodes in a clockwise circle for the default path and pull exceptions outward as radial branches. Reserve top-center positions for reset or initialization modes. Use arrows only when direction isn’t self-evident; straight lines imply no delay, zig-zags indicate conditional timing.
Annotate timing explicitly. Add rising-edge markers (↑) for clock-synchronized shifts, falling-edge markers (↓) for asynchronous triggers. Label worst-case propagation delays on critical transitions, rounding to the nearest 0.1 ns, and color these edges red if they risk violating setup/hold margins.
Designing Behavioral Flowcharts for Logic Systems
Start by defining all possible modes of operation before drawing transitions. List inputs, outputs, and internal conditions in a structured table to avoid missed branches. Example for a 3-bit counter:
| Mode | Input Combination | Next Mode | Output |
|---|---|---|---|
| S0 (reset) | reset=1 | S0 | 000 |
| S1 | clock=↑, enable=1 | S2 | 001 |
| S2 | clock=↑, enable=1 | S3 | 010 |
| S3 | clock=↑, enable=1 | S4 | 011 |
| S4 | clock=↑, enable=1 | S0 | 100 |
Label each arrow with precise trigger conditions: rising edges, level-sensitive signals, or combinational logic results. For clocked designs, use “CLK=↑” notation; for asynchronous signals, specify exact voltage thresholds (e.g., “SET=Vih”). Include Mealy outputs directly on transitions; Moore outputs within nodes.
Group related transitions into clusters using color coding or dashed boundaries. Use distinct colors for: power-on sequences, normal operation, error handling, and maintenance modes. Example palette:
- Green: operational paths
- Red: fault conditions
- Blue: initialization
- Gray: unused states

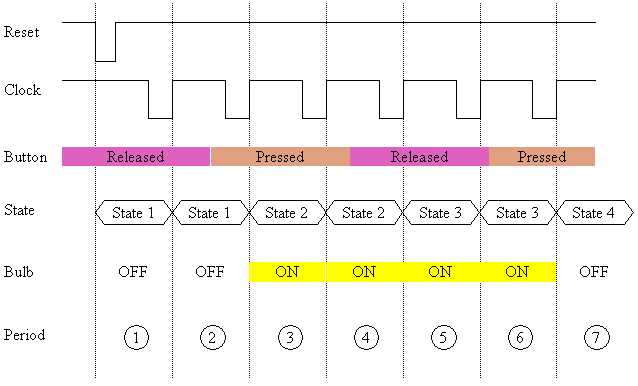

Simplify verification by adding probe points at every junction. Assign unique identifiers like P1, P2 to each branch, then cross-reference against timing diagrams and test vectors. Tool-based suggestions: Xilinx StateCAD auto-generates VHDL/Verilog from marked nodes; Sigasi highlights unconnected paths.
Optimization Rules for Compact Representations
Merge linear progressions where step outputs don’t affect branching logic. Example: three successive increments can collapse into one labeled “count++ (×3)” if outputs align. Eliminate redundant reset conditions by directing unused modes to a fallback node labeled “TRAP” with outputs matching safe defaults (e.g., high-impedance).
Avoid circular dependencies by ensuring each feedback loop contains at least one edge with a unique trigger condition. Implement priority encoders for conflicting transitions using weighted arrows – thicker lines denote higher precedence. Always terminate orphan branches with a self-loop displaying “ERROR: Invalid transition” to trap simulation mismatches.
Documentation Standards
Embed metadata directly in the chart: revision number, author, tool version, and target technology (e.g., “FPGA 7-series”). Include a legend mapping visual styles to signal types:
| Style | Signal Type | Example |
|---|---|---|
| Solid arrow | Clock edge | CLK=↑ |
| Dashed arrow | Combinational | start & !busy |
| Dotted arrow | Asynchronous | SET=Vih |
| Gray arrow | Disabled path | N/A |
Export final versions in both vector (SVG) and portable formats (JSON schema) for tool-independent archival. Validate topology by simulating worst-case paths (≥10 transitions) before synthesis.
Key Components of a Behavioral Flow Representation
Define explicit nodes for every operational mode your system can enter, ensuring no transitional or ambiguous cases remain. Each node must map directly to a determinable condition–label them with concise, actionable descriptors like “Idle,” “Loading,” or “Error_Timeout” rather than generic terms. Avoid combining unrelated deviations into a single node; split complex modes into sub-nodes to maintain clarity.
Arrows must reflect both control signals and timing dependencies with exact annotations. Specify triggers (e.g., “clk_rise && start_signal”), guard conditions (“buffer_not_full”), and outputs (“LED_on”) directly on transitions, separating them with semicolons. Use solid arrows for synchronous changes driven by clock edges and dashed arrows for asynchronous events like reset pulses or external interrupts. Annotate delay values where relevant (e.g., “after 2 clock cycles”).
Incorporate a dedicated reset mode reached via a dedicated input (e.g., “reset_pin = LOW”) that overrides all other transitions. This node should reset internal registers and clear pending outputs without relying on clock cycles. Avoid conditional resets–ensure the path from any node to this mode is unblockable by other conditions to prevent undefined behavior during initialization or faults.
For systems with hierarchical behavior, use nested representations: outer nodes represent coarse modes (e.g., “Active,” “Standby”) while inner nodes detail finer subdivisions (e.g., “Active: Transmitting,” “Active: Receiving”). Connect inner nodes exclusively to other inner nodes or their immediate outer parent; avoid cross-hierarchy jumps unless an explicit emergency path is required (e.g., sudden power loss).
Validate every path by tracing all possible input combinations through the graph–manually verify edge cases like glitches (e.g., “signal_toggle within setup time”) or simultaneous transitions. Identify and eliminate races by adding synchronization nodes if two events can trigger conflicting paths. Document forbidden transitions (e.g., “Mode_A → Mode_C prohibited except via Mode_B”) clearly adjacent to the relevant arrows.
Color-code nodes by functional groups (e.g., blue for operational states, red for error handling) and use consistent arrow styles (thickness increases with priority). Limit each node’s outgoing transitions to a maximum of three primary paths to prevent visual clutter; offload secondary decisions to sub-diagrams if necessary. Reserve bold outlines for nodes requiring manual intervention (e.g., “Debug_Halt”) to indicate testing or recovery entry points.
Step-by-Step Process to Draft a Behavioral Flow from a Decision Matrix
Start by listing every distinct condition combination from the input columns of the decision matrix, treating each row as a discrete scenario. Assign a unique identifier to each scenario–for example, S0, S1, etc.–based on output behavior. If the matrix includes clock dependencies, mark transitions between identifiers explicitly.
Group scenarios with identical outputs under a single identifier, even if inputs differ. For instance, if rows 2 and 5 produce the same next condition and output, merge them into one labeled node. Verify transitions: a scenario changing from A to B must be reflected as a directed arrow from node A to B.
For each node, define all possible transitions by scanning the decision matrix for corresponding input-output pairs. If the matrix includes don’t-care conditions, map them to the most logical next node–typically the one aligning with the default or reset behavior. Use arrows labeled with triggering inputs (e.g., X=1/Y=0) to clarify edge conditions.
Validate arrow consistency: every input combination must lead to exactly one next node, with no orphaned entries or ambiguous paths. If the matrix describes multiple outputs, annotate each arrow with the full output vector (e.g., [Q1, Q0]) to prevent confusion. Keep arrows uncluttered–use color coding or dashed lines only if clarity demands it.
Handling Clock-Driven Shifts
For time-dependent logic, isolate edges where the clock signal toggles. Treat these as forced transitions: from Current (e.g., C), the system must move to Next (e.g., N) regardless of other inputs. Annotate such edges with the clock trigger (e.g., CLK↑) alongside input conditions.
Review the drafted flow for loops or dead-ends–every node must have at least one incoming and one outgoing arrow. If the matrix includes asynchronous resets, ensure a dedicated arrow from each node points to the reset identifier, labeled RST=1. Simplify redundant paths: if M → N and N → P are inevitable, collapse M → P instead.
Finalize by testing edge cases: inject input sequences from the matrix to confirm the flow reproduces expected outputs. Adjust node labels to reflect their functional purpose (e.g., Idle, Count) if the original numbering obscures intent. Export the result in plain-text (DOT format) or graphical tools without altering the verified structure.
