Start with a transformer-based design rated for 50–60 Hz operation at your target voltage–typically 12V, 24V, or 48V–depending on load requirements. Use a dual-winding toroidal transformer with a 1:1 or custom turns ratio to ensure galvanic isolation; this eliminates ground loops and reduces electromagnetic interference. Verify core saturation limits (≥ 1.5T) to prevent overheating under continuous load. Add varistors across primary and secondary windings (MOV with clamping voltage 1.5× nominal) to suppress transient spikes from inductive loads or grid fluctuations.
Connect the secondary winding to a full-wave bridge rectifier using fast-recovery diodes (1N5408 or Schottky for low forward drop). Follow with a π-filter: two 470µF electrolytic capacitors on either side of a 10Ω series resistor or 1mH choke. This reduces ripple to low-dropout regulator (LM7812 for 12V output) with heatsink calculated for 3°W thermal dissipation per ampere.
Isolate feedback paths using optocouplers (PC817 for analog signals, HCPL-3120 for PWM) when interfacing with high-voltage systems. Include a thermal fuse (135°C) on the transformer core and a polyfuse (1.1× rated current) on the output to prevent overloads. Test insulation resistance between windings with a 500V megohmmeter; readings below 1MΩ indicate compromised isolation. Label all conductors per IEC 60445: brown (live), blue (neutral), green/yellow (protective earth).
For variable loads, add a soft-start circuit with an NTC thermistor (10Ω cold resistance) to limit inrush current. Use 18AWG stranded copper wire for currents ≤5A; upgrade to 14AWG for 5–10A. Place all components on a single-sided FR-4 PCB with 2oz copper for heat dissipation. Validate the design with a load sweep test: measure voltage drop at 10%, 50%, and 100% of rated current, ensuring
Ground the secondary side separately from the primary to maintain isolation. For safety, include a test point near the transformer secondary with a 1MΩ resistor to ground; this allows verification of isolation without risking short circuits. Document all connections in a netlist and cross-check against UL 60950-1 for creepage/clearance distances (minimum 4mm for 240V). Store the final layout in Gerber format with drill files for PCB fabrication.
Building a Safe Low-Voltage Electrical System: Step-by-Step Wiring Guide
Use a multimeter to verify each connection before powering the system. A reading of 0 ohms between terminals confirms a solid link, while infinite resistance indicates a break. For 12V or 24V setups, measure voltage across components while under load–drops below 90% of expected values signal excessive resistance or faulty parts.
- Avoid daisy-chaining power lines–direct each wire from the source to its device for consistent voltage.
- Label all wires at both ends with heat-shrink tubing or printed tags to prevent misconnections.
- Separate high-current paths (e.g., motors) from signal lines (e.g., sensors) by at least 10cm to reduce interference.
- Fuse every branch circuit: 1A for LEDs, 10A for actuators, and 20A for pumps, sized at 125% of max load.
Ground all metallic enclosures and exposed conductive parts. Use a dedicated ground bus bar connected to the main negative terminal with a 4mm² wire. For outdoor installations, add a ground rod at least 2.5m deep, bonded to the bus bar with copper cable of equal or greater cross-section.
Test polarity by energizing one branch at a time. If a component activates correctly (e.g., solenoid retracts), proceed; if not, reverse the +/- leads immediately. For permanent installations, apply strain relief to cables where they exit enclosures–use cable glands rated for the expected temperature range (typically -20°C to +80°C for PVC). Store spare fuses, relays, and wire connectors in a labeled container on-site for quick repairs.

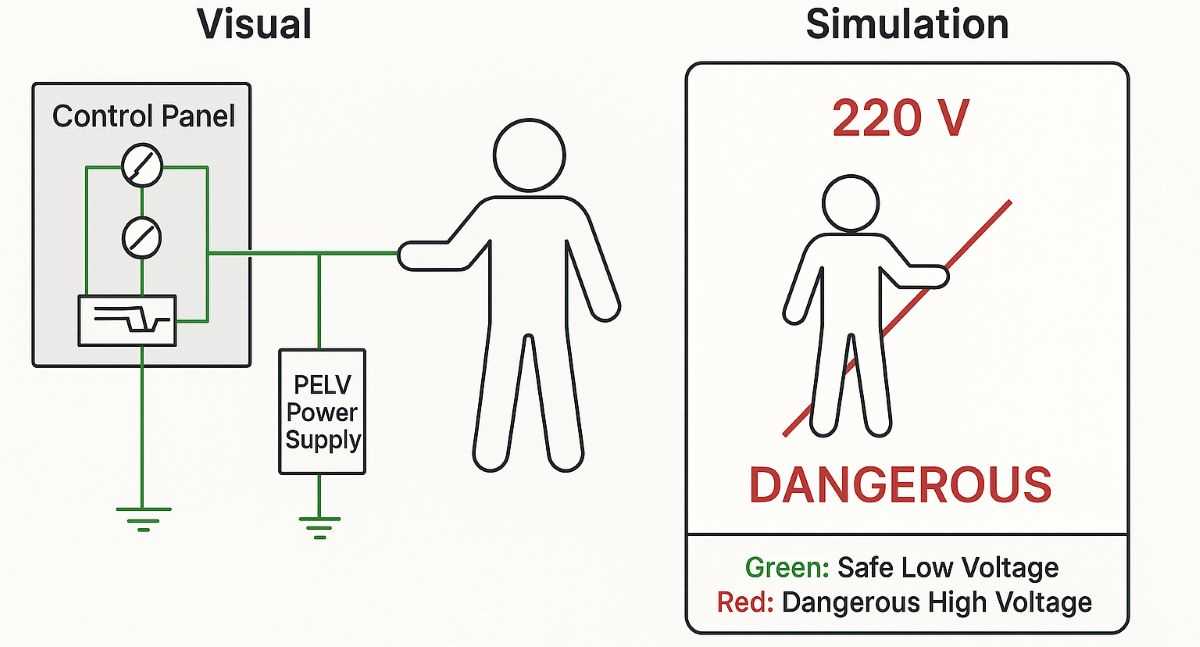

Core Elements for a Low-Voltage Safety Isolation Layout
Begin with a safety-isolated transformer rated for extra-low voltage (ELV) compliance–typical outputs include 5V, 12V, or 24V AC/DC, with a power rating exceeding the load by at least 20%. Ensure the transformer’s primary and secondary windings are physically separated by reinforced insulation or a grounded shield to prevent hazardous voltage leakage. Verify compliance with IEC 61558-2-6 or UL 5085-2 for safety isolation; avoid auto-transformers or uncertified alternatives.
Rectification and smoothing demand precision: for DC outputs, employ a full-wave bridge rectifier (e.g., GBU4J for 4A loads) paired with a high-capacity electrolytic capacitor (minimum 1000µF per amp of output current). For noise-sensitive applications, add a 0.1µF ceramic capacitor in parallel to the electrolytic to suppress high-frequency transients. Below are critical component specifications for standard configurations:
| Load Current (A) | Rectifier | Capacitor (Electrolytic) | Ceramic Capacitor |
|---|---|---|---|
| 1 | 1N4007 (1A) | 1000µF/25V | 0.1µF/50V |
| 3 | GBU6J (6A) | 3300µF/35V | 0.1µF/50V |
| 5+ | KBPC2506 (25A) | 6800µF/50V | 0.1µF/100V |

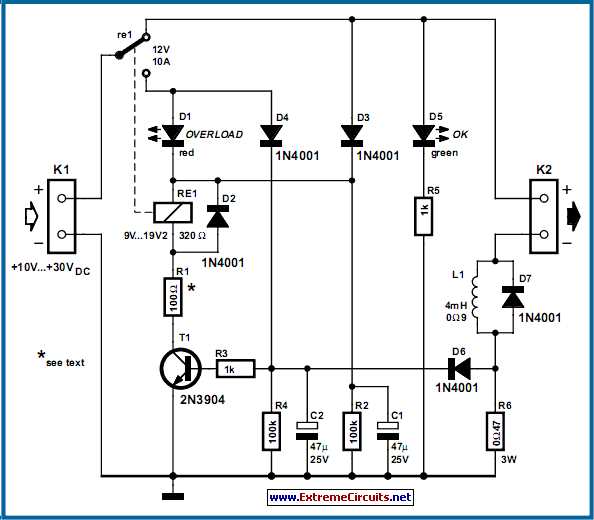

Incorporate a fast-acting fuse on the primary side (rated at 125–150% of the transformer’s input current) and a resettable PTC thermistor (e.g., Bourns MF-R110) on the secondary to protect against overloads. For battery-backed designs, add a Schottky diode (e.g., 1N5822) to prevent reverse current. Terminate all connections with IP2X-rated terminals or soldered joints insulated with heat-shrink tubing (minimum 3:1 shrink ratio) to meet ingress protection standards.
Step-by-Step Wiring of a Safety-Isolated Transformer for Low Voltage
Begin by confirming the primary coil ratings match the mains supply–typically 230V AC for EU systems or 120V AC for US installations. Cut two 1.5 mm² stranded copper wires to length, stripping 8 mm of insulation from each end. Connect one wire to the live (L) terminal of the input side and the second to neutral (N), securing with a torque screwdriver set to 0.5 Nm to prevent loosening under vibration. Route both wires through a 6 mm grommet into an IP44-rated enclosure to block moisture ingress, using cable ties spaced every 10 cm to prevent sagging.
Secondary Side Configuration
For a 12V DC output, attach a bridge rectifier directly to the secondary terminals, observing polarity: anode to one winding end, cathode to the opposite. Mount the rectifier on a 35 mm DIN rail using thermal paste for heat dissipation–max current draw should not exceed 80% of the transformer’s VA rating (e.g., a 60VA unit permits 4.8A continuous). Add a 1000 µF electrolytic capacitor across the DC output to smooth voltage ripple to under 0.5V peak-to-peak; ensure the capacitor’s voltage rating exceeds the output by at least 25%. Test with a multimeter in DC mode before connecting the load.
Ground the transformer’s core to the protective earth (PE) busbar using a 2.5 mm² green/yellow wire, securing with a crimp terminal and M4 bolt torqued to 1.2 Nm. Label all wires per IEC 60445–L1, N, +V, GND–using heat-shrink tubing, not paper labels. Energise the system with an RCD (30 mA trip) upstream; verify no-load voltage drift remains within ±2% of nominal using a scope or true RMS meter. If wiring LED strips, include a 1 Ω series resistor per 10W of load to limit inrush current, reducing stress on the transformer’s winding insulation over time.
Common Mistakes in Extra-Low Voltage System Design and Prevention
Misjudging insulation requirements leads to failures. IEC 62368-1 mandates minimum creepage distances of 1.5 mm for 30V AC/DC systems, yet many designs use 1 mm or less, risking tracking when dust or humidity accumulates. For environments above 20°C, increase spacing by 20%. Use conformal coating on PCBs in high-risk areas–polyurethane or acrylic outperforms silicone in moisture resistance. Test with a 500V megohmmeter; readings below 100 MΩ indicate compromised isolation.
Incorrect Grounding Practices
Connecting protective earth to functional reference creates hazardous loops. Isolated systems require a dedicated floating ground, not tied to mains neutral. Use a 1:1 transformer for separation or optocouplers with >5 kV isolation voltage for signal paths. Avoid shared returns in multi-channel setups; each channel needs its own return trace. Verify isolation resistance annually–standards require >1 GΩ at 500V DC. Failure to enforce this during initial prototyping causes intermittent faults difficult to diagnose.
Ensuring Low-Voltage System Safety Through Rigorous Validation
Measure insulation resistance between live conductors and exposed conductive parts using a 500V DC megohmmeter. Values must exceed 1MΩ for compliance with IEC 62368-1. For systems under 60V AC or 120V DC, verify no measurable leakage current exists at 1.06 times rated voltage using a calibrated leakage tester. Document each test point with timestamp, environmental conditions (≤30°C, ≤75% RH), and instrument serial number to establish traceability.
Critical Test Procedures
- Dielectric Withstand: Apply 500V AC for 60 seconds between isolated sections and earth. No breakdown or flashover permitted per EN 50178.
- Load Cycling: Operate the configuration at 110% nominal load for 8 hours, monitoring temperature rise. Maximum allowed: 45°C above ambient on class A materials.
- Transient Response: Inject IEC 61000-4-4 electrical fast transients (2kV, 5/50ns) while logging output parameters. Overshoot must remain ≤10% of nominal voltage.
Post-test analysis requires comparison against factory test reports for identical model variants. Discrepancies >5% in measured values mandate root cause investigation, including PCB trace resistance, solder joint integrity, and component derating verification. For installations in medical (IEC 60601-1) or hazardous areas (ATEX IEC 60079), add 2kV impulse testing between all conductive surfaces and safety earth, with ≤5mA leakage threshold.
