Examine the core wiring layout of personal mobility devices before attempting repairs or modifications. Start by locating the main control unit–typically positioned near the base’s center–where the dual-motor configuration interfaces with the gyroscopic sensors. The power distribution block connects directly to the lithium-ion battery pack, delivering 24V to 48V, depending on the model variant. Verify voltage consistency at the fuse block, rated between 10A and 20A, to prevent overheating.

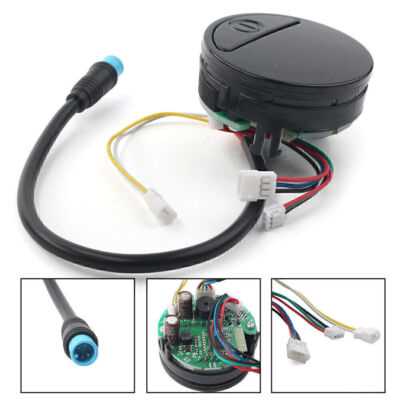

Trace the circuit paths from the handlebar controls to the motherboard, ensuring the throttle signal wires (colored red and black) maintain uninterrupted contact with the potentiometer. Failure here causes erratic acceleration or complete system shutdown. The gyroscope integrates with the IMU via a six-axis sensor array, requiring precise calibration–any deviation beyond ±0.5 degrees triggers instability.
Inspect the regenerative braking subsystem, where kinetic energy recapture diodes must align with the H-bridge configuration. Use a multimeter set to continuity mode to confirm solder joints on the MOSFETs; cold joints lead to power loss. For advanced diagnostics, reference the service manual’s pinout map–pin 7 on the EXT connector governs the LED status outputs, while pins 12-14 handle motor phase switching.
Replace aging wires with silicone-jacketed 18AWG copper conductors to reduce voltage drop under load. Secure connections with heat-shrink tubing, avoiding electrical tape near the motor housing–temperatures exceed 85°C under sustained operation. Always discharge capacitors via a bleed resistor (1kΩ) before servicing to prevent arc faults.

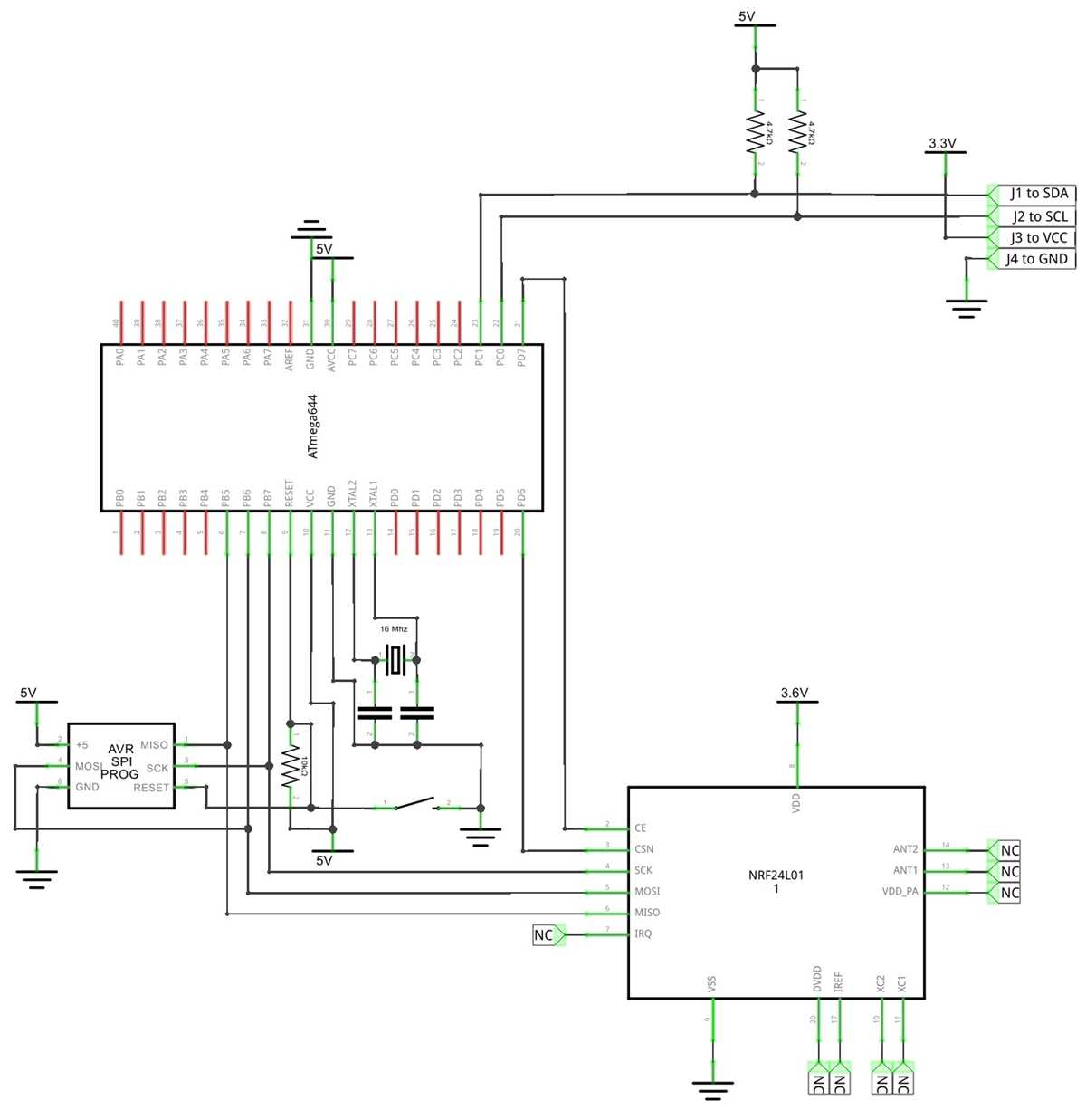

Understanding the Electrical Blueprint of Self-Balancing Vehicles
Begin by locating the gyroscopic sensor module–typically a MEMS-based accelerometer and gyroscope pair–positioned near the base’s center. Verify its connection to the main control board via a 12-pin JST connector, ensuring correct voltage levels (3.3V for signal, 5V for power). Misalignment here causes erroneous tilt calculations, leading to instability or sudden shutdowns. Check the I²C bus for SCL/SDA line continuity; even minor resistance spikes (>2Ω) disrupt data transmission between the sensor and microcontroller.
The motor driver circuit demands rigorous inspection of MOSFET gates (usually N-channel IRFB7430 or similar). Test each gate’s threshold voltage (VGS(th)) with a multimeter; values below 2.5V indicate degradation. Examine the gate driver IC (frequently a DRV8301 or equivalent) for thermal damage–excess heat (>85°C) during high-load conditions signals insufficient cooling or overcurrent. Replace any swollen capacitors in the power stage (100µF/50V typically) as ESR degradation leads to voltage sag under acceleration.
| Component | Voltage (Operational) | Current (Max) | Critical Failure Mode |
|---|---|---|---|
| Gyroscopic Sensor | 3.3V (signal), 5V (power) | 20mA | I²C bus noise >3kΩ |
| MOSFET (IRFB7430) | 12-48V (drain-source) | 75A | VGS(th) |
| Gate Driver (DRV8301) | 5-15V (logic), 8-48V (motor) | 30A peak | Thermal shutdown >150°C |
Power distribution requires isolating the battery management system (BMS) from the main circuit. Measure cell balancing resistors (commonly 1kΩ/1W) for open circuits–unbalanced cells (>50mV difference) trigger undervoltage protection prematurely. The BMS microcontroller (e.g., STM32F103) must communicate with the battery via CAN bus; verify termination resistors (120Ω) at both ends to prevent signal reflections. For LiFePO4 batteries, ensure the charge cutoff voltage aligns with 3.65V/cell–exceeding this threshold accelerates degradation.
Debugging connectivity issues starts with the throttle and brake potentiometers. Probe the wipers at full deflection; readings should span 0.5V to 4.5V with
Key Components in a Personal Transporter Electrical Wiring Layout
Route power distribution through a dual-layer bus bar system: one for high-current circuits (motors, battery management) and another for low-voltage signals (sensors, control logic). Use 10 AWG silicone-insulated wire for motor feeds to handle 30A continuous loads with star point on the chassis–never daisy-chain–to prevent ground loops. Label every wire near both termination points with heat-shrink printed sleeves (e.g., “MOT-L-PHASE1”) to avoid confusion during diagnostics.
Integrate these critical elements into the wiring plan:
- Battery disconnect relay: 12V coil, 200A contacts, with flyback diode to suppress inductive spikes when disengaging the main power circuit.
- Current shunt resistors: 75mV/100A mil-spec manganin, placed in series with motor windings for real-time torque sensing.
- Hall effect sensors: UGN3503, positioned at 120° intervals on motor shafts, supplying 5V square wave outputs to the controller at 18 pulses/rev.
- Emergency brake circuit: Normally-open contactor wired in parallel to handlebars, releasing motor power when pressed.
- Thermal fuses: 105°C, inline with each motor winding, rated 1.2× max continuous current.
- Controller area network (CAN) bus: Twisted pair (120Ω impedance), terminated at both ends, linking the main ECU, battery management system, and display module.
Solder all connections using lead-free Sn99.3/Cu0.7 alloy, then reinforce with adhesive-lined polyolefin heat shrink–never twist-and-tape. For PCB-mounted components, use press-fit through-hole terminals for connectors rated IP67 to withstand vibration. Test continuity and insulation resistance (>10MΩ at 500V) after routing wires through chassis conduits.
Interpreting Voltage and Current Flow in Personal Transporter Electrical Blueprints
Trace the battery’s positive terminal first–it typically connects to a thick red line on power distribution blocks. Locate the main fuse (often 40–60A) immediately downstream; failure here disrupts all downstream measurements. Use a multimeter in DC voltage mode, probing before and after each component to isolate drops exceeding 0.3V, signaling resistance in connectors or PCB traces. For current paths, follow thicker copper pours or bundled wires (14–12 AWG) leading to motors; these handle 15–30A continuous loads. Switching elements (MOSFETs or IGBTs) will show pulsating DC at their drains–verify PWM frequency matches controller specs (usually 10–20 kHz) with an oscilloscope.
Mark ground symbols (⏚) at least every 5 cm on the layout; discrepancies above 50 mV between grounds indicate stray currents from uneven load distribution. Sensors (hall-effect, gyros) share low-current paths (20–200 mA) via thin traces (0.25 mm) or 28–24 AWG wires–verify continuity with a milli-ohmmeter. Thermal vias near power components should connect to dedicated heatsinks; check for dry joints if temperatures exceed 85°C under load.
Step-by-Step Guide to Tracing Motor Control Signals in Personal Transporter Electrical Layouts
Locate the power stage section in the electrical blueprint–typically marked by large MOSFETs or IGBTs paired with heatsinks. Follow the thick PCB traces leading from these components to the motor driver IC. Verify the presence of current-sense resistors (shunt resistors) adjacent to the power transistors; these are critical for measuring phase currents.
Identify the microcontroller unit (MCU) responsible for generating PWM signals. Pinouts for motor control will be labeled as “PWM_A,” “PWM_B,” “PWM_C,” or “IN_AH,” “IN_BH,” “IN_CH” (high-side) and “IN_AL,” “IN_BL,” “IN_CL” (low-side). Cross-reference these signals with the driver IC datasheet to confirm expected logic levels (usually 3.3V or 5V).
Decoding Communication Between MCU and Driver
Trace the enable (EN) and fault (FLT) lines between the MCU and driver IC. The EN line activates the driver, while the FLT line signals overcurrent, overtemperature, or undervoltage conditions. Check for pull-up resistors on FLT lines–absence may indicate an open-drain output requiring external pull-up to the MCU’s logic voltage.
Use an oscilloscope to probe PWM signals at the driver IC inputs. Configure the scope for edge triggering and set the voltage scale to 5V/division. A healthy 3-phase motor control signal will display three 120° phase-shifted PWM waveforms (typically 8–20 kHz). Distortions or missing phases point to MCU firmware errors or driver IC failure.
Grounding and Noise Considerations
Inspect the grounding scheme–star grounding is preferred to minimize noise coupling. Separate the power ground (for MOSFETs/shunt resistors) from the signal ground (for MCU/driver IC) and connect them at a single point near the power supply. Misconfigured grounds create ground loops, inducing erratic motor behavior.
Examine decoupling capacitors near the driver IC and MCU–ceramic capacitors (0.1 µF) should be placed within 2mm of IC power pins. Bulk capacitors (10–100 µF) stabilize voltage rails during high-current transients. Test for ripple (>200 mVpp) on power rails during motor operation, indicating insufficient decoupling.
Follow the hall sensor or encoder feedback lines to the MCU. These signals are often labeled “HALL_A,” “HALL_B,” “HALL_C” or “ENC_A,” “ENC_B.” Verify 120° or 60° phase shifts between signals, depending on sensor type. Noise here causes miscommutation; ensure twisted-pair wiring and ferrite beads on sensor cables.
Document each signal path with annotations on the blueprint. Label current-limiting resistors, gate resistors (typically 10–100 Ω), and bootstrap capacitor values (usually 0.1–1 µF) for high-side drivers. Confirm the bootstrap circuit’s functionality by checking for stable 10–15V above the motor voltage at the high-side gate during operation. Missing bootstrap voltage prevents MOSFET turn-on, stalling the motor.
