Start with a 4-bit parallel bus for reliable data transfer. Most modern flash modules use this mode to balance speed and hardware complexity. Connect pins DAT0–DAT3 to a controller supporting SPI or SD native protocol–prefer the latter for faster throughput. The VSS pins (ground) must share a stable reference with your power rail, typically requiring at least two dedicated connections to minimize noise.
Power delivery demands precise regulation: VDD should operate at 3.3V ±5% with decoupling capacitors (0.1µF ceramic) placed within 2mm of the module. Avoid voltage spikes–linear regulators like the AMS1117 or XC6206 are proven choices. If using switching supplies, ensure low ripple (
Clock stability is non-negotiable. The CLK line should toggle between 0MHz (idle) and up to 50MHz (high-speed mode) without overshoot or ringing. Series resistors (22–33Ω) on CLK and CMD traces dampen reflections, especially on boards with trace lengths >5cm. For layouts, match impedance of data lines to 50Ω using controlled-width traces (
Debugging starts with signal integrity checks. Probe DAT0 during initialization–it should pulse low to acknowledge commands (ACMD41) within 10ms. If the module fails to respond, verify pull-ups (10–50kΩ) on CMD, DAT0–DAT3, and CD (card detect) lines, as floating inputs trigger protocol errors. Measure rise times (VDD amplitude.
For long-term reliability, isolate the flash module’s WP (write protect) and CD lines. Connect WP to a GPIO with internal pull-down to prevent accidental write locks. If hot-swapping is required, use a dedicated detect circuit (e.g., a MOSFET switch) to avoid glitches during insertion. Test with multiple modules (>10 samples) to account for manufacturing tolerances in voltage thresholds and timing margins.

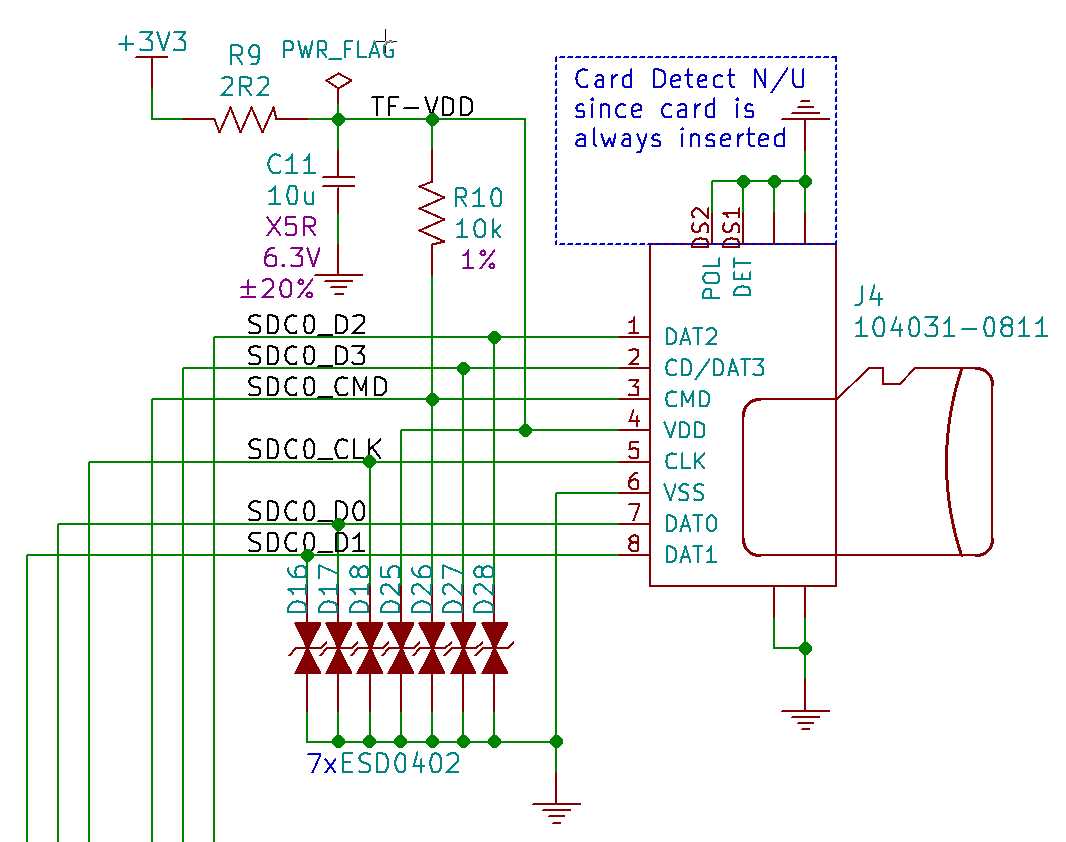

Designing a Storage Module Interface: Key Schematics

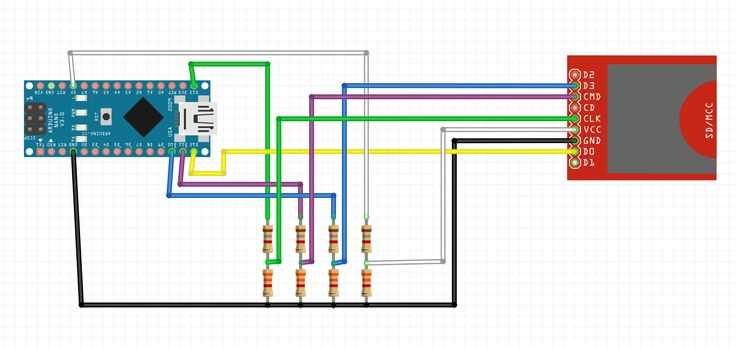

Start with a 4-bit or 8-bit data bus configuration for seamless compatibility with controllers. Use a microSD form factor connector like the Hirose DM3AT-SF-PEJM5 or Molex 503398-1892–both support UHS-I speeds up to 104 MB/s and handle 3.3V/1.8V signaling. Ensure the host device provides stable power delivery with a low-dropout regulator (LDO) such as the AP2112K-3.3TRG1, delivering 300mA to prevent voltage spikes during high-current operations like sequential writes.
- Pull-up resistors: Add 10kΩ–50kΩ resistors on DAT[3:0], CMD, and CLK lines to prevent floating states during initialization. Omit them on DAT1 and DAT2 if using SPI mode.
- Decoupling capacitors: Place a 0.1µF ceramic capacitor within 2mm of the connector’s VDD pin and a 10µF tantalum capacitor near the power source to filter high-frequency noise.
- Level shifting: For mixed-voltage systems (e.g., 5V host), use a bidirectional translator like the TXB0104 or discrete MOSFETs (e.g., 2N7000) to protect the module from overvoltage.
Route traces with controlled impedance of 50Ω (±10%) for CLK and DAT lines, keeping lengths under 50mm to minimize signal reflection. Use a ground plane beneath the connector to reduce electromagnetic interference (EMI). For high-speed modes, add series resistors (22Ω–33Ω) on CLK and CMD lines to dampen ringing. Avoid vias on these traces; if unavoidable, use microvias with ≤0.2mm diameter.
Testing verification: Probe the CLK signal at the host and module pads with an oscilloscope (500MHz+ bandwidth) to confirm rise/fall times under 3ns. Measure current draw during initialization (typically 50–80mA) and idle (≤200µA). If errors persist, swap the module for a known-good reference (e.g., SanDisk Extreme microSD) to isolate hardware faults. Validate SPI mode by toggling CS low before asserting CLK; incorrect timing causes data corruption.
Key Components in an SD Storage Interface Schematic
Prioritize a 3.3V low-dropout regulator with ≤1% tolerance for stable power delivery–fluctuations above 5% cause erratic read/write failures in NAND-based media. Use a TI TPS73633 or Analog Devices ADP151 for minimal quiescent current (≤10µA) to extend battery life in portable designs. Ensure the regulator’s output capacitor meets ESR requirements (10mΩ–1Ω) to prevent oscillations, especially with high-speed mode (UHS-I/II) where transient currents spike to 100mA.
| Component | Recommended Model | Critical Spec | Failure Risk |
|---|---|---|---|
| Level Shifter | TXB0104 | ±15kV ESD protection | Data corruption on 1.8V ↔ 3.3V transitions |
| Pull-Up Resistor | Yageo RC0603FR-0747KL | 47kΩ ±1% | Bus contention during CMD/DAT line conflicts |
| TVS Diode | Littlefuse SP3012-06UTG | 6V breakdown, 5pF capacitance | Latent damage to controller from EMI surges |
| Decoupling Capacitor | Murata GRM155R71C104KE14D | 0.1µF X7R, 6.3V, 0402 package | Voltage droop during 50MHz+ operations |
Implement the CMD/DAT lines with controlled impedance (40–60Ω) using microstrip traces on a 4-layer PCB; deviations cause reflections and timing violations in high-speed modes. Add series termination resistors (22Ω) on all data lines to mitigate ringing, critical for UHS-II where rise times drop below 1ns. For SPI mode, isolate the CS line with a 1kΩ pull-up to VCC to prevent false device selection during noisy conditions. Test all signal paths with a 200MHz oscilloscope to verify
Step-by-Step Guide to Reading an SD Storage Module Pin Layout
Locate the pin numbering on the connector–most standard formats label contacts from 1 on the left when viewing the interface with the notch facing upward. Pin 1 is typically the power supply input (3.3V), marked by a small square pad or a beveled edge. Confirm this by checking the adjacent pin (Pin 2), which should correspond to data line 3 (DAT3) in the default configuration.
Trace Pin 3 to command (CMD), the control signal handling initialization and requests. This line is critical for communication; misalignment here corrupts handshakes. Pin 4 delivers additional voltage (also 3.3V), while Pins 5 through 7 represent clock (CLK), data 0 (DAT0), and data 1 (DAT1) respectively. Verify the clock signal with an oscilloscope–it should pulse at 0-50 MHz depending on the mode.
Note Pin 8 as data 2 (DAT2), used in 4-bit transfer modes. If absent, the module defaults to 1-bit mode. Pin 9 carries ground (GND), essential for stable signaling; always ensure it connects to the host’s ground plane without interference. Skipping this step risks signal noise and read errors, especially at high speeds.
Examine the connector’s physical symmetry–some variants reverse pin order when flipped. Use a multimeter in continuity mode to confirm each connection’s function. Probe Pin 1: if voltage matches 3.3V (±5%), proceed; otherwise, check for short circuits or incorrect host voltage. For microSD adapters, Pin 1 remains the power input, but Pins 2–8 shift positions–refer to the specific datasheet.
Identify high-speed modes by inspecting Pin 2’s behavior. In SD High Capacity (SDHC) or SD eXtended Capacity (SDXC), DAT3 doubles as a card detection (CD) signal. If this line floats or ties incorrectly, initialization fails. For SPI mode, Pin 2 becomes chip select (CS), and Pin 1 serves as data output (DO)–a rare but critical exception.
Cross-reference the layout with known standards. The Secure Digital Association specifies Pin 5 as CLK for all non-SPI modes, while Pins 6 (DAT0) and 7 (DAT1) toggle during write operations. Measure resistance between DAT lines and ground–values should exceed 10kΩ. Lower readings indicate damaged interfaces or improper pull-ups, causing erratic behavior.
Document any deviations. Third-party adapters sometimes repurpose Pins 3 (CMD) or 8 (DAT2) for proprietary features. Always test under real conditions: insert the module into a verified reader, monitor signals with a logic analyzer, and validate against the expected command-response sequences (e.g., CMD0 → idle state). Troubleshoot mismatches by isolating variables–swap cables, test alternate hosts, and check for firmware incompatibilities.
Common Interface Protocols for SD Storage Module Connections

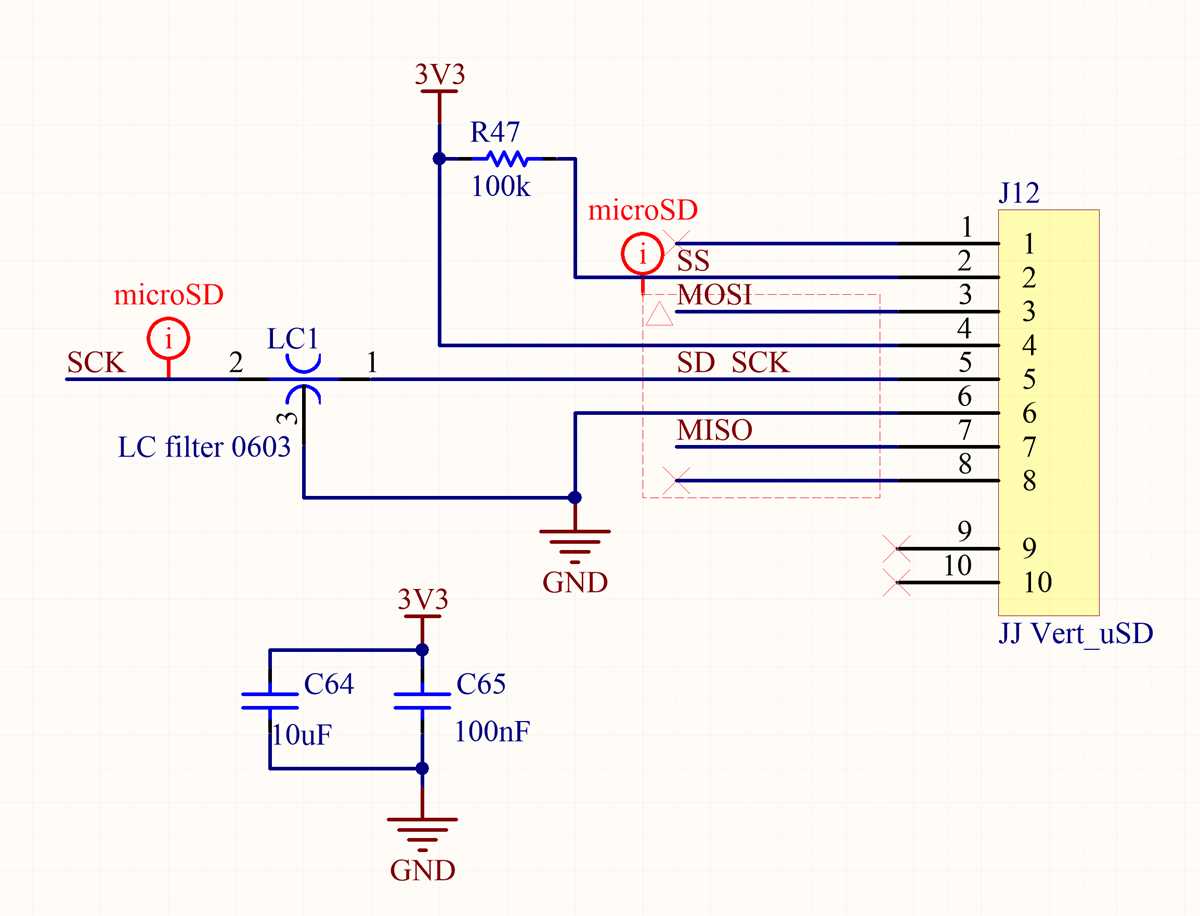

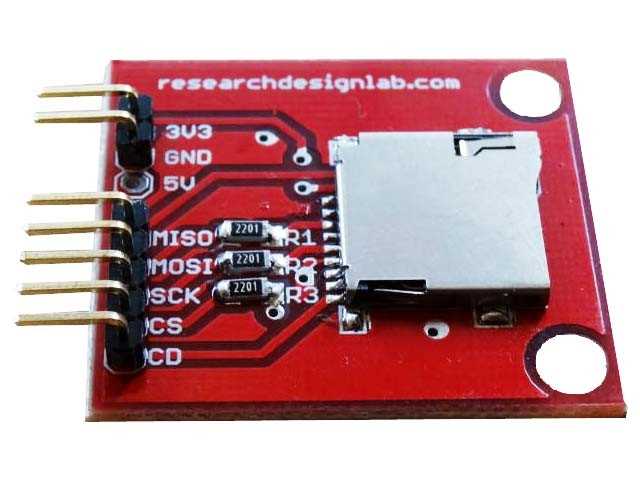

Implement the Serial Peripheral Interface (SPI) for basic integration when low-speed data transfer suffices. Use SPI mode 0 (CPOL=0, CPHA=0) with a 3.3V logic level to prevent signal degradation. Limit clock speeds to 25 MHz for stable operation with standard 4-wire configurations: MOSI, MISO, SCK, and CS. Ensure proper pull-up resistors (10kΩ) on CS and MISO lines to avoid floating states during initialization.
SD Bus Protocol: High-Speed Requirements
For applications demanding throughput above 10 MB/s, deploy the SD bus protocol in 4-bit mode. Connect DAT0-DAT3 lines with 50Ω series termination resistors to mitigate reflections on long traces. Use a dedicated voltage regulator (LDO) supplying 3.3V ±5% to the VDD pin to maintain signal integrity. Clock frequencies up to 50 MHz are supported, but verify timing margins with an oscilloscope during design validation. The CMD line must include a 10kΩ pull-up resistor to meet protocol specifications.
Adopt the UHS-I interface for bandwidths exceeding 50 MB/s in modern designs. Implement differential signaling for CLK and DAT lines with 100Ω impedance matching. Power delivery requires 1.8V for UHS-I mode; use level shifters between microcontroller and module if operating at different voltages. Include decoupling capacitors (0.1µF and 10µF) near the module’s power pins to suppress noise. Test read/write cycles under maximum load conditions to confirm error-free operation before deployment.
Voltage and Power Specifications for Secure Digital Storage Modules
Designers must prioritize a 3.3V supply rail as the nominal operating voltage for all compatible storage modules. Deviations beyond ±5% risk sporadic read/write failures, particularly in high-capacity variants exceeding 64GB, where transient current demands approach 100mA. Linear regulators or low-dropout (LDO) converters outperform switching solutions in noise-sensitive environments, but require careful thermal management–exceeding 85°C junction temperature triggers derating.
Peak current surges during initialization reach 200mA for Class 10/UHS-I modules, lasting up to 5ms. Decoupling capacitors (0.1µF ceramic + 10µF tantalum) placed within 1cm of the module’s VDD pin mitigate voltage droop. Omit bulk electrolytic capacitors unless addressing sub-10Hz noise; their higher ESR conflicts with fast transient response requirements. For mobile devices, consider a secondary 1.8V rail for I/O signaling if the host controller supports dual-voltage operation, reducing core consumption by ~15%.
Low-power states demand attention to leakage currents–modern controllers draw 200µA in standby, but poorly designed pull-ups on unused interface pins can add 50µA per pin. Implement high-resistance (100kΩ) pull-ups only for essential pins (e.g., DAT3/CD), leaving others floating. Multi-layer PCB designs should route power traces with >1mm width for currents up to 300mA, using 2oz copper for traces exceeding 50mm. Violation of these trace guidelines introduces parasitic inductance, distorting command/response timing during high-speed operations.
Voltage tolerance varies by module class: standard-speed variants (≤12.5MB/s) operate reliably down to 2.7V, while UHS-II modules require 3.1V minimum. Verify host compatibility before designing around lower voltages–some controllers reset or corrupt data buffers when VDD drifts below 2.9V. For battery-powered applications, implement a brown-out detector with 10µs hysteresis to prevent corruption during power transitions. Avoid discharging below 2.5V; most modules exhibit latch-up risks or permanent damage beyond manufacturer-specified tolerances.
Thermal derating curves differ significantly between vendors. A 64GB module from one manufacturer may handle 120mA at 85°C, while another’s model throttles to 60mA under identical conditions. Consult datasheets for derating factors–some apply linear reductions (-1mA/°C), others use stepped thresholds. Active cooling (e.g., thermal vias beneath the module) extends peak performance by 10-15%, but adds cost and complexity; assess trade-offs against maximum expected ambient temperature.
Power sequencing holds critical importance. Apply VDD before I/O voltage (if dual-supply) or risk corrupting the module’s internal state machines. A 1ms delay after VDD stabilization suffices; longer delays waste power without benefits. For 1.8V/3.3V dual-supply modules, VDD must precede VI/O by at least 100µs. Violations manifest as unexplained write errors or protocol desynchronization, often misdiagnosed as signal integrity issues.
ESD protection diodes at the module’s power pins should clamp at 5.5V for 3.3V rails and 3.0V for 1.8V rails. Exceeding these values triggers parasitic bipolar effects in the host interface ICs. Ferrite beads (600Ω @ 100MHz) between the regulator output and module VDD improve transient response but introduce 50-100mV DC loss–account for this in dropout margin calculations. For portable designs, use a 4mm² copper pad beneath the module as a heat spreader if continuous write operations exceed 30MB/s, combining conduction and limited convection cooling.
