For accurate troubleshooting of a built-in water recycling unit in modern cleaning appliances, begin by locating the motor assembly near the base. The core components include a centrifugal impeller, sealed bearing housing, and a three-phase or single-phase induction drive–depending on model specifications. Older units often use a single-phase 120V capacitor-start motor, while newer high-efficiency variants may incorporate brushless DC technology with integrated control boards.
Trace the wiring harness from the power input to the control module before branching to the motor, pressure switch, and thermal overload protector. Look for tripped fuses or discoloration on terminals–clear indicators of overheating. A continuity test between the line, neutral, and ground leads will confirm the integrity of the circuit without dismantling unnecessary sections. Pay close attention to the thermal cut-off: most factory settings disconnect power at 130°C (±5°C), but aftermarket replacements may vary.
Examine the impeller chamber for residual debris–especially fragments of glass, bone, or hardened detergent–which frequently obstruct the vanes and force the drive to draw excessive current. If disassembling the lower spray arm assembly, record screw locations: thread patterns differ by manufacturer (Torx T10 for European models versus Phillips #2 for most domestic units). Always discharge stored charge in capacitors using a 240Ω resistor across terminals before handling.
Reassemble with new seals if leakage was detected: O-rings degrade after 800–1 200 cycles, regardless of silicone composition. Replace the recirculation housing gasket only with manufacturer-matched parts–substitutes often misalign the impeller shaft, causing premature wear. Verify torque specifications: base mounting screws typically require 8–10 Nm, insufficient clamping leads to vibration and eventual bearing failure.
Understanding the Flow Path in Automatic Cleaning Appliance Motors
Begin by locating the impeller assembly–typically housed beneath the lower spray arm. The centrifugal force mechanism draws water inward through a mesh filter, then accelerates it outward via curved vanes. Verify the inlet valve’s seal; even minor calcification here disrupts pressure consistency, leading to uneven circulation. If diagnostics show intermittent operation, check for debris blocking the volute casing–clearance between the impeller and housing should not exceed 0.3mm.
Trace electrical connections from the control module to the drive coil. A multimeter reading below 20 ohms across the windings indicates potential short-circuiting, requiring replacement of the motor assembly. For models using a thermal fuse, ensure the fuse hasn’t tripped–resetting it without addressing underlying overheating (often caused by blocked drainage) risks permanent damage. Brushless variants rely on Hall-effect sensors; misalignment here manifests as erratic startups.
Hydraulic Path and Common Failures
Examine the recirculation hose for kinks or mineral buildup–restricted flow reduces cleaning efficiency by up to 40%. The check valve, usually a one-way flap near the sump outlet, prevents backflow; if stuck open, it causes prolonged cycles and excessive energy consumption. Lubricate O-rings with food-grade silicone when reassembling; petroleum-based greases degrade rubber components prematurely. For self-draining systems, ensure the drain solenoid clicks audibly during discharge–absence suggests a faulty relay or burnt coil.
Pressure fluctuations often stem from a worn diaphragm in the water inlet mechanism. Symptoms include prolonged fill times or failure to reach optimal spray force. Replace the diaphragm if visible cracks appear or if pressure tests show a drop below 0.5 bar after five seconds of operation. In dual-motor configurations, isolate whether the issue lies in the wash or drainage unit by monitoring amp draw–normal wash cycles draw 1.2–1.8A, while drainage should peak at 2.5A.
Thermal protection thresholds vary by model: older units trip at 95°C, while newer ones tolerate 110°C before shutdown. Overheating frequently traces to clogged air vents in the base plate–clean these monthly using compressed air. If the motor hums without rotation, the capacitor may be depleted; a capacitance test away from the mains is critical to avoid false readings. Replace capacitors with identical microfarad ratings only–mismatches cause torque loss and accelerated wear.
Electrical Integrity and Safety Checks
Secure the grounding wire–corrosion at the terminal increases leakage current, detectable with a clamp meter as above 3.5mA. For variable-speed units, confirm PWM signals from the control board; irregular pulses lead to inconsistent RPMs. Always discharge residual voltage in capacitors before servicing–use a bleeder resistor or insulated screwdriver to short terminals. If the motor emits a grinding noise, inspect bearings for play; over 0.1mm lateral movement warrants replacement.
Final validation involves a full-cycle test without dishes: monitor water clarity during the wash phase and listen for irregular vibrations. Persistent issues despite component checks usually point to PCB failure–look for scorched traces or swollen capacitors. Document resistance values of all windings for future reference: typical wash motors read 25–40 ohms, drainage motors 40–60 ohms, deviations signal internal degradation.

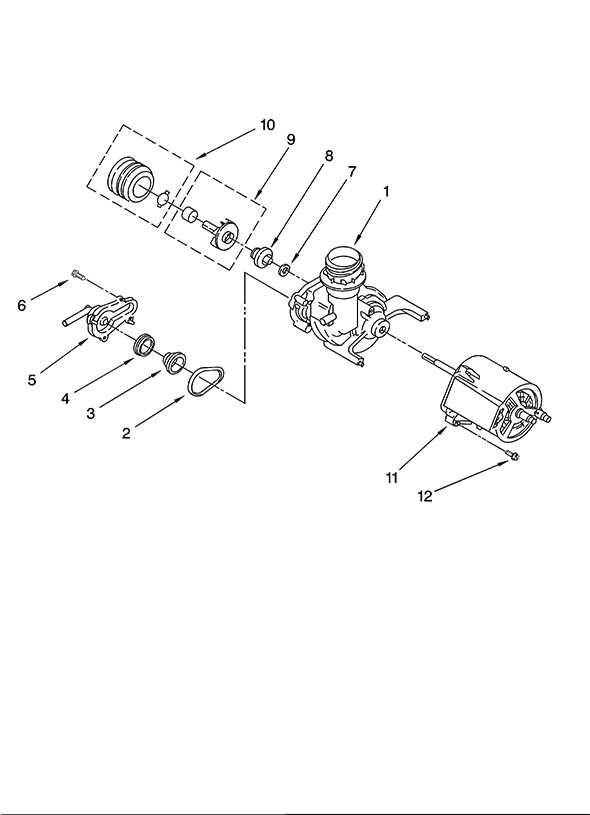

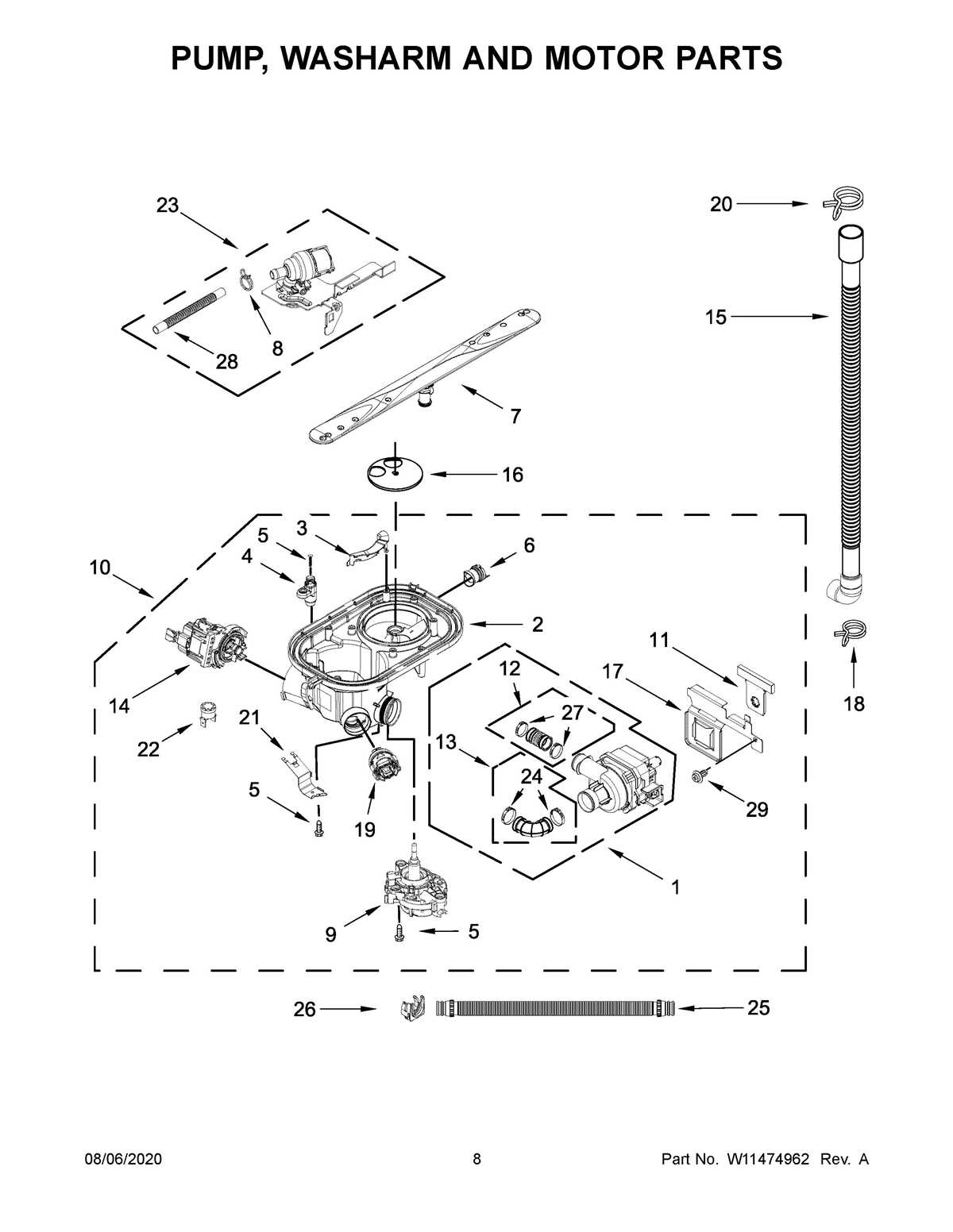

Critical Parts of a Kitchen Appliance Circulation System in Blueprint Form
Start by identifying the impeller assembly–typically positioned at the base of the fluid propulsion unit. This component features curved blades designed to convert rotational kinetic energy into fluid movement with minimal turbulence. Proven designs use thermoplastic composites (e.g., glass-reinforced nylon) for corrosion resistance and dimensional stability under thermal cycling. Verify blade angles (12–18° for residential models) to ensure peak pressure generation without premature wear.
The electric drive motor dictates performance thresholds; opt for a permanent magnet synchronous motor (PMSM) rated for 50–100 W in compact units. Check insulation class (minimum F for 155°C thermal endurance) and IPX4 splash-proofing. Thermal cutoffs must be hardwired–bimetallic contacts degrade under frequent cycling, while solid-state sensors (NTC 10kΩ) offer longer service life. Seal the motor housing with EPDM gaskets; inferior materials swell or crack after 500–700 cycles.
Inspect the volute chamber: its spiral geometry amplifies flow velocity while reducing backpressure. Look for molded polypropylene construction with ultrasound- or vibration-welded seams to prevent hairline fractures. Confirm inlet/outlet diameters (12–16 mm standard); mismatches cause cavitation and noise levels above 50 dB(A). Include a replaceable mesh filter (stainless steel 316, 200 μm) upstream–clogging triggers dry-running protection via a float switch or conductivity sensor.
Integrate power electronics on a printed circuit board (PCB) separate from the motor to avoid electromagnetic interference. Use TRIACs (e.g., STMicroelectronics BTA16) for speed control, paired with snubber circuits (47 Ω + 0.1 μF) to quench voltage spikes. Mount the PCB vertically in a sealed polycarbonate enclosure to avoid condensation; conformal coatings like parylene C ensure compliance with UL 8750 for moisture resistance.
Step-by-Step Wiring Connections for Appliance Motor Unit
Begin by disconnecting the power supply at the circuit breaker to prevent electric shock. Locate the motor housing beneath the appliance tub–identify the three primary wires: main power (typically red or black, 120V), neutral (white), and ground (green or bare copper). Verify wire integrity with a multimeter (0Ω continuity between undamaged conductors). If corrosion is present, strip ¼ inch of insulation and apply dielectric grease to the exposed copper before reconnecting.
- Attach the main power wire to the motor’s L terminal–ensure the set screw is tightened to 8-10 inch-pounds of torque.
- Connect the neutral wire to the N terminal, matching the torque specifications.
- Secure the ground wire to the designated chassis mount with a star washer to pierce protective coatings on painted surfaces.
Recheck all connections with a non-contact voltage tester before restoring power. Run a test cycle while monitoring amperage draw–normal operation ranges between 4-6A; deviations indicate improper wiring or motor failure. Replace the kickplate and reconfirm all fasteners are seated flush to prevent water ingress.
Key Symbols in Appliance Motor Wiring Illustrations
Locate the capacitor symbol–a curved line intersecting two parallel lines–near the motor windings. This component filters voltage spikes critical for smooth operation. Most European models denote it with “C” followed by microfarad rating (e.g., C1-10µF). North American variants often omit this label, placing the symbol adjacent to the start winding.
Track down thermal overload protectors–depicted as rectangles with internal zigzag lines or “T.O.” markers. These devices interrupt current at temperatures exceeding 120°C. Verify their position in series with the main winding; incorrect placement risks motor burnout during prolonged cycles. Brands like Bosch embed them directly into winding insulation, while GE typically mounts them externally on the stator.
| Symbol | Component | Typical Location | Failure Signs |
|---|---|---|---|
| ⏚ | Ground | Chassis connection | Humming, overheating |
| ⚡ | Relay coil | Control board (L/N terminals) | Noisy operation, stalling |
| ⎓ | Inductor (choke) | Power supply line | Inconsistent water flow |
Identify the centrifugal switch–a circle bisected by a diagonal line–starting near the rotor shaft. This switch disengages the start winding once the motor reaches 75% of full RPM. On newer Whirlpool models, it’s replaced by a solid-state relay (triac) marked with “SSR” or a transistor symbol. Check for continuity between common (C) and normally closed (NC) terminals at rest; no continuity indicates switch failure requiring immediate replacement.
Decode rectifier diodes–triangular symbols with an additional line–if present. These convert AC to DC for brushless motors in high-efficiency models (e.g., Miele). Test each diode with a multimeter in diode mode: forward bias should read 0.5–0.7V, reverse bias should show overload. Short-circuited diodes cause erratic motor behavior; replace the entire bridge module if two adjacent diodes fail.
