Begin by plotting nominal data points at 0.2% offset yield strength–this establishes a clear baseline for plastic deformation. Use the initial linear segment (elastic region) to calculate Young’s modulus directly from the slope: E = Δσ/Δε, where ε should be in microstrain (μm/m) for metals to avoid rounding errors. Record the ultimate tensile strength (UTS) at the curve’s peak, then track the subsequent drop to fracture–this descending segment reveals strain localization and necking behavior.
Convert nominal values to actual responses by applying volume constancy: σtrue = σnom(1 + εnom) for stress, and εtrue = ln(1 + εnom) for strain. For polymers, include a hysteresis loop at cyclic loading intervals to capture viscoelastic recovery. Mark each transition: proportional limit (0.01%), yield point (0.2% offset), UTS, and fracture–these landmarks define ductility ratios.
Scale the horizontal axis in logarithmic strain for rubber-like materials, ensuring each decade spans equal increments on the graph. Overlay thermal expansion curves if temperature effects are relevant–thermal strain εth> compresses mechanical strain at higher temperatures. Verify plot continuity: elastic unloading should mirror the loading path unless microstructural changes (e.g., martensitic transformation) occur.
Select graph paper with 10×10 divisions per decade for metals, and 5×5 divisions for ceramics or composites–coarser grids obscure critical inflection points. Label each axis with measurable units: MPa for stress, percentage elongation or mm/mm for strain. Include error bars at ±2% of the measured value to quantify instrumentation repeatability.
Visualizing Material Behavior: Comparative Load-Deformation Curves
Plot nominal measurements first–force divided by original cross-section area against elongation normalized by initial length. This basic representation remains indispensable for design calculations and quality control due to its direct correlation with standard tensile test protocols.
For critical applications, always derive equivalent intrinsic values: multiply nominal stress by the instantaneous length ratio (1 + strain) and divide force by the reduced cross-section. Apply Bridgman’s correction for necking specimens below uniform elongation limits, typically 0.1–0.3 percent plastic strain depending on alloy ductility.
- Label elastic limit, yield strength, ultimate tensile capacity, and fracture point.
- Highlight the divergence between nominal and intrinsic curves beyond necking onset.
- Annotate strain hardening exponent (n) and strength coefficient (K) from Hollomon’s power law fit.
Generate both curves on identical axes: ordinate scaled to 0–1500 MPa, abscissa to 0–0.5 true strain. Use logarithmic strain axes if analyzing high-work-hardening materials like annealed copper or stainless steels where intrinsic flow curves rise exponentially.
Empirically verify necking initiation via Considère’s criterion: plot work-hardening rate (dσ/δε) against tensile capacity; intersection marks diffuse instability onset. Calculate local thinning using area reduction data from comparator microscope measurements post-fracture.
Ensure curve fidelity by sampling at least 10 data points per percent strain–dense sampling prevents over-smoothing work hardening transitions. Apply Savitzky-Golay filtering for high-frequency noise suppression while preserving critical slope discontinuities.

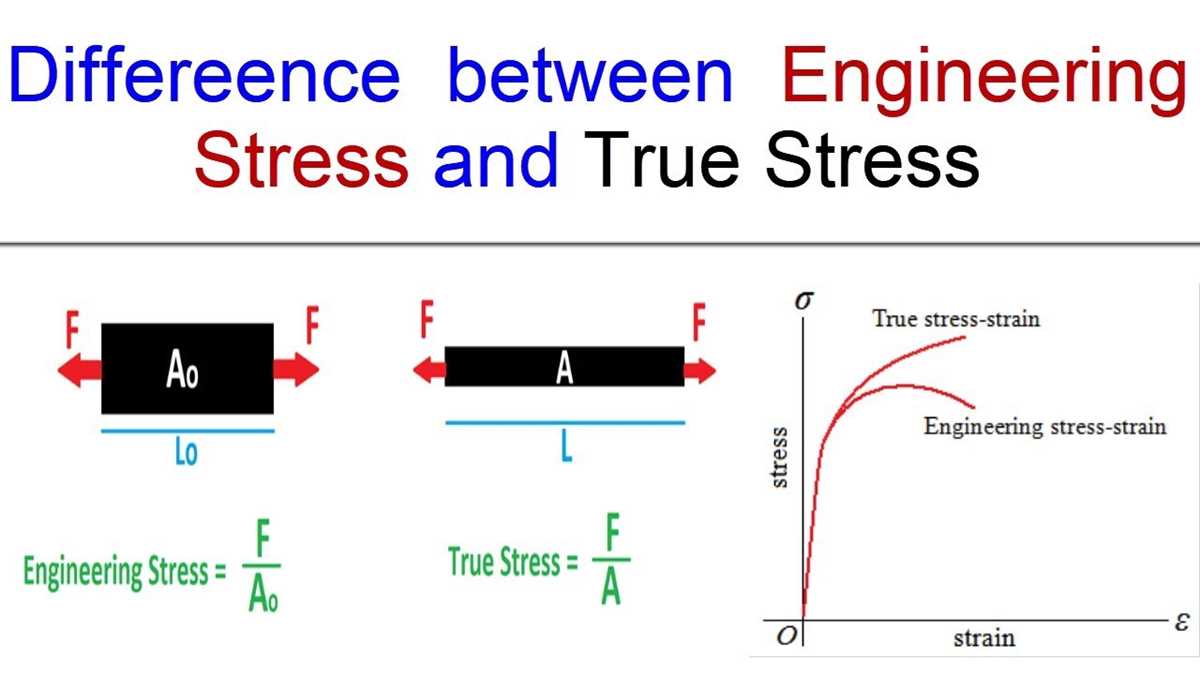

Overlay multiple test series on a single graph to reveal batch variability. Distinguish nominal curves by dashed lines, intrinsic curves by solid lines, and statistical bounds via shaded confidence intervals (±2 standard deviations).
Critical Elements of a Conventional Load-Deformation Graph
Begin by identifying the proportional limit–the first point where linear behavior ends–located at the curve’s initial straight segment. This threshold marks the material’s transition from elastic to incipient plastic response, typically occurring at stresses below 0.2% strain for ductile metals like aluminum alloys. Measure this value precisely using digital extensometry with a resolution of at least 0.001 mm/mm to avoid underestimating yield strength calculations.
Yield Strength and Strain Hardening Zones
Use the 0.2% offset method to determine yield strength for materials lacking a distinct yield point. Draw a parallel line to the elastic segment intercepting the x-axis at 0.002 strain; the intersection with the curve defines yield. Beyond this, the strain hardening region exhibits nonlinear growth–steels often display a 30-50% increase in load capacity before ultimate strength, while polymers may show minimal hardening due to molecular chain realignment.
Extract the ultimate tensile strength from the curve’s peak, then locate fracture strain at the endpoint. Calculate ductility using percent elongation: (L_f – L_0)/L_0 × 100, where L_f is final gage length and L_0 the original. For brittle ceramics, this rarely exceeds 1%, whereas annealed copper can reach 40%. Verify fracture modes by examining specimen necking; cup-and-cone patterns indicate ductile failure in metals, while smooth surfaces suggest cleavage in ceramics.
Converting Nominal Tensile Curves into Actual Material Behavior
Multiply the nominal tensile values (σnom, εnom) by (1 + εnom) to obtain the actual tensile σ and ε. For necking regions, replace the uniform elongation assumption with Bridgman’s correction: divide the measured load by the instantaneous cross-section Ai calculated from optical diameter measurements or laser scanning profilometry. Use polynomial fits to interpolate Ai at 0.1 % intervals for seamless integration with load-displacement records.
Key Adjustments for Post-Necking Behavior
Derive Ai from area reduction ratios ψ = (A0 – Ai)/A0; apply Bridgman’s factor β = (1 + 2R/a) ln(1 + a/2R), where R is the neck radius and a the minimum cross-section radius. Log-log plots of true strain εtrue = ln(1 + εnom) versus true stress σtrue = σnom(1 + εnom)β reveal power-law hardening regions; extract hardening exponents n via least-squares regression on ε>true>0.1 segments.
Key Thresholds in Real Mechanical Behavior Curves for Material Evaluation
Identify the proportional limit as the first critical threshold–where linear elasticity deviates by more than 0.05% strain. Beyond this point, Hooke’s law no longer applies, and permanent deformation begins. For most metals, this occurs at 0.1–0.2% engineering strain but shifts to 0.15–0.25% in real curves due to strain hardening. Use this marker to distinguish reversible from irreversible behavior.
Track the yield strength at the onset of plastic flow, defined by a 0.2% offset in real curves. Unlike nominal data, this value accounts for instantaneous cross-sectional reduction, typically yielding values 10–20% higher than conventional measurements. For ductile alloys, this inflection signals the transition from lattice distortion to slip system activation. Apply these adjusted figures in finite element models to avoid underestimating load-bearing capacity.
- Necking initiation: Locate the ultimate tensile strength (UTS) in real curves–where strain reaches 5–15% beyond the yield point. At this stage, localized thinning begins, reducing the load-bearing area but increasing actual stress. For structural steels, this occurs at 1.5–2.5× the yield stress, while aluminum alloys show a sharper rise (3–4×). Use digital image correlation to measure true strain distribution here.
- Fracture point: Record the breaking stress in real curves, which exceeds nominal values by 30–50% in ductile materials. This final threshold combines stress triaxiality and void coalescence effects. For titanium alloys, expect 1200–1400 MPa in real vs. 900–1100 MPa in standard tests. Cross-reference with scanning electron microscopy to correlate microvoid patterns.
Plot logarithmic strain hardening exponents (n-values) between yield and UTS to quantify formability. In real behavior graphs, these values range from 0.1 for high-strength steels to 0.5 for annealed copper–critical for predicting uniform elongation limits. Use Hollomon’s equation (σ = Kε^n) with true values to derive precise forming process parameters, reducing trial-and-error in deep drawing applications by up to 40%.
Step-by-Step Construction of Material Behavior Graphs from Test Results
Begin by collecting force-displacement measurements from a uniaxial tensile test. Convert raw load-extension values to normalized parameters using specimen dimensions: nominal axial force per unit area (σ = F/A₀) and relative elongation (ε = ΔL/L₀). Record initial cross-sectional area (A₀) and gauge length (L₀) precisely–errors propagate directly into final graphs. For metals, use a 50 mm gauge length; polymers may require extended lengths (e.g., 100 mm) to capture deformation characteristics.
Data Processing and Plotting Workflow
| Step | Action | Key Considerations |
|---|---|---|
| 1 | Input raw data: force (kN), displacement (mm) | Avoid zero-force readings–start from first non-zero value to eliminate slack |
| 2 | Apply area/length normalization | For brittle materials, use instantaneous area (A = A₀(1-ε)) to approximate real behavior |
| 3 | Identify yield point | Offset method: 0.2% strain for metals; 0.5% for plastics |
| 4 | Plot σ-ε pairs | Use logarithmic scale for ε-axis if strain exceeds 5% |
| 5 | Smooth curves | Apply moving average (window=5 data points) to reduce noise |
Export processed data to technical plotting software–avoid spreadsheet tools for publication-quality output. Define axis ranges: typical ductile alloys span 0-250 MPa (σ) and 0-0.3 (ε), while polymers may extend to 50 MPa and 0.8 respectively. For necking behavior, switch to logarithmic strain (εᵗ = ln(1+ε)) beyond 10% deformation.
