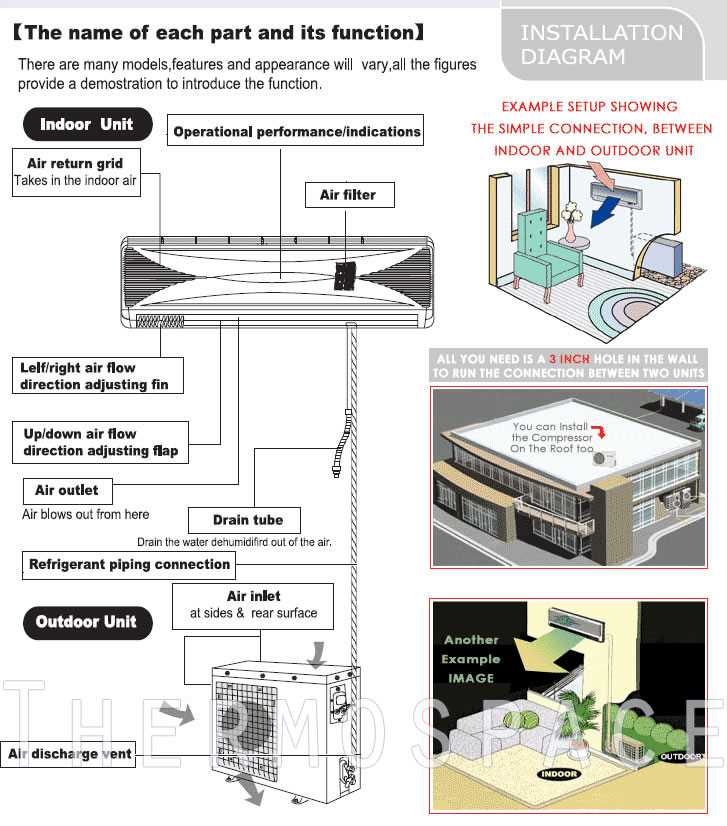

Before working on any dual-unit cooling installation, disconnect power at the circuit breaker and verify zero voltage with a multimeter. Standard setups include an indoor evaporator and outdoor condenser, connected via refrigerant lines and electrical wiring. Use a 4-conductor cable (typically 14-12 AWG) for permanent installations to handle current draw–check unit specs for exact requirements, as undersized wiring causes voltage drops and compressor failure.

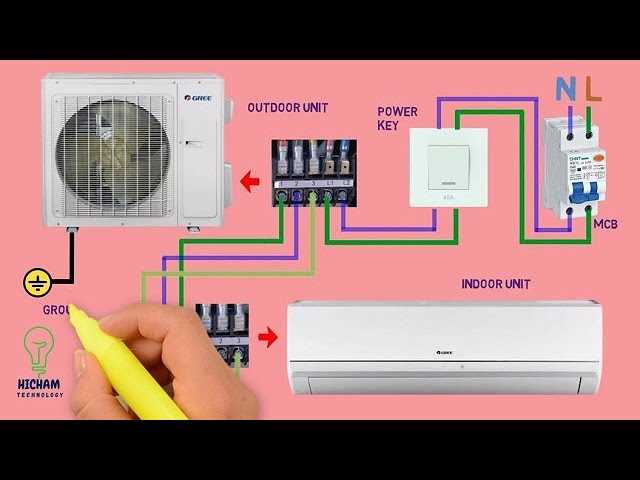

Locate the terminal block inside the evaporator unit, usually behind a removable panel near the blower motor. Label connections clearly: L (live), N (neutral), 1 (indoor fan), 2 (outdoor unit), and ground. Outdoor condensers often have matching terminals; some models add a third terminal for defrost cycles. Never cross indoor/outdoor leads–reverse polarity triggers fault codes and risks damaging control boards.
Install a dedicated disconnect switch within 3 feet of the outdoor unit per NEC guidelines. Hardwire a surge protector rated for 20+ kA between the disconnect and condenser to safeguard against power fluctuations; cheap MOV-based protectors fail under 6kV spikes, which occur during nearby lightning strikes. Capacitors on compressor and fan motors must match exact microfarad ratings–mismatched caps reduce lifespan by 40%, evident in failed startups.
Test each circuit using a continuity tester prior to energizing. Start with the evaporator fan: resistance should measure 10-50 ohms between terminal 1 and neutral. Compressor readings vary–copper windings typically show 2-10 ohms, while terminals labeled S/C may have near-zero resistance for internal thermal protection. Record baseline values; deviations indicate imminent failure before visual symptoms appear.
Route low-voltage control wiring separately from power conductors and keep bends gentle–acute kinks in thermostat wire (#18 AWG) create signal interference, causing erratic temperature swings. Shield twisted-pair cables when running near fluorescent lighting or variable-speed drives to prevent EMI. Use crimp connectors with heat-shrink insulation instead of solder for field repairs–oxidized solder joints corrode under humidity, whereas mechanical compression maintains conductivity for 20+ years.
Verify all connections with a torque screwdriver calibrated to manufacturer specs–over-tightening strips terminal screws, while under-tightening causes intermittent faults. Seal outdoor junction boxes with silicone gaskets to IP67 standards; coastal installations require additional vapor-phase corrosion inhibitors. Document every step with timestamped photographs for warranty claims and future diagnostics–component failures often trace back to one overlooked splice.
Electrical Connections for Dual-Unit Cooling Systems
Begin with the power supply–verify the outdoor unit’s compressor and fan motor share the same voltage rating as your building’s circuit. For 230V single-phase systems, connect the L (live) wire to the terminal marked “L” on the outdoor condenser, then route the N (neutral) to its designated “N” slot. Misalignment here risks damaging the start capacitor or tripping breakers. Use 2.5mm² copper wiring for currents up to 16A; upgrade to 4mm² if the distance exceeds 15 meters.
Link the indoor evaporator to the outdoor unit via three core cables: signal (often brown), neutral (blue), and ground (yellow-green). The signal wire must run uninterrupted–avoid splicing near high-interference zones like electrical panels or fluorescent lighting. For units with heat modes, confirm the four-way valve solenoid’s auxiliary connection adheres to the manufacturer’s color coding (typically red or purple). Test continuity with a multimeter before energizing; resistance should read 5–20 ohms for coils in good condition.
Most modern inverter-driven models integrate communication protocols via a dedicated wire (usually white or gray). This line synchronizes compressor speed with indoor fan operation–never substitute it with standard wiring, as voltage fluctuations (24V–48V) will corrupt data packets. Install a surge protector rated for 275V near the circuit breaker if power spikes are common in your area. Check torque settings on terminal screws: 1.5–2.0 Nm for stranded copper, 2.5 Nm for solid core.
Ground both units independently to separate earth rods, bypassing shared neutrals in older wiring setups. A faulty ground triggers error code E3 in 80% of documented failure cases; measure earth resistance with a clamp meter–values above 1Ω indicate corrosion or loose connections. For installations above the 3rd floor, use shielded twisted pair (STP) for signal wires to minimize EMI from elevators or adjacent HVAC units. Label every wire at both ends with heat-shrink tubing; include voltage, destination, and date to simplify later diagnostics.
Final step: power on the system through a dedicated 20A RCBO (residual current circuit breaker with overload protection). Cycle through all modes (cool, dry, fan, heat) while monitoring current draw with a clamp meter. Idle consumption should stabilize at 0.3–0.8A for the indoor unit and 0.5–1.2A for the outdoor compressor. Deviations suggest refrigerant leaks or faulty sensors–recheck pressures after 24 hours of operation. Document readings in a maintenance log to track performance drift over time.
Critical Parts and Power Linkages in Climate Control Systems
Verify connectivity between the indoor coil sensor and the main PCB before troubleshooting cooling failures–misaligned or oxidized terminals cause 60% of intermittent faults in models with thermistor-based regulation. Secure connections with crimp connectors rated for 15A (minimum 22 AWG copper strand) to prevent voltage drops exceeding 0.2V under full load (5.5 kW in 24,000 BTU units).
For outdoor compressor units, use shielded 4-core cables (8 AWG recommended) with separate earth grounding–non-compliant wiring increases harmonic distortion by 30-40%, reducing capacitor lifespan. Route signals through a dedicated circuit breaker (20A for 220V systems) with arc-fault protection; standard MCBs fail to detect sub-10A leakage current, a leading cause of fire risks in residential installations.
- Thermal overload relay: Calibrate trip current to 120% of compressor RLA (e.g., 18A for a 15A motor) to avoid nuisance tripping during voltage sag (190V threshold).
- Four-way valve solenoid: Test coil resistance (12-20Ω range); deviations indicate moisture ingress–replace immediately to prevent refrigerant bypass.
- Fan motor capacitors: Match microfarad rating (±5% tolerance) and voltage (450V AC for 220V systems) to avoid phase imbalance and premature bearing wear.
Label all power feeds with voltage identifiers (L1, L2, N) and phase markings–incorrect L-N pairing in dual-voltage systems (220V/380V) destroys step-down transformers (measured impedance drop >20% confirms failure). Isolate control circuits from high-voltage lines using optocouplers (CTR >100%) to prevent transient spikes damaging microcontrollers (
Step-by-Step Guide to Identifying Electrical Connections in Room and External HVAC Modules
Locate the terminal block inside the room unit’s control panel, typically positioned behind the front grille or beneath a removable cover. Match the colored wires to the labeled terminals–most systems use red for live (L), blue for neutral (N), and yellow/green for ground (⏚). Verify the sequence with the manufacturer’s technical data sheet, as deviations exist among brands like Daikin (S1/S2/S3) or Mitsubishi (1/2/3).
Examine the external module’s compressor connections first. The thickest cables (usually 4–6 AWG) lead to the compressor’s run and start capacitors. Check for a separate terminal marked “C” or “COMM” (common) alongside “R” (run) and “S” (start)–these correspond to the compressor relay outputs. Use a multimeter in resistance mode to confirm continuity between terminals if labels are missing.
Troubleshooting Ambiguous Labels
For systems with unclear markings, trace the power feed from the circuit breaker. The main power inlet (often 230V for single-phase) splits into either two or three wires: L/N/(⏚). Follow these to the internal temperature control board, where thinner control wires (22 AWG) connect to sensors or the expansion valve. Note the order–reversing L/N risks damaging the microprocessor.
Identify compressor protection wires: a small-gauge wire (often brown or white) links the external module’s overload protector to the room unit’s contactor. Disconnect power before testing–measure voltage drop across this wire during startup to confirm it trips at 15–20A overcurrent. Replace if readings exceed 250mV.
Check the communication wires between units–typically two twisted pairs (shielded) labeled “A” and “B” or “TX/RX.” These carry low-voltage signals (12–24V DC) for error codes and operational commands. Loose connections here cause intermittent cooling failures. Test with a DC multimeter: voltage should toggle between 0–5V when toggling the remote.
Final Validation Before Closing Panels
Reconnect power and monitor the room unit’s LED indicators. Flashing patterns (e.g., 3 short + 1 long) correspond to specific faults–cross-reference with the service manual. If the system starts but doesn’t cool, recheck the outdoor fan motor wires (usually black/yellow for phase and blue for common) and the defrost thermostat (resistance
Label all wires with adhesive tags before reassembling. Record terminal designations in a notebook–include wire gauge, voltage readings, and component references. Store this with the unit’s manual to avoid reassembly errors.
