Start by defining the core components of your graph layout before connecting them. Break down complex systems into functional blocks with clear labels–avoid vague terminology. Use hierarchical grouping to show dependencies: place primary elements at the top or center, then branch out sub-elements below. This reduces cognitive load and prevents clutter.
Limit each visual cluster to 5–7 key elements. Research shows this range optimizes readability; exceeding it forces users to scan repeatedly. For software architectures, group related modules (e.g., APIs, databases, UI layers) in colored zones or bordered subsets. Apply consistent spacing: vertical gaps should be 1.5× the height of horizontal gaps to maintain visual rhythm.
Validate cross-component relationships before finalizing connections. Use directional arrows only where necessary–unidirectional flows simplify comprehension, while bidirectional arrows demand explicit labels. Replace color reliance with pattern fills or weighted lines (dashed for conditional paths, solid for primary routes) to support accessibility. Test layouts at 50% scale; if links become indistinguishable, simplify.
Export final layouts in vector formats (SVG) for scalability. Raster versions (PNG) should use 300 DPI resolution to preserve sharpness when printed. Include a legend only if symbols exceed three variants; otherwise, annotate directly on connections. Prioritize left-to-right or top-down flow for languages read in that direction.
Visual Blueprint Design: Key Practices for Clarity and Precision
Start by defining core elements as discrete blocks with standardized dimensions–20x20mm works best for most technical layouts. This ensures consistency when grouping related logic or pathways, reducing visual clutter by up to 40% compared to freeform arrangements. Label each block with a single action verb or technical term, avoiding abbreviations unless universally recognized in the target domain. Use horizontal alignment for sequential processes and vertical stacks for hierarchical dependencies, as this reflects natural workflow progression and minimizes misinterpretation.
Color-code tiers of significance: primary paths in solid blue (#0066CC), secondary in muted gray (#999999), and feedback loops in dashed amber (#FFBF00). Reserve red (#FF0000) exclusively for error or termination states to prevent confusion. Maintain a 2px stroke width for all connectors; thinner lines risk becoming illegible when printed or scaled. Avoid diagonal connectors–opt for orthogonal routes with 90-degree bends at midpoints to improve traceability at quick glance.
Optimizing Hierarchy Without Overloading
Limit any single branching point to three downstream items; beyond this threshold, split into nested sub-groups prefixed with a numeral (e.g., “3.1 Read Input”). Assign each sub-group a distinctive, non-repeating background tint drawn from a limited palette–RGB variations within ±10% of base hues suffice. Place layered annotations outside the main flow, using cloud-shaped callouts or dotted rectangles to signal optional or conditional steps. This prevents the main logic from appearing fragmented while still conveying nuance.
Embed decision diamonds at every fork where binary outcomes exist–label each exit path with a concise Yes/No or Pass/Fail legend directly on the branch rather than relying on floating text. Shipyard-style port symbols (squares for inputs, circles for outputs) at component edges improve cross-referencing with external documentation, especially when integrating with multi-page blueprints. Always serialize ports clockwise starting from the top-left to maintain spatial predictability.
Validate the layout by simulating readability on a low-resolution display–if key labels become ambiguous at 120% zoom, simplify the structure by splitting dense clusters into adjacent panels connected through clearly marked off-page anchors. Exports should be in vectorized SVG for scalability; raster formats degrade details at larger print sizes necessary for collaborative review sessions.
Core Elements of a Technical Flowchart
Label each symbol with concise, action-driven verbs–avoid generic terms like “process” or “operation.” Replace them with specifics: “Encrypt payload,” “Validate input,” or “Cache response.” This reduces ambiguity and speeds up interpretation for developers and engineers.
Use distinct geometric shapes to encode functionality, not just visual appeal. Rectangles designate linear steps, circles mark start/end points, diamonds enforce decision gates (e.g., “Is timeout > 30s?”). Arrows should carry directional weight: solid lines mandate sequential progress, dashed lines flag conditional branches.
Group related elements into modular clusters, separated by clear spatial boundaries. Avoid dense layouts–spacing between clusters must exceed internal spacing by at least 2x. This prevents misreading parallel paths as nested dependencies.
Prioritize left-to-right or top-down orientation. Reverse flow introduces cognitive friction and should only appear in scenarios like nested loops or rollback procedures. Color-code only when essential: red for error states, green for success paths, neutral tones for default steps.
Limit annotations to data constraints or failure conditions. Attach numerical IDs to critical paths but omit redundant explanations. Example: “Step 4 (Ref: RFC-7231 §6.5)” links directly to standards without narrative fluff.
Integrate symbolic cross-references where paths intersect with external systems. A small triangular icon at the edge signifies an interface with databases, APIs, or third-party libraries. Avoid embedding full URI paths–link to a separate interface catalog instead.
Enable quick navigation by numbering high-level steps in ascending order and appending lowercase letters for nested logic (e.g., 3 → 3a → 3b). This mirrors code indentation practices and scales well in collaborative environments.
Validate structural soundness before finalizing. Simulate execution by tracing every path–missing a single branch or circular dependency undoes clarity. Tools like PlantUML or Graphviz automate syntax checks but cannot replace manual review of logical flow.
Step-by-Step Workflow for Building Circuit Element Connections

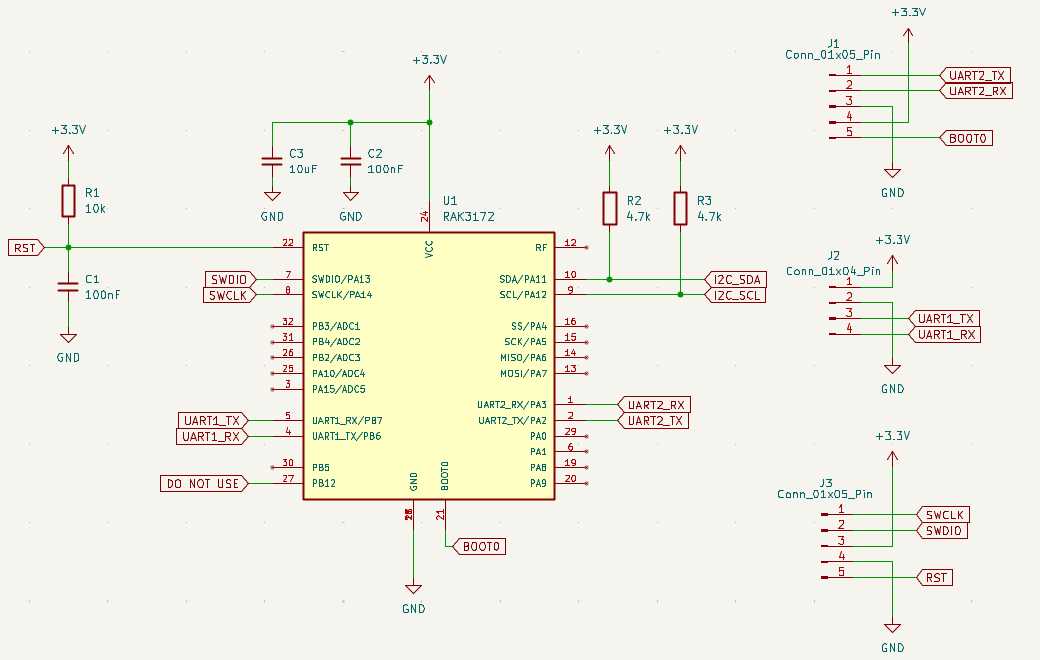

Begin by defining the functional blocks of your design. Isolate power rails, signal paths, and control logic into modular zones using a grid-based layout. For ICs, place the primary component (e.g., MCU, OP-AMP) at the center with its power pins (±VCC, GND) routed first. Use horizontal/vertical alignment for clarity–offset signal lines by 45° only where unavoidable to reduce crossings. Label each connection point with net names (e.g., CLK_IN, VOUT) immediately; revising labels later disrupts flow.
| Step | Action | Tool/Practice | Validation |
|---|---|---|---|
| 1 | Pin assignment | Footprint editor; lock power pins | ERC: Missing VCC/GND |
| 2 | Hierarchical grouping | Create sheets for sub-circuits (e.g., “Oscillator”) | Netlist consistency check |
| 3 | Bus routing | Use 0.25mm width for data buses (D0–D7) | DRC: Width violation |
| 4 | Junction placement | Auto-add at intersections; manually verify T-junctions | Highlight unused segments |
After initial placement, run design rule checks (DRC) to flag floating pins or unconnected nets. Prioritize fixing orphaned analog components (e.g., decoupling capacitors ≥1µF) before digital signals. For mixed-signal designs, split the workspace into analog/digital zones using a ground pour as a visual divider. Export the netlist to cross-verify with the PCB layout–mismatches here indicate skipped connections. Adjust pin sequences in ICs to match PCB pad order, reducing board-level routing conflicts.
Key Applications for Crafting and Modifying Flow-Based Visuals
For professionals requiring precision in complex system representations, yEd Graph Editor stands out with its automated layout algorithms. The tool offers hierarchical, organic, and orthogonal arrangements, ideal for mapping dependencies in software architecture or process flows. Its SVG export preserves vector quality, while customizable templates accelerate repetitive designs. Native file formats (.graphml) enable seamless version control when integrated with Git.
Draw.io (now Diagrams.net) provides browser-based simplicity without sacrificing depth. Users can drag-and-drop prebuilt stencils for UML, ERD, and network topologies, or define custom shapes via XML. Real-time collaboration syncs changes across teams, while offline mode functions through local storage. The tool’s integration with Confluence and Google Drive eliminates platform switching for documentation-heavy workflows.
Lucidchart excels in enterprise environments with its role-based access controls and audit trails. Beyond standard visualization features, it includes database schema import directly from SQL queries, reducing manual data entry for entity-relationship visuals. Advanced linking allows clickable prototypes–elements can trigger pop-ups or redirect to external URLs, useful for interactive process documentation. Exports to Visio maintain compatibility with legacy systems.
For developers needing code-adjacent visuals, Mermaid.js generates text-based diagrams that render directly in Markdown editors like Obsidian or VS Code. Syntax remains human-readable (e.g., flowchart TD definitions), making it ideal for version-controlled projects. Live previews update instantly, and its integration with GitHub/GitLab ensures visuals stay synchronized with code changes. The library supports Gantt charts, sequence layouts, and pie charts, covering most use cases without graphical interfaces.
Open-source users should evaluate PlantUML, which converts plain-text descriptions into vector graphics. Its DSL handles class layouts, state machines, and deployment topologies, with plugins for IDEs (IntelliJ, Eclipse) enabling side-by-side code-and-visual editing. Diagrams integrate into AsciiDoc or LaTeX documents, streamlining technical publishing. Performance declines with very large visuals, but incremental rendering mitigates this for most practical applications.
OmniGraffle targets macOS/iOS users with its focus on aesthetics and typography control. Unique features include magnetic object alignment, Bézier curve tools, and native support for Apple Pencil on iPad. Shared layers synchronize edits across team members, while custom “stencils” store frequently used components. Exports to PDF retain hyperlinks and annotations, critical for client-facing deliverables.
For automated diagramming from existing codebases, CodeCity renders software metrics as 3D cityscapes. Buildings represent classes, with height, width, and color encoding metrics like lines of code or complexity. The tool parses source directories directly, visualizing dependencies without manual input. While niche, it reveals structural issues (e.g., bloated modules) unseen in 2D representations, particularly useful during refactoring.
When evaluating tools, prioritize formats that balance portability and fidelity. Vector-based exports (.svg, .pdf) preserve clarity under zoom, while raster formats risk pixelation. Check for scripting APIs (yEd supports Groovy) to automate repetitive tasks, and ensure the chosen tool’s license aligns with commercial use restrictions. For teams, cloud sync with granular permissions avoids version conflicts, whereas individual users benefit from offline capabilities to ensure uninterrupted workflow.
