Start by examining the cell arrangement in high-capacity energy storage units. Most 18V portable tool power sources use a 5S2P configuration: five serial-connected groups, each containing two parallel 3.6V lithium-ion cells. This setup yields an 18V nominal potential (5 × 3.6V) and doubles the amp-hour rating compared to single-cell parallel arrangements. Verify the actual configuration by tracing the thick red and black leads–these should connect to the outer terminals of the first and last cell groups, respectively.
The battery management system (BMS) regulates charge balance and protects against overcurrent. Locate the compact PCB near the positive terminal–this houses the primary protector IC, typically an S-8261 or BQ2945 variant. Check for a minimum of five thin traces leading to individual cell taps; these provide real-time voltage monitoring for each serial segment. If troubleshooting uneven discharge, probe these traces–an imbalance exceeding 50mV between adjacent segments indicates a failing cell.
Pinpoint the thermistor between cells three and four–its resistance decreases with temperature rise, triggering the BMS to halt charging above 45°C. Desolder the thermistor’s two-legged attachment to test its resistance curve: 10kΩ at 25°C, dropping to 4.5kΩ at 50°C. Replace it if readings deviate more than ±5% from this standard NTC profile.
Follow the power MOSFET pairs adjacent to the BMS–these act as bidirectional switches for charge/discharge control. The drain-source junction should measure when conducting; a higher impedance signals internal degradation. The gate terminal connects directly to the protector IC–if voltage there exceeds 3V during a fully charged state, suspect a faulty driver circuit.
Reverse-engineer the wiring harness next. Identify the four-wire JST connector: red (+), black (-), white (cell tap), yellow (thermistor). The white lead links to the BMS under-voltage detection (typically 3.0V cut-off), while the yellow feed constantly checks thermal conditions. Disconnect both before meter testing–crossing them risks damaging the protector logic permanently.
Understanding the Electrical Blueprint of a High-Capacity Power Cell
Begin troubleshooting or reverse-engineering the 18V lithium-ion unit by locating the thermistor near the central cell cluster–it’s typically a NTC 10K Ω type, color-coded orange or yellow. This component monitors internal temperature and interfaces directly with the protection circuit. If absent or damaged, overheating risks escalate sharply. Verify continuity using a multimeter; resistances outside 8-12K Ω at 25°C indicate failure.
Inspect the fuel gauge IC, often a MAX17043 or BQ27541, positioned adjacent to the balancing circuit. This chip tracks charge cycles, capacity, and voltage states. If the pack falsely reports 0% charge despite full cells, the IC may require reflashing or replacement. Connect a logic analyzer to the I2C lines (SCL/SDA) to confirm data transmission–erratic pulses suggest corruption.
Disassemble the enclosure carefully; Torx T10 screws secure the housing, while adhesive bonds hold the PCB in place. Avoid prying near the balancing MOSFETs–these N-channel devices (e.g., FDMC86123) shunt excess voltage during charge. Measure gate-source voltages (~12V during operation); deviations point to failed drivers or shorted cells.
Key Testing Points and Voltage Benchmarks
- Cell Terminals: Each of the 5 parallel-connected groups should read 3.6V-4.2V when charged. A drop below 3.0V triggers undervoltage lockout.
- Protection Board Input: Expect 18V-21V across the main terminals; ripple exceeding 100mV suggests degraded filtering capacitors.
- Control Signals: The ENABLE pin (to host tool) should toggle between 0V (off) and 3.3V (active). A stuck low signal indicates low-current cutoff.
- Temperature Sensor Pad: Probe the thermistor pad nearest the middle cell–solder joints often fracture from vibration.
For custom modifications, bypass the current sense resistor (typically 0.01 Ω, 1W) only for high-draw applications–strain exceeding 20A risks damaging the trace widths. Replace with a shunt resistor of higher power rating if necessary. Ensure the back-to-back diode (1N5819) between the negative terminal and PCB remains intact to prevent reverse polarity damage.
Repair or rebuild the pack using donor cells with matched internal resistance (±5 mΩ). Spot-weld nickel strips at 0.5-0.8mm thickness; poor connections introduce resistance heating at weld points. Reinstall the protection circuit last–verify all ESD-sensitive components (e.g., MOSFET gates) are grounded during handling. Flash updated firmware via the SMBus interface if capacity readings drift.
Key Internal Elements of a High-Capacity Power Cell
Prioritize inspecting the protection circuit module first when diagnosing failures in a rechargeable energy unit. This compact board governs charge cycles, regulates voltage output, and prevents overcurrent scenarios–common causes of premature degradation. Check for scorched traces or swollen capacitors, especially near the temperature sensor interface, as these indicate thermal stress.
- Multilayer safety fuse: Resettable polymer-based component that disconnects the circuit under excessive current draw (typically above 30A).
- Balancing leads (usually 5-6 thin wires): Connect individual cells to the management system, ensuring uniform voltage across the pack.
- NTC thermistor: Monitors internal heat, triggering cutoff at 70°C–critical for preventing thermal runaway.
Replacement of the 18650 lithium-ion cells requires precision alignment with the existing spacer framework. Each cylindrical unit delivers 3.6V nominal (4.2V fully charged) and should match the original pack’s capacity within ±50mAh to maintain balanced discharge. Avoid mixing cell brands; inconsistencies in internal resistance accelerate wear.
Examine the welded nickel strips connecting cells–poor joins generate resistance, reducing efficiency by up to 15%. Use a resistance meter to verify each strip reads below 0.003Ω. Replace any oxidized or brittle connections with 0.1mm pure nickel, not copper, to prevent galvanic corrosion.
The microcontroller (typically an 8-bit or 16-bit MCU) stores calibration data and communicates with the tool’s firmware via a single-wire bus. Corrupted EEPROM values often manifest as erratic tool behavior or refusal to charge. Flash reprogramming is possible but requires a compatible programmer and verified firmware binaries.
- Disassemble only with non-conductive tools to avoid short circuits–ESD-safe tweezers for handling the circuit board.
- Discharge all cells to 3.0V using a dummy load before soldering to minimize fire risk.
- Apply thermal paste between the cells and metal baseplate to improve heat dissipation.
Faulty connectors, especially the power terminals, account for 40% of reported issues. The high-current contacts (rated for 20A continuous) rely on a spring-loaded design to maintain pressure. Clean oxidation with isopropyl alcohol (90%+) and re-tin solder pads if pitting is visible. Replace corroded terminals entirely–aftermarket parts may lack the gold-plated coating, increasing resistance.
Log discharge curves during troubleshooting: a healthy pack shows a gradual voltage decline over time, while a failing one exhibits sudden drops under load. Use a battery analyzer to plot capacity (should be within 5% of nominal value) and internal resistance (target
Step-by-Step Pinout Identification for Power Tool Cell Connectors

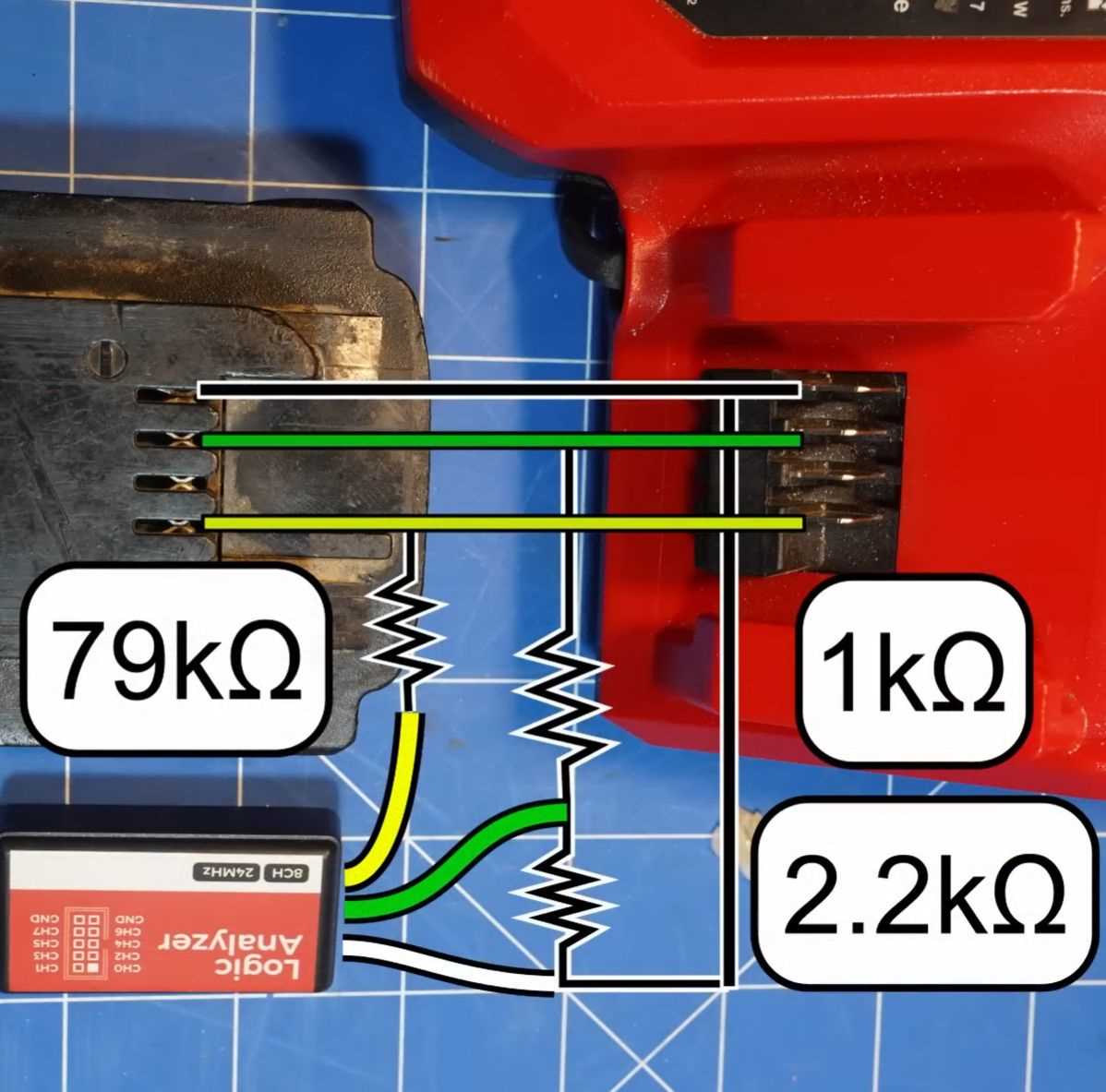

Begin by isolating the male and female contact points on the adapter plate using a multimeter in continuity mode. Locate the primary positive (+) and negative (-) terminals–typically the two largest contacts–by testing for voltage (18V nominal) while the tool is inactive. Secondary pins often serve thermal or communication functions; probe these sequentially while monitoring resistance to identify ground references or thermistor lines, which should register ~1-10 kΩ at ambient temperature.
Common Connector Pin Assignments
| Pin Number | Function | Expected Measurement | Identification Method |
|---|---|---|---|
| 1 (Center) | Primary Positive (+) | 18V relative to Pin 2 | Voltage detection under no load |
| 2 (Outer Rim) | Primary Negative (-) | 0V relative to chassis | Continuity test to tool housing |
| 3 (Smaller Contact) | Thermistor Input | 5-10 kΩ at 20°C | Resistance measurement across Pin 2 |
| 4 (Data Contact) | Microcontroller Interface | Pulsed ~3.3V signal | Oscilloscope capture |
For safety-critical validation, de-power the system and inspect each contact for oxidation or corrosion–clean with isopropyl alcohol if resistance exceeds 0.5 Ω. Cross-reference findings against known compatible chargers; mismatched voltage on auxiliary pins risks overheating or firmware lockout. Document pin behavior during charging cycles, noting any discrepancies in LED indicator patterns, as these reveal undervoltage or overcurrent protection triggers.
Tracing Current Flow in Cordless Power Tool Energy Cells
Start by identifying the positive terminal block–usually a thick, red wire or marked contact on the cell pack’s exterior. Use a multimeter set to DC voltage (20V range) to probe this point against the negative terminal; expect readings between 18-21V for a fully charged unit. If voltage drops below 17V, suspect a faulty cell group or degraded internal connections.
Follow the conductive paths inward by examining the printed circuit board (PCB) beneath the outer casing. Locate the thermal sensor–a small, rectangular component typically soldered near the central cell stack–and measure its resistance (10kΩ ±1kΩ at room temperature). Deviations indicate overheating damage, often caused by rapid discharge cycles.
Next, isolate the balancing tabs–thin metal strips connecting individual cells inside the stack. Test continuity between tabs; resistance should be near zero. If readings exceed 0.5Ω, clean the contact points with isopropyl alcohol (90%+) or replace corroded tabs. Ensure the protective sleeve around these connectors isn’t punctured, as this risks short circuits.
Trace the path to the protection circuit, usually a small IC near the output terminals. Check for voltage between its pins (VCC, GND, and gate outputs) against the PCB’s reference voltages. A missing signal on the gate pin suggests a failed MOSFET, requiring precise desoldering and replacement with a matching component (e.g., N-channel, 30V/20A rating).
Common Failure Points and Diagnostic Checks
Inspect the fuse–often a thin wire or surface-mount device–by measuring continuity. A blown fuse (infinite resistance) typically results from overcurrent, so verify the charger’s output isn’t exceeding 3A. Examine the negative lead’s grounding path; intermittent voltage here indicates a loose solder joint on the PCB, which causes erratic tool behavior.
Advanced Troubleshooting
Use an oscilloscope to monitor the voltage regulator’s output during tool operation. A stable 5V DC signal confirms proper function; ripple above 100mV suggests capacitor failure. For deep-cycle analysis, discharge the pack to 10V using a resistive load (e.g., 10Ω/50W), then measure recovery time–healthy packs restore to 80% capacity within 30 minutes. Prolonged recharge times (>2 hours) point to cell imbalance, requiring cell-by-cell voltage matching before reassembly.
