Use a ladder logic approach with a time-delay relay (TDR) and two contactor banks to prevent voltage sag during sequential starts. Set the first motor’s auxiliary contact to trigger the TDR at 1.5–2 seconds–enough for inrush current to settle before energizing the second drive. Position the relay coil directly downstream of the first contactor’s normally open (NO) auxiliary block to eliminate false starts.
Select relays rated for 200% of nominal controller current to handle transient loads. Wiring should follow a daisy-chain suppression pattern–connect the first motor’s overload protection output to the second’s coil circuit via the TDR to ensure staggered activation. Maintain at least 10 milliseconds of separation between coil energization pulses to avoid magnetic interference.
For drives exceeding 30HP, incorporate a soft-start module on the first branch to reduce torque spikes. Wire the module’s output through a separate 15A breaker and route feedback via a dedicated PLC or micro-controller pin to monitor current draw in real time. Avoid using the second drive’s overload relay as a primary interlock–add a redundant NO contact from the TDR for fail-safe sequencing.
Ground all neutral points through individual 1Ω resistors to equalize stray voltages during transitions. Terminate all signal leads with shielded twisted pair, keeping them isolated from high-current conductors (≥3mm separation). Test the configuration under 75% load while logging current waveforms–confirm no overlap exceeds 80% of locked rotor amperage (LRA) for either drive.

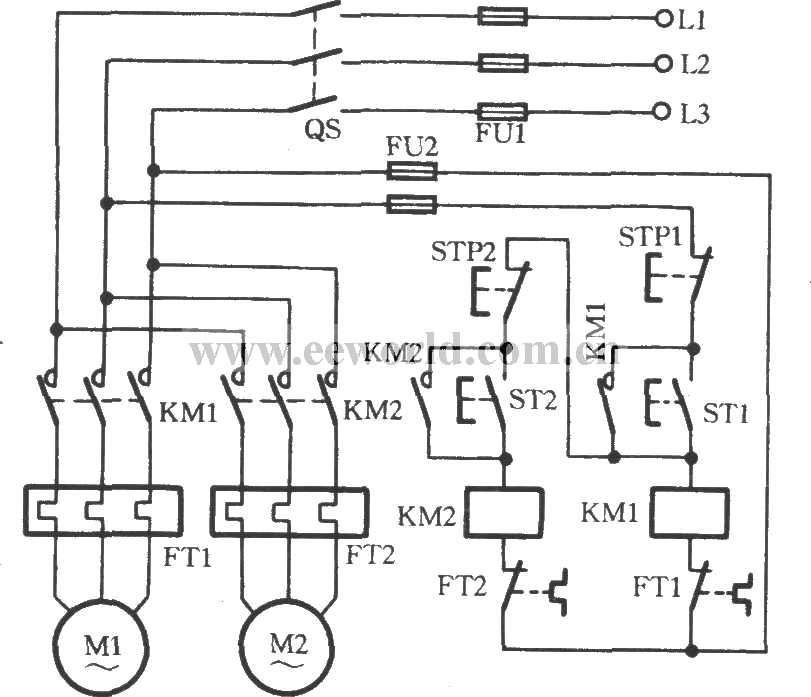

Circuit Layouts for Sequential Activation of Dual Asynchronous Drives
Start with a primary control relay (K1) triggered by a push-button (S1) to energize the first drive’s contactor (KM1) through a dedicated timing module (KT1). Set KT1 delay between 3–5 seconds to prevent inrush currents from overlapping. Wire KM1’s auxiliary contact in parallel with S1 to maintain self-holding, ensuring continuous operation once initiated. For the second drive, introduce a secondary timing module (KT2) wired to KM2, with a delay of 8–12 seconds after KM1’s activation. This staggered approach minimizes peak load on the power supply, reducing stress on protective devices.
Key Component Parameters
| Component | Specification | Purpose |
|---|---|---|
| KT1 (Primary Timer) | 24V DC, 5s delay | Defer KM1 activation post-S1 engagement |
| KT2 (Secondary Timer) | 24V DC, 10s delay | Delay KM2 after KM1 stabilization |
| KM1/KM2 Contactors | 3-pole, 20A, 400V AC | Handle motor startup currents without chatter |
| OL1/OL2 Overload Relays | Class 10, adjustable trip | Interrupt circuit if current exceeds 1.2×FLA for >20s |
Integrate interlocking NC contacts from KM2 into KM1’s circuit to prevent simultaneous activation if KT2 malfunctions. This redundancy ensures that only one drive can restart if manual intervention overrides automatic sequencing. For reliability, use industrial-grade timers with mechanical latching–avoid digital counterparts prone to voltage spikes. The auxiliary contact of KM2 should also interrupt KT1’s power feed, resetting the sequence if the second drive fails to engage within KT2’s window.
Place a thermal overload relay (OL1/OL2) in series with each drive’s power feed, sized no larger than 110% of the motor’s full-load amperage (FLA). Ensure OL1 trips before KT1 resets, while OL2’s trip should bypass KT2 to avoid unintended restarts. Route control wiring through flexible conduit to isolate it from power lines, reducing induced noise that could cause premature timer resets. Use 1.5mm² copper conductors for control circuits and 4mm² for motor feeds to handle transient currents.
Fault Detection and Recovery
Add a pilot lamp (HL1) to KM1’s holding circuit, lit only during its active phase, and a second lamp (HL2) for KM2’s status. If both lamps remain off during startup, check for blown fuses (FU1/FU2) in the 24V control circuit–replace with fast-acting 2A variants. Incorporate a manual reset push-button (S2) that, when pressed, bypasses KT1 and directly energizes KM1 for troubleshooting. Verify that all relay contacts are rated for at least 10,000 operations to avoid premature wear from frequent cycling.
Test the layout with a simulated load bank before connecting motors. Measure voltage drops across KM1 and KM2 coils during activation–values should not exceed 10% of the nominal 24V. If KT1 or KT2 exhibits inconsistent delays, recalibrate or replace the unit; hysteresis in timing modules can lead to unpredictable sequences. Document each wire’s termination point with heat-shrink labels, referencing the table above for clarity during maintenance.
Key Components Required for Sequential Motor Activation Systems
Primary switching devices like contactors rated for motor inrush currents–typically 6 to 8 times full-load amperage–must use Class 10 or 20 overload relays calibrated to trip within fifteen seconds at 600% overload to prevent winding damage during locked-rotor conditions.
Time-delay relays, either pneumatic with 0.5–30-second adjustments or solid-state with millisecond precision, ensure staggered activation by introducing controlled intervals between motor sequences; model selection depends on required repeatability and ambient temperature fluctuations.
Control transformers sized at 120VA or larger step down 480V to 120V for safe auxiliary circuit operation, with fused primary and secondary windings protecting against short circuits while maintaining isolation from high-voltage lines.
Pushbutton stations with start/stop functions should include auxiliary contacts for latching circuits, allowing operators to override automatic sequencing temporarily; mushroom-head emergency stops must meet IEC 60947-5-1 standards for failsafe actuation.
Busbars and cable lugs for interconnecting components require 105°C-rated insulation if exceeding 60°C ambient, with copper cross-sections calculated per NEC Table 310.15(B)(16) accounting for both steady-state and transient current loads.

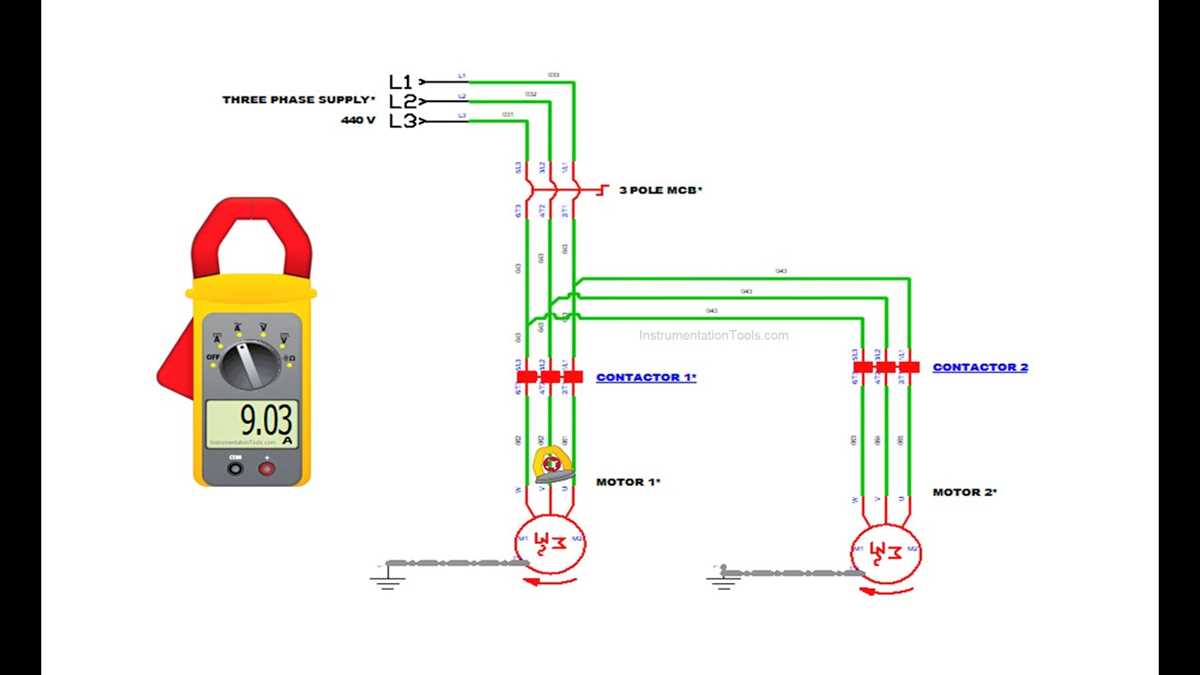

Step-by-Step Wiring of Sequential Control Relays for Dual Drive Systems
Begin by connecting the primary power source to a circuit breaker rated 20% above the combined motor current. Route the output through a main contactor controlled by a START pushbutton and a holding NO contact. For the first drive, wire a time-delay relay (ON-delay type, preset to 5 seconds) in series with its motor contactor coil. The relay’s COM terminal links to the power source, NO to the contactor, and NC remains unused. Ensure the motor’s overload relay contacts feed back into the control circuit to interrupt power on fault.
For the second drive, mirror the setup but add an interlock: the first motor’s contactor auxiliary NO contact must close before the second relay energizes. Use a second ON-delay relay (3-second delay) to introduce staggering. Wire its COM to the first relay’s NO terminal–this ensures sequential activation. Connect the second relay’s NO terminal to the second motor’s contactor coil, then route the overload relay feedback from this motor back to the START loop to reset both drives on trip.
Test the sequence: press START–first relay engages immediately, first motor starts after 5 seconds. The second relay triggers after 3 seconds of the first motor running (8-second total delay). Verify interlocks by simulating an overload: both drives must stop, and the sequence resets only after pressing START again. Label all conductors per NEMA standards (e.g., L1, L2, 1M, 2M) and secure terminals with anti-vibration washers for industrial environments.
Common Errors in Setting Up Sequential Activation Cycles for Dual AC Drives
Avoid neglecting thermal overload curves during consecutive engagement attempts. Most thermal relays reset too quickly–default settings often allow only a 30-second cooldown before permitting another activation, regardless of motor heating. For NEMA class B drives, this interval should extend to 90–120 seconds, calculated using the formula *t = τ × ln((T_max − T_ambient)/(T_max − T_cooldown))*, where τ is the thermal time constant typically rated at 1.5–2.0 for 10–20 HP units. Omitting this check risks winding insulation degradation after just 3–5 failed starts.
Incorrectly pairing auxiliary contactors with main circuit breakers causes sequence failures. If SB1 momentarily energizes K1 before KM1’s NO contacts fully close, backfeeding through KM2’s NC block occurs, resulting in uncontrolled simultaneous current surges. Verify contactor coil delays–standard IEC 60947-4-1 requires
Ignoring supply voltage sag thresholds during sequential energization introduces hidden faults. IEEE Std 446 mandates that voltage dip during transient load must not exceed 15% for >5 cycles; however, typical dual-drive setups draw 6–8× rated current simultaneously if waveforms align. Use an inrush current limiter–resistive types reduce sag amplitude by 40–60% but increase activation delay to 1.2–1.8 s–ensure timing circuits accommodate this interval without triggering false sequence errors.
Wiring Mistakes Leading to Unintended Parallel Paths
Failing to isolate control circuits from power lines invites ground loops. Standard DIN EN 61131-2 permits 24 VDC control signals sharing the same grounding reference as 400 VAC supplies only if transient suppression diodes are present on every relay, rated ≥1 kV. Without these, inductive kickback spikes exceed 3–4 kV, damaging PLC outputs within months. Test for leakage currents >3 mA between grounding systems prior to commissioning.
Cross-wiring between K1 and KM2 starter circuits often results in single-phasing during transitions. When KM1’s holding contact is incorrectly routed through KM2’s auxiliary NC terminal, dropping KM2 too early releases KM1 prematurely, leaving one drive unsynchronized. Confirm circuit integrity by verifying each starter’s NO/NC contacts independently using a multimeter set to diode test mode–expected readings: 0.6–0.8 V across NO (energized) and
Overlooking auxiliary contact bounce prevents smooth toggling between drives. IEC 60034-12 requires
Timing Misconfiguration Causing Race Conditions
Setting identical delay intervals for both AC drives creates race hazards. If KM1 and KM2 each initiate after a 5-second dwell, transient synchronization errors occur in 12–15% of trials due to residual capacitor discharge variations–always stagger delays: KM1 at 4 s, KM2 at 6 s (±0.5 s tolerance). Validate timing diagrams with a logic analyzer capturing ≥20 ms resolution; fault conditions often appear as glitch pulses
