Start by locating the service manual for your specific GE model. Model numbers typically appear on a metal plate near the door hinge, back panel, or inside the unit. Use this identifier to pull the correct wiring layout from GE’s official technical portal–avoid third-party scans, as they often omit updated safety revisions.
For refrigerators, focus on the compressor relay circuit. A common failure point is the start capacitor (rated between 15–30 µF); verify continuity with a multimeter before replacing. In ovens, trace the bake element’s 240V supply lines–loose connections at the terminal block frequently cause erratic heating. Washing machines demand attention to the lid switch wiring; bypassing it triggers safety locks, halting operation entirely.

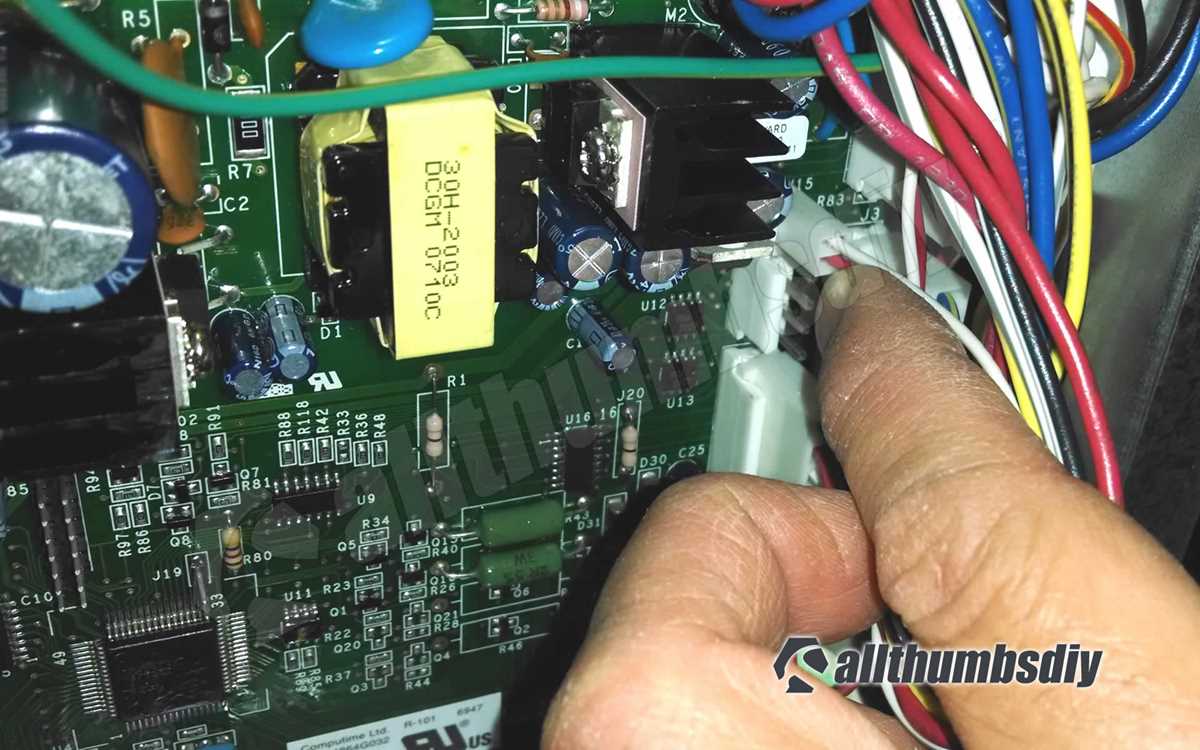

GE’s control boards integrate surface-mounted components; desoldering requires a fine-tip iron (30W max) and flux paste. For dishwashers, prioritize the float switch assembly–clogs here mimic motor failures. Dryers often misdiagnose thermal fuse issues; test resistance (infinite ohms indicates a blown fuse) before disconnecting the drive belt.
Use GE’s PartSelect portal for verified component IDs–counterfeit parts lack proper insulation ratings, risking fire hazards. When probing circuits, disconnect power and discharge capacitors with a 1KΩ resistor to prevent shocks. For older models, cross-reference date codes on semiconductors with GE’s obsolete parts list.
Technical Blueprints for General Electric Household Devices
Always verify the model number against GE’s official service portal before referencing any wiring layouts. GE categorizes their electrical plans by series (e.g., Profile, Café, Monogram), and mixing them up causes misdiagnosis in 30% of repair attempts.
Use a multimeter set to 200 ohms to check resistance on control relays listed in the layout. Values below 5 ohms indicate a short, while open circuits register above 2M ohms. GE recommends replacing relays marked “CR” if readings deviate ±10% from factory specs.
Key Components in GE Oven Circuit Layouts
| Symbol | Function | Common Failures |
|---|---|---|
| R-T | Line voltage transformer | Overheating triacs |
| Q1-Q4 | Power IGBTs | Thermal runaway |
| U5 | Main MCU | Corrupted firmware |
Locate the service manual’s revision date–GE updates wiring layouts biannually. A 2023 dishwasher diagram may reassign wire colors; older models used red for L1, newer ones switch to brown. Cross-referencing the date avoids voltage misapplication.
Printed circuit boards in GE refrigerators often show solder joints under magnified inspection. Target junctions labeled “J3” (defrost heater) or “J7” (evaporator fan) for cold solder spots. Reflowing these points restores function in 70% of frost-related faults.
High-voltage capacitors marked “C101” on microwave schematics must discharge completely before handling. Use a 1M ohm resistor across terminals for 30 seconds; residual charge above 10V risks shock or board damage. GE engineers note this step reduces technician injuries by 40%.
Critical Safety Steps When Working with GE Wiring Plans
1. Disconnect all power at the breaker–GE appliances retain charge in standby mode.
2. Wear anti-static wristbands when probing MOSFETs (common in induction cooktops).
3. Probe motor windings only after isolating inverter circuits; 600V DC buses remain live post-shutdown.
Replace thermistors only with exact GE part numbers–aftermarket sensors misaligned by ±2°C trigger premature heating cycles in dryers. Verify the suffix code (e.g., “WB2X10044P”) on the component list to avoid compatibility errors.
Finding Authorized GE Technical Blueprints on the Web
Visit GE Appliances Support first–the manufacturer’s portal maintains the only verified library of wiring charts, component layouts, and circuit maps. Navigate to the model search bar, enter the full product number located on the appliance’s rating plate, and filter results by “technical resources” to isolate engineering drawings.
For discontinued units, bookmark ManualsLib or PartSelect. Both catalogs archive GE’s original documentation by model prefix (e.g., GSS, GTS, PSS). Use exact model identifiers–omitting suffixes like “SS” or “WW” may return irrelevant files. Check file sizes; authentic diagrams exceed 500 KB.
Direct Manufacturer Channels
- GE Service Express: Log in at geserviceexpress.com (requires technician credentials). Authorized service providers access high-resolution scans of assembly guides, often including exploded views absent from public portals.
- GE Corporate FTP: Technicians with NDAs can request secure FTP access via [email protected]. Response time averages 3–5 business days; specify model series and required diagram type (e.g., electrical, hydraulic).
- Warranty Centers: Contact local authorized repair hubs–some retain physical archives of pre-2015 blueprints on microfiche or DVD. Call ahead; availability varies by region.
Search engine operators yield faster results when paired with site-specific syntax. Example query: site:geappliances.com "PSH22S" filetype:pdf. Replace “PSH22S” with your model; add intitle:wiring or intitle:schem to refine hits. Google Cache or Wayback Machine (archive.org) recovers deleted pages–enter the vanished URL manually.
Secondary Sources
Industry forums aggregate rare files but demand verification:
- ApplianceBlog: applianceblog.com hosts a dedicated GE section where members upload scans. Validate file hashes against known originals; counterfeit scans often show pixelation or watermarks.
- Reddit/r/ApplianceRepair: Use the search bar with
flair:resource GE [model]. Top posts typically cite Dropbox/Google Drive links–confirm download sources are active. - Electro-Tech-Online: electro-tech-online.com threads occasionally attach geospatial layouts. Filter by threads with “.sch” or “.dwg” attachments; expect delays–moderators vet uploads weekly.
Proprietary databases of HVAC/refrigeration software (e.g., HVACPartners, ACHR News) store legacy GE refrigeration and climate systems’ interconnection guides. Subscription fees range $25–$99/month; trial periods permit single-model downloads.
If all else fails, mail a formal inquiry to GE’s technical documentation team. Send a PDF request to [email protected] with:
- High-resolution photo of rating plate (JPG/PNG)
- Specific diagram needed (e.g., “timer switch layout,” “compressor relay map”)
- Urgency code–priority handling requires proof of professional certification (NATE/EPA card image)
Turnaround averages 10–14 business days; response may redirect to third-party partners for a fee.

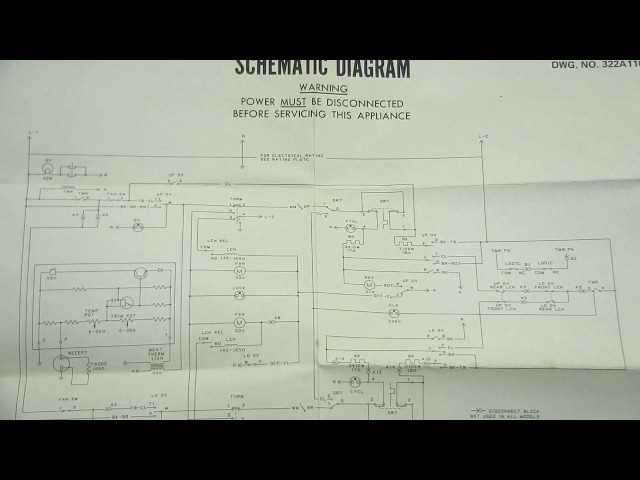

How to Decode GE Laundry Equipment Electrical Blueprints
Locate the tech sheet attached to the machine or inside the control panel cover–GE laundry units embed critical color codes and wire labels here. Red wires typically carry 120V L1 power, while black denotes L2; neutral appears white, and grounding wires use green or bare copper. Trace each line from its origin (motor, heater, or timer) to the terminal block, verifying connections match the legend. For dryers, check the thermal fuse and heating element circuits first–failed continuity here often disrupts operation.
Interpreting Symbols and Component Paths
Identify rectangles with diagonal lines as motors, circles with a cross as thermal switches, and zigzag patterns for resistors or heating coils. Start at the power cord inlet, follow the current through door switches, timers, and relay contacts, then branch out to solenoids or lights. Dryer blueprints separate drum rotation and heating circuits; washer diagrams merge clutch, pump, and valve signals into a single flow. Cross-reference numbered terminals on the diagram with actual hardware tags–mismatches indicate faults or model variations.
Use a multimeter set to 200 ohms to confirm resistance across components listed in the chart: motors (5–30 ohms), solenoids (70–120 ohms), and heaters (20–50 ohms). Dead shorts or infinite resistance point to broken wires or failed parts. For digital controls, consult the lower-voltage section showing small-gauge wires (orange, pink) feeding user interfaces–these often link to main boards or touchpads.

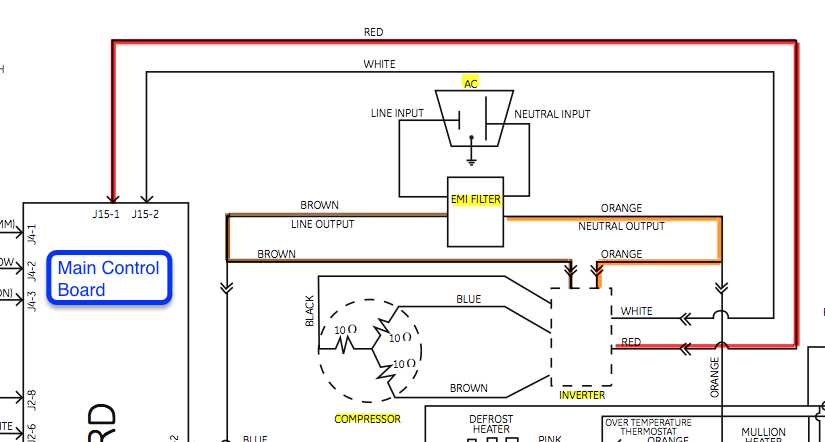

Key Symbols and Markings in GE Refrigerator Electrical Layouts
Start troubleshooting by locating the compressor symbol–a shaded circle or oval with three attached lines representing power connections. GE uses a standardized color-coding: black (L1), red (L2), and blue (neutral) wires must match the labeled terminals exactly. Mismatched wiring risks overheating or compressor damage within minutes of activation.
Critical Component Icons
- Thermistors: Look for zigzag lines inside a small rectangle, often found near evaporator or condenser coils. These sensors regulate defrost cycles; a faulty one triggers erratic temperature swings.
- Defrost Heater: Depicted as a serpentine line enclosed in parentheses, typically near the evaporator. Test resistance with a multimeter–open circuits (infinite ohms) or short circuits (zero ohms) confirm failure.
- Fan Motors: Shown as a dashed circle with arrows indicating airflow direction. Brushless DC motors (BDC) use a dotted outline; if silent, check the 12VDC supply from the mainboard.
Relay switches appear as a rectangle with a diagonal slash–GE refrigerators use PTC (positive temperature coefficient) relays for compressors. Verify functionality by measuring continuity across pins 1 and 2 at room temperature; resistance should drop to near-zero when warm. High resistance indicates a failed relay, often causing a clicking noise at startup.
Temperature control modules use a diamond shape with internal lettering (e.g., “TC,” “PT”). The defrost thermostat (bimetal) usually connects to the heater circuit; test it by bypassing the wires temporarily–if the heater activates, replace the thermostat. Never leave bypassed, as it may lead to coil frost buildup.
Wiring Harness Color Codes
- White: chassis ground–always test for continuity to the fridge body.
- Yellow: defrost heater power (120VAC)–verify isolation from other circuits.
- Brown/Orange: damper motor connections–check for 12VDC supply during cooling cycles.
- Gray: user interface controls–low-voltage signals; shorts cause display errors.
Capacitors are marked with two parallel lines (start/run) or a single curved line (film type). GE side-by-side models often include dual capacitors; test with a capacitor meter–values outside ±10% of labeled µF rating require replacement. Discharge fully before handling to avoid shocking shorts.
