Start with resistors–mark their values in ohms, kilohms, or megohms directly on the visual guide. Use standard symbols (zigzag for carbon film, rectangle for SMD) and label tolerance (5%, 1%, etc.) adjacent to each unit. For capacitors, differentiate polarized (electrolytic) from non-polarized (ceramic, film) by adding a “+” sign near the positive terminal and specifying microfarads or picofarads. Avoid ambiguity: a 10μF capacitor must be identified as aluminum electrolytic or tantalum, as their pin spacing differs.
Transistors demand exact notation. Indicate NPN or PNP with a circle around the symbol if through-hole, omit for surface-mount. Label emitter, base, and collector (or source, gate, drain for FETs) with arrows pointing in the correct direction–failure here reverses current flow. For ICs, use the manufacturer’s pinout diagram as reference; never assume pin 1 follows clockwise numbering. Add ground symbols (triangle with a line) to all negative rails and power symbols (upward arrow) to positive rails, specifying voltage levels (±12V, 3.3V, etc.).
Switches and relays require clear state indication. For momentary switches, add “NO” (normally open) or “NC” (normally closed) next to the contact pair. For relays, separate coil and contacts into distinct sections of the layout, using dashed lines if space is constrained. Diodes should have the band (cathode) positioned to match the arrow direction in the symbol–misalignment causes reversed biasing. Zener diodes need their breakdown voltage marked (e.g., 5.1V).
Inductors and transformers must show winding direction (dots for phase alignment) and core material (ferrite, iron, air). Label inductance in henries or millihenries and specify if the component is shielded. For connectors, use standardized labels like “P1“, “J2” and cross-reference them in a legend with pin functions (e.g., VCC, GND, SIG). Power sources (batteries, voltage regulators) must include output voltage and current capacity–omit this, and thermal runaway becomes a risk.
Key Elements in Electrical Blueprint Illustrations
Start by selecting symbols that match industry-standard conventions–resistors, capacitors, and inductors should follow ANSI Y32.2 or IEC 60617 guidelines. Deviations create confusion during prototyping and troubleshooting, especially in multi-engineer projects. For instance, a zigzag line represents a resistor in ANSI but may vary in other norms. Verify symbol consistency before finalizing layouts.
Label every element with clear, hierarchical identifiers. Use prefix conventions: R for resistors (R1, R2), C for capacitors (C101, C102), and Q for transistors (Q5). Numeric sequencing should reflect the signal flow, not random assignment. Avoid generic labels like “R?”–they force manual cross-referencing later. Include tolerance values in parentheses for passive parts (e.g., R7 (5%)).
- Resistors: Specify wattage (¼W, ½W) directly next to the symbol.
- Capacitors: Indicate dielectric type (ceramic, electrolytic) via suffixes (C_, E_).
- ICs: Mark pin numbers near the symbol; hide internal blocks to reduce clutter.
Group related blocks using dotted lines or shaded areas. Power rails should span the top/bottom edges, with VCC/VDD at +5V or custom voltages labeled explicitly. Ground symbols should use the same style within a single diagram–mixing earth, chassis, and signal grounds invites layout errors. For digital logic, separate analog/digital grounds where noise coupling is critical.
Integrate test points in blueprints for critical nodes–especially in high-frequency designs. Label them TP1, TP2 with expected voltage ranges or waveforms in the margin. This accelerates debugging without oscilloscope probing guesswork. For microcontrollers, mark all unused pins as “NC” (No Connect) to avoid accidental shorts during soldering.
Add dimensional annotations for non-standard parts: trace widths for RF sections, pad sizes for connectors, or clearance requirements around heat sinks. Include these in a legend if they apply to multiple instances (e.g., “All 0.5mm traces: 7mil width”). For multi-layer boards, color-code layers directly on the illustration–red for top, blue for bottom–to prevent ambiguity.
Validate the depiction against the physical layout early. Run a netlist comparison to catch misaligned nets or missing connections. Errors at this stage propagate downstream, causing board respins. Use automated tools to flag unconnected pins or conflicting labels, but manually review high-risk areas like differential pairs or high-current paths where tools often miss context.

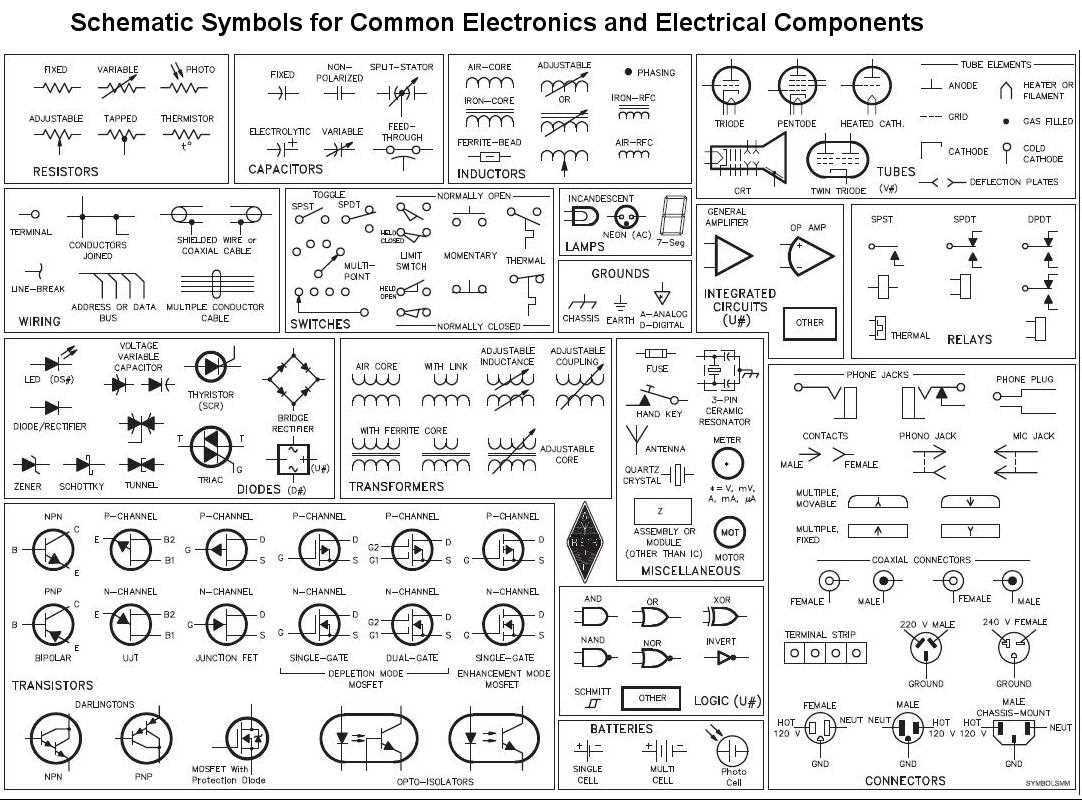

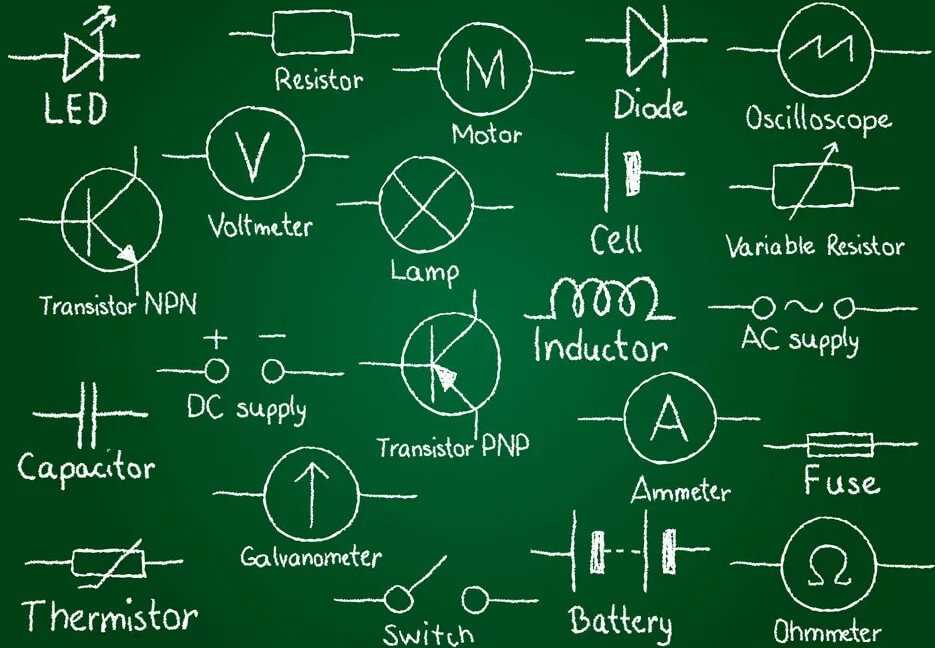

Standard Graphical Notations for Passive Electrical Elements and Their Meanings
Resistors use a zigzag line or rectangle in engineering blueprints, with the zigzag being the older but still prevalent IEC standard. European notation often stacks horizontal lines at each zigzag vertex to improve clarity in dense layouts, while North American variants employ a smoother, diagonal-free symbol for cleaner integration with CAD tools. Always verify if the symbol includes value annotation (e.g., “10k”) directly above or below–ambiguous placement can mislead during board assembly.
Capacitor Symbol Variations and Critical Nuances
Two parallel lines denote a capacitor, but the distinction between polarized and non-polarized types is critical. Polarized capacitors (electrolytic/aluminum) add a plus sign adjacent to one terminal, while non-polarized types (ceramic/film) omit it. Tantalum capacitors introduce a curved plate, and variable capacitors use an arrow intersecting one plate. Mistaking these symbols risks reverse voltage damage–polarized capacitors fail catastrophically when connected backward. Double-check datasheets if schematics omit voltage ratings.
Inductors appear as coiled lines, but their representation varies by frequency application. Air-core inductors use simple loops, while iron-core types add two parallel lines next to the coil. Toroidal inductors wrap the coil around a circular base, often requiring shielding annotations in RF designs. PCB layouts must account for magnetic coupling–proximity to traces carrying high-frequency currents can introduce unintended interference. Always cross-reference with a parts list to confirm core material and tolerance.
Thermistors and varistors share similar notations but serve opposing functions. NTC thermistors (negative temperature coefficient) use a resistor symbol with a diagonal line ending in a “T,” while PTC thermistors replace the “T” with a “P.” Varistors (voltage-dependent resistors) add a diagonal line bisecting the zigzag. Confusing these in thermal protection circuits can lead to overheating. Label both value and type in schematics to prevent assembly errors–omissions force technicians to trace connections manually.
Memristors, though less common, employ two angled intersecting lines between resistor terminals. Their symbolic representation distinguishes them from standard resistors, but few CAD libraries include them by default. Always confirm if the device is ionic or filamentary–behavior differs under transient conditions. If simulating, ensure models account for hysteresis effects; neglecting this can result in 30–50% current prediction errors during switching events.

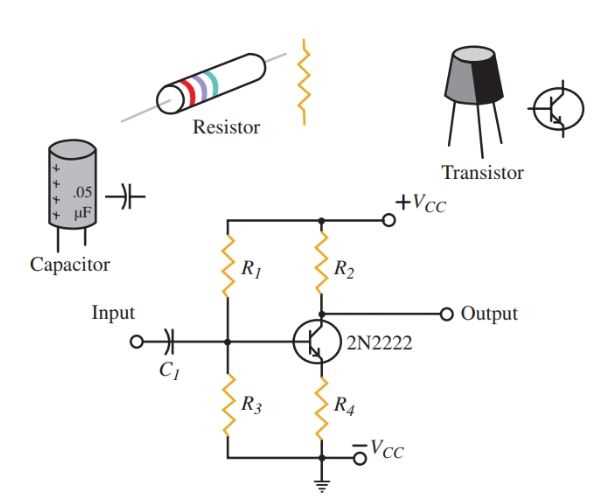

How to Read and Draw Transistors in Electronic Blueprints for Varied Setups
Position the emitter at the bottom, collector at the top, and base on the side in bipolar junction transistor (BJT) common-emitter layouts–this orientation mirrors real-world pinouts for TO-92 and SOT-23 packages. For MOSFETs, mark the gate on the left, drain on the right, and source below; keep the body diode implicit unless high-power switching requires explicit notation. Use a horizontal line for the channel with a perpendicular gate line to distinguish enhancement-mode from depletion-mode types–add an inward arrow for N-channel, outward for P-channel.
Key Symbol Variations for Configuration Clarity
In common-base arrangements, flip the BJT symbol vertically with the base at the input node–label the emitter arrow direction to denote NPN or PNP. For Darlington pairs, nest two BJT symbols sharing a collector, omit the second base, and angle the emitters outward to show the cascade. JFETs use a solid perpendicular line for the gate; depletion-mode types require a small circle at the gate junction. Always cross-check pin assignments against datasheets–SOIC and DPAK packages often reverse standard orientations.
Differentiate between digital and analog uses: add a “T” suffix (e.g., 2N2222T) to indicate a transistor optimized for switching, or an “A” (e.g., BC547A) for linear amplification. For RF transistors, include a dashed box around the symbol to denote shielding, and mark parasitic capacitances (C₍cb₎, C₍be₎) in picofarads near the leads. In push-pull stages, pair NPN and PNP symbols back-to-back with aligned emitters; for complementary symmetry, ensure identical β values are noted in the margin.
Key Differences Between Digital and Analog Integrated Circuit Symbols
Begin by replacing generic logic gate outlines with industry-standard IEC 60617 or IEEE Std 91-1984 shapes–AND gates show a flat input edge, OR gates use a curved onset, and inverters always include a small bubble at the output vertex. Digital symbols omit explicit voltage rails, assuming binary states (0/1), while analog depictions require precise input/output voltage reference labels (±15V, 0–5V, etc.) directly on op-amp or transistor pins. Below is a comparison of primary distinguishing features:
| Feature | Digital Symbol Elements | Analog Symbol Elements |
|---|---|---|
| Power Indicators | Absent (implied) | Explicit rails (VCC, VEE) or ground symbols |
| State Representation | Abstract signal logic (HIGH/LOW) | Continuous voltage/current values with tolerance bands |
| Input/Output Markers | Single bit lines (no scaling) | Weighted resistor/capacitor values adjacent to terminals |
| Feedback Loops | Unidirectional data flow | Detailed external paths (Rf, Cf) with annotated gain formulas |
| Noise Sensitivity | Represented as glitch filters (hysteresis bubbles) | Explicit decoupling capacitors (100nF, 1μF) with PCB footprint notes |
Ensure every comparator symbol includes an internal hysteresis loop indicator (e.g., Schmitt trigger icon) and every transistor’s emitter/base/collector labels follow JEDEC or JIS standards–BJTs use “E-B-C,” MOSFETs “S-G-D.” Multiplexer and demux symbols must show channel count in binary (2⁴ for 16 channels) adjacent to selector pins, whereas analog switches require on-resistance figures (
