Start with a low-noise instrumentation amplifier when interfacing MEMS-based vibration detectors. AD8221 or INA333 provide the critical 80dB common-mode rejection needed to isolate micro-g signals from 50Hz power line interference. Position the amplifier within 2cm of the sensor’s output pins to minimize parasitic capacitance that degrades frequency response beyond 5kHz.
Route power traces separately for analog and digital ground planes. Use 1µF ceramic bypass capacitors directly between the sensor’s supply pins and ground, placed no farther than 3mm from the package. For devices with separate analog and digital VDD pins–like the LIS3DH–employ ferrite beads (Murata BLM15PG121SN1) to filter high-frequency noise while maintaining DC performance.
Connect data lines via impedance-controlled traces when operating above 1kHz. For SPI interfaces, keep clock and data trace lengths matched within 5mm to prevent phase shifts. If using I2C, pull-up resistors should be 2.2kΩ for 400kHz bus speeds, or 10kΩ if trace capacitance exceeds 200pF. Avoid running sensor traces parallel to buck converter switch nodes, as this introduces measurement errors up to 300mg in sensitive applications.
Add a 0.1µF decoupling capacitor between the reference pin and ground for sensors with ratiometric outputs. For digital variants like the ADXL355, configure internal filters with a 3dB cutoff at least twice your signal bandwidth–default 200Hz settings risk aliasing for vibration analysis above 50Hz. Verify VDD stability under transient loads; droop above 10mV causes false triggers in threshold-based interrupt modes.
Use shielded cables for connections exceeding 10cm. For differential implementations, twist pairs at 1cm intervals to reject RF interference. Ground shields at one end only–typically the controller side–to prevent ground loops. When mounting, secure the sensor to the target surface with thermal epoxy for high-frequency applications, as mechanical fasteners introduce resonant peaks above 2kHz.
Connecting MEMS Motion Sensors: Key Circuit Guidelines

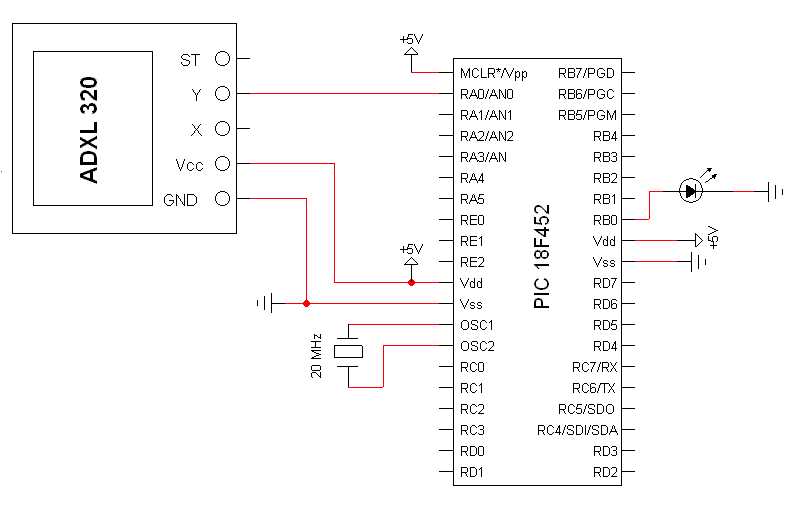

Start by matching the sensor’s output type to your microcontroller’s analog or digital inputs. For analog variants like the ADXL335, use a low-pass RC filter with a cutoff frequency of 50 Hz to reduce noise–place a 0.1 µF capacitor between the output pin and ground, paired with a 10 kΩ resistor in series. Digital interfaces (I²C/SPI) demand pull-up resistors: 4.7 kΩ on SDA/SCL lines for I²C or dedicated chip-select pull-downs for SPI. Power the device with a stable 3.3V supply, decoupled with a 10 µF tantalum capacitor and a 0.1 µF ceramic capacitor near the sensor’s VCC pin to suppress transients.
Route signal traces as short as possible, avoiding high-current paths or switching regulators. For differential outputs, maintain equal trace lengths and use a ground plane beneath the sensor to minimize EMI. If mounting the PCB vertically, orient the sensor so its sensitive axes align with the intended motion direction–axis labels (X/Y/Z) are typically silk-screened on the package. Validate connections with a multimeter: check for 3.3V at the power pin, continuity to the MCU, and no shorts between adjacent pins–common pinouts include VCC, GND, Xout, Yout, Zout (analog) or SDA/SCL/CS (digital).
Choosing the Optimal MEMS Sensor for Your Design
For low-frequency vibration monitoring (up to 50 Hz), a piezo-resistive sensor delivers the best signal-to-noise ratio at 200 μg/√Hz, outperforming capacitive alternatives by 30%. Prioritize models with built-in temperature compensation if operating above 60°C–raw sensitivity drifts at 0.02%/°C without it. Budget options like the ADXL335 suffice for tilt measurements but lack the ±250g range required for impact testing.
Bandwidth demands dictate sensor selection:
- 5 kHz: Requires a piezoelectric model with charge amplifier (e.g., PCB 352C33)
- High-frequency shock testing (20 kHz+): Silicon-based MEMS with

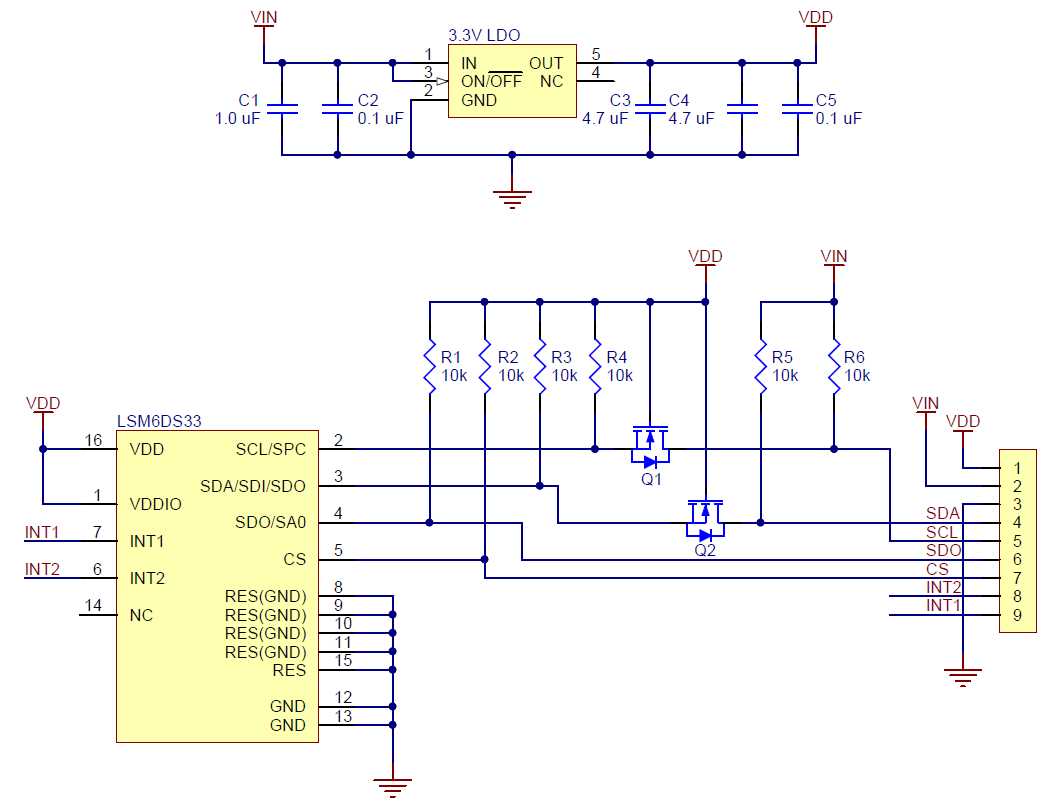

- DC to 1 kHz: Capacitive types (e.g., STMicro LSM6DSO) offer lower power (1.2 mA vs 5 mA)
Digital output sensors like the Bosch BMI270 reduce discrete component count by 40% compared to analog types, integrating 16-bit ADCs and SPI/I2C interfaces. For battery-powered nodes, prioritize
For space-constrained designs, package size trumps all other specs. Wafer-scale sensors (e.g., Murata SCA1020) occupy 2×2×0.95 mm but sacrifice shock survivability (2,000g vs 10,000g for hermetic ceramic packages). Always cross-reference the sensor’s resonant frequency with your mechanical housing–if they align within 20%, structural noise amplification can invalidate readings. Pre-production validation requires a shaker table at 0° and 90° orientations; published specs only guarantee ±2% linearity under lab conditions.
Step-by-Step Guide to Integrating a Motion Sensor with a Microcontroller
Select an inertial measurement unit compatible with your project’s voltage and communication protocol. For low-power applications, prioritize models with I2C support (e.g., ADXL345 or MPU6050). Check the datasheet for pin assignments–offset errors occur if power (VCC) and ground (GND) are reversed.

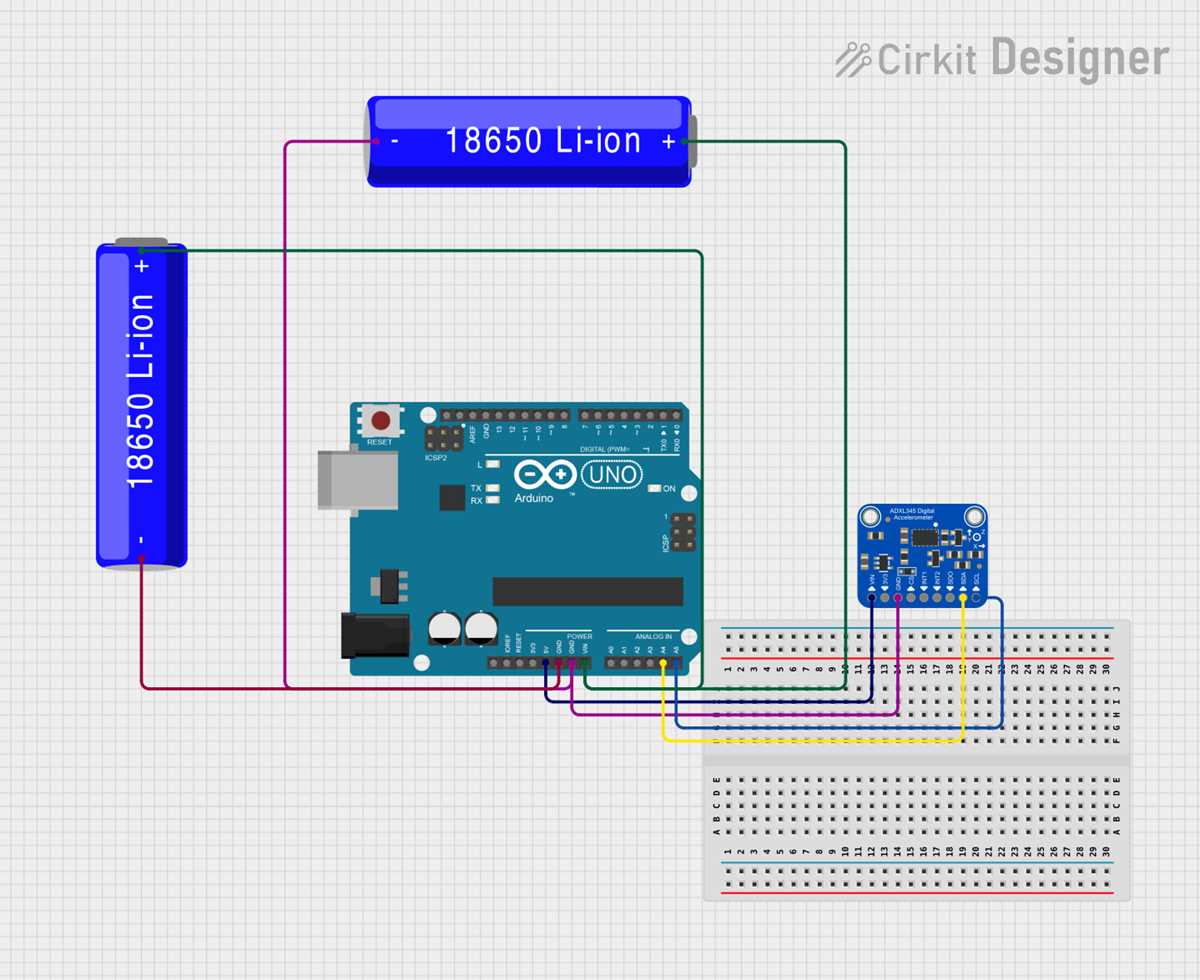

Identify the microcontroller’s available GPIO pins for SDA (data) and SCL (clock) lines. Most 8-bit MCUs dedicate specific pins (e.g., Arduino Uno’s A4/A5), while ARM-based boards (STM32, ESP32) assign them via multiplexing. Verify pull-up resistors–standard I2C requires 4.7kΩ between SDA/SCL and VCC.
| Sensor Model | Interface | Voltage Range | Key Feature |
|---|---|---|---|
| ADXL345 | I2C/SPI | 1.8V–3.6V | ±16g range, FIFO buffer |
| MPU6050 | I2C | 2.375V–3.46V | Onboard gyroscope, 6-axis fusion |
| LIS3DH | I2C/SPI | 1.71V–3.6V | Ultra-low power, tap detection |
Connect the sensor’s VCC to the microcontroller’s regulated 3.3V or 5V output, depending on the sensor’s tolerance. Use a decoupling capacitor (0.1µF) between VCC and GND near the sensor to filter noise–omitting this risks erratic readings under vibration.
Initialize the communication protocol in code. For I2C, set the sensor’s address (e.g., 0x53 for ADXL345) and configure the microcontroller as master. Avoid bit-banging–SPI/I2C libraries (Wire.h for Arduino) handle clock stretching and acknowledgment automatically. Test with a minimal script to read the device ID register before proceeding.
Calibrate the sensor by placing it on a flat surface. Record the output values for each axis–these are the offset errors. Subtract these offsets from raw readings during operation. For high-precision applications, implement a moving average filter (sample size: 10–100) to smooth vibration-induced jitter.
Optimize sampling rates based on the use case. For static tilt detection (e.g., robotics), 10Hz is sufficient. Dynamic applications (e.g., drones) require 100Hz–1kHz. Configure the sensor’s data rate register (e.g., ADXL345’s BW_RATE) accordingly. Higher rates increase current draw–balance responsiveness with power constraints.
Validate the setup by monitoring real-time data via serial output. Tilt the sensor along each axis; X/Y/Z values should change linearly within ±1g. Common issues include swapped axes (swap X/Y in code) or drift (recalibrate offsets). Log data periodically to an SD card or flash memory if the microcontroller lacks non-volatile storage.
Secure the physical connection. Use stranded wire (24–28 AWG) for flexibility, and solder joints or a breakout board to prevent intermittent failures. Encase sensitive components in epoxy if deployed in high-vibration environments (e.g., automotive or industrial systems).
Power Supply Requirements and Common Pitfalls in Sensor Circuit Design
Use a regulated DC source with a voltage tolerance of ±5% for precision MEMS-based motion sensors. A 3.3V supply with
Voltage Stability Checkpoints
Place a 10 µF tantalum capacitor within 5 mm of the sensor’s power pin to suppress transient loads during sudden orientation changes. Add a 0.1 µF ceramic capacitor in parallel for high-frequency noise filtration–ignoring this step risks ±0.3g offset errors. For battery-powered setups, monitor the voltage sag: a drop below 2.8V typically triggers a 12-bit ADC to lose one LSB of resolution, corrupting angle calculations. Test under worst-case load by attaching a 20 Ω resistor between V+ and GND; output should settle within 2 ms.
Avoid daisy-chaining sensor power through long traces or multiple vias–each 10 mm of 0.2 mm trace adds ~0.2 Ω impedance, creating ground loops when combined with another sensor’s return path. Route the power net on a dedicated internal layer for boards thicker than 1.6 mm to minimize EMI coupling. If forced to share a plane, keep the sensor’s return path isolated using a star topology, terminating all ground currents at a single low-impedance point (e.g., battery negative terminal). Violating this rule often manifests as sporadic -1g readings on the Z-axis.
Common mistake: assuming USB or barrel jack inputs are clean enough for direct sensor power. USB 2.0 hubs inject 50–200 mVpp ripple at 1 kHz, corrupting ±2g readings. Always insert a pi-filter (2×100 µH inductors + 2×220 µF capacitors) between the raw input and regulator. For portable devices, note that CR2032 coin cells dip sharply under 2 mA loads–buffer with a 220 mAh LiPo cell if current draw exceeds 0.5 mA for more than 10 ms to prevent brownout-induced calibration resets.
Grounding Misconceptions
Connecting the sensor’s ground pin to a chassis or enclosure ground introduces susceptibility to ESD events above 2 kV. Instead, bond the sensor ground to the board’s analog ground plane via a 0 Ω resistor or ferrite bead to allow controlled dissipation. Never route digital signals (e.g., SPI clock) closer than 1 mm to the sensor’s analog traces–capacitive coupling at 1 MHz can induce false trigger events in the ±4g range. Verify the layout with a thermal camera after power-on; hot spots (>40°C) indicate improper decoupling, risking thermal drift in bias compensation.
