Begin by verifying clearance tolerances between rotors and barrel–ideal spacing should not exceed 0.2–0.5 mm for uniform melt distribution in high-viscosity polymers like polyamide or PVC blends. Anything above 0.8 mm risks stagnant zones, thermal degradation, and inconsistent output density.
Position thrust bearings at the drive end to handle axial loads up to 50 kN; underestimate this, and shafts may deflect, causing wear on kneading elements within 60–100 operational hours. For corrosive compounds (e.g., fluoropolymers), opt for nitrided steel or cobalt alloy coatings–standard tool steel erodes after ~800 hours, while hardened variants last 3,000+ hours.
Zone heating profiles demand careful calibration: feed section kept 20–30°C below melting point to prevent slip, transition zone ramped to 180–220°C for polyolefins, and metering zone stabilized at ±5°C of target. Deviations wider than ±10°C produce uneven viscosity, leading to surging or incomplete mixing.
Downstream, vent ports must maintain negative pressure 15–25 mbar to extract volatiles without fluidizing the melt; positive pressure causes plugging within 5–10 minutes. Use stepped screws with compression ratios 2:1–3:1 for amorphous resins (PS, ABS) and 3:5–4:1 for semi-crystalline (PEEK, PET), adjusting flight depth proportionally.
Monitor torque readings; sustained spikes above 85% of max indicate potential jamming–reduce screw speed by 10–15 RPM immediately to avoid damage to gearbox splines. For reactive processes (e.g., peroxide crosslinking), maintain in the first zone to prevent premature activation and post addition.
Die design matters: land length should be 10–15× die orifice diameter for linear polymers, ensuring backpressure sufficient to eliminate melt fracture but low enough (5–8 MPa) to avoid shear thinning. For co-rotating configurations, stagger multipliers with 5–7° offset to prevent resonant vibrations at peak RPM (typically 120–300).
Key Components of a Co-Rotating Compounding Machine
For precise operational control, ensure the barrel heating zones are calibrated within ±2°C of the target temperature across all segments. Most industrial models feature 5–7 heating zones, each regulating melt viscosity independently–Zone 1 typically operates at 180–220°C for polymers like PP or PE, while downstream zones may require adjustments up to 300°C for high-performance composites. Overheating in the compression section (often Zone 3 or 4) risks thermal degradation, especially in shear-sensitive materials; counter this by adjusting screw speed inversely to temperature rises.
Screw configuration determines mixing efficiency: Segmented designs with kneading blocks (2–4 lobes, 45–90° offsets) improve distributive mixing, while reverse-flight elements enhance dispersive breakdown of agglomerates. For standard compounding, a 30–40% length-to-diameter ratio of mixing elements optimizes throughput without sacrificing homogeneity. Avoid placing high-shear components near the die unless processing high-viscosity blends–this prevents pressure spikes and potential screw binding.
Feed System Optimization
Gravimetric feeders outperform volumetric systems by ±0.5% accuracy, critical when adding fillers like calcium carbonate (in loadings up to 60%) or viscous additives such as oils. Position side feeders at 40–60% barrel length for late-stage introduction of heat-sensitive modifiers (e.g., pigments, fibers) to minimize residence time. Vacuum venting–typically at 70–80% barrel length–removes volatiles and moisture; ensure vacuum levels reach -0.9 bar to prevent defects like bubbles or surface irregularities.
Die design directly impacts product consistency. For profiles or sheets, use a coat-hanger die with land lengths 5–10x the target thickness. Multi-hole dies (e.g., pelletizers) require uniform hole diameters (0.5–3 mm) and filleted entries to reduce melt fracture. After exiting, cooling tanks or water baths should maintain a 10–20°C temperature gradient to prevent warping; air knives or spin dryers remove excess water without deforming the extrudate.

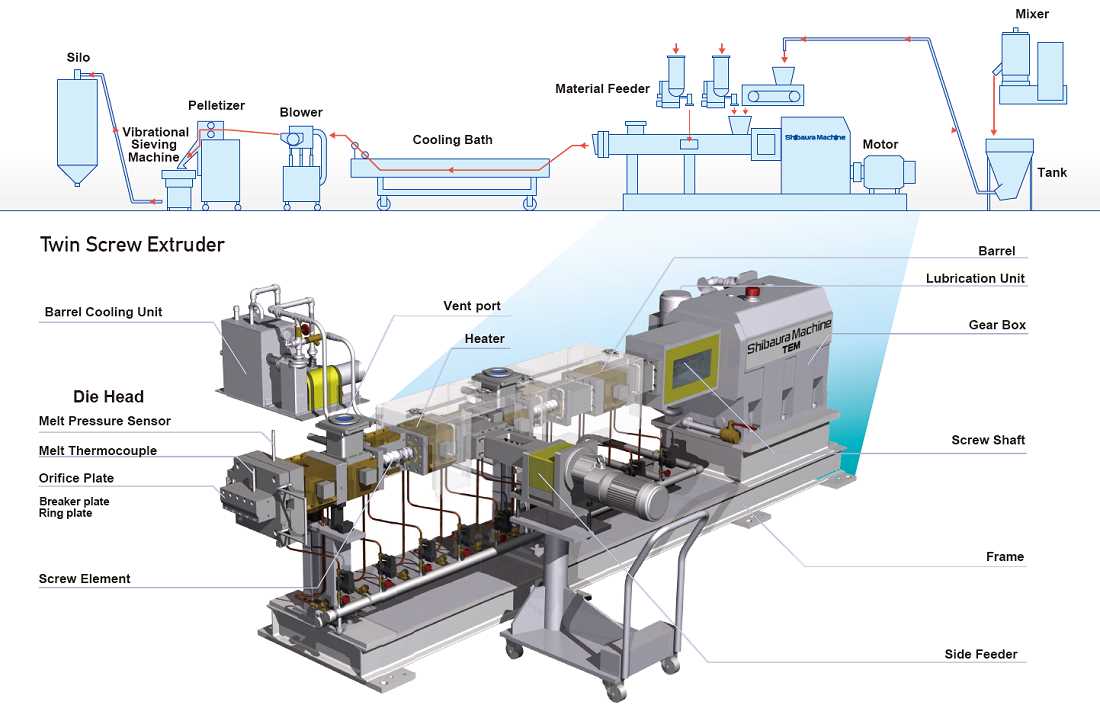

Key Components Visible in a Co-Rotating Processing Machine Blueprint
Start by identifying the feed section at the inlet port–ensure the hopper’s volume matches material flow rates to prevent bridging. For polymers with low bulk density, opt for a single-screw pre-feeder to maintain steady intake pressure. Avoid conical hoppers if processing shear-sensitive additives, as uneven distribution can cause degradation.
Examine the barrel segments next: modular designs allow customization, but select heating zones based on thermal conductivity. For high-viscosity compounds, use deep-flighted conveying elements near the inlet to build pressure gradually. Non-intermeshing configurations demand closer spacing to prevent material slippage, while fully interlocked profiles maximize mixing efficiency.
Focus on the kneading blocks–blast geometry dictates dispersive mixing performance. Wide discs (
Critical Functional Zones
Locate the venting area: atmospheric vents suffice for moisture removal, but two-stage vacuum systems (
Inspect the die assembly last: breaker plates should have hole diameters 30-50% smaller than the final product to build backpressure evenly. For foam applications, incorporate a static mixer just upstream to homogenize blowing agent distribution. Die swell compensation requires land lengths 10-20x the orifice diameter–shorter lands cause surface defects, longer ones increase energy consumption.
Monitor thrust bearings near the output end–these components experience peak loads in high-pressure applications (e.g., PVDF processing). Select bearings with dynamic load ratings exceeding 3x the calculated axial force. For corrosive materials, ceramic-coated shafts extend service life by 40% compared to standard nitrided steel.
Check cooling channels in barrel jackets: water cooling is sufficient for most thermoplastics, but glycol systems (90mm), segmented cooling jackets allow independent temperature control along the barrel’s length.
Document gearbox specifications: co-rotating setups typically require helical gears (1.5:1 ratio) to handle torque peaks, while counter-rotating systems need herringbone gears for load sharing. Ensure oil circulation pumps maintain 2-3 bar pressure to prevent boundary lubrication failure under heavy loads.
Step-by-Step Process Flow in a Dual-Rotor Compounding System
Begin by calibrating the feed zone temperature to 80–120°C, adjusting based on polymer viscosity and moisture content. Use gravimetric dosing for additives to maintain accuracy within ±0.5%. Ensure the barrel’s first three sections–pre-heating, compression, and metering–operate at progressively higher temperatures (e.g., 140°C, 160°C, 180°C for polypropylene), avoiding thermal degradation while maximizing melt homogeneity.
Monitor screw speed (typically 200–500 RPM) and torque (target 60–80% of max load) in real-time; fluctuations exceeding ±10% indicate uneven mixing or starvation. For shear-sensitive materials, reduce RPM and increase residence time via longer barrel lengths (L/D ≥ 40). Apply venting ports at the decompression zone to remove volatiles–position them at atmospheric or vacuum pressures (20–100 mbar) depending on moisture levels, using a condenser to recover low-molecular-weight byproducts.
Critical Parameters by Stage
- Feed Intake: Maintain consistent pellet size (3–5 mm) to prevent bridging; use a side-feeder for powders.
- Melting Zone: Set differential pressure >50 bar to ensure proper filling; lower values risk air pockets.
- Discharge: Cool the die plate to 120–150°C to stabilize extrudate dimensions; employ water or air cooling based on throughput.
For reactive processing (e.g., crosslinking), inject reagents at the second vent port, synchronizing pump rates with screw RPM to achieve ±2% stoichiometric precision. Post-extrusion, use a pelletizer with a 2.0–3.0 mm screen for uniform granules; monitor temperature gradients across strands to detect incomplete melting (optimum:
Standardized Markings in Co-Rotating Processing Equipment Blueprints
Begin by adopting ISO 10628 symbols to represent functional zones in technical drawings. Barrel sections should be annotated with distinct geometric shapes: triangles indicate feed ports (solid for solids, hollow for liquids), rectangles denote heating/cooling jackets, and circles mark venting points. Always position symbols near their corresponding barrel segment with a 3mm leader line terminating in an arrowhead touching the barrel outline.
- Screw elements: Conveying segments use parallel lines (solid for single-flight, dashed for double-flight). Kneading blocks require chevron patterns (30° angle for standard, 45° for high-shear). Mixing elements combine intersecting lines with dot-filled backgrounds where shear intensity exceeds 50 kPa·s.
- Process auxiliaries: Gear pumps show concentric circles with tangential inlet/outlet pipes. Die assemblies require a trapezoidal shape with internal flow channels (20% hatch fill for melt channels, solid fill for breaker plates). Screen changers use a dashed rectangle with internal cross-hatching at 60°.
- Flow paths: Melt streams require color-coding: blue (#0066cc) for primary flow, green (#33cc33) for additives, red (#ff3300) for recirculation loops. All flow arrows maintain a 0.7mm stroke width with 30° arrowheads.
Include mandatory metadata in a dedicated legend box (80×50mm, positioned bottom-right):
- Element pitch (P) and length-to-diameter ratio (L/D) formatted as “P:20mm L/D:1.5”.
- Operational parameters: throughput range (kg/hr), screw speed (rpm), and temperature profile (°C) listed in three columns.
- Material compatibility codes: PP/HIPS/ABS (triple tolerance), PVC (single tolerance), fluoropolymers (vented screw icons).
Never omit screw directionality indicators: clockwise arrows must be placed adjacent to drive motors, counter-clockwise near output ends.
Develop a hierarchical numbering system for barrel segments using 5mm bold numerals prefixed with zone codes:
- Z1: Intake zone (raw material feeding)
- Z3-Z5: Plastification zones (temperature gradients 120-180°C)
- Z7: Homogenization zone (backflow restrictions)
- Z9: Discharge zone (pressure buildup to 150 bar)
Maintain consistent spacing (10mm) between zone identifiers and barrel outlines. For multi-stage configurations, add suffixed letters (Z4a, Z4b) to denote subsections with differential screw geometries.
