Begin by isolating each functional block in the circuit layout. Identify power rails, contact elements, and coil outputs–tag them immediately with unique labels for traceability. A direct 1:1 mapping from hardware symbols to PLC instructions avoids ambiguity later. For series circuits, use AND logic blocks; parallel branches translate to OR gates. Group interlocks and safety contacts into separate branches to maintain clarity and debugging ease. Always verify the voltage levels–most commercial PLCs operate at 24VDC; adjust relay logic if the original design used alternating voltages.
Replace mechanical timers with PLC timer functions (TON, TOF). Match preset values to the original delay durations, but account for scan cycle overhead by adding 10–15% buffer time. For motors or large loads, insert direct coil outputs first, then add protective interlocks–emergency stops, thermal overloads–in downstream rungs. Use edge-triggered instructions (OSR, OSF) to replicate push-button momentary actions, ensuring no false triggers during program scans. Label every rung with concise comments, including pin numbers from the original layout to simplify troubleshooting.
Validate converted logic in simulation mode before deployment. Force inputs through all possible states, sequencing manually to confirm expected outputs. Cross-reference each rung back to the circuit layout, highlighting discrepancies–missing contacts, polarity inversions–as critical errors to resolve immediately. Prioritize fail-safes: assign unused outputs to default-safe states, and mirror hardware safety circuits (e.g., latching relays) with PLC retentive memory bits. Store the project with timestamped backups; document all labels, IO mappings, and scan times for maintenance teams.
Step-by-Step Electrical Blueprint to PLC Logic Translation
Start by identifying each component in the original circuit layout and map its function to equivalent PLC instructions. Relays become internal coils, pushbuttons translate to normally open/normally closed contacts, and motor starters convert to output coils. Label every element with exact PLC addressing (I:0/0 for input 0, O:1/2 for output 2)
Recreate control logic sequences by breaking down series/parallel connections into rungs. Series contacts (AND) stack vertically on a single rung, while parallel contacts (OR) branch horizontally. Maintain identical logic paths–if a start pushbutton and overload contact are in series in hardware, they must remain consecutive in the PLC program.
Simulate time-delay relays using on-delay timers (TON) with preset values matching original delay settings. For latching circuits, replace mechanical seal-in contacts with OTE (latch) and OTU (unlatch) instructions. Ensure retentive memory bits (R) mirror the original circuit’s power-loss behavior where needed.
Critical Validation Checklist
Cross-reference every converted rung with the original layout:
- Verify input/output tags match physical wiring
- Confirm coil reset logic for all latched outputs
- Test edge-trigger conditions (rising/falling) against original transient behaviors
- Check interlocks between conflicting outputs for safety
Minimize scan cycle overhead by eliminating redundant contacts–combine parallel conditions into a single branch where possible. For 24V DC inputs, scale analog signals through SCP (scaling) instructions if migrating from variable voltage sensors. Document all address mappings in a reference table for future troubleshooting.
Identifying Key Components in Electrical Blueprints for PLC Translation
Begin by isolating power sources in the circuit layout–AC supplies, DC buses, and transformers–to define the operational boundaries of the PLC program. Label each source with its voltage rating, current capacity, and frequency, then cross-reference these values with the PLC’s input/output (I/O) specifications. Mismatched voltages (e.g., 24V DC vs. 120V AC) require intermediate relays or signal conditioners; omit these, and the system risks damage or unpredictable behavior.
Trace all switching devices–contactors, relays, pushbuttons, and limit switches–back to their control logic origins. Note coil voltages, contact configurations (NO/NC), and terminal markings (e.g., A1/A2 for relays, L1/L2 for contactors). Create a mapping table:
- Device tag → Physical terminal → PLC address
- e.g., PB1 → X0 → I0.0
- Relay K1 → A1/A2 → Q0.0 (coil)
- K1/NO → 13/14 → I0.1 (auxiliary contact)
Skip this step, and I/O allocation errors will cascade through the program.
Handling Analog Signals and Interference
Analog components (sensors, transducers, variable frequency drives) demand precise scaling. Document the signal range (e.g., 4–20mA, 0–10V) and resolution (12-bit, 16-bit) for each device. Use the PLC’s analog module datasheet to calculate scaling factors:
- Raw value = (Input signal – Offset) × Gain
- Engineering units = (Raw value / Resolution) × Span
Forbid unscaled values (e.g., 32768 counts) from entering control logic; instead, normalize them to 0–100% or engineering units (bar, °C, RPM). Shielded cables are mandatory for signals below 1V or currents under 10mA–ignore this, and noise-induced faults (e.g., false trips) will occur.
Prioritize safety circuits–emergency stops, guard switches, and overcurrent relays–by treating them as discrete, hardwired paths outside the PLC’s program. Route these directly to safety-rated relays or dedicated PLC safety modules (e.g., Siemens F-CPU). Never rely on standard I/O for safety; a single bit error in software could block a critical stop. Verify wire gauges for safety circuits (minimum 1.5 mm² for 10A loads) and confirm redundant contacts (two-channel monitoring for SIL-rated devices).
Step-by-Step Translation of Relay Logic Symbols to PLC Rung Commands

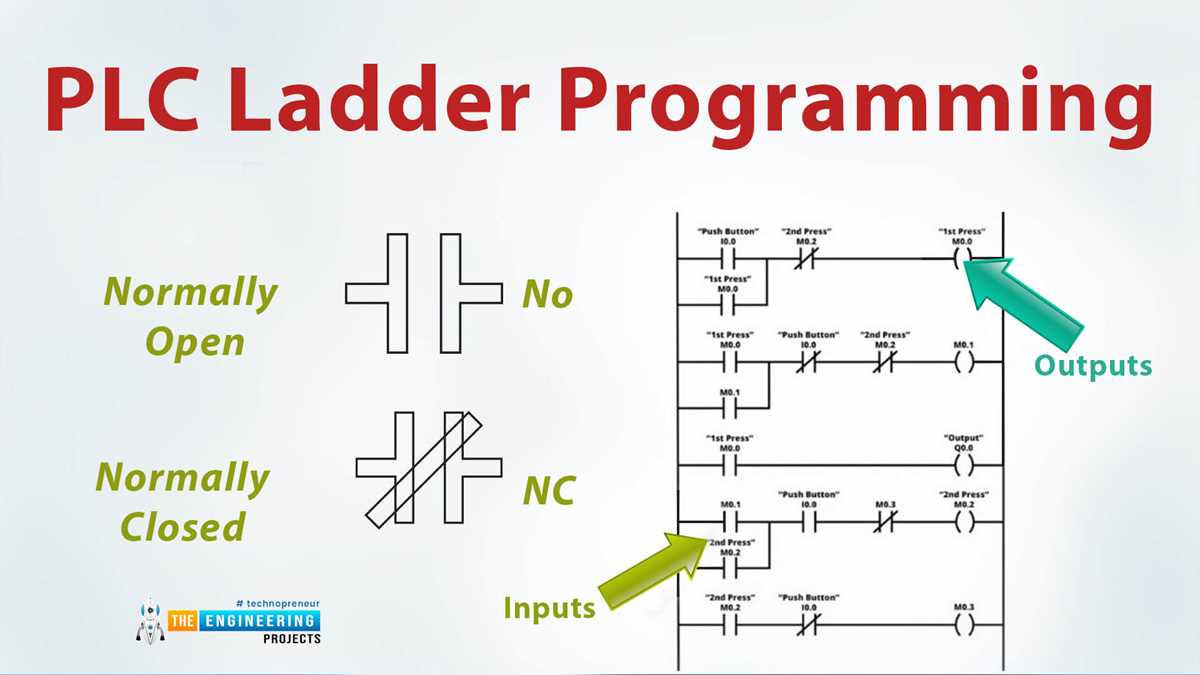

Begin by isolating each relay contact and coil in the circuit blueprint. Assign unique identifiers–NO (normally open), NC (normally closed), or output coil–to every element. Verify the physical wiring paths first; mismatches in labeling will corrupt the PLC program. Use a cross-reference table to map relay tags (e.g., CR1, PB2) directly to PLC memory addresses (e.g., %I0.1, %Q0.5). Skipping this step introduces errors in signal flow that compound during validation.
Translate NO contacts into PLC instructions by placing an LD (load) or A (and) command at the rung’s start. NC contacts require an inverted operation: start with LDN (load not) or AN (and not). Stacked contacts demand serial (A/AN) or parallel (O/ON) logic chains–align these precisely with the original relay wiring sequence. Misordering parallel branches disrupts intended boolean logic, causing unintended coil activations.
Handling Complex Relay Networks
For multi-path networks, break the circuit into independent branches. Each branch becomes a separate segment of the PLC rung. Use OLD (or load) for parallel paths merging into a single output. For nested branches, employ ALD (and load) to combine paths before driving the coil. Validate coil placement: outputs must terminate rungs; intermediate storage bits (e.g., %M1.0) require explicit coil instructions. Ignoring this rule results in incomplete logic pathways.
Coil outputs translate directly to PLC commands (=, S, R). Replace latch/unlatch relays with SET and RESET instructions, ensuring priority rules match the original design. Timers and counters (e.g., TON, CTU) replace corresponding time-delay relays–configure preset values and resolution (e.g., 1ms, 10ms) to match hardware timers. Omitting presets or resolution settings defaults to manufacturer values, risking timing mismatches.
Conclude by simulating the PLC program against the original blueprint. Use a software-based logic analyzer to verify each path: toggle inputs manually and observe coil states. Cross-check timers/counters against relay delays–even millisecond discrepancies invalidate safety-critical sequences. Document every mapping step; future troubleshooting hinges on this audit trail.
Common Pitfalls When Translating Circuit Blueprints to PLC Logic Sequences
Mismatch the power flow direction between a relay-based control layout and its programmable equivalent. Traditional wiring often uses left-to-right current paths, while PLC logic typically evaluates conditions top-to-bottom. A coil triggered by multiple contacts in series must retain the same logical dependency in the automation sequence; reversing the evaluation order can invert the intended behavior. Always verify the boolean expression matches the original circuit’s decision tree, especially for safety-critical interlocks.
Neglecting contact bounce handling introduces intermittent faults. Electromechanical relays tolerate minor mechanical bounce, but a PLC scans discrete states. Without debounce measures–such as a one-shot or timer delay–a single physical switch press can register as multiple transitions, triggering unintended actions. Implement rising-edge or falling-edge detection (OSR/OSF) for momentary inputs to replicate mechanical relay stability.
- Assuming identical component behavior across implementations–solid-state outputs lack the same inductive kickback protection as relays, requiring separate flyback diodes in the program.
- Overlooking real-time constraints: A 120ms scan cycle may miss rapid pulse sequences that relays handle naturally through parallel execution.
- Hard-coding addresses instead of using symbolic tags masks future scalability; refactoring later becomes error-prone.
Forgetting to normalize voltage levels between the field wiring and PLC inputs skews signal interpretation. A 24Vdc proximity sensor wired to a 5V-compatible input module will either falsely trigger or fail to register, depending on hysteresis. Include scaling blocks or configurable input thresholds during conversion to maintain signal integrity. Test with an oscilloscope at the PLC terminal to confirm voltage thresholds match the sensor’s actual output.
Address Resolution Errors
Misaligning memory addresses–especially for timers and counters–disrupts logic timing. A 1-second delay set to memory word T4:1 in one section of the program, but referenced as T4:2 in another, creates phantom timing loops. Consistency in addressing prevents cascading failures; validate all cross-references using project-wide search tools or automated address verification scripts.
Field wiring polarity inversion remains a persistent yet preventable error. A pushbutton’s normally-open contacts mapped to a PLC input as normally-closed due to reversed wiring introduces immediate logic inversion. Label field terminals with + and - markers and cross-check with a multimeter during commissioning. Color-code I/O mapping documents to align physical connections with their programmed counterparts.
