Begin by memorizing the core set of icons used in electrical layouts–resistors, capacitors, transistors, and power sources form the foundation. Each graphical mark follows strict conventions: IEEE 315 and ANSI Y32.2 define the precise shapes, proportions, and orientations. Deviations can mislead technicians, so verify against these standards before drafting.
Label every notation with clear, legible text. Position identifiers above horizontal lines and beside vertical ones to maintain consistency. For complex assemblies, group related icons and separate blocks with dashed bounding lines–this prevents clutter and reduces misreading. Avoid shading or color coding in monochrome prints; use varying line weights instead (0.5 mm for outlines, 0.3 mm for connectors).
Swap generic placeholders with exact component values immediately. A capacitor marked “C1” without microfarads or voltage rating risks assembly errors. Include tolerance (+/- 5 %, +/- 10 %) and material type (ceramic, electrolytic) directly beneath the icon. For integrated circuits, note pin numbers and exact model numbers–ambiguity slows debugging.
Validate every circuit sketch with simulation tools before physical prototyping. Tools like KiCad, LTspice, or Multisim catch miswired paths, incorrect polarities, and voltage mismatches. Export netlists and cross-check against the graphical marks; discrepancies often trace to rushed icon placement.
Mastering Electrical Blueprints: A Hands-On Reference
Begin with standardized libraries–ANSI, IEC, or IEEE–to ensure clarity across teams. Misaligned representations cause errors: a resistor in IEC uses a rectangle, while ANSI opts for a zigzag line. Always cross-check local industry norms before finalizing blueprints.
Label components with precise values and designators. For example:
- Resistors:
R1 10kΩ - Capacitors:
C3 100nF - Inductors:
L2 1mH
Avoid vague annotations like R? or Cx–these delay debugging and assembly.
Ground nodes must follow one of three styles: earth ground (▼), chassis ground (⏚), or signal ground (⏜). Mixing these invites noise or short circuits. Use earth ground only for safety-critical paths; signal ground suits low-power analog circuits.
For integrated circuits, draw only pinouts relevant to the function, not the full package. A microcontroller might show VCC, GND, and four GPIO pins in the blueprint–omitting unused I2C or SPI pins reduces clutter. Place power pins at the top (VCC) and bottom (GND) of the shape for consistency.
Switches and relays require state indicators. A pushbutton should show its default state (normally open/closed), while a relay needs both coil and contact positions. Add a dotted line between coil and contacts to link them visually. Example:
- NO pushbutton: two parallel lines with a gap
- NC pushbutton: two intersecting lines
- Relay coil: rectangular box with contact arrows
Power sources need voltage and polarity annotations. A battery symbol must include + and - with a label like 3.3V or 12V SLA. For AC, note frequency and phase (e.g., 230V 50Hz). Omit these details, and assembly teams may reverse polarities or misapply voltages.
Hierarchical designs demand port connectors. Use inward-facing arrows for inputs, outward for outputs. Label ports with signal names (e.g., CLK_IN, DATA_OUT). Group related signals under a dashed bounding box with a descriptive header like USB_INTERFACE or SENSOR_ARRAY.
Test points should stand out with circular targets and unique identifiers (e.g., TP1, TP2). Place them near critical nodes–power rails, reset lines, or oscillator outputs. Add a legend table listing each test point’s function and expected voltage. Example:
TP1: MCU RESET | Expected: 3.3V TP2: 12V RAIL | Expected: 11.8-12.2V TP3: OSC OUTPUT | Expected: 16MHz ±100ppm

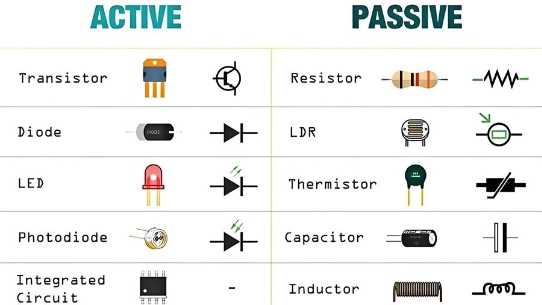

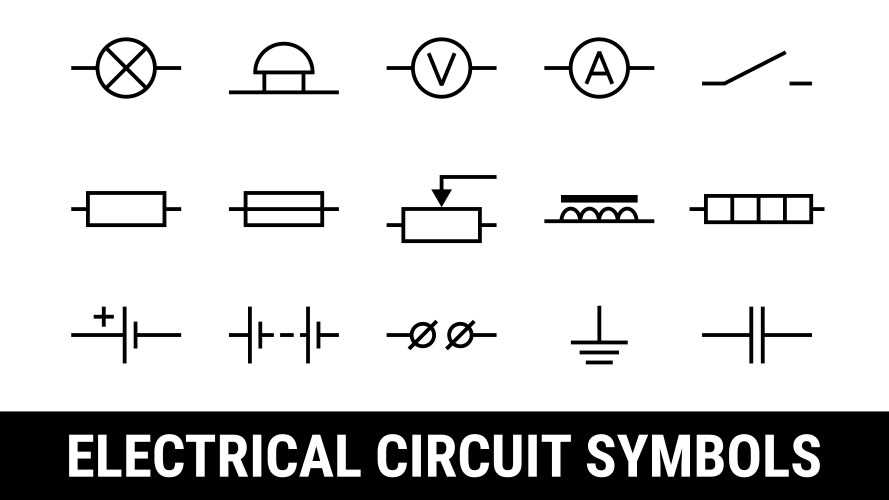

How to Identify Common Graphical Elements in Circuit Blueprints
Begin with resistors–recognize them by a zigzag line or a rectangular box with “R” labeled beside. Look for resistance values in ohms (Ω), kilohms (kΩ), or megohms (MΩ) next to the indicator. Film resistors often include a tolerance band (gold for ±5%, silver for ±10%), while power resistors may show wattage ratings. If the drawing includes a dashed or dotted outline, it likely represents a variable resistor or potentiometer.
Capacitors appear as two parallel lines (for non-polarized) or a curved line paired with a straight one (for electrolytic/polarized). Ceramic capacitors omit the “+” sign, but tantalum or aluminum types mark the positive terminal. Check for capacitance values in picofarads (pF), nanofarads (nF), or microfarads (µF), sometimes written as “4n7” for 4.7 nF. Supercapacitors may include voltage ratings, often separated by a slash (e.g., “6.3V/100µF”).
Transistors and ICs: Pinpointing Key Differences
BJTs (bipolar junction transistors) display three leads: emitter (arrow), base, and collector. The arrow direction–pointing inward for PNP or outward for NPN–reveals the transistor’s type. MOSFETs replace the arrow with a perpendicular gap or a small circle at the gate. Integrated circuits (ICs) appear as rectangles with numbered pins; logic gates (AND, OR, NOT) embed distinctive shapes inside (e.g., “&” for AND). Always cross-reference the part number with datasheets to confirm pin functions.
Diodes show a triangle pointing toward a line. Standard diodes use a single line, while Zener diodes add a small “Z” or two lines at the cathode. LEDs replace the line with two angled arrows. Bridge rectifiers stack four diodes in a diamond shape, with AC input at opposing corners. Look for voltage drop values (e.g., “0.7V” for silicon) and reverse breakdown ratings for Zener types. Trace connections carefully–misplaced polarity can damage components.
Step-by-Step Guide to Sketching Standard Circuit Graphics
Begin with a 0.5 mm mechanical pencil for precision–avoid softer leads that smudge. For resistors, draw a straight horizontal line 8–10 mm long, then add zigzag segments at a 60° angle, spaced 1.5 mm apart. The first and last segments should be vertical to connect smoothly to the baseline. Keep all angles consistent; deviations distort recognition.
Capacitors require two parallel lines, 6 mm tall, spaced 2 mm apart. Add a curved or straight line perpendicular to one side for polarized types–ensure the curve faces the positive terminal. For non-polarized variants, sketch a second, shorter parallel line inside one of the plates. Use a ruler for alignment; uneven spacing alters intended values visually.
Transistors demand a circular base (12 mm diameter) with three leads at 120° intervals. Label emitter (E), base (B), and collector (C) immediately–confusion here risks circuit failure. For NPN/PNP distinction, place an arrow on the emitter: outward for NPN, inward for PNP. Maintain lead lengths at 5 mm for clarity; shorter leads obscure connections.
Ground and Power Representations
Ground: Start with a downward vertical line (10 mm), then add three horizontal lines decreasing in length by 2 mm each. Ensure the longest line aligns with components above–misalignment implies incorrect reference points. For chassis ground, add a fourth, wavy line below the final bar.
Power supply marks vary by type. DC voltage sources use a longer plus sign (8 mm) with a shorter minus (5 mm) beneath. For AC, draw a sine wave (three peaks, 4 mm amplitude) between two parallel lines. Batteries stack short (3 mm) and long (8 mm) lines alternately–count lines to denote cell count (two lines = single cell, four lines = two cells).

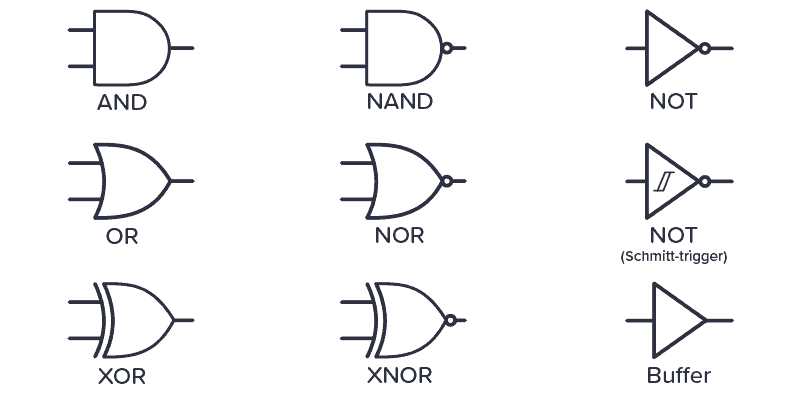

Use a fine-tip eraser for corrections–aggressive erasing damages paper. Draft all graphics on grid paper first; finalize on plain paper once proportions are verified. For digital components, mimic standard logic gate shapes: AND gates are D-shaped, OR gates curved, NOT gates triangular with a circle. Trace templates if consistency is critical.
Final step: Scan at 600 DPI, convert to vector format, and verify against IEEE 315 standards or IEC 60617. Discrepancies–even 0.5 mm–can mislead assembly. Store digital copies in .SVG for scalability; raster formats pixelate during scaling.
Key Differences Between ANSI and IEC Representations
Start by replacing all ANSI logic gate icons in your design with IEC variants if targeting European markets–ANSI’s distinctive shapes (e.g., the pointed OR gate) clash with IEC’s rectangular outlines, causing immediate non-compliance. IEC uses labeled rectangles (e.g., “&&” inside a box for AND logic) while ANSI retains unique contours, making IEC easier for rapid scanning but ANSI more intuitive for familiar users. Check IEC 60617 for exact dimensions; deviations above ±0.5 mm trigger rejections in certification audits.
For resistors, ANSI depicts a zigzag line with optional values beneath, whereas IEC standardizes a plain rectangle without annotations–values must be placed adjacent in a separate bubble, reducing clutter but increasing cross-reference effort. Capacitors in ANSI show curved plates; IEC flips this to straight parallel lines, with polarity marked by a “+” sign alone–misplacing this risks reverse voltage damage. Always validate IEC symbols against EN 81346 for industrial control circuits where ANSI’s tendency toward decorative strokes can obscure clarity at A3 print sizes.
Workarounds for Mixed Standards
Use dual-standard libraries in CAD software–assign ANSI icons to legacy module layers and IEC to all new schematics, toggling visibility during export. IEC’s reliance on single-line notation for motors (a circle with “M”) contrasts ANSI’s multi-line rotor/stator depiction; maintain separate project templates to prevent symbol stacking errors. When exporting to Gerber files for fabrication, manually verify footprint mappings–ANSI’s often larger sizing collides with IEC’s tighter trace spacing requirements.
