Repairing the BN44-00771A requires precise voltage readings at key test points. Begin by probing TP801–this should read 380V DC when connected to a functional mains input. If absent, inspect the PFC coil (L801) and Q801/Q802 MOSFETs for shorts. Replace R812 (10Ω, 2W) if burnt, as it’s a common failure point upstream of the standby circuit.
For standby power verification, measure TP802–expect 5.3V. A missing or incorrect voltage indicates issues in the IC802 (STR-A6059) controller, its surrounding ZD802 zener diode, or the D807 rectifier. Confirm C805 (220μF, 35V) is within tolerance; excessive ESR here disrupts feedback to the PWM stage, causing intermittent power loss.
Primary power delivery hinges on IC801 (STR-W6765). Check R814 (0.1Ω, 2W) for opens–this shunt resistor regulates current flow to the transformer. If the set fails to initialize, test D803 and D804 for continuity; these diodes rectify the auxiliary windings. Capacitors C818/C819 (470μF, 25V) degrade predictably–replace preemptively if ESR exceeds 0.8Ω.
Signal integrity depends on CN802 connections. Verify PIN1 (3.3V) and PIN7 (12V) for stable output before troubleshooting the mainboard. Load resistors R851-R858 (sized for rail balancing) often fail under transient spikes–solder joints should be reflowed if cracked. Secondary faults frequently mask as backlight errors; rule out *this* section first to avoid misdiagnosis.
Use a thermal camera to scan IC801 and T801 transformer–hotspots above 85°C suggest core saturation or shorted turns. Replace Q803 (KIA340) if it fails to drive the PFC stage during startup pulses. For precise testing, inject 1kHz square wave at TP803 while monitoring TP804–a clean 5V output confirms PWM feedback loop integrity.
Practical Repair Guide for BN44-00771A Circuit Reference
Start by isolating the primary side components if the board fails to power on. Locate the fuse (F1) near the AC input – a blown fuse often indicates a short in the switching transistor (Q1, typically a MOSFET like FS7KM-18). Replace the fuse only after verifying the transistor’s integrity with a multimeter in diode-test mode. Common failure points include the gate resistor (R2, 47Ω) and the snubber circuit (C1, 10nF/2kV), both prone to overheating.
Check the secondary side for stable voltage outputs before proceeding. Measure across the 5V standby rail (CN1, pin 3) – it should read 5.0V ±0.2V. If this rail is absent, inspect the standby controller IC (IC2, typically a TNY2xx series) and its associated components: the feedback optocoupler (PC1) and zener diode (ZD1, 4.7V). A failed optocoupler is a frequent culprit in standby issues.
For intermittent shutdowns, examine the PFC circuit. The PFC coil (L1) may develop dry solder joints, causing voltage dips. Resolder its connections and test the PFC MOSFET (Q2, e.g., SPW20N60C3). The PFC IC (IC1, often a NCP1608) should generate a 380V bus voltage at C2 (450V/220µF). If the bus voltage is low, suspect a faulty IC or the input bridge rectifier (BD1).
Test the PWM controller (IC3) if the main voltage rails (12V, 24V) are unstable. The error amplifier section (IC3 pins 1-3) relies on precise feedback from the voltage divider (R10, R11, 10kΩ each). Replace the divider resistors if their values drift, as this directly affects regulation. The gate drive transformer (T1) and its associated MOSFETs (Q3, Q4) should deliver clean signals – distorted waveforms here often stem from degraded electrolytic caps (C5, C6, 1000µF/35V).
Inspect the protection circuits for false tripping. The overvoltage protection (OVP) circuit centers on the zener diode (ZD2, 27V) and comparator (IC4). If OVP activates erroneously, replace ZD2 and recalibrate the trimmer resistor (VR1, 10kΩ). The overcurrent protection (OCP) monitors the current-sense resistor (R12, 0.1Ω) – a faulty resistor or shorted output caps (C7, C8) can trigger OCP, forcing the board into hiccup mode.
Use an ESR meter to test all electrolytic capacitors, particularly those on the secondary side. Capacitors with ESR values above 1Ω or visibly bulging tops (e.g., C9, 2200µF/16V) must be replaced with low-ESR equivalents. Avoid cheap replacements – substandard caps accelerate failure recurrence. For the PFC and primary caps (C2, C3), prioritize 105°C-rated models to withstand thermal stress.
Document each repair step with voltage readings at key test points. Compare your findings against baseline values from a known-good reference: 3.3V at the MCU (U1, pin 4), 12V at the main rail (CN2, pin 1), and 24V at the inverter rail (CN3, pin 1). Persistent deviations often point to hidden faults like corroded vias or micro-cracks in traces. Use a magnifying glass to inspect for hairline fractures, especially around high-current paths (e.g., the 24V output inductor).

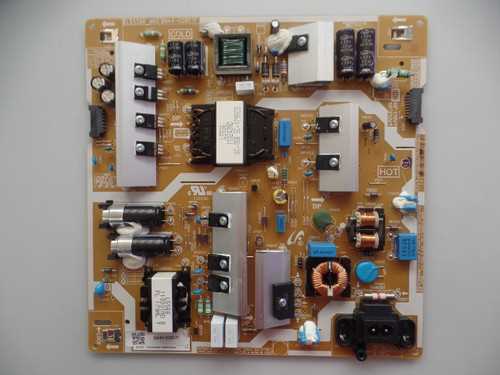

Finding Critical Parts on the BN44-00771A Reference Layout
Begin by identifying the primary switching regulator on the board. Look for the integrated controller IC, typically marked as FAN6755 or STR-W6252, located near the high-voltage DC input section. This chip manages the entire conversion process and protects against overcurrent, overvoltage, and thermal faults. Pin configurations follow a standard pattern: VCC (power input), GATE (MOSFET drive), FB (voltage feedback), and CS (current sensing). Verify the IC’s markings against the reference layout–counterfeit or incorrect replacements cause catastrophic failures.
- Primary MOSFET: Search for STP20NM60 or SPP20N60C3 near the bulk capacitor bank. This transistor handles the main switching action; damaged units show bulging, burn marks, or shorted drain-source readings with a multimeter (
- PFC coil (L101): Positioned adjacent to the bridge rectifier, this inductor normalizes input current. Check for continuity (typically 0.1–0.5 ohms) and absence of audible hum when powered.
- Optocouplers: Two critical isolators (PC101 and PC102) regulate feedback loops. Replace if forward voltage exceeds 1.3V at 10mA test current.
Secondary Side Components
Trace the +5VSB and +12V rails from their respective diodes (D202 Schottky for standby, D201 ultrafast for main output). Check for cold solder joints on the output capacitors (C215 1000μF/16V, C207 2200μF/10V)–these frequently fail under thermal stress. Measure ripple on the +12V line with an oscilloscope: values >120mVpp indicate degraded filtering.
Verify the standby voltage regulator (IC102, often a LD7575). This 3-pin TO-92 package supplies power to the main controller during off-state. Look for the resistor divider network (R123 10kΩ, R124 3.3kΩ) setting the feedback threshold–deviation here causes erratic startup. Always discharge the primary side C101 220μF/450V before probing: residual charge exceeds 350V and persists for hours.
Step-by-Step Signal Flow Analysis in the Electronic Board
Begin by isolating the AC input section–trace the live and neutral lines through the EMI filter capacitors (C101, C102) and common-mode choke (LF101). Measure voltage drop across each component: capacitors should read near 0V AC; the choke might show a slight reactive drop (≤5V). If readings exceed tolerance, check for open windings or shorted caps. Next, verify the bridge rectifier (BD101) output: expect ~300V DC at its output node when connected to a 220V input. A lower value indicates faulty diodes or degraded smoothing.
Primary Side Switching Stage Verification
Examine the PWM controller (IC801) startup sequence by monitoring pin 5 (VCC): it should rise from 0V to ~15V within 20ms of power-on. If stalled, probe the auxiliary winding (T802 pins 1-3) for induced voltage–absence suggests transformer saturation or open primary winding. Test the gate drive signal (IC801 pin 6) with an oscilloscope: a clean 100kHz square wave (±10V amplitude) confirms proper switching. Any distortion or missing pulses point to driver IC failure or leaky MOSFET (Q801).
For the feedback loop, attach a DC load (≥5Ω) to the output rail and observe IC801 pin 2 (FB): voltage should stabilize at 2.5V (±0.1V). If unstable, isolate the optocoupler (PC801) by lifting its anode–FB pin voltage should then drop to 0.3V indicates IC failure. Finally, verify the snubber network (R802, C803) across the MOSFET drain-source: ringing amplitude should not exceed 50V peak-to-peak at full load; exceedance requires recalculating R-C values (target damping factor 0.5–0.7).
Locating and Diagnosing High-Risk Areas on the Board
Begin by isolating the primary voltage regulation loop–specifically the PWM controller IC and its surrounding passives. Measure the feedback path resistors (typically R805-R807) for deviations exceeding ±5% of their marked values; even minor drift here destabilizes output rails. Use an oscilloscope to verify the gate drive signals on the main switching MOSFETs (Q801/Q802); waveforms should show clean transitions under 100ns–ringing or slow edges indicate failing snubber networks or degraded gate capacitance. Check the bulk capacitors (C808/C809) for ESR above 1Ω or bulging seals; these components are statistically the most prone to catastrophic failure after 40k hours of operation, especially in environments with poor airflow.
Critical Secondary Checks
Test the PFC stage inductor (L802) for shorted turns by injecting a 1kHz sine wave through a signal generator and monitoring phase shift–anomalies above 15° suggest partial saturation. Examine the optocoupler (PC801) output transistor’s collector-emitter voltage: values below 3V during normal load conditions confirm proper feedback isolation. For transient response issues, probe the standby regulator (IC803) output at light loads; voltage sag under 5% within 200μs of load application indicates weakened compensation components. Replace electrolytic caps within 5cm of heat sources first, regardless of visual condition–their failure rate triples in this zone compared to cooler board regions.
