Mastering Electrical Schematic Diagrams Step-by-Step Guide for Engineers

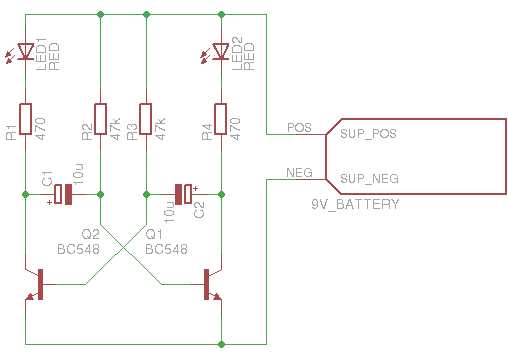

Begin by identifying the power source–usually marked with a +V or GND symbol. Locate all voltage rails first, as they define the reference points for every component. If the source is a battery, trace its connections to ensure no intermediate switches or fuses disrupt the flow. For AC mains, verify transformer or rectifier output before proceeding.

Components fall into three categories: passive (resistors, capacitors, inductors), active (transistors, ICs), and connective (wires, jumpers, buses). Passive parts are labeled with values (e.g., 10kΩ, 22µF); active parts have pinouts or reference designators (e.g., U1, Q2). Ignore functional blocks initially–focus on physical placement and continuity.

Trace each net (signal path) from origin to termination. Use a multimeter in continuity mode to confirm connections on a physical board if the layout is unclear. Short circuits between nets are often indicated by overlapping lines or a dot at junctions. Missing dots mean separate paths–even if lines cross visually.

Integrated circuits (ICs) require special attention. Note the pin 1 marker (a notch, dot, or angled corner) and count pins counterclockwise. Data sheets list pin functions; cross-reference them to avoid miswiring. Decoupling capacitors (typically 0.1µF) should be placed as close as possible to IC power pins to filter noise.

Switches and relays break or redirect current. Note their default state (NO–normally open, NC–normally closed) and whether they’re mechanical or solid-state. Arrows on transistors (BJTs, FETs) indicate current direction; the flat side of a MOSFET usually denotes the drain.

Ground symbols vary–chassis ground (▽), earth ground (⏚), and signal ground (⏚ with a slash)–but all serve as reference points. Mixing grounds can introduce noise; use star grounding (single common point) for sensitive circuits. Large voltage differences between grounds may require optocouplers or isolated power supplies.

Test points (TP followed by a number) are intentional breaks in the circuit for debugging. Probe these with an oscilloscope to measure waveforms. If a signal is distorted, check nearby capacitors for leakage or resistors for incorrect values. Tri-state outputs (high, low, or high impedance) are common in digital logic–verify their enable lines.

Decoding Electrical Blueprints Like a Pro

Begin by identifying the power source–look for battery symbols, voltage rails, or AC inputs. Note the polarity and voltage values alongside each connection. A small circle with a “+” signifies positive, while ground symbols (three descending lines or a triangle) mark reference points. Trace the path from the source to components to avoid missing critical splits or parallel branches.

Use a component legend if available. Resistors are zigzag lines, capacitors show two parallel plates, and transistors appear as three intersecting lines with an arrow. Digital ICs often display as rectangles with numbered pins–match these to the manufacturer’s datasheet for pinouts. Missed connections lead to miswired circuits, so cross-verify each symbol with the reference.

Tracing Signal Flow Methodically

Adopt the “left-to-right, top-down” rule for analog circuits. Inputs enter on the left, processing occurs in the center, and outputs exit on the right. For digital logic, follow clock signals (usually arrows or clock symbols) from inputs to flip-flops, latches, or microcontrollers. Use distinct colors to mark data buses, control lines, and power rails on a printed copy.

Avoid assumptions about default states. Switches may show NC (normally closed) or NO (normally open) positions. Relays often depict both coil and contact sets–verify which pins energize the coil versus carry the switched signal. Missing these details risks damaging sensitive parts like MOSFETs or operational amplifiers.

Check for hidden dependencies. Jumper wires might link distant sections, and test points (small circles with labels like “TP5”) indicate debug hooks. Fuses or current-limiting resistors appear as thin rectangles–note their ratings. If the blueprint lacks annotations, use a multimeter to confirm connectivity before applying power.

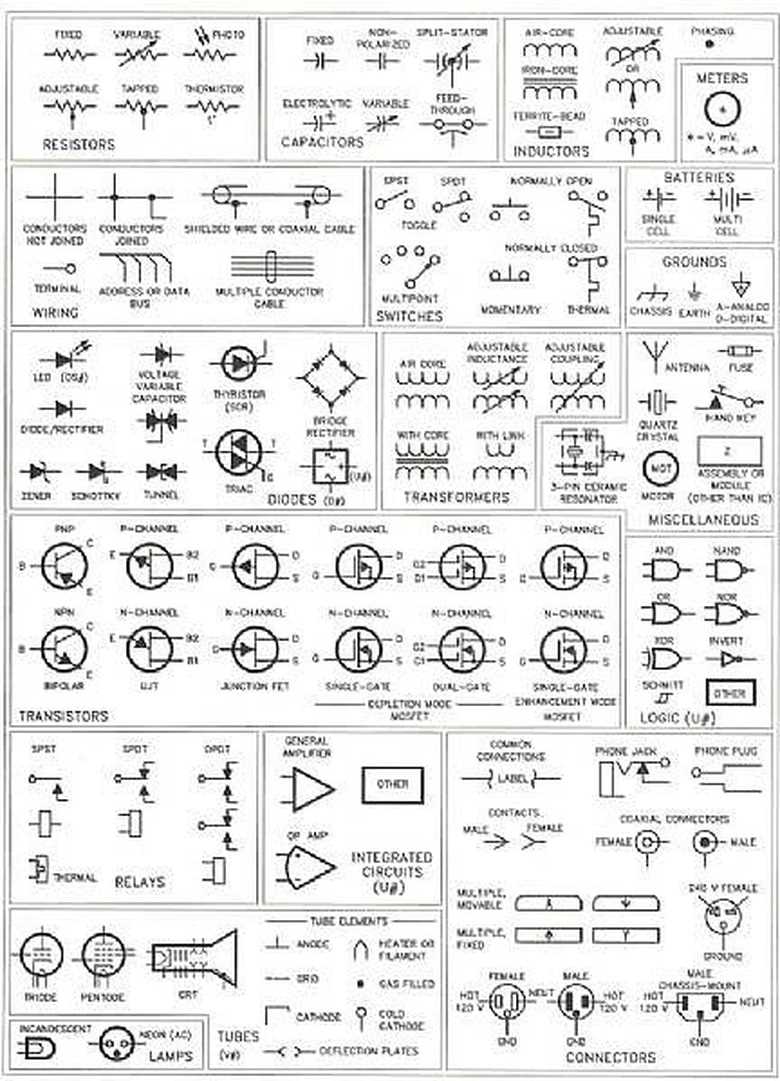

Key Symbols in Electrical Blueprints and Their Functions

Start by memorizing resistor symbols: a zigzag line (ANSI) or a rectangle (IEC). Values are often labeled directly (e.g., R1 10k), but check for color codes if missing–gold bands indicate ±5% tolerance. Non-polarized resistors share the same symbol, while potentiometers add an arrow across the shape. For quick reference, bookmark this symbol guide to cross-check ambiguous cases during debugging.

Diodes use a triangle pointing toward a line, denoting forward current direction. Look for silkscreen labels: D (general diode), LED (arrow indicators for light emission), Z (Zener), or Sch (Schottky). Polarization is critical–match the cathode (marked stripe) to the schematic’s negative side. Confusing them causes silent failures; verify twice. Common pitfalls include misreading SMD markings: S4 (1N4007) differs from BZX (Zener) despite similar packages.

Active Components: Transistors and ICs

• BJTs: Arrow on emitter distinguishes NPN (arrow outward) from PNP. Check footprint pinouts–TO-92 cases often use ECB, but datasheets may show BCE (e.g., 2N3904).
• FETs: Arrow on source for N-channel, no arrow for P-channel. Depletion-mode FETs add a double line at the gate. MOSFET symbols split into enhancement (single line) and depletion (double) types.
• ICs: Square/rectangle with numbered pins. VCC/GND are rarely labeled–use datasheet pinout tables. Common variants: op-amps (triangle), logic gates (e.g., AND as & shape), and microcontrollers (square with dot marking pin 1).

Shortcuts for ICs: Look for notch/dot on the package, often mirrored in CAD libraries. If tracing power rails, locate decoupling caps (usually 0.1µF) near ICs–omission causes erratic behavior. Always confirm voltage ratings; 74HC series tolerates 2-6V, while 74LS tops at 5.5V.

Avoid Misinterpretations: Grounds and Power Symbols

1. Three ground types: Earth (⏚), chassis (⏛), and signal (⏝). Mixing them introduces noise or shorts. Check net names–AGND vs DGND split analog/digital circuits.
2. Power rails: Use +V (positive) and -V (negative), not just “VCC.” Split supplies (e.g., ±12V) require dual symbols connected at a virtual ground.
3. Switches: NO (circle/line) vs NC (circle/slash). Momentary switches add a spring symbol. Relay contacts mirror this but include a coil nearby.

Pro tip: Print a cheat sheet of local standards–ANSI (US) uses different inductor symbols than IEC (Europe). Circle the variants most relevant to your projects to reduce errors during PCB assembly.

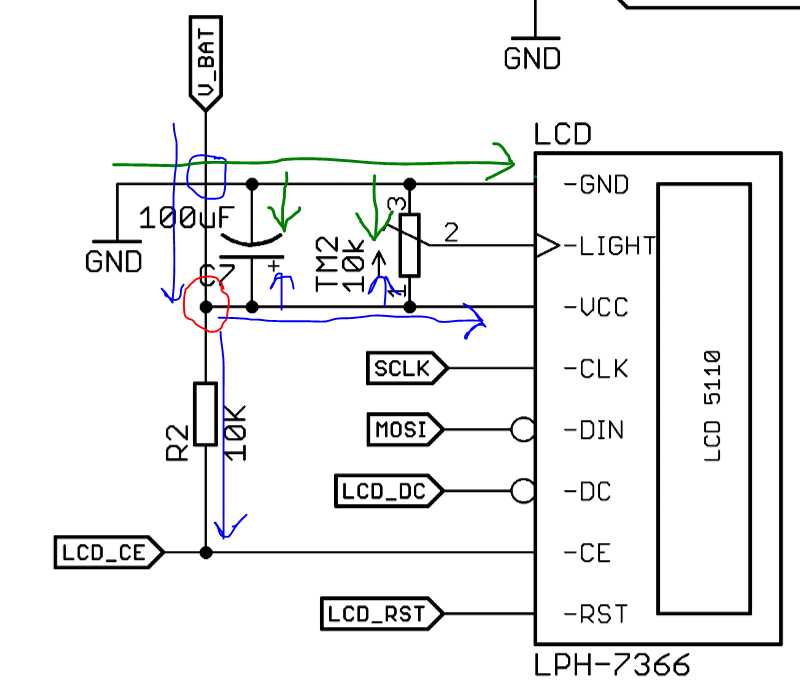

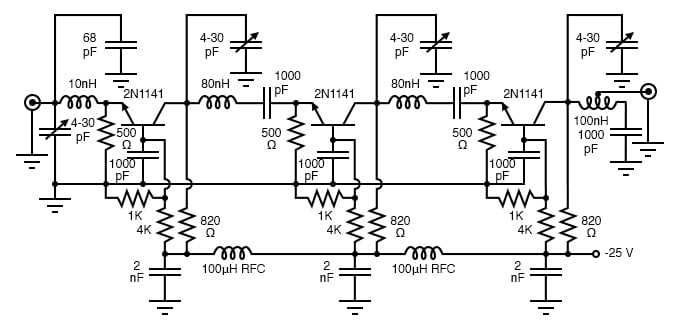

How to Methodically Follow Circuit Routes on Blueprints

Identify the power source first – look for battery symbols, voltage rails, or AC inputs. Mark these entry points with a highlighter or pen. For DC circuits, trace the positive lead (+) from the source outward, noting any switches or fuses that interrupt the flow before it reaches components. In AC systems, follow the live wire (often labeled L or colored brown/red) through transformers or rectifiers, then continue along the path until the return (neutral) closes the loop.

• Scan for ground symbols (⏚, GND, or chassis connections) early. These act as reference points; use them to verify continuity by ensuring all returns eventually tie into one common ground plane.
• Label each branch with temporary tags (e.g., “Branch A – LED driver”) if the route splits. Record device functions next to their symbols – resistors as “current limit,” capacitors as “decoupling,” etc.
• Connectors and terminal blocks often fragment routes; cross-reference pin numbers (e.g., “J2-5 → R3”) to bridge physically separate sections.

Apply the “five-second rule” when encountering complex subcircuits: pause to note input/output nodes before proceeding. For integrated circuits, locate the V_CC and GND pins first – these anchor the chip’s operation. Use manufacturer datasheets to identify unused pins (marked NC or “no connect”), as these halt incorrect tracing. For microcontrollers, highlight clock signals (XTAL, OSC) and reset lines (RST, /RESET) separately; these frequently cause debugging failures.

1. When signals loop through feedback networks (e.g., operational amplifiers), trace forward from the input pin to the gate/base, then reverse from the output pin to the load, checking phase shifts or inversion.
2. Thermal relief patterns (polygon pours) around pads can obscure traces. Toggle PCB layer visibility if available, or use a multimeter in continuity mode to verify hidden connections.
3. Isolate parasitic paths by disabling parallel branches: conceptually “lift” one leg of a bypass capacitor to confirm it isn’t providing unintended current routes.

Measure actual voltages at key nodes to validate theoretical paths. A probe at a transistor’s collector should match the calculated voltage drop across downstream resistors – discrepancies indicate open traces or component failure. For oscillating circuits (clocks, PLLs), use an oscilloscope to confirm signal shape matches the expected waveforms in the component’s datasheet; ringing or noise necessitates revisiting decoupling capacitor placement.

Resolve conflicts by comparing conflicting routes. Example: if two diodes appear to feed the same node but only one should conduct (e.g., OR-gate logic), trace each anode/cathode pair back to their power sources. Document every decision – even dead ends – using sticky notes on printouts or digital markup layers. Update trace tags as you confirm functionality: convert “Branch A – suspect” to “Branch A – verified” once continuity is proven.
