To visualize how data traverses the internet, begin by mapping its foundational layers through a hierarchical structure. Core nodes–Tier 1 networks like AT&T, Verizon, and NTT–form the backbone, exchanging traffic via peering agreements without settlement fees. These providers interconnect at Internet Exchange Points (IXPs), such as DE-CIX in Frankfurt or AMS-IX in Amsterdam, where throughput often exceeds 10 Tbps. Secondary (Tier 2) and tertiary (Tier 3) networks rely on these hubs for global reach, paying for transit to access broader routes.

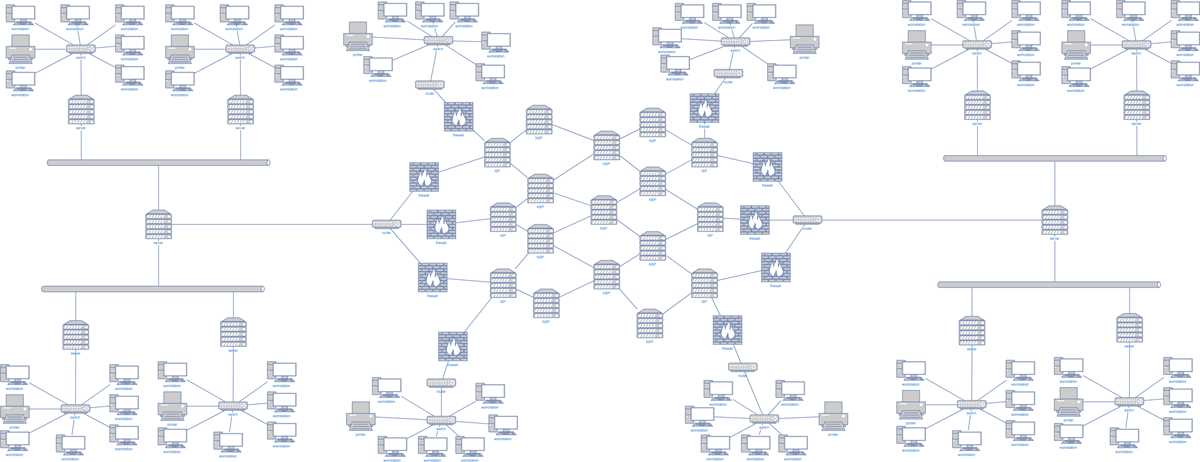

Client-server interactions rely on protocols outlined in the OSI model, where HTTP/HTTPS (Layers 5–7) enables resource requests, while TCP/IP (Layers 3–4) ensures packet delivery. DNS, caching systems like Cloudflare’s CDN, and edge computing nodes in 130+ countries reduce latency by distributing content geographically. For accurate representation, segment the diagram into three zones: origin infrastructure (servers, databases), transit networks (ISP routers, IXPs), and user endpoints (devices, APIs). Annotate each zone with real-time metrics–DNS queries (≈200 billion/day), HTTPS requests (≈60% of global traffic), and IPv6 adoption (≈40% of Google users).
For precision, use vector-based tools like Draw.io or Lucidchart to avoid pixelation in complex topologies. Label peering links with AS numbers (e.g., AS7018 for AT&T) and depict bandwidth scaling through line thickness (e.g., 1 Gbps vs. 100 Gbps). Include redundancy paths for critical routes, such as submarine cables (e.g., MAREA connecting the U.S. and Europe) or satellite networks like Starlink. Color-code layers–red for high-risk choke points, green for redundant paths–to highlight vulnerabilities.
Validate the model against live data from RIPE NCC or CAIDA, which track routing anomalies and congestion. For dynamic updates, integrate APIs like BGPStream to reflect real-time route changes. Limit abstraction to three levels–physical hardware, logical protocols, and service interactions–to maintain clarity. Avoid overcrowding; instead, create separate sub-diagrams for micro-architectures (e.g., a CDN’s edge cache hierarchy).
Test the visual’s interpretability by presenting it to network engineers unfamiliar with the project–if they identify 70% of components within 10 seconds, the design succeeds. Prioritize functionality over aesthetics; skip decorative elements in favor of clear typography (minimum 12pt font) and consistent iconography (e.g., clouds for servers, cylinders for databases).
Understanding the Global Internet Structure Through Visual Models
To accurately represent the internet’s network, begin with a layered hierarchy: clients at the edge, servers in centralized data hubs, and backbone links forming the core. Place end-user devices at the outermost layer–laptops, smartphones, IoT sensors–each sending requests via local ISPs. These connections aggregate into regional providers, forming the first tier of the model. Use distinct color-coding for each layer to highlight dependencies: residential traffic (blue), enterprise networks (green), cloud providers (red), and intercontinental cables (black). Label bandwidth capacities where relevant; for example, a transatlantic fiber optic cable like MAREA carries 160 Tbps.
At the center, illustrate the core routing infrastructure. Include Tier 1 ISPs–such as AT&T, NTT, and Lumen–interconnected via peering agreements at IXPs like DE-CIX or Equinix. Mark critical nodes where traffic shifts between autonomous systems; AS7018 (AT&T) exchanges 200+ petabytes daily with AS15169 (Google). Represent these interactions with directional arrows; thicker strokes indicate higher throughput. Avoid circular references–each link must trace to a physical asset: submarine cables (e.g., FASTER connecting Japan to the U.S.), satellite relays (Starlink’s 550 km altitude), or terrestrial microwave towers.
Document protocols dictating data flow. Place DNS root servers (13 clusters globally) at strategic nodes; highlight their role in resolving .com, .org, and country-code TLDs. Overlay HTTP/3 (QUIC) connections with dashed lines to show reduced latency from multiplexing. Identify content delivery networks–Cloudflare’s 300+ locations, Akamai’s 4,000+ edge servers–using clustered icons. Specify caching strategies: dynamic content bypasses CDNs, static assets return via the nearest edge node.
Integrate security layers into the model. Enclose data centers with firewall icons; note vendor-specific defenses like AWS Shield for DDoS mitigation. Add labeled TLS 1.3 handshakes between client-server pairs to indicate encryption. Mark vulnerability points: BGP hijacking risks (e.g., 2022 incident rerouting Twitter traffic through Russia), DNS cache poisoning, or unpatched grid routers. Use hatched patterns for insecure zones–legacy FTP servers, unencrypted email relays–urging replacement with SFTP or STARTTLS.
Validate the model with live telemetry. Annotate nodes with real-time metrics: latency (e.g., Tokyo-London via SACS cable: 240 ms), packet loss (>0.5% triggers retransmissions), or jitter (VoIP tolerates RIPE Atlas probes or Speedtest Intelligence data to ensure accuracy. Update quarterly–new cables like 2Africa (37,000 km) or Hunga Tonga’s 2022 outage may alter routes. Preserve scalability: leave space for emerging tech like quantum key distribution over satellite links or edge computing nodes processing 5G traffic.
Core Elements of the Global Network’s Structural Blueprint
Prioritize the Domain Name System (DNS) as the cornerstone of navigational clarity. Deploy redundant DNS servers across geographically dispersed locations to mitigate latency and resolve human-readable addresses (e.g., *example.com*) into machine-readable IP formats (IPv4/IPv6) within milliseconds. Implement DNSSEC to authenticate responses and prevent spoofing attacks–verified through cryptographic signatures. Avoid centralized reliance on a single registrar; distribute authority records (NS, A, AAAA, MX) across multiple providers to eliminate single points of failure.
Integrate HTTP/3 as the default protocol for data transfer, replacing TCP with QUIC’s UDP-based transport to accelerate handshakes and reduce latency under unstable connections. Enable 0-RTT resumption for repeated client-server interactions, cutting initial data round trips from two to one. Compress payloads using Brotli (quality 6–9) for text-heavy resources, while reserving GZIP for legacy compatibility. Enforce HTTP Strict Transport Security (HSTS) headers to mandate HTTPS, preventing downgrade attacks and cookie hijacking.
Leverage CDNs to cache static assets (CSS, JavaScript, images) at edge nodes, slashing load times by 70–90% for global users. Configure edge computing for dynamic content by offloading computations (e.g., API requests, SSR) to the nearest edge location, reducing backhaul traffic. Use purge mechanisms (time-based or tag-based) to invalidate stale cache entries within seconds, ensuring content freshness. For high-availability setups, pair primary CDNs with fallback providers to handle regional outages.
Adopt RESTful APIs for structured data exchange, enforcing OpenAPI 3.1 specifications to standardize endpoints. Document required/optional fields, rate limits (e.g., 1000 requests/hour), and error codes (429, 503) to prevent client-side misconfigurations. Implement GraphQL for query flexibility, but restrict nested queries to prevent denial-of-service via deep recursion. Secure endpoints with OAuth 2.0 or API keys, rotated weekly, and log every request with timestamps, user agents, and geo-IP for audit trails.
Deploy TLS 1.3 to encrypt all data-in-transit, eliminating obsolete cipher suites (SSLv3, TLS 1.0–1.2). Use ECDHE key exchange with AES-256-GCM or ChaCha20-Poly1305 for forward secrecy and performance. Automate certificate renewal via ACME (e.g., Let’s Encrypt) to avoid expiration-induced outages–set renewal windows at 30% of the certificate lifetime. Harden configurations by disabling weak protocols (e.g., TLS_FALLBACK_SCSV) and enforcing Certificate Transparency monitoring for unauthorized issuances.
Optimize database sharding to distribute query loads horizontally. For SQL, employ read replicas with asynchronous replication lag consistent hashing to map keys to nodes. Implement connection pooling (e.g., PgBouncer for PostgreSQL) to reduce overhead from frequent connects/disconnects. Cache frequent queries using Redis or Memcached with TTL-based invalidation, but avoid caching sensitive data–encrypt cache values with AES-256 if necessary.
Enforce CSP (Content Security Policy) headers to mitigate XSS attacks by whitelisting trusted sources for scripts, styles, and iframe content. Use `default-src ‘none’` as the baseline, then explicitly allow domains via `script-src`, `img-src`, etc. Pair with X-Content-Type-Options: nosniff and X-Frame-Options: DENY to prevent MIME-sniffing and clickjacking. Audit headers weekly via tools like SecurityHeaders.com to ensure compliance with OWASP Top 10 standards.
Standardize Infrastructure as Code (IaC) using Terraform or Pulumi to provision and manage network resources programmatically. Define stateful components (load balancers, VPCs) in version-controlled manifests, enabling repeatable deployments across environments. Use immutable infrastructure–never modify running instances; instead, replace them with updated images via CI/CD pipelines. Integrate chaos engineering tools (e.g., Gremlin) to simulate outages and validate redundancy mechanisms proactively.
How HTTP and URLs Structure the Internet’s Core Network
Use HTTPS exclusively–never HTTP–for all client-server exchanges. TLS 1.3 encrypts requests and responses, preventing MITM attacks that intercept plaintext data. Configure HSTS headers to enforce HTTPS, eliminating downgrade risks. Test with curl -I https://example.com to verify headers include Strict-Transport-Security.
Design URLs for machine readability, not just human convenience. Keep paths under 2,048 characters to avoid browser limitations. Use lowercase alphanumeric segments separated by hyphens (e.g., /user-profiles/settings). Query parameters should be minimal–five or fewer–to prevent API complexity. Encode reserved characters like ? and # with percent-encoding (%3F, %23).
Optimize HTTP methods for RESTful efficiency: GET for idempotent reads, POST for resource creation, PUT for full updates, PATCH for partial modifications, DELETE for removal. Avoid tunneling non-idempotent actions (e.g., payments) through GET. Implement 405 Method Not Allowed for unsupported methods on endpoints.
Cache aggressively with Cache-Control headers. For static assets, use max-age=31536000, immutable to bypass revalidation. Dynamic content requiring freshness should use no-cache with ETag or Last-Modified. Test cache behavior with curl -v -H "Cache-Control: no-cache" to confirm forced revalidation.
HTTP/2 and HTTP/3 Performance Enhancements
Migrate to HTTP/2 to eliminate head-of-line blocking. Its binary framing layer multiplexes requests over a single TCP connection, reducing latency. Enable server push to preload critical assets, but monitor PUSH_PROMISE streams to avoid overloading clients. For wider protocol support, adopt HTTP/3 (QUIC), which replaces TCP with UDP, cutting connection setup time. Chrome’s chrome://net-internals/#quic debugs QUIC sessions.
Set Accept-Encoding: gzip, deflate, br in client requests to compress payloads. Brotli (br) offers 15-30% better compression than gzip at similar CPU cost. Server configurations should prioritize Brotli and fall back to gzip. Use Content-Encoding headers to signal compression; 415 Unsupported Media Type if unrecognized.
Implement Retry-After headers for 503 Service Unavailable responses to manage overload. For rate-limiting, return 429 Too Many Requests with X-RateLimit-Remaining and X-RateLimit-Reset headers. Clients parse these to auto-retry. WebSocket connections (ws://, wss://) bypass HTTP’s statelessness for persistent bi-directional communication–but throttle messages to prevent memory exhaustion.
