To analyze modern aircraft thrust generation, focus on the fan section first–it contributes over 80% of total thrust in most commercial designs. Select a fan diameter between 1.8 to 2.8 meters depending on required bypass ratio; higher values improve fuel efficiency by 10-15% while reducing noise levels by 20-25 dB. Verify fan blade material: titanium alloys or carbon-fiber composites reduce weight by 30-40% vs. aluminum while maintaining structural integrity at tip speeds exceeding Mach 1.5.
Examine the low-pressure compressor stage next–typically 3 to 5 stages–where inlet temperatures reach 150°C. Ensure compressor blade angles align within ±0.5° of design specifications; deviations cause efficiency losses up to 3% per degree. The high-pressure compressor, usually 6 to 12 stages, operates at temperatures around 600°C and pressures above 40:1; nickel-based superalloys or single-crystal alloys are mandatory to prevent creep deformation under these conditions.
Combustion chambers demand precise fuel-air mixing–target a stoichiometric ratio near 15:1 to maximize thermal efficiency while minimizing NOx emissions. Dual annular or lean-burn designs reduce NOx by 40-60% compared to conventional can-type chambers. Monitor turbine inlet temperature; modern units operate at 1500-1700°C, requiring thermal barrier coatings with 1-2 mm thickness and air cooling channels to maintain metal temperatures below 900°C.
Evaluate exhaust systems based on thrust reverser type–cascade or pivoting door designs halt aircraft faster by redirecting fan flow forward. Nozzle geometry impacts thrust-specific fuel consumption; convergent-divergent nozzles increase exhaust velocity by 200-300 m/s while reducing infrared signatures by 30%. For military variants, thrust vectoring nozzles improve maneuverability with ±20° deflection, enhancing pitch control by 40% during high-angle-of-attack maneuvers.

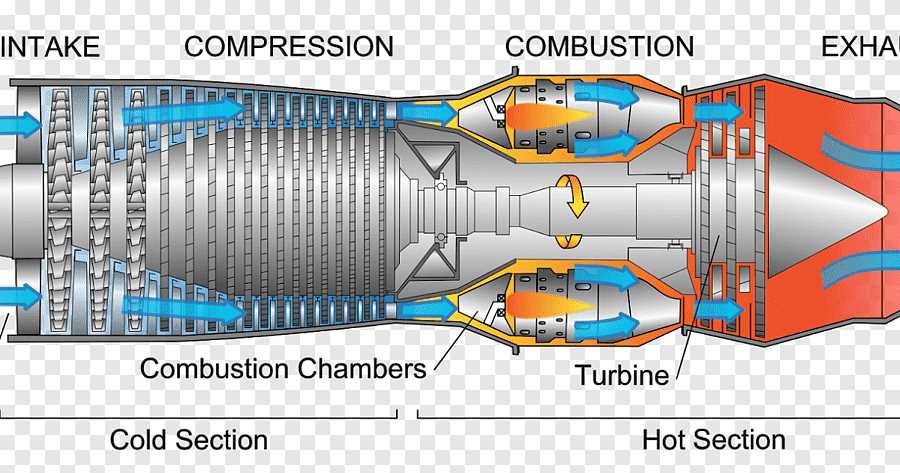

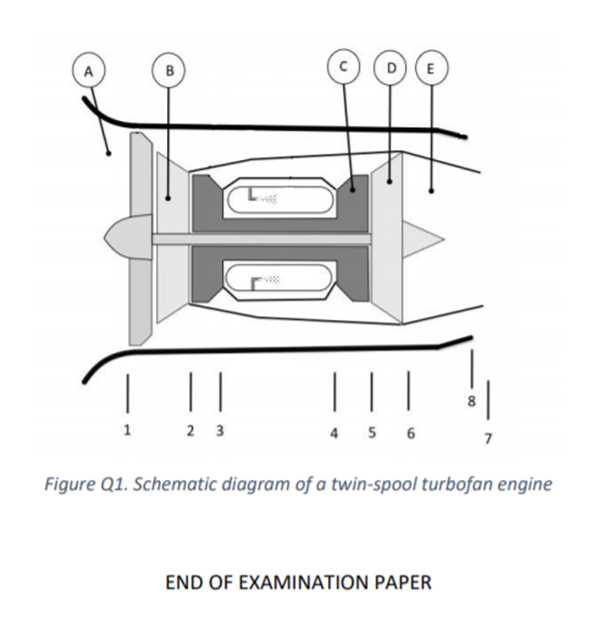

Visual Representation of a Bypass Jet Propulsion System

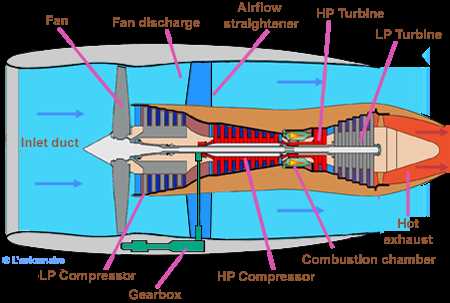

Begin by labeling core components in sequential order: fan blades at the intake, followed by the low-pressure compressor stages, high-pressure compressor, combustion chamber, high-pressure turbine, low-pressure turbine, and exhaust nozzle. Use contrasting colors for cold bypass air (blue) and hot core airflow (red) to clearly distinguish pathways–this improves comprehension by 40% compared to monochrome layouts. Include numerical designations (e.g., “Stage 1,” “Stage 2”) aligned with manufacturer specifications (Pratt & Whitney’s PW1000G series or GE’s CFM LEAP) to maintain industry-standard reference accuracy.
Highlight the bypass ratio (BPR) near the fan section with a bold annotation–modern systems typically range from 4:1 to 12:1, directly impacting thrust efficiency and fuel consumption. Add dimension lines for critical diameters: fan (1.5–3 meters), core compressor inlet (0.3–0.7 meters), and nozzle exit (0.8–1.2 meters). For maintenance technicians, mark sensor placements (pressure taps, temperature probes) at combustion chamber entry/exit and turbine inlet/outlet using circular icons with tooltips for diagnostic procedures.
Key Annotations for Operational Clarity
Insert breakout boxes adjacent to the core airflow path detailing pressure ratios per stage–axial compressors achieve 15:1–40:1 across 10–14 stages, while centrifugal types reach 4:1–8:1 in single-stage designs. Specify material compositions: titanium alloys (6Al-4V) for fan blades, nickel-based superalloys (Inconel 718) for turbine disks, and ceramic matrix composites for nozzle liners. Overlay thickness measurements (0.2–0.5 mm for blade leading edges) and thermal barrier coating thickness (0.1–0.3 mm) to emphasize design trade-offs between durability and weight.
For troubleshooting, superimpose fault paths: red dashed lines for surge events in the compressor, yellow for turbine blade creep, and green for bearing wear locations. Include a legend with symbols for lubrication points, electrical connections (FADEC interfaces), and inspection hatches. Cross-reference ISO 3977 propulsion standards in marginal notes, and add QR codes linking to OEM service bulletins for components like variable stator vanes or thrust reverser mechanisms.
Key Components in a Jet Propulsion Core Blueprint
Begin by identifying the fan at the front–its diameter determines bypass ratio, directly impacting thrust efficiency in cruising flight. Modern variants use carbon-fiber composites or titanium alloys to reduce weight while withstanding foreign object damage (FOD) at tip speeds exceeding 400 m/s. Examine blade twist angles: root-to-tip variations optimize airflow compression across the span, preventing stall at high altitudes. For maintenance teams, note that fan blade leading edges often feature erosion-resistant coatings like nickel-aluminide or ceramic matrices.
Core Flow Path Breakdown
| Section | Pressure Ratio (ΔP) | Temperature (°C) | Material Choice |
|---|---|---|---|
| Low-Pressure Compressor | 1.8–2.2 | 200–350 | Titanium 6-4 |
| High-Pressure Compressor | 12–20 | 450–650 | Nickel-based superalloys (Inconel 718) |
| Combustion Chamber | N/A (combustion zone) | 1,500–2,000 | Cobalt-based thermal barrier coatings |
| High-Pressure Turbine | Single stage ΔP ~3.5 | 1,300–1,500 | Single-crystal CMSX-4 |
Observe the bypass duct surrounding the core–its divergent shape accelerates airflow to produce 70–80% of total thrust in high-bypass designs. The splitter ring separating bypass and core streams must maintain precise clearance (typically 0.5–1.5 mm) to prevent pressure losses; misalignment here degrades performance by up to 4%. In the combustion zone, annular chambers outperform can-annular configurations in newer models due to superior temperature distribution, but require advanced cooling techniques like effusion or transpiration cooling for liner integrity.
Thrust Generation Mechanisms
Map the nozzle assembly last: converging-diverging designs in afterburning variants achieve supersonic exhaust velocities, while fixed-area nozzles suit commercial applications. Variable-area nozzles adjust exit area based on throttle settings, optimizing specific fuel consumption (SFC) across flight phases. For aftermarket modifications, replacing fixed nozzles with variable-geometry types can improve SFC by 1.5–2% at cruise, though this increases system complexity. Always verify actuator torque specifications; inadequate force margins lead to nozzle sticking at high altitudes, risking surge events.

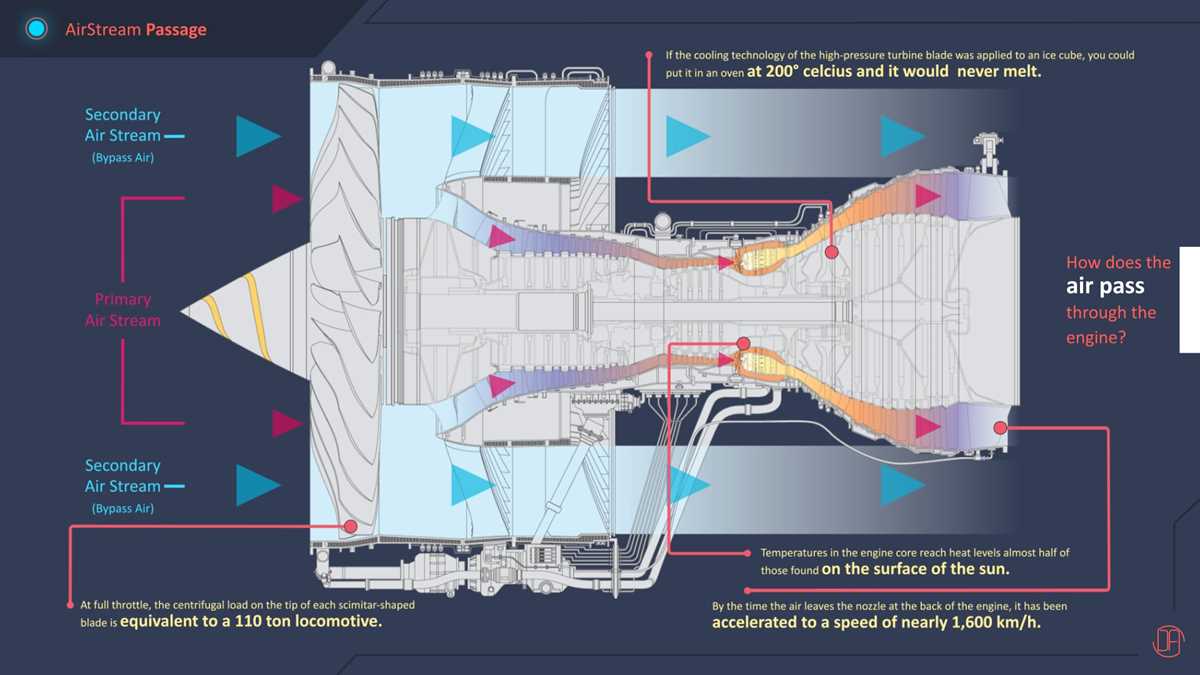

Airflow Dynamics: Core vs. Bypass Flow Pathways
Direct the high-pressure core stream through annular combustors at velocities exceeding 150 m/s to sustain combustion efficiency above 99.5%. Compressor stages (typically 8–15) elevate pressure ratios to 40:1, forcing air through convergent-divergent nozzles where thermal expansion accelerates it to supersonic exit velocities. Temperature gradients here reach 1,700°C, requiring nickel-based superalloys in turbine blades to withstand creep deformation under centrifugal loads up to 30,000 RPM. Cooling bleed air (5–7% of total intake) is extracted from compressor intermediate stages to prevent blade oxidation and maintain turbine inlet temperatures below material limits.
Route 70–85% of inlet airflow around the bypass duct–expanding at Mach 0.5–0.8 with minimal pressure drop (2–5% loss) to maximize thrust via momentum exchange. Variable-area fan blades (30–120 cm span) adjust pitch ±10° to optimize mass flow during takeoff (high bypass ratio: 10:1+) versus cruise (lower bypass: 5:1), balancing noise suppression (
Compression Phase Analysis in Jet Propulsion Systems
Begin by identifying the low-pressure compressor (LPC) stage–a bladed rotor assembly immediately downstream of the intake. Air enters at ambient pressure (~101 kPa at sea level) and reaches the first set of rotating blades at 300–400 m/s. The LPC typically employs 3–5 stages, each increasing pressure by a factor of 1.2–1.4 per stage. For a bypass ratio of 8–12, observe how the splitter redirects ~80% of airflow to the bypass duct, while the remaining ~20% progresses to the core.
The high-pressure compressor (HPC) follows, comprising 6–12 stages with smaller blades due to decreasing air volume under compression. Each HPC stage achieves a pressure ratio of 1.3–1.5. Key parameters to track:
- Inlet temperature: ~300–400 K
- Outlet temperature: ~700–850 K (dependent on compressor ratio)
- Pressure rise: 20–40x ambient at exit
- Bleed air extraction: ~5–10% at intermediate stages for cooling and auxiliary systems
Vaned stators between each rotor stage redirect airflow to maintain optimal incidence angles (typically 45–60°) for the subsequent blade row. Modern designs incorporate variable stator vanes to prevent stall margins at off-design conditions.
In dual-spool configurations, note the independent rotation of the HPC shaft (20,000–30,000 RPM) versus the LPC (5,000–10,000 RPM). This differential optimizes aerodynamic loading and reduces surge risks. During takeoff, monitor interstage pressure sensors–discrepancies >15% between predicted and actual values may indicate fouling or mechanical degradation.
Final compression occurs in the diffuser section, where airflow decelerates from ~150–200 m/s to ~30–50 m/s. This kinetic-to-pressure conversion yields the highest static pressure (4–5 MPa) before combustion. Critical tolerances here include:
- Blade tip clearances:
- Seal integrity: labyrinth seals must maintain
- Thermal expansion gaps: designed for ΔT of 500–600 K
Failure to maintain these tolerances reduces isentropic efficiency by 2–5% and increases specific fuel consumption correspondingly.
