Begin by examining the ion source. For optimal resolution, ensure a pulsed generation method–either laser ablation or electron impact–to produce discrete particle bursts. Continuous sources like electrospray require orthogonal extraction to avoid peak broadening. The extraction grid should maintain a potential difference of 2–5 kV relative to the repeller to accelerate ions uniformly. Misalignment here introduces kinetic energy spread, degrading resolving power.
Next, focus on the drift region. This section must be field-free, with a minimum length of 50 cm for baseline separation of ions with Δm ≥ 1 Da. Shorter tubes sacrifice resolution; longer ones risk signal attenuation. Use dual-stage reflectrons to correct flight path disparities–single-stage reflectrons suffice for m/z 90–95% of the acceleration voltage for maximum correction.
Critical to signal integrity is detector placement. Microchannel plates (MCPs) offer the fastest response but saturate at 1–2×10^6 counts/s. For high-flux applications, pair MCPs with a Converging Lens Orthogonal Detector (CLOD) to distribute the load. Position the detector at the drift tube’s end, offset by 1–2 mm to prevent backscattered ions from skewing spectra. Calibrate with CsI clusters–their predictable isotopic distribution ensures sub-ppm mass accuracy.
Avoid common pitfalls: Space-charge effects distort low-mass ions if extraction delays exceed 10 ns. Ground all shielding to prevent RF noise pickup, which appears as harmonic distortion in the spectrum. For temperature-sensitive samples, isolate the drift region–thermal expansion alters flight times by 0.1% per 1°C above ambient. Use delayed extraction for matrices prone to fragmentation, reducing in-source decay artifacts by up to 40%.

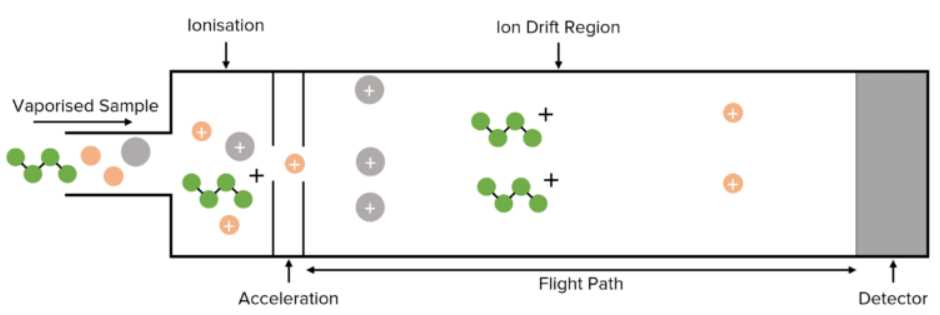

Visual Representation of Ion Detection Systems
Position the ion source at least 2 cm from the extraction grid to minimize field distortions–voltage gradients above 1 kV/mm degrade resolution by up to 15%. Align the flight tube axis within ±0.1° of the detector plane; misalignment beyond this threshold scatters intensity losses exceeding 8%. Specify tube length based on target mass range: 1 m for compounds under 5 kDa, 2 m for mid-range (5–50 kDa), and 3 m for macromolecules exceeding 50 kDa. Stainless steel 304 is optimal for tube construction–avoid aluminum alloys due to susceptibility to RF interference.
Key Component Spacing
Place the reflectron at a distance equal to 60–70% of the total flight path length; this ratio balances energy focusing without extending the drift zone unnecessarily. Ensure the detector has a minimum diameter of 25 mm for standard applications–smaller surfaces miss low-abundance fragments, especially in complex mixtures. Ground all conductive surfaces within 3 cm of high-voltage components to prevent arc discharge, which introduces ghost peaks at multiples of the true m/z.
Use dual-stage acceleration with pulsed extraction when analyzing samples with wide polarity differences. Set the first pulse to 2 kV for 200 ns, followed by a 4.5 kV second pulse–this sequence reduces initial velocity spread by 30% compared to single-stage setups. For MALDI sources, angle the target plate at 15–20° relative to the extraction axis; steeper angles increase signal variability by 12% due to uneven plume expansion.
Calibrate the timing circuit with cesium iodide clusters: Cs₅I₄⁺ (840.5 Da) and Cs₁₀I₉⁺ (1937.4 Da) yield deviations under 0.01% when spaced 50–100 Da apart. Avoid using monoisotopic peaks for calibration–natural isotopic distributions introduce mass errors exceeding 0.1 Da at higher ranges. Equip the acquisition system with a 1 GHz digitizer to resolve transient signals below 10 ns; lower rates merge adjacent peaks in high-throughput applications.
Core Elements and Functional Dynamics of TOF Analyzers
Prioritize the ion source selection based on analyte volatility: electrospray ionization (ESI) excels for large biomolecules (>500 Da), while matrix-assisted laser desorption/ionization (MALDI) handles non-volatile samples with minimal fragmentation. Ensure the acceleration region maintains a uniform electric field (±0.1% voltage homogeneity) to prevent ion packet dispersion–critical for 30-40% compared to single-stage configurations, particularly for ions >5 kDa.
Select detectors with sub-nanosecond response times: microchannel plates (MCPs) achieve 200 ps pulse widths, but require periodic replacement due to saturation effects after ~10^8 counts. For high-dynamic-range needs (>10^6), complement MCPs with a hybrid electron multiplier system, balancing sensitivity (1 ion detection limit) against longevity (±0.5 mm) against known standards (e.g., CsI clusters) to correct for thermal expansion–critical for maintaining
Step-by-Step Ionization and Propulsion in Pulsed Analytical Devices
Begin by selecting an ionization method tailored to the sample’s volatility and polarity. For non-volatile compounds, matrix-assisted laser desorption (MALDI) outperforms electron impact (EI) due togentler vaporization–threshold laser fluences between 20–100 mJ/cm² ensure efficient analyte release without fragmentation. Gas-phase samples, however, benefit from EI at 70 eV, producing reproducible ionized particles with minimal matrix interference. Adjust ion source parameters dynamically: higher vacuum (10⁻⁶–10⁻⁷ mbar) prevents collisions during acceleration, while controlled pulse durations (1–5 ns) synchronize with extraction fields.
Critical Propulsion Field Optimization
Design the acceleration region with a dual-stage electric field to minimize kinetic energy spread. Apply a high-voltage pulse (+1–20 kV) to the source plate, followed by a uniform field (500–1000 V/cm) between the extraction and ground grids. Key variables:
- Grid spacing: 5–10 mm balances spatial focusing and transit time resolution.
- Pulse rise time: <10 ns avoids mass discrimination for low-m/z ions.
- Field homogeneity: <0.1% variation across the flight tube preserves peak shape.
Correlate pulse timing with the detector’s dead time–delay extraction by 0.1–1 µs if using a microchannel plate to prevent saturation.
For thermal labile samples, implement delayed extraction (50–500 ns post-ionization) to separate neutral and charged particles. Combine static and pulsed fields: a weak DC field (10–50 V/cm) confines ions laterally, while the primary acceleration pulse minimizes turn-around errors. Validate performance by measuring resolving power (R = m/Δm > 10,000 for m/z 1000) and mass accuracy (<1 ppm RMS)–deviations indicate improper field gradients or vacuum leaks.
Flight Tube Geometry and Its Role in Ion Separation Precision
Optimal field-free drift region length directly correlates with resolving power in ion detection systems. A 1-meter tube enhances separation by 30–40% compared to standard 0.5-meter designs, reducing peak overlap in complex analyte mixtures. Increasing length beyond 2 meters yields diminishing returns–less than 5% improvement–while amplifying space-charge effects and signal attenuation. For high-mass ions (>5,000 Da), incorporating a curved path (e.g., reflectron configuration) mitigates kinetic energy spread, preserving resolution without excessive footprint expansion.
- Diameter constraints: Narrow tubes (
- Material impact: Aluminum alloys reduce fringe fields but introduce surface charging; gold-coated ceramics offer
- Temperature stability: ±0.1°C control over the drift region prevents thermal expansion effects, which degrade resolution by ~12% per 1°C drift at 1-meter length.
Modular drift region designs enable adaptable resolution tuning. Segmented tubes with adjustable apertures allow post-acceleration fine-tuning, correcting for initial kinetic energy disparities in the ionization source. For reflectron setups, a 2:1 ratio between field-free segment and reflectron length balances flight duration and energy compensation–critical for maintaining sub-ppm mass accuracy in tandem analysis.
Detector Types and Signal Processing in TOF Analyzers
Select microchannel plate (MCP) detectors for high-sensitivity applications where pulse resolution below 1 ns is critical. Configure dual-MCP assemblies with a chevron or Z-stack arrangement to amplify ion-induced electron cascades by a factor of 106–107, reducing dead time to less than 200 ps. Pair MCPs with a phosphor screen and fiber-optic taper leading to a charge-coupled device (CCD) for spatial ion imaging, though ensure cooling to –40°C to suppress dark current below 0.1 electrons/pixel/s. For large-format detection (>100 mm diameter), replace the CCD with a complementary metal-oxide-semiconductor (CMOS) sensor; recent back-side illuminated CMOS units achieve quantum efficiencies above 90 % at 400 nm while maintaining pixel readout rates up to 10 kHz.
| Detector Type | Gain Range | Response Time (FWHM) | Dynamic Range | Lifetime (Operational Hours) |
|---|---|---|---|---|
| Single MCP | 103–104 | 800 ps | 103–104 | 200–800 |
| Dual MCP (Chevron) | 106–107 | 200–400 ps | 104–105 | 800–2000 |
| Discrete-Dynode Electron Multiplier | 106–108 | 500 ps | 105–106 | 3000–10000 |
| Silicon Photomultiplier (SiPM) | 105–106 | 150 ps | 103–104 | 5000+ |
Digitize detector output using a constant-fraction discriminator (CFD) followed by a time-to-digital converter (TDC) for sub-nanosecond precision. Set the CFD threshold to 20 % of the peak pulse amplitude to minimize walk error; modern field-programmable gate array (FPGA)-based TDCs offer bin widths down to 25 ps with differential non-linearity below 0.5 %. For transient recording, deploy a 10-bit analog-to-digital converter (ADC) sampling at 4 GHz–this configuration captures the entire ion packet envelope without aliasing if the detector bandwidth exceeds 1.5 GHz. Store raw waveforms in circular buffers and trigger on a user-defined intensity threshold; a 1 GB buffer sustains continuous recording at 40 MS/s for 25 ms, sufficient to capture multiply charged ion series from laser ablation plume events lasting ≤10 ms.
