Start with a two-stage voltage gain configuration using a pair of bipolar junction transistors (BJTs) like the 2N3904 or BC547. These models offer a current gain (hFE) between 100 and 300, sufficient for driving small 8Ω loads at 0.5W–1W output. Place the first transistor in a common-emitter setup, biasing it with a voltage divider formed by two 100kΩ resistors tied to the base. Emitter degeneration via a 1kΩ resistor stabilizes the stage, while a 1µF coupling capacitor blocks DC offset between the input and first stage.
Feed the amplified signal from the collector of the first BJT into the base of the second transistor through another 1µF capacitor. This stage should use an emitter-follower topology to match impedance: a 470Ω emitter resistor provides current drive, while the collector connects directly to the positive rail. A 100µF electrolytic capacitor at the output filters residual DC, ensuring only AC signals reach the load. Ground the input’s negative terminal to the same reference point as the emitter resistor of the first transistor to avoid grounding loops.
For decoupling, add a 100nF ceramic capacitor between the positive supply and ground near each transistor. This prevents high-frequency oscillations and power sag under load. Test the circuit with a 1kHz sine wave at 50–100mVrms; expect a voltage gain of ~20–30dB and a flat frequency response from 20Hz to 20kHz (±1dB). Adjust the feedback resistor (e.g., 47kΩ) in the first stage to fine-tune gain–lower resistance increases bandwidth but reduces stability.
Use thin-film resistors (1% tolerance) and metal-film caps for critical paths to minimize noise and distortion. Keep signal traces short on a perfboard or PCB; a star grounding layout isolates sensitive analog sections from power rails. If thermal issues arise–common with sustained 1W outputs–mount the BJTs on small heatsinks or reposition them away from other heat sources.

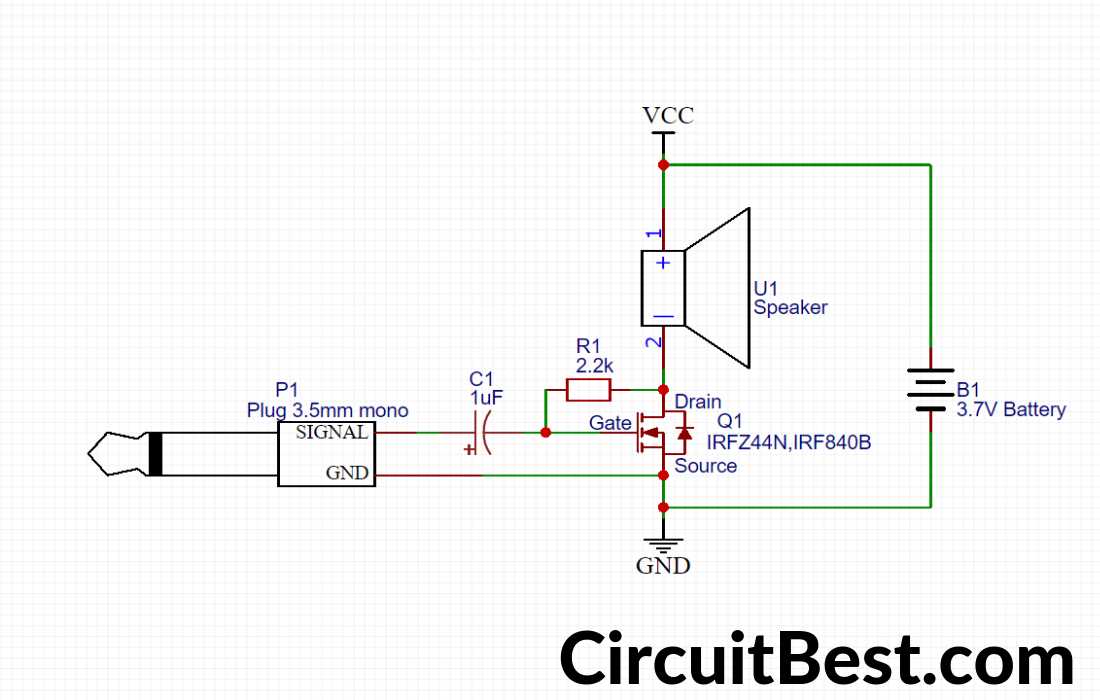

Key Circuit Layout for Basic Sound Signal Boosting
Use a single-ended class-AB power stage with a complementary transistor pair (e.g., TIP31C/TIP32C) to achieve a clean 5W output into an 8Ω load. Bias the output stage with two silicon diodes (1N4007) in series, ensuring a quiescent current of 20–30mA to eliminate crossover distortion. For the input stage, employ an NPN transistor (2N3904) in common-emitter configuration, coupling it via a 1µF electrolytic capacitor to prevent DC offset. Keep the gain under 50x by selecting a 10kΩ collector resistor and a 220Ω emitter resistor.
Recommended Component Values for Optimal Performance
| Section | Component | Value | Function |
|---|---|---|---|
| Input Coupling | Capacitor | 1µF | Blocks DC, passes AC |
| Voltage Gain | Collector Resistor | 10kΩ | Sets amplification factor |
| Output Bias | Diode Pair | 1N4007 × 2 | Stabilizes quiescent current |
| Power Stage | Output Transistors | TIP31C/TIP32C | Delivers current to load |
| Feedback Network | Emitter Resistor | 220Ω | Linearizes gain, reduces distortion |
Avoid ceramic capacitors in the signal path; polypropylene or polyester types (e.g., 100nF) yield lower dielectric absorption. Ground all decoupling capacitors (100µF/16V) near the power transistors to suppress high-frequency oscillations. Test the circuit with a 1kHz sine wave at 0.5V RMS–THD should measure below 0.5% on an oscilloscope.
Core Elements for Building a High-Fidelity Signal Booster
Start with a power transistor like the TIP31C (NPN) or TIP32C (PNP) for output stages, ensuring they handle at least 3A collector current and 40V breakdown voltage. These devices form the backbone of current amplification, delivering sufficient drive to speakers rated between 4Ω and 8Ω. Pair them with adequate heatsinks–aluminum extrusions with a thermal resistance below 2°C/W–to prevent thermal runaway, especially under continuous 10W+ loads.
Coupling capacitors dictate frequency response and bass extension. Use non-polarized polyester or polypropylene films (10µF–100µF) for input/output stages, selected based on the formula C = 1/(2πfX), where f is the lowest desired frequency (e.g., 20Hz) and X is the reactive impedance (typically 1Ω–5Ω). For power supply decoupling, opt for low-ESR electrolytics (470µF–2200µF) to filter ripple, supplemented with 0.1µF ceramics to handle high-frequency noise.
- Feedback resistors: A precision pair (e.g., 1% tolerance metal-film) sets gain via Rf/Ri, where Rf is the feedback resistor (10kΩ–100kΩ) and Ri is the input resistor (1kΩ–10kΩ). Values of 22kΩ/2.2kΩ yield ~10x gain (20dB), balancing signal integrity and noise immunity.
- Bias diodes: 1N4148 silicon diodes or LED pairs (e.g., 2x red LEDs) create a stable ~1.4V reference to minimize crossover distortion in class-AB stages. Temperature-compensated variants like the 1N4007 offer tighter thermal tracking.
- Zener diodes: A 12V–15V Zener (1N4744) regulates supply voltage for preamp sections, protecting low-level circuitry from transient spikes.
Power Supply Specifications
A linear regulator (LM317/LM337) or unregulated dual-rail supply (±12V to ±30V) powers the circuit. For AC inputs, use a toroidal transformer with current ratings 1.5x the expected draw (e.g., 5A for a 20W booster). Bridge rectifiers (KBPC2510) or discrete diodes (1N5408) handle rectification; add snubber capacitors (0.01µF) across diodes to suppress switching noise. Reserve 10,000µF per rail for bulk storage, scaled to C = I_load * 80ms/V_ripple, where I_load is peak current and V_ripple is the maximum acceptable ripple (e.g., 100mV).

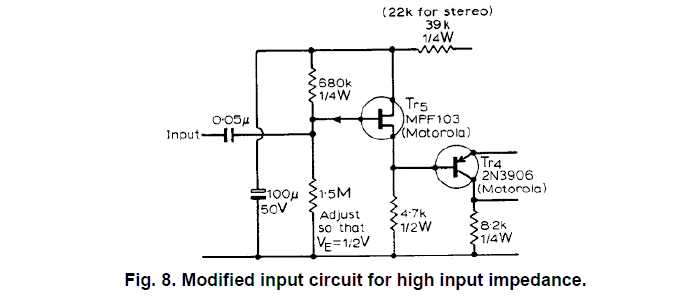

Input impedance matching requires a potentiometer (10kΩ–100kΩ log taper) and a series resistor (1kΩ–2kΩ) to interface with sources like microphones (200Ω–2kΩ impedance) or line-level signals (10kΩ+). For balanced inputs, incorporate a differential amplifier (e.g., NE5532 op-amp) with CMRR >90dB, using 1% resistors to ensure symmetry.
- Grounding strategy: Star grounding prevents hum loops. Centralize returns at the power supply, routing all signal grounds through a single node with
- Protection circuits: Add a MOSFET (IRF540) or relay to disconnect load during DC faults, triggered by a comparator (LM393) with hysteresis (±50mV) to avoid false trips.
- Thermal management: Fans or passive cooling (heatsink + thermal paste) maintains junction temperatures
Critical Measurements and Adjustments
Verify quiescent current (5mA–50mA) by inserting a milliammeter between power transistor collectors and the positive rail. Adjust bias diodes or resistors until crossover distortion vanishes on a THD analyzer (

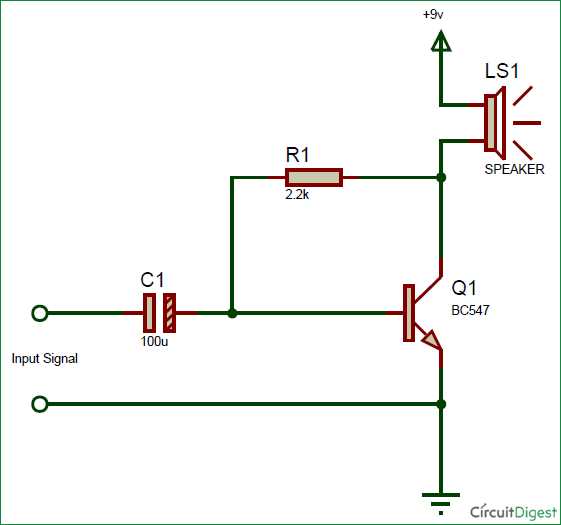

Step-by-Step Assembly of a Single-Transistor Signal Booster
Begin with a BC547 transistor, 100kΩ input resistor, 10kΩ feedback resistor, and 1μF coupling capacitors. Mount the transistor on a breadboard with the flat side facing left. Connect the emitter to ground via a 1kΩ resistor. Ensure the base receives input through the 1μF capacitor, while the 100kΩ resistor links the base to ground for biasing. The collector should tie to a 9V supply through a 4.7kΩ resistor.
Attach the output stage by placing a second 1μF capacitor between the collector and the output terminal. The feedback loop demands precision–run the 10kΩ resistor from collector back to base. Verify all connections with a multimeter; resistance between base and ground should stabilize near 20kΩ combined from the 100kΩ and 10kΩ resistors. Deviations indicate miswiring.
Test with a 1kHz sine wave at 50mV amplitude. Probe the output with an oscilloscope–expect a clean 2Vpp signal with minimal clipping. If distortion occurs, adjust the 4.7kΩ collector resistor downward in 100Ω increments until wave symmetry improves. Excessive noise suggests poor grounding; reroute the emitter resistor directly to the supply’s negative terminal.
Finalize by soldering components onto a perforated board. Use 22-gauge wire for power rails and 26-gauge for signal paths. Shield input leads with a grounded copper braid if longer than 10cm. Power on and confirm 6dB gain across 20Hz–20kHz. Replace capacitors with film types if high-frequency roll-off exceeds 1dB at 15kHz.
Power Supply and Load Integration for Signal Boosters
Select a DC source with voltage 1.5× to 2× the peak output swing your circuit requires. For a 12 V swing, a 24 V supply keeps transistors in their active region without clipping. Measure the unregulated input at the smoothing capacitor–if ripple exceeds 50 mV p-p, increase capacitance or add a pre-regulator to prevent hum injection.
Ground the negative terminal of the supply directly to the chassis at a single star point, typically the main output capacitor’s negative pad. Never daisy-chain ground returns; each stage’s return path should run radially back to the star. A 2 AWG copper bus bar between the star point and power entry limits voltage drops to under 30 mV when driving 5 A bursts.
- Fuse the supply line before any filtering–slow-blow, rated 125% of steady-state current.
- Add a reverse-polarity protection diode on the input if the connector lacks keying.
- Mount a 1 kΩ bleed resistor across the main capacitor to discharge residual charge within 30 s of power-off.
Connect the load via twisted-pair cable: speaker hot to the output stage’s emitter resistor or MOSFET drain, return to the same star point used for power ground. For 8 Ω loads, keep cable resistance below 50 mΩ per leg; for 4 Ω, reduce to 25 mΩ. Ferrite beads on both leads suppress RF pickup above 1 MHz.
Load Safety Measures
Place a Zobel network (10 Ω resistor in series with 0.1 µF capacitor) directly across the load terminals to prevent high-frequency oscillations. If driving long cables, add a series LCR snubber tuned to 20 kHz–values typically 1 µH, 1 Ω, 1 nF. Verify stability with a 1 kHz square wave at full power: overshoot should not exceed 10%.
Thermal protection requires a 10 kΩ NTC thermistor mounted on the heatsink adjacent to critical devices. Wire it between the bias transistor’s base and its positive rail; at 90 °C it pulls bias current down by 30%, preventing thermal runaway. Test by applying a 40 W heat source and ensuring shutdown occurs within 120 s.
- Start at idle–adjust bias current to 20 mA per output pair using a multimeter across emitter resistors.
- Apply a 1 kHz sine, raise amplitude until THD reaches 1%–note this as maximum undistorted power.
- Check DC offset at the load terminals; it should be
LED indicators go on the front panel: red for power (220 Ω series resistor), amber for clip detect (driven by a comparator on the output stage). Keep traces wide: 5 mm for currents above 1 A, 2 mm for signals. Thermal relief pads on large pads allow easier soldering but degrade cooling–use solid pads for heatsinked devices.
