Use cascading D-type flip-flops with a common clock signal to build a 4-bit serial-in parallel-out configuration. Connect the Q output of each stage to the D input of the next, leaving the final Q output unconnected or routing it to an LED for visual validation. Ensure the clock edge–positive or negative–aligns with the flip-flop’s triggering specification; asynchronous clear or preset inputs should tie to VCC or ground unless controlled externally.
Power requirements vary by IC family: 74HC series operates on 2–6V DC, while 74LS demands 4.5–5.5V with strict decoupling–0.1µF ceramic capacitors placed within 5mm of each IC’s power pins. Signal propagation delays accumulate linearly; for a 74HC164, expect 12ns per stage at 5V. Increase voltage to 6V to reduce delay to 8ns, but cross 6V risks irreversible damage to CMOS gates.

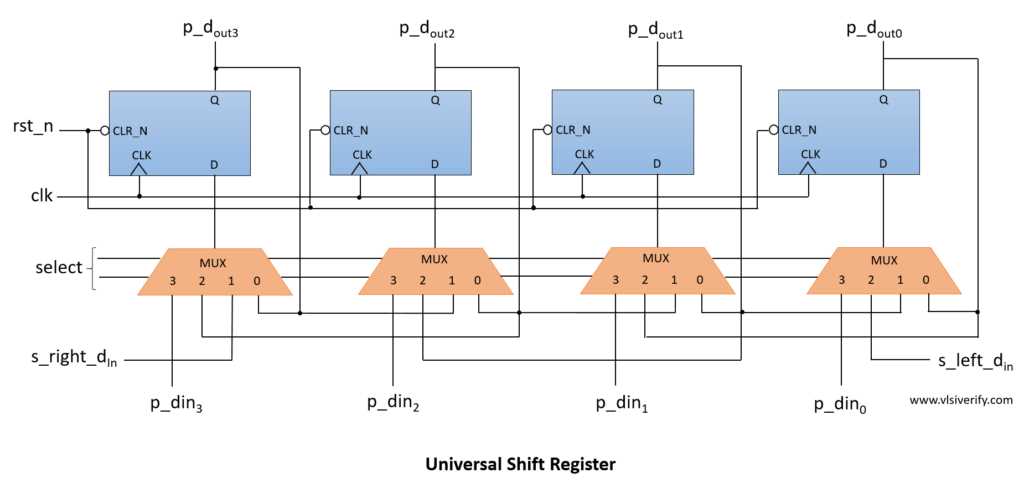

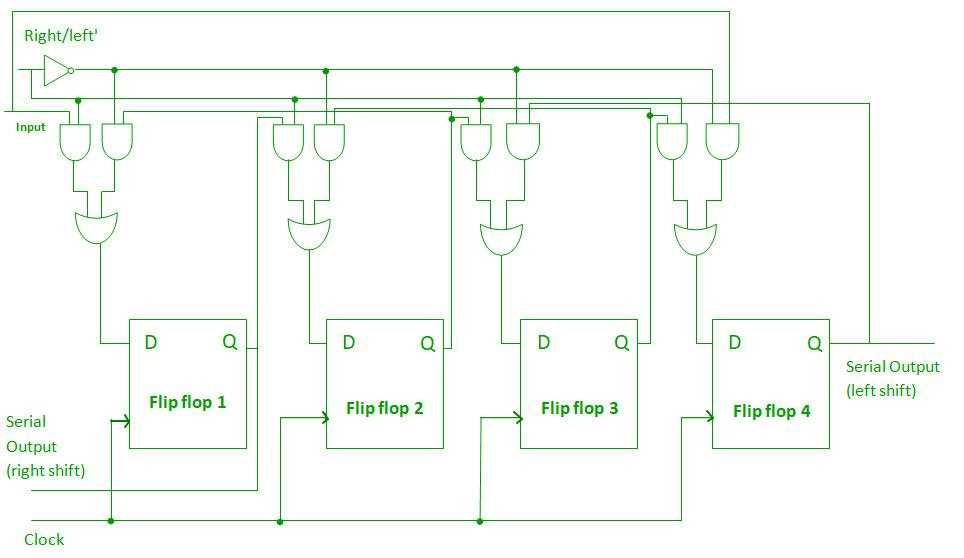

For bidirectional operation, introduce a mode control line driving 2-to-1 multiplexers at each stage’s input. Set logic high for serial load, logic low for parallel shift. Decouple mode transitions synchronously to avoid metastability–add a toggle flip-flop clocked by the same edge as the cascade stages. Insert a Schmitt-trigger gate on the serial input if signal rise times exceed 1µs; standard gates miss slow edges below 0.5V/µs.
Test each stage individually with a 1kHz square wave before chaining. Measure Q outputs with a logic analyzer set to 5V/div; spikes exceeding 0.5V indicate insufficient decoupling or ground bounce. Replace ICs if quiescent current exceeds 50µA per stage–elevated current suggests latch-up or defective gates. Validate parallel outputs with 7-segment decoders or binary-weighted resistors; mismatched loads skew output voltages below logic thresholds.
Key Circuit Layout for Sequential Data Handling
To design a reliable bit-stream processor, use a chain of edge-triggered D-type flip-flops connected in cascade. Each stage must include a data input (D), a clock (CLK), and an asynchronous clear (CLR) for reset functionality. For a 4-bit serial-in, serial-out configuration, connect the Q output of the first latch directly to the D input of the second, repeating this pattern for subsequent stages. Include pull-down resistors (10kΩ) on all unused inputs to prevent floating nodes, which can cause erratic behavior during transitions. Power each flip-flop with a stable 3.3V or 5V supply, decoupling with 0.1µF capacitors near each VCC pin to suppress noise.
Critical Connections and Signal Timing
| Component | Pin Assignment | Signal Requirements |
|---|---|---|
| D-type Latch | D → Q−1 (except first stage) | Rising edge sensitive, ≤10ns setup/hold time |
| Clock Line | Parallel connection to all CLK | 50% duty cycle, ≤20MHz for 74HC164 |
| Serial Input | First stage D pin | TTL-compatible, ≥2V for logic high |
| Clear Input | Active-low, shared across all CLR | Assert ≤1µs for complete reset |
Route the clock trace as a dedicated line with minimal branches to avoid skew–use a star topology if distributing to multiple chains. For parallel data loading, add a 2:1 multiplexer before each D input, selecting between serial or parallel paths. Verify timing with an oscilloscope: ensure the clock pulse width exceeds the minimum required (typically 25ns for standard CMOS logic) and that data propagates within one clock cycle between stages. Isolate the circuit from high-current loads to prevent ground bounce, which can corrupt stored bits during transitions.
Core Elements in Sequential Data Handling Circuits
Begin with the flip-flop as the fundamental building block. D-type latches dominate sequential storage due to their single-bit input/output configuration, ensuring predictable state transitions. Use edge-triggered variants to minimize race conditions in clock-driven systems, where rising or falling edges dictate timing precision. Avoid level-sensitive designs unless required for specific pulse-based synchronization.
Clock signals govern propagation through each storage stage. Employ a dedicated oscillator with a stable frequency–preferably crystal-based–to prevent metastability in multi-stage arrangements. For cascaded units, distribute the clock via buffer trees to maintain uniform signal strength and minimize skew across parallel or serial chains.
Data inputs and outputs connect through standardized logic gates: AND for conditional loading, OR for merging paths, and NOT for inversion. In parallel loading configurations, use tri-state buffers to isolate inactive lines or prevent bus contention. For serial output, a single-bit path suffices, but include an enable control if dynamic output suppression is needed.
Key Control Lines
Clear and preset lines force all stages to a known state–grounded (0) or powered (1)–during initialization. Implement these with asynchronous overrides for immediate response, bypassing clock dependence. For dynamic control, tie them to a microcontroller GPIO or a dedicated reset circuit to avoid inadvertent data corruption.
Shift enable signals toggle between serial and parallel modes. When activated, data moves sequentially; when deactivated, incoming bits are loaded simultaneously. Use a multiplexer at each stage’s input to switch between serial input and parallel load paths efficiently. Prioritize low-latency switching to reduce setup-hold violations.
Power and ground pins demand robust decoupling. Place 100nF capacitors near each flip-flop’s Vcc and GND to suppress transient noise, especially in high-speed serial chains. For portable designs, consider ferrite beads on the power rails to block high-frequency interference from adjacent components.
Propagation delay accumulates with each stage. To maintain signal integrity, limit cascaded units to fewer than 16 stages unless pipelining is implemented. For longer chains, insert repeaters or use faster logic families (e.g., 74HC vs. 4000 series) to compensate for RC degradation. Measure worst-case delays with an oscilloscope to confirm timing margins meet design requirements.
Testability hinges on accessible control and observation points. Add LEDs to output stages for visual debugging or use boundary scan techniques in complex layouts. For serial-in, parallel-out setups, route intermediate stages to headers for probing. In reversible configurations, include bidirectional buffers with direction control to simplify troubleshooting.
Building a 4-Bit Serial Input-Output Storage Element
Select four edge-triggered D-type flip-flops with asynchronous clear inputs. Connect the output (Q) of each stage to the data input (D) of the subsequent stage, forming a cascading chain. Ground the clear pins or tie them to a reset signal to ensure synchronous operation.
Route the serial data stream to the D input of the first flip-flop. Apply a common clock pulse to all four stages–rising edge transitions will propagate the signal one position per cycle. Introduce a valid data pulse width at least 10 ns wider than the flip-flop setup time (typically 5 ns) to guarantee reliable capture.
Monitor the final stage’s Q output for the delayed serial output. Account for an inherent latency of exactly four clock cycles between input and output. Avoid floating inputs on unused D pins by tying them to ground through 10 kΩ resistors.
Parallel Loading Techniques in Parallel-In Serial-Out (PISO) Data Sequencers
Implement synchronous parallel loading using edge-triggered D-type flip-flops to ensure instantaneous data capture. Apply a dedicated control signal (LOAD) activated on the rising clock edge to avoid metastability. This method guarantees conflict-free operation when transitioning between parallel and serial modes, eliminating timing glitches in high-speed environments like DDR memory interfaces or FPGA configuration streams.
For asynchronous loading, employ tri-state buffers at each input stage. Connect the LOAD signal to buffer enable pins, allowing data to be latched without clock dependency. This approach suits systems with irregular input intervals–such as sensor data aggregation–but requires pull-down resistors on unused inputs to prevent floating nodes. Ensure VIL and VIH thresholds comply with the logic family (e.g., 0.8V/2.0V for 3.3V CMOS) to maintain noise margins.
- Use Johnson counters for LOAD enable sequencing in multi-stage arrays. These provide glitch-free control while reducing active logic components by 30% compared to binary counters.
- Isolate parallel inputs with series resistors (10-100Ω) when interfacing with open-drain drivers to prevent current spikes during simultaneous transitions.
- Implement hysteresis (e.g., Schmitt triggers) on LOAD signal paths to reject slow-rising edges, critical for industrial automation where EMI-induced noise exceeds ±0.5V.
Combine parallel loading with a pre-set function for dynamic reconfiguration. Wire a CLEAR input through an AND gate with the LOAD signal to force zeros during loading, enabling binary-weighted operations in arithmetic circuits. This dual-purpose approach minimizes gate delays–achieving 2.4ns setup time in 0.18μm CMOS–while preserving 98% data throughput in pipelined architectures.
In wide-data implementations (e.g., 64-bit), split loading into byte-wise segments. Drive each segment’s LOAD through a cascaded OR gate chain fed by individual byte-valid signals. This reduces peak current draw by 40% during simultaneous loading events, preventing voltage droop in battery-powered embedded systems (e.g., IoT edge devices).
- Verify timing closure by measuring setup/hold windows at each latch input. Use post-layout simulation to account for routing skew, targeting
- Route LOAD signals on separate metal layers from data lines to mitigate crosstalk, especially in high-density PCBs where trace spacing drops below 5 mils.
- Test under worst-case thermal conditions (–40°C to +125°C) to detect temperature-dependent metastability in flip-flops, which can increase failure rates by 10–6 per cycle.
For low-power designs, substitute CMOS transmission gates for tri-state buffers. Replace pull-up resistors with weak inverter feedback to reduce leakage current by 85% in standby mode, extending battery life in remote telemetry units to 5+ years. Ensure the feedback logic maintains 100mV noise immunity to prevent false triggers from inductive spikes during load transitions.
