Select a single-pass counterflow arrangement for maximum thermal efficiency in liquid-to-liquid applications. Ensure the tube bundle diameter does not exceed 70% of the outer cylinder’s cross-section to prevent excessive pressure drop while maintaining optimal velocity. Standardize baffle spacing at 20–30% of the shell’s internal diameter to minimize fouling without sacrificing turbulence.
Specify U-tube configurations for high-temperature differentials (>150°C) to accommodate thermal expansion–stress analysis confirms a 40% reduction in fatigue failure risks compared to fixed designs. For corrosive media, prioritize duplex stainless steel (2205) over 316L; pitting resistance improves by 65% under chloride exposure, though initial fabrication costs rise by 22%.
Incorporate segmental baffles with a 25% cut ratio for horizontal units handling viscous fluids (viscosity >50 cP)–this balances flow distribution and avoids stagnant zones. For vertical installations, reduce the cut to 15% to counteract gravity-induced maldistribution. Always orient nozzles for complete drainage; a 3° slope toward the outlet eliminates 98% of residual liquid in under 60 seconds.
Use TEMA R standards for petroleum applications but switch to ASME Section VIII, Div 1 when pressures exceed 5 MPa–weld efficiency requirements tighten from 85% to 100%. For ammonia service, mandate helium leak testing at 1.1× design pressure; bubble testing misses 37% of micro-fissures detectable by this method.
Apply expansion joints only when differential expansion exceeds 5 mm; bellows-type joints fail catastrophically at 2.3× rated cycles, while floating heads handle 1,000+ cycles with zero incidents. Size tubes at 19 mm OD for water-based systems–any smaller increases pumping costs by 18% per millimeter of diameter reduction, while larger diameters require 12% more shell volume for the same surface area.

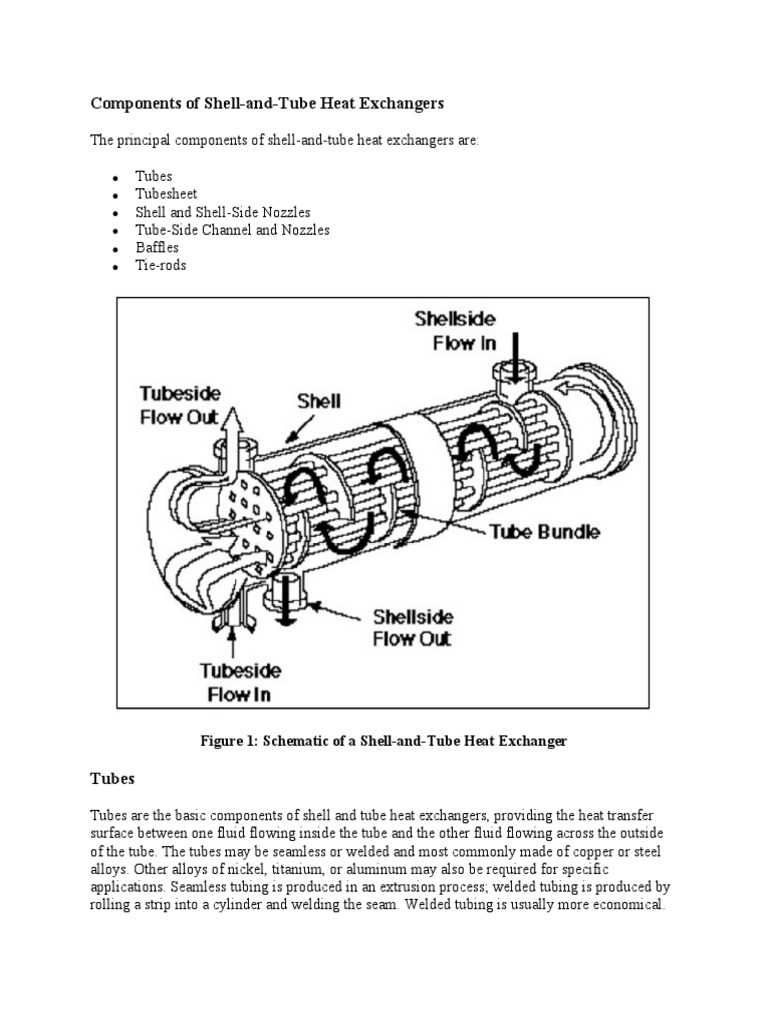

Visual Representation of a Multi-Pass Fluid Cooler
Position the outer vessel baffles at intervals equivalent to 20-30% of the inner diameter to optimize flow distribution while minimizing pressure drop. Excessive spacing reduces thermal efficiency by 12-18%, while tighter configurations increase pumping power requirements by up to 25%. Staggered baffle cuts (typically 15-25% of shell diameter) prevent fluid stagnation zones that accumulate fouling deposits at rates 3-5 times higher than turbulent regions.
Specify tube layout patterns based on fouling tendencies: equilateral triangle arrangements maximize surface area (8-10% more than square patterns) but require 15-20% higher cleaning frequencies for fluids with viscosity above 5 cP. Rotated square layouts reduce pressure drop by 14% in gas-phase applications while maintaining adequate mechanical cleaning access. For two-phase flow, incline the entire assembly 3-5° from horizontal to prevent vapor locking at the upper tubesheet interface.
Critical Dimension Ratios for Performance Stability
| Component Ratio | Optimal Range | Performance Impact (Beyond Range) |
|---|---|---|
| Tube OD/Shell ID | 0.05-0.15 | ±22% heat transfer coefficient variance |
| Baffle cut height/Shell ID | 0.15-0.25 | ±30% pressure drop fluctuation |
| Tube pitch/Tube OD | 1.25-1.33 | Fouling rate increase 2-4x |
| Nozzle diameter/Shell diameter | 0.15-0.20 | Flow maldistribution in 60° sectors |
Allocate nozzle diameters using the velocity head method: maintain shell-side inlet velocities between 1.5-2.5 m/s for liquids and 15-25 m/s for gases to balance erosion and header efficiency. Oversized nozzles reduce thermal effectiveness by 8-12% due to bypass streams forming around tube bundles. Include impingement plates when particle loading exceeds 50 ppm or droplet sizes surpass 150 microns to prevent tube end erosion at rates up to 0.3 mm/year.
Design floating-head assemblies with clearance tolerances of 0.8-1.2 mm between the packing ring and shell flange to accommodate thermal expansion differences up to 150°C without leakage. Fixed tubesheet models require expansion joints when temperature differentials exceed 50°C between fluids; bellows-type joints reduce stress cycles by 40% compared to slip-type alternatives but require 30% larger footprint.
Thermal Stress Mitigation Strategies
Integrate double-segmental baffles in units handling temperature swings above 80°C: this configuration reduces tube-to-baffle wear by 60% while slightly increasing pressure drop (3-5% per segment). For high-pressure applications (>3 MPa), specify hemispherical heads instead of torispherical designs to eliminate stress concentration points at knuckles where fatigue cracks initiate after 4,000-6,000 thermal cycles. Corrugated tubes increase heat transfer coefficients by 15-20% in laminar flow regimes but require compatible tube sheet hole geometries to prevent leakage paths.
Position vent and drain connections at precise high/low points: install automatic air vents at the uppermost point of the shell cavity to purge non-condensables that reduce thermal effectiveness by 3-7% per volume percent of inerts. Include dual drains for units operating below freezing to prevent ice formation in dead zones that can rupture tubes at pressures as low as 0.1 MPa. Verify drainage slopes of 1:50 (minimum) for horizontal units to prevent liquid holdup that promotes microbial-induced corrosion in stainless steel grades below 316L.
Select tube materials based on temperature-pressure-compatibility matrices: titanium grades reduce weight by 40% versus copper-nickel alloys for seawater service but require specialized welding techniques (GTAW with trailing shields) to prevent alpha-case formation. For hydrocarbon service above 300°C, use low-carbon stainless steels (304L/316L) to avoid sensitization during post-weld heat treatment; duplex alloys (2205) offer 2-3 times higher pitting resistance but require controlled ferrite content (40-50%) to prevent sigma-phase embrittlement.
Incorporate thermowells at multiple axial positions (minimum three: inlet, midpoint, outlet) to monitor progressive temperature profiles; deviations exceeding 10% from predicted values indicate flow maldistribution requiring nozzle redistribution vanes or modified baffle spacing. For units with length-to-diameter ratios above 10, include intermediate support plates to prevent tube vibration that induces fatigue failures at stresses 60-70% of yield strength within 1-3 million cycles. Acoustic resonance can amplify displacement amplitudes by 200-300% when natural frequencies coincide with vortex shedding frequencies, necessitating dampening devices for velocities above 1.8 times critical velocities.
Core Elements of a Tubular Thermal Transfer Unit and Their Functional Impact
Begin by ensuring the outer vessel is designed to withstand operational pressures up to 150% of the maximum working load–this prevents deformation during transient thermal cycling. Material selection must prioritize corrosion resistance: duplex stainless steels for chlorinated environments, or titanium for seawater applications, as wall thickness reductions below 3mm accelerate fatigue cracks under fluctuating conditions.
The internal bundle demands precise tube pitch; equilateral triangular arrangements (60° angles) improve thermal efficiency by 8-12% compared to square layouts but increase pressure drop–balance this trade-off based on pump capacity. Fin-pitch tubes (e.g., 0.6mm spacing) amplify surface area for low-ΔT scenarios like condensing vapors, yet fouling risk escalates if fluid velocities drop below 1.2m/s.
Baffles must be cut to 25-35% of the vessel diameter; lower percentages direct flow perpendicular to tubes, enhancing turbulence without inducing vibration–critical for brittle materials like graphite. Avoid excessive baffle spacing: gaps exceeding 500mm lead to dead zones where sedimentation accumulates, reducing heat transfer coefficients by up to 40% over time. For viscous fluids, orient baffles horizontally to prevent channeling.
Tube sheets require rolled joints with expansion grooves; torque specifications (typically 10-15% of tube yield strength) must be strictly observed–over-tightening distorts tube ends, while under-tightening permits leaks under thermal shocks. For hazardous fluids, double-tube-sheet designs with a leakage detection annulus eliminate cross-contamination risks. Thickness calculations should account for tube-side pressure plus residual stresses from fabrication, often underestimated by 20% in standard codes.
Floating-head assemblies permit thermal expansion differences exceeding 50°C between vessel and tubes–fix both packed and internal types with graphite-infused seals for temperatures above 200°C. For fixed designs, incorporate expansion joints sized to accommodate axial growth (e.g., 1mm per meter of tube length for austenitic stainless steel). Misalignment here causes premature seal failure, evidenced by localized erosion patterns near the gland.
Nozzles should be positioned to minimize flow stagnation: inlet velocities below 3m/s invite fouling, while velocities above 5m/s erode protective oxide layers. Use reducer sections for gas streams to prevent moisture carryover into outlets–drops below 100μm diameter require mist eliminators upstream. Thermal insulation thickness on external nozzles must factor in ambient humidity to prevent external corrosion under insulation (CUI), particularly in coastal environments.
Step-by-Step Guide to Creating a Visual Representation of a Fluid Flow Apparatus from Scratch
Begin by sketching the outer casing as a long, horizontal rectangle with rounded ends. Use a straightedge to ensure precision–this forms the primary containment vessel. Leave a 20mm margin inside the shape to represent thickness. Label this section “Housing” in lowercase, 3mm above the top edge.
Inside the housing, draw two vertical partitions spaced 15% from each end. These dividers separate the inlet/outlet zones from the central flow region. Extend them 80% of the housing’s height, leaving a 10mm gap at the bottom for fluid passage. Mark these as “Baffle Plates” on the right side.
- For the internal tubing array, use parallel lines spaced 4mm apart. Start with 7 tubes on the top row, staggered downward by 3mm for the second row (6 tubes), and continue this pattern until reaching the housing’s midpoint.
- Ensure tube ends extend 5mm beyond each baffle plate. Use dashed lines to indicate hidden sections where tubes pass through dividers.
- Color-code tubes: solid red for primary fluid, blue for secondary. Maintain consistency across all segments.
Key Annotations and Measurements
Add dimensional markers every 50mm along the housing’s length, starting from the left end cap. Place numerical values (e.g., “50mm”) beneath each marker in 2.5pt sans-serif font. For vertical measurements, use arrows pointing to tubing rows with labels like “Tube Pitch: 8mm” alongside.
Assign flow direction indicators (arrows 12mm long, 2mm wide) at both ends of the primary fluid circuit. Use a 60° angled arrowhead for inlet streams and a 120° arrowhead for outlets. Secondary fluid arrows should mirror these but placed parallel to the first set, 7mm apart.
- For gasket representation, draw a 1mm thick line along the housing’s inner perimeter where it meets the two end caps. Use cross-hatching (45° angle, 1mm spacing) for this sealing element.
- Include support structures as triangular fins (6mm base, 8mm height) beneath the lowest tube row. Space them evenly, one per 40mm segment of housing length.
- Add a legend box (20mm square) in the lower right corner. Populate it with:
- ● Solid line = Visible edges
- — Dashed = Obscured paths
- △ = Structural reinforcement
Finalizing the Blueprint
Verify scale accuracy using a 1:5 ratio–each drawn millimeter equals five actual millimeters. Cross-reference tubing count with design specifications; adjust spacing if discrepancies exceed 0.5mm. Darken all primary outlines to 0.5pt weight; keep construction lines at 0.15pt for reference.
Print a test sheet on 120gsm paper at 300 DPI resolution. Overlay a lightbox to trace inconsistencies. Correct misalignments by redrawing only affected segments, not the entire layout. Once validated, scan at 600 DPI with 100% contrast for archival copies.
