Begin with a flow representation showcasing the four core stages: preliminary screening, sedimentation, biological breakdown, and tertiary polishing. Use distinct icons for each phase–grit removal, settling tanks, aeration basins, and filtration beds–to immediately convey purpose without relying on labels. Assign consistent colors: blue for incoming effluent, grey for screened waste, brown for sludge, and green for treated output. This color-coding reinforces progression and minimizes explanatory text.
Position the preliminary screening at the top left, directing flow downward to primary clarifiers. Place aeration tanks centrally, ensuring equal spacing between influent and effluent channels to reflect balanced retention times. For activated sludge systems, merge return sludge lines upwards at a 45° angle to contrast with downward-treated flow, preventing visual confusion. Include three-parallel polishing filters at the bottom-right, illustrating redundancy common in modern setups.
Measurements matter: scale each treatment zone proportionally. Primary tanks occupy 20% width, aeration 35%, and tertiary filters 25%, matching typical hydraulic loading distributions. Insert numeric tags–detention times, MLSS concentrations, and effluent BOD limits–at respective stages. Link numbers to brief callouts (e.g., “4–8 hours retention” beside primary clarifiers) using dashed connectors no thicker than 0.5 pixels.

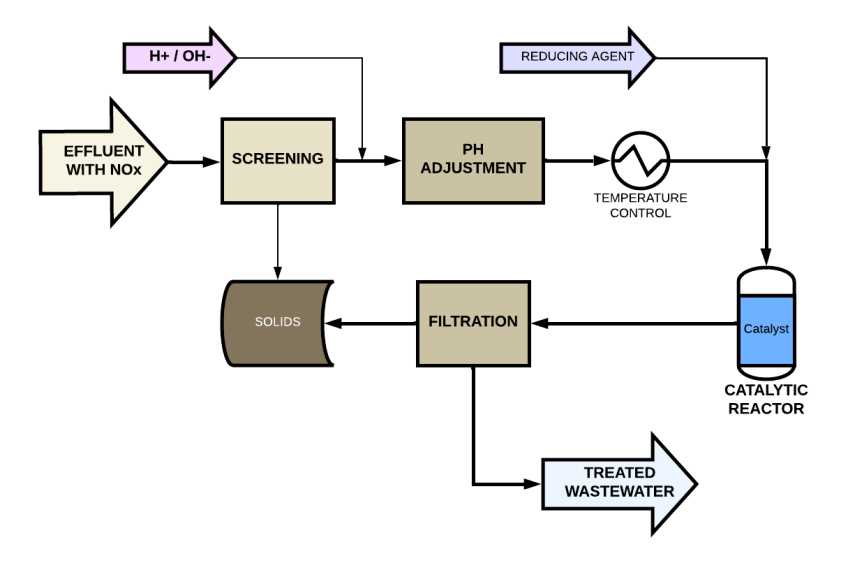

For industrial effluent, overlay pH adjustment vessels and metal precipitation units before biological treatment. Label chemical dosing points with reagent types (e.g., “NaOH/FeCl₃”) and concentration ranges (e.g., “10–15 mg/L”). Separate stormwater channels if combined systems are modeled, routing them directly to polishing filters while bypassing biological treatment to highlight blended scenarios.
Avoid crossovers–route return sludge and waste activated sludge (WAS) pipelines separately to the thickener icon on the far right. Thickeners should be half the diameter of primary tanks, with decoupled centrate lines returning to the aeration basin inlet, mirroring real-world recirculation ratios. Clearly mark excess WAS to digesters or dewatering units with directional arrows ensuring unambiguous waste stream navigation.

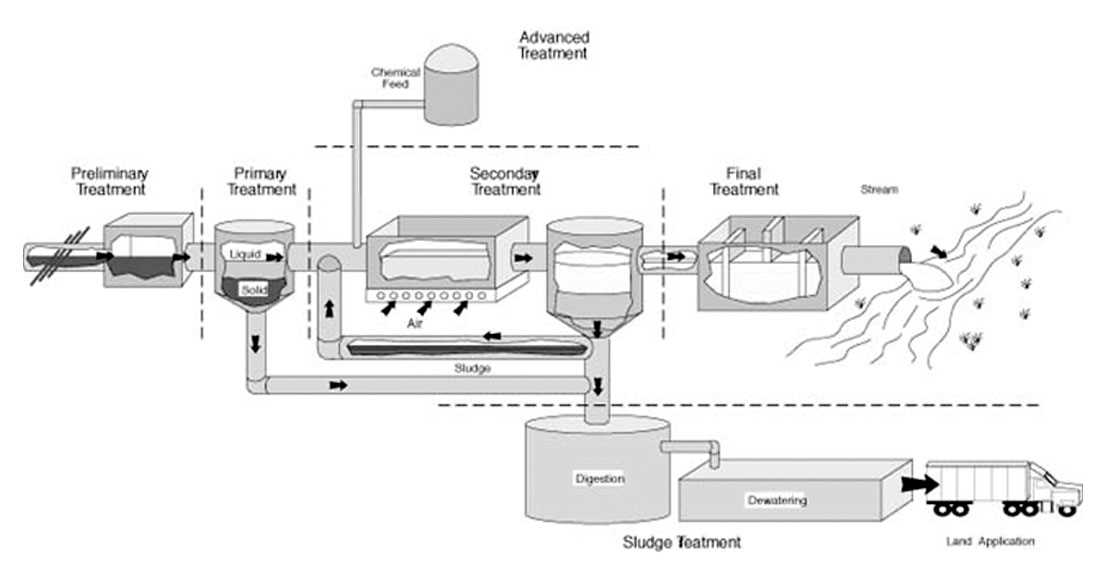

Visual Flowchart of Wastewater Purification Stages
Start by plotting the primary stages as distinct blocks: preliminary screening, primary clarification, biological aeration, and final sedimentation. Ensure each block occupies 20-25% of horizontal space on an A3 layout to maintain clarity. Label inflow rates in cubic meters per hour (m³/h) directly above the first block–typical municipal systems handle 100-500 m³/h, while industrial plants may exceed 1,000 m³/h.
Place a bar screen at the inlet with a 6-15 mm spacing; note that narrower gaps (6 mm) reduce downstream clogging but demand frequent cleaning (every 8-12 hours in high-load scenarios). Follow with a grit chamber holding a 1.5-2 minute retention time–longer periods risk organic settling, shorter ones fail to separate sand. Use arrows no thicker than 2 mm to connect stages; angle them slightly downward to imply gravity-assisted flow.
Key Performance Indicators on the Layout
Embed dissolved oxygen (DO) levels beside the aeration tank: 2.0-4.0 mg/L for optimal microbial activity, dropping below 1.0 mg/L causes anaerobic zones. Add sludge retention time (SRT) in days beneath the secondary clarifier–standard values range 5-15 days, extended SRT (>20 days) improves nutrient removal but increases tank volume by 30-40%. Include a small legend in the bottom right corner detailing color codes: blue for water, brown for sludge, green for gas vents.
For tertiary filtration, depict membrane modules as vertical rectangles (300×500 mm) with 0.1-0.4 µm pore sizes–position them downstream of UV disinfection units to capture effluent before discharge. Indicate backwash cycles (every 12-24 hours) with dashed arrows looping back to the primary clarifier. Avoid circular flows; straight-line progression minimizes misinterpretation during operator handoffs.
Troubleshooting Annotations
Highlight foam accumulation risks near aeration tanks with a 10×10 mm warning icon–Nocardia bacteria cause thick white foam at DO
Critical Elements of a Wastewater Purification Facility Blueprint
Prioritize the inclusion of preliminary screening units at the inflow point–these must remove rags, plastics, and grit with minimal headloss. Install bar screens with 6–20 mm spacing, followed by grit chambers utilizing aerated or vortex designs for sediment below 200 μm. Neglecting this step leads to pump damage, pipe blockages, and downstream equipment fouling, increasing maintenance cycles by 40%.
- Primary clarifiers: Design for hydraulic retention times (HRT) of 1.5–3 hours, with surface loading rates of 30–50 m³/m²/day. Use rectangular or circular tanks with sloped floors (1:50) and scum removal arms to prevent grease buildup. Add baffles at the inlet to disperse flow and reduce short-circuiting, improving solids capture efficiency to 60–70%.
- Biological reactors: For activated sludge systems, maintain mixed liquor suspended solids (MLSS) at 2500–4000 mg/L and food-to-microorganism (F/M) ratios of 0.2–0.5 kg BOD/kg MLSS/day. Include anoxic zones for denitrification (HRT: 2–4 hours) with nitrate recycle ratios of 300–400%. For attached-growth systems like trickling filters, specify media with specific surface areas of 80–150 m²/m³ and hydraulic loading of 0.5–1.5 m³/m²/h.
- Secondary clarifiers: Calculate surface area based on 0.8–1.2 m/h overflow rates. Use peripheral weirs with V-notch design (2–3 L/m/s) to minimize scum carryover. Install return activated sludge (RAS) pumps with 50–100% of influent flow capacity and waste activated sludge (WAS) rates of 5–15% of influent flow for biomass control.
Integrate tertiary filtration using dual-media beds (anthracite/sand) or membrane bioreactors (MBRs) for effluent quality compliance. Dual-media filters require backwashing at 12–24 hour intervals with 10–15 gpm/ft² rates, while MBRs operate at 3–8 LMH flux with chemical cleaning every 3–6 months. For phosphorus removal, add ferric chloride at 1.5–2.5 mole Fe:1 mole P or use biological methods like enhanced biological phosphorus removal (EBPR) with anaerobic HRT of 0.5–1.5 hours. Disinfection must achieve
Key Stages in Initial Wastewater Screening and Separation
Begin with a coarse mechanical screen–minimum 6mm bar spacing–to capture large debris like rags, plastics, and organic solids. Install automated brushes or raking mechanisms to prevent clogging, ensuring continuous flow at a velocity between 0.6–1.0 m/s. Position the screen at a 60–75° angle to optimize space and improve efficiency; steeper angles reduce footprint but increase headloss.
Follow with grit removal tanks designed for a hydraulic retention time (HRT) of 3–5 minutes at peak flow. Use aerated or vortex-type chambers with air diffusers set to 8–12 m³/h per meter of tank length. Maintain dissolved oxygen (DO) levels at 0.5–1.0 mg/L to suspend organic matter while allowing sand, silt, and gravel (density >2.65 g/cm³) to settle. Install grit classifiers or hydrocyclones for particle sizes below 0.2 mm if industrial discharge is present.
- Select tank depth: 2–4 meters for conventional systems, 1.5–2 meters for shallow designs.
- Set surface loading rate: 1,000–1,500 m³/m²/day for primary settling.
- Ensure flow distribution: use inlet baffles to minimize short-circuiting.
Design primary sedimentation tanks with scrapers rotating at 0.05–0.1 rpm for sludge consolidation. Target a surface overflow rate of 20–40 m³/m²/day for domestic influent, reducing to 10–20 m³/m²/day for combined industrial-residential streams. Calculate sludge accumulation: 0.03–0.08% of influent volume, with dry solids content of 3–6%.
For enhanced performance, dose ferric chloride (FeCl₃) or polyaluminum chloride (PAC) at 10–30 mg/L prior to sedimentation. Monitor influent biochemical oxygen demand (BOD) and total suspended solids (TSS): typical removal rates should reach 25–40% BOD and 50–70% TSS. Install scum baffles and removal troughs to collect floating materials; adjust weir loading to
Standardized Symbols for Fluid Handling System Schematics
Adopt ISO 14617 or ANSI Y32.11 for consistent pipe and apparatus representation. Straight pipelines in flow layouts must use solid lines (0.7 mm width), with dashed variants indicating buried or concealed segments. Valves require distinct shapes: gate valves (wedge-shaped), globe valves (teardrop), and butterfly valves (crossed circle). Pump symbols merge a circle (motor) with directional arrows showing fluid movement–centrifugal (curved arrow), positive displacement (straight arrow inside circle). Avoid vendor-specific icons to maintain neutrality across engineering teams.
| Component | Symbol | Line Weight (mm) | Color Code (Monochrome) |
|---|---|---|---|
| Gravity flow pipe | ───── | 0.5 | Black |
| Pressurized line | ───►─── | 0.7 | Black |
| Check valve | ───┬─── | 0.5 | Black |
| Sample port | ───⊗─── | 0.3 | Gray 50% |
| Aeration diffuser | ───◊─── | 0.5 | Black |
Color differentiation in monochrome schematics follows: raw influent (solid line), clarified effluent (medium-weight line), sludge recycle (thick line), chemical dosing (dotted pattern), and electrical conduits (cross-hatched). Equipment enclosures like sedimentation tanks use rectangular outlines with internal flow direction arrows–minimum 3 mm arrowhead length. For multi-stage systems, align symbols horizontally or vertically to mirror physical layout, spacing no less than 15 mm between adjacent icons. Ensure legend placement within 2 cm of the upper right corner of every sheet, listing symbols in descending order of frequency of use in the layout.
