For high-demand industrial applications, prioritize twin-rotor air ends with asymmetrical helix profiles. Models with a 4:6 rotor ratio (male to female lobes) achieve 12-15% greater volumetric efficiency than conventional 4:5 designs, while reducing mechanical losses by 8-10%. Select rotor materials based on operational temperature: nitrided steel for continuous operation above 200°C, while aluminum alloy rotors suit intermittent use under 150°C, cutting weight by 40% without sacrificing structural integrity.
Lubrication circuitry requires precise engineering–position the oil injection ports at 60% of rotor length from the suction side to ensure uniform film formation. In oil-flooded variants, maintain injection pressure 0.5-0.7 bar above discharge pressure to prevent cavitation. For oil-free applications, incorporate interstage cooling with a ΔT ≤ 5°C between compression stages to limit adiabatic index drift, which directly impacts power consumption by 3-5% per degree deviation.
Air intake filtration must balance micron rating with pressure drop–opt for pleated synthetic media with a 10-20 micron absolute rating, ensuring ≤18 mm H₂O resistance at max flow. Bypass dampers should activate at 90% of nominal load to prevent surge conditions, a primary failure trigger in positive displacement systems. Integrate discharge silencers with reactive-acoustic splitters tuned to the blade pass frequency (BPF), typically 50-60 Hz for 3000 RPM units, to cut noise emissions by 22-28 dB(A).
Thermal management dictates longevity: aftercoolers must reduce air temperature to ≤10°C above ambient before entering the receiver, preventing moisture condensation in downstream piping. For variable-speed drives (VSD), ensure the inverter’s carrier frequency exceeds 4 kHz to avoid resonance with rotor harmonics, which can induce micro-pitting in bearings within 2,000 operating hours. Seal selection hinges on pressure differential–carbon ring seals suffice for ≤10 bar, while labyrinth seals with purge air systems are mandatory for ≥15 bar applications to prevent oil carryover.
Visual Representation of a Twin-Rotor Air End
Begin by labeling the male and female rotors clearly–identify the helical lobes and grooves with distinct colors: use red for the four-lobe rotor and blue for the six-groove counterpart. This prevents confusion during assembly checks or troubleshooting fluid leaks.
Indicate the vapor inlet port at the top left of the casing, ensuring it’s aligned with the 2 o’clock position relative to the rotor axes. The discharge outlet should sit diametrically opposite, at 8 o’clock, to maintain balanced gas flow and reduce pressure differentials across bearings.
Mark the oil injection port centrally between the rotors, positioning it 30 mm below the axial midpoint to optimize lubricant distribution without causing cavitation. Specify the recommended oil viscosity (ISO VG 46 or 68) directly on the drawing to avoid misapplication.
Note bearing locations with tolerance values: fixed-end bearings (Ø50 mm) on the discharge side must have ±0.01 mm clearance, while float-end bearings (Ø35 mm) require +0.02/-0.01 mm for thermal expansion. Include grease type (high-temperature lithium complex) and relubrication interval (every 2,000 hours).
Draw the cooling jacket channels along the casing’s outer perimeter, spacing them 12 mm apart with a depth of 8 mm. Highlight the recommended coolant (50% ethylene glycol) and flow rate (15 L/min at 3 bar) to prevent overheating during continuous operation.
Add internal pressure sensor ports–position one 50 mm from the inlet and another 20 mm upstream of the discharge. Specify sensor range (0–10 bar) and thread type (G1/4″) to ensure compatibility with standard monitoring systems.
Key Components Illustrated in a Helical Air System Blueprint
Begin by identifying the twin helical rotors as the core working elements–male lobes interlock with precision-machined female grooves to form sealed chambers. Verify rotor geometry against OEM specifications: typical length-to-diameter ratios range from 1.1:1 to 1.3:1 with profile deviations not exceeding ±0.02 mm. Use a coordinate measuring machine for validation if axial thrust data suggests misalignment.
- Air-end housing: Cast iron with wall thicknesses of 8–12 mm resists thermodynamic shock from -40°C to 220°C. Inspect cooling passages every 500 hours; clogged fins reduce volumetric efficiency by up to 9%.
- Inlet valve: Butterfly or poppet design modulates flow at 0–100% stroke in under 80 ms. Replace actuator seals if hysteresis exceeds 2% of setpoint.
- Oil separator vessel: Vertical configuration optimizes coalescing; horizontal units require 30% more baffle surface. Monitor oil carry-over with a laser particle counter targeting <3 ppm.
- Thermal bypass valve: Bimetallic spring deflects at 80°C ±3°C. Calibrate quarterly; premature opening causes power spikes above 12 bar.
Install vibration sensors on both bearing pedestals; ISO 10816-1 classifies tolerances: Zone C (<2.3 mm/s RMS) triggers immediate rotor inspection. Synthetic PAG lubricant with 40 cSt viscosity at 40°C extends bearing life to 45,000 hours–switch brands only after verifying additive compatibility via ASTM D2272 oxidation test.
Label auxiliary circuits distinctly: check valve cracking pressures should differ by >1 bar to prevent backflow into the compression cavity. For ambient temperatures below 10°C, pre-heat oil to 15°C via a 2 kW immersion heater–cold-start cavitation reduces rotor life by 18%.
Step-by-Step Airflow Path in the Machine’s Internal Layout
Monitor the intake valve’s position first–ensure it opens fully at 5–7 bar to prevent throttling losses. The filter stage must achieve ≤5 micron particle retention; replace elements every 1,500 operating hours or when pressure drop exceeds 200 mbar. Inlet air temperature should not exceed 40°C; install a pre-cooler if ambient conditions surpass this threshold.
- Suction phase: Air enters the housing through the inlet port at near-atmospheric pressure (0.9–1.0 bar), guided by helical grooves machined to 25° helix angle.
- Compression zone: Male and female rotors interlock, reducing volume between lobes from 100% at entry to 15% at discharge; monitor rotor clearance–ideal gap is 0.03–0.06 mm.
- Oil injection: Directly before compression, inject oil at 70–80°C and 7–10 bar; use ISO VG 46 or 68 synthetic lubricant, ensuring
Discharge occurs through a multi-chamber separator where tangential velocity reaches 30–40 m/s; configure separator tank for 99.5% oil carryover efficiency. Pressure rise during compression follows a 3.5:1 ratio; verify final outlet pressure stays within ±0.2 bar of setpoint via PID-controlled modulation valve.
Post-separation, air passes through a 1 micron coalescing filter before entering the aftercooler–target 10°C above ambient but never below dew point. Maintain differential pressure across cooling coils under 0.3 bar; clean coils quarterly using alkaline cleaner diluted to 5% concentration. Track condensate volume–normal range is 0.5–1.2 L per 100 m³/h; drain automatically every 2 hours to prevent emulsification.
Final stage involves pressure holding tank–size for 5-minute runtime at 110% load. Use a safety valve set to 120% of working pressure (e.g., 12 bar if working at 10 bar). Check non-return valve operation weekly; faulty springs can cause backflow, increasing specific energy consumption by 8–12%.
- Measure airflow at discharge: Install hot-wire anemometer; acceptable variance is ±2%.
- Validate vibration: Use accelerometer on bearings; alarm at >4 mm/s RMS, shut down at >7 mm/s RMS.
- Log oil level: Maintain between mid and high marks; topping up requires purging air for 30 seconds first.

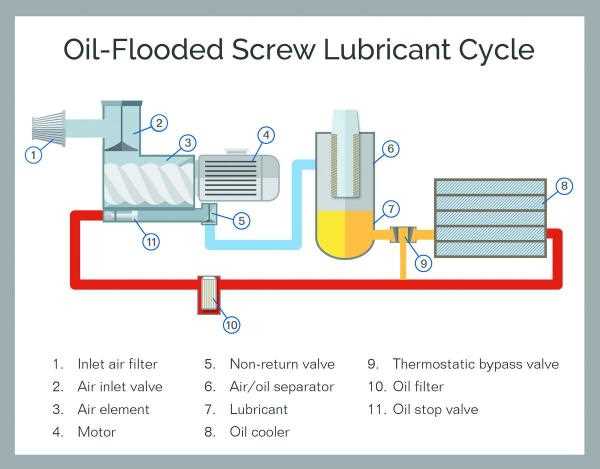

Lubrication System Layout in Technical Illustrations
Integrate oil flow pathways visibly distinct from refrigerant circuits using dashed lines (0.5–0.7 mm) in blue for lubricant and solid red for coolant. Position the oil separator directly downstream from the discharge port, sized at 120–150% of the compression chamber volume to ensure >95% oil carry-over reduction. Label oil injection points at both male and female rotor shafts with temperature-resistant ISO VG 68–100 synthetic fluid specifications.
Critical Lubrication Components
| Component | Standard Flow Rate (L/min) | Operating Pressure (bar) | Recommended Filter Micron Rating |
|---|---|---|---|
| Oil pump (gear-type) | 18–22 | 8–10 | 10–25 |
| Bearing lubrication ports | 3–5 | 5–7 | 40–60 |
| Rotor shaft seals | 1–2 | 2–4 | 5–15 |
Include an inline oil cooler with a bypass valve set at +5°C above normal operating temperature to prevent wax crystallization; place thermal sensors at inlet/outlet with ±1°C accuracy. Use arrows to indicate oil circulation direction–clockwise for drive rotor, counterclockwise for driven rotor.
Representing Load Adjustment Systems in Technical Illustrations
The illustration should highlight the slide valve assembly–typically positioned parallel to the helical rotors–using distinct color coding (e.g., yellow for active components, gray for fixed housings). Indicate the linkage to the actuating piston, often rendered as a hydraulic or pneumatic cylinder, connected via a pushrod or flexible coupling. Include arrows or dashed lines to show movement direction when the valve modulates internal volume ratios, ensuring clarity in how partial loads maintain pressure while reducing energy draw by up to 30%.
Detail the control unit’s symbols: a rectangle labeled “Unloader” for on/off cycling or a potentiometer icon when referring to continuous modulation. Connect this to pressure transducers or flow sensors marked with ‘P’ (pressure) and ‘F’ (flow) tags, placed at inlet and discharge ports. Use standardized ISO symbols for solenoid valves if the system employs automatic staging, avoiding generic representations that obscure real-world calibration steps critical for troubleshooting.
Annotate auxiliary components–oil separators, check valves, and temperature probes–with brief text labels specifying their role in maintaining optimal slide valve positioning. For instance, mark the oil return line feeding the valve adjustment piston with viscosity ratings (e.g., ISO VG 46) to emphasize lubricant compatibility during load shifts, which directly impacts long-term mechanical stability.
