Begin by mapping the mobile phase reservoir–label it clearly with solvent composition ratios (e.g., 60:40 methanol-water) and annotate pH adjustments if applicable. Connect this to a high-pressure pump rated for at least 400 bar; ensure the tubing diameter (typically 0.125 mm ID) minimizes dead volume. Install an inline degasser to prevent bubble formation, which disrupts baseline stability.
Position the injector valve next–opt for a sample loop sized between 5–20 µL for analytical separations. Note the injection port’s compatibility with autosamplers if scaling to high-throughput workflows. Direct the flow into the analytical column (e.g., C18, 4.6 x 150 mm, 5 µm particle size), housed in a temperature-controlled compartment set to 35–45°C to enhance reproducibility.
Downstream, place a UV-vis detector with a flow cell volume ≤ 10 µL; match the wavelength to your analyte’s absorption maxima (commonly 210–280 nm). For gradient elutions, program the solvent mixer to transition linearly over 10–30 minutes, avoiding abrupt polarity shifts. Finally, route eluents to a waste container or fraction collector–specify collection thresholds if isolating peaks.
Avoid omitting grounding points in metallic components; electrostatic interference distorts chromatogram peaks. Use PTFE-lined stainless steel tubing for corrosive solvents, but switch to PEEK for biocompatible applications. Validate system performance with a test mixture (e.g., caffeine, benzoic acid, toluene) before sample analysis–target retention time stability within ±2%.
Key Components of a Liquid Chromatography Separation System

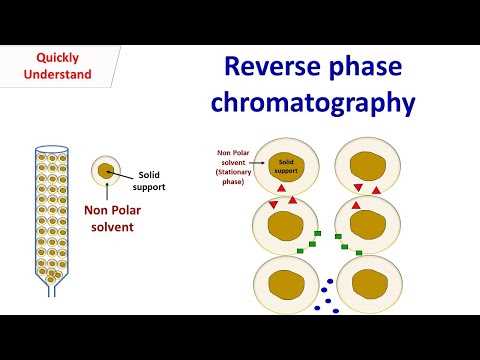

Select a stationary bed with a hydrophobic surface–typically silica-based particles bonded with C18 or C8 alkyl chains–to maximize retention of nonpolar analytes. Particle sizes between 1.7–5 µm strike the optimal balance: smaller diameters reduce diffusion paths, boosting peak resolution, while larger particles increase column lifetime at higher flow rates. Packing density must exceed 60% for uniform pore access; lower values risk channeling and inconsistent retention times.

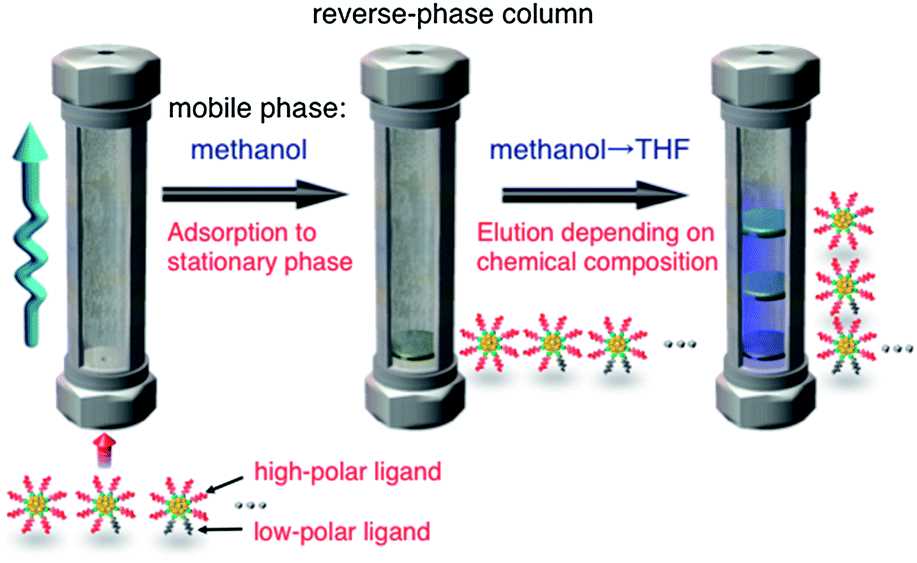

Pair columns with mobile solvents blending water and polar organic modifiers–acetonitrile (ACN) or methanol (MeOH)–to regulate elution strength. ACN’s lower viscosity (~0.34 cP vs MeOH’s 0.55 cP at 25°C) permits higher backpressure tolerance and sharper peaks, but MeOH’s superior hydrogen-bonding often improves separation for polar compounds like phenols. Gradient programming–linear or step–should ramp solvent strength by 1–2% per minute to prevent sudden analyte desaturation, particularly for mixtures spanning a broad logP range.
| Modifier | Elution Strength Δ (vs H₂O) | Optimal pH Range | UV Cutoff (nm) |
|---|---|---|---|
| ACN | +0.55 | 2–8 | 190 |
| MeOH | +0.40 | 3–7 | 205 |
| THF | +0.50 | 2–6 | 212 |
Install a precolumn filter (0.5–2 µm) directly upstream of the analytical bed to trap particulates; replace every 500 injections or when backpressure surpasses 120% of baseline. Column temperature should stabilize at 30–40°C–thermal drift below 0.1°C–via active Peltier control to suppress retention drift, which averages 0.3%/°C for C18 phases. Forced-air ovens introduce radial gradients; avoid them.
Equip detectors in series: diode-array absorbance (190–400 nm) for quantitation, followed by charged-aerosol for non-UV-active species. Post-column volume demands ≤5 µL to prevent band dispersion; connect tubing with 0.13 mm ID stainless steel or PEEK-solvent compatible sleeves to preserve efficiency. Peak tailing below 1.2 asymmetry factors (measured at 10% height) signals column aging; replace when plate counts drop below 70% of initial.
Optimize injection volume by scaling analyte mass to 1–5% of bed capacity; exceeding this threshold saturates binding sites, distorting peak shape. Loop sizes of 5–20 µL minimize carryover (
Monitor system suitability daily by injecting a standard mix–uracil (t₀ marker), acetophenone, toluene, naphthalene–to track retention consistency, peak symmetry, and efficiency loss. Log pressures before/after pulses every 100 injections; a >2% rise indicates fouling or particle shedding. Store beds in pure MeOH if unused >7 days to prevent silanol reactivity; periodically condition with 80% ACN to wick residual water blocking pores.
Understanding the Core Components of a Liquid Chromatography System
Choose a high-pressure pump with a flow rate precision below 0.1% RSD for reproducible retention times–pulsation-free models (e.g., dual-piston reciprocating pumps) outperform single-piston variants by reducing baseline noise in gradient separations. Select pumps compatible with solvents ranging from 100% aqueous to 100% organic without recalibration to avoid system downtime.
Install a column heater maintaining temperature stability within ±0.1°C–fluctuations above this threshold alter viscosity and retention behavior, particularly in methods relying on sub-2-micron particles. Peltier-based heaters eliminate the need for external circulators, while forced-air ovens introduce airflow inconsistencies; prioritize designs with active temperature control over passive heating blocks.
Use an autosampler with a sample cooling module (4°C) to prevent degradation of labile compounds–methods without temperature control show up to 15% loss of analyte area for sensitive molecules like catechins or peptides within 12 hours. Needle-in-loop injectors reduce carryover to
Detectors with light pipe flow cells (≤8 µL) and extended-pathlength options (UPLC-compatible) enhance sensitivity for analytes below 1 ng/mL–photodiode array detectors offer flexibility, but fluorescence units achieve 10–100× lower limits of detection for labeled compounds. Replace lamps annually; mercury and deuterium sources lose 50% intensity after 1,000 hours, skewing absorbance-based quantitation.
Opt for data systems with audit trail compliance (21 CFR Part 11, EU Annex 11) and automatic peak integration algorithms–manual reprocessing introduces human bias, while AI-driven software reduces integration errors by 40% for Gaussian-shaped peaks. Validate system suitability parameters (plate count, tailing factor, resolution) daily; deviations >5% indicate column aging, mobile phase contamination, or pump seal leakage.
Step-by-Step Assembly of Liquid Chromatography Components
Begin by selecting a solvent system tailored to analyte polarity. For hydrophobic compounds, opt for methanol-water mixtures (e.g., 70:30 v/v) or acetonitrile-water blends (e.g., 60:40 v/v). For ionizable samples, add 0.1% formic acid or ammonium acetate (10–20 mM) to suppress ionization. Filter solvents through a 0.22 µm PTFE membrane to remove particulates, then degas under vacuum or helium sparging for 10 minutes to prevent bubble formation. Store prepared eluents in amber glass bottles at 4°C to limit organic degradation.
Column Preparation
Condition the chromatographic bed before use:
- Attach the column (e.g., C18, pore size 100–300 Å, particle size 3–5 µm) to the system.
- Flush with 10 column volumes (CV) of pure organic solvent (methanol or acetonitrile) at 0.5 mL/min.
- Equilibrate with 20 CV of the initial mobile phase composition at the same flow rate.
- Verify baseline stability (UV absorbance <0.01 AU) before injecting samples.
For silica-based packings, avoid pH >8.0 to prevent ligand hydrolysis; use polymeric columns (e.g., polystyrene-divinylbenzene) for pH extremes.
System Integration and Validation
- Install pre-column filters (0.5 µm) to protect the bed from particulates.
- Set the pump flow rate to 1.0–1.5 mL/min, adjusting based on column dimensions (e.g., 0.5 mL/min for 2.1 mm ID).
- Inject a standard solution (5–10 µL) to assess retention reproducibility (RSD <2% for 5 replicates).
- Monitor backpressure: sudden spikes (>250 bar above baseline) indicate blockages or bed compression.
- Replace the guard column after 50–100 injections or when peak tailing exceeds 1.5 (asymmetry factor).
For gradient elution, program a linear ramp (e.g., 5% to 95% organic over 15 min) with a 2-minute hold at the final composition to re-equilibrate the bed between runs.

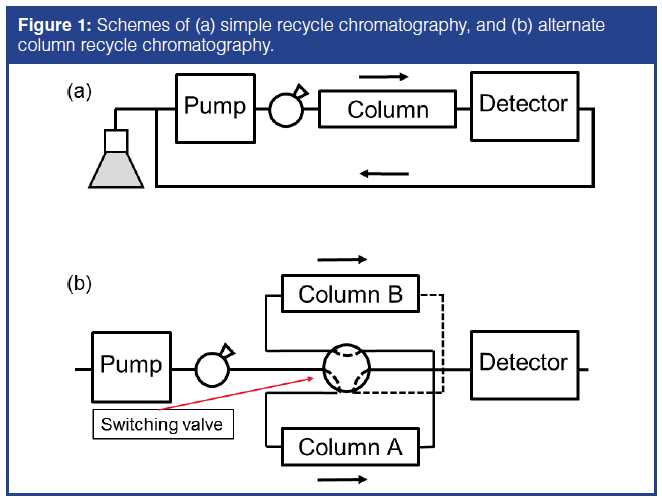

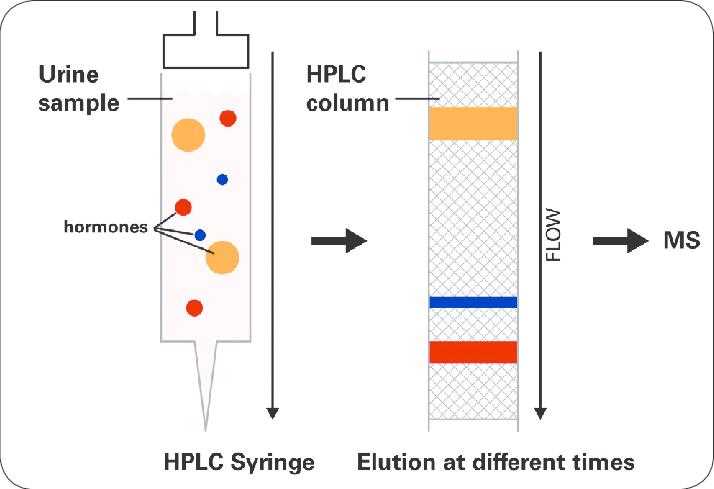

How to Interpret Flow Paths in a Chromatographic Separation System
Identify the solvent reservoir first–trace the tubing from its outlet to the high-pressure pump inlet. Verify the pump’s pressure gauge reading; deviations beyond ±5% of expected values (typically 1000–3000 psi) indicate blockages or faulty seals. Follow the flow to the injector port, where sample introduction occurs; ensure the loop volume (commonly 5–50 μL) matches method requirements. Post-injection, the mobile phase carries analytes through a guard column (if present), filtering particulates before reaching the analytical column. Monitor the column’s stationary phase particle size (1.7–10 μm) and length (50–250 mm)–shorter columns reduce retention but sacrifice resolution. Elution order depends on polarity: hydrophobic compounds retain longer in C18 or C8 bonded phases, typically eluting last in methanol or acetonitrile gradients.
Critical Checkpoints
Confirm detector placement–UV/Vis, MS, or RI units must align downstream of the column. Peak symmetry below 1.2 (tailing factor) signals column degradation or improper pH. Adjust gradient programs if early-eluting peaks cluster (increase initial aqueous content) or late eluters broaden (extend organic ramp). Waste outflow tubing should terminate in a dedicated container; backpressure spikes at this stage often trace to clogged frits or solvent incompatibility (e.g., immiscible phases). Record baseline noise–values above 0.01 AU suggest air bubbles, requiring degassing of mobile phase reservoirs.
