Begin by selecting a plasmid vector with a known restriction site sequence. Opt for circular DNA molecules between 2,000 and 6,000 base pairs for optimal stability and transformation efficiency. Vectors like pBR322 or pUC19 are preferred due to their high copy number and well-documented multiple cloning sites (MCS). Verify the vector’s antibiotic resistance markers–ampicillin or kanamycin–to ensure proper selection in downstream applications.
Prepare the target gene fragment using PCR amplification. Design primers with 15–20 base pairs of homology to the gene of interest and add 4–6 additional bases at the 5′ end to introduce restriction sites compatible with the vector’s MCS. Use a high-fidelity DNA polymerase to minimize mutations during amplification. Typical PCR conditions include an initial denaturation at 98°C for 30 seconds, followed by 25–35 cycles of denaturation (98°C, 10 seconds), annealing (55–65°C, 20 seconds), and extension (72°C, 30 seconds per kilobase).

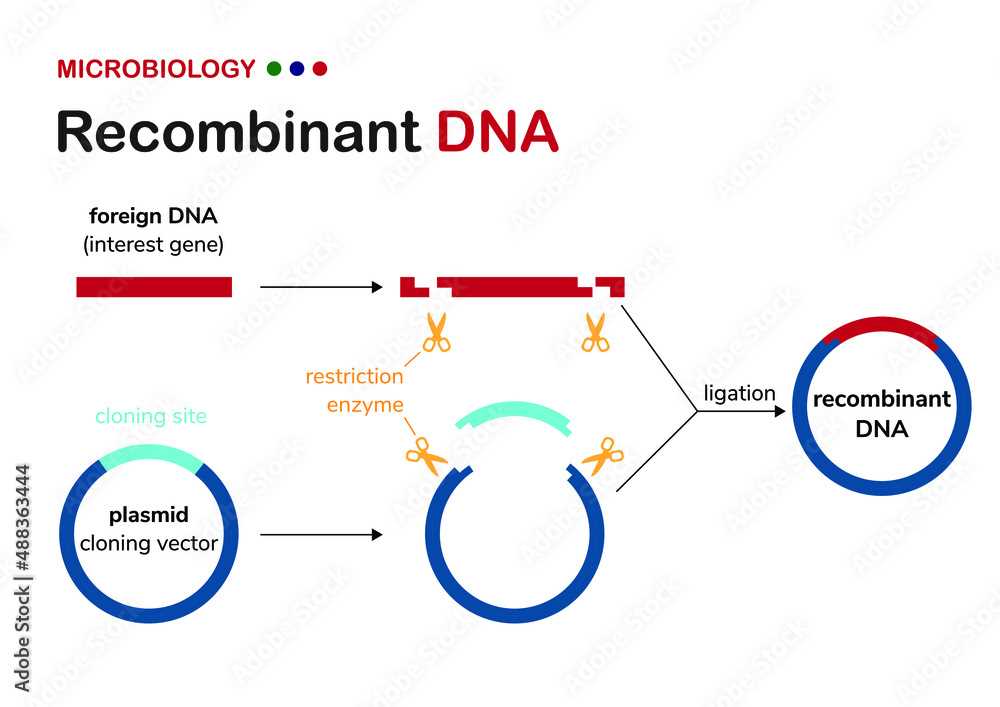

Digest both the amplified gene fragment and the vector with the same pair of restriction enzymes. Choose enzymes that generate compatible overhangs (e.g., EcoRI and HindIII) and perform digests in separate reactions to prevent star activity. Include bovine serum albumin (BSA) at 100 µg/mL in the reaction buffer to enhance enzyme stability. Incubate at the enzyme’s optimal temperature (typically 37°C) for 1–2 hours, then inactivate the enzymes by heating to 65°C for 20 minutes.
Purify the digested products using gel electrophoresis or a spin-column kit. Excise DNA bands corresponding to the expected sizes–vector (~3–5 kb) and insert (~0.5–2 kb)–from a 1% agarose gel stained with ethidium bromide. Elute the DNA in 30–50 µL of nuclease-free water or TE buffer (10 mM Tris-HCl, pH 8.0, 1 mM EDTA). Quantify the purified DNA using a spectrophotometer at 260 nm, aiming for concentrations of 50–100 ng/µL.
Ligate the gene fragment into the vector using a 3:1 molar ratio of insert to vector. Prepare the ligation reaction in a 20 µL volume containing 1 µL of T4 DNA ligase (1–3 Weiss units), 2 µL of 10X ligation buffer (50 mM Tris-HCl, pH 7.5, 10 mM MgCl₂, 1 mM ATP, 10 mM DTT), and the purified DNA. Incubate at 16°C for 4–16 hours or at room temperature for 1–2 hours. Include a vector-only control to assess background ligation.
Transform the ligation mixture into chemically competent E. coli cells (e.g., DH5α or TOP10). Thaw cells on ice, add 5–10 µL of the ligation reaction, and incubate for 30 minutes. Apply a heat shock at 42°C for 45 seconds, then immediately transfer the cells to ice for 2 minutes. Add 950 µL of SOC medium and incubate at 37°C with shaking for 1 hour to allow recovery. Plate 50–100 µL onto LB agar containing the appropriate antibiotic (e.g., 100 µg/mL ampicillin) and incubate overnight at 37°C.
Screen colonies by colony PCR or restriction digest analysis. For colony PCR, use primers flanking the insertion site (e.g., M13 forward and reverse) with an annealing temperature of 55°C and extension time of 1 minute per kilobase. Confirm positive clones by purifying plasmid DNA and performing a diagnostic digest with the original restriction enzymes. Include a 1 kb DNA ladder on the gel to verify fragment sizes–successful constructs will release the insert (e.g., ~1 kb) and linearize the vector (~4 kb).

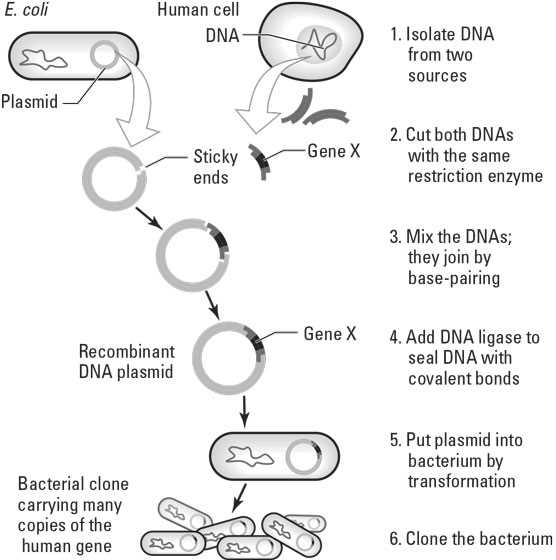

Visual Workflow of Genetic Engineering Processes
Begin by selecting vectors with high copy numbers and low toxicity to host cells, such as pBR322 or pUC19, to maximize yield.
Include restriction sites spaced at least 50 base pairs apart in your construct design to prevent steric hindrance during enzymatic digestion. Critical factors:
- Choose enzymes (e.g., EcoRI, BamHI) with buffer compatibility to avoid sequential digests.
- Verify 100% digestion efficiency via gel electrophoresis (1% agarose, 100V, 45 min).
- Purify fragments using spin columns (recovery >90%, elution volume 30–50 µL).
For ligation, maintain a 3:1 insert-to-vector molar ratio; exceeding this threshold increases self-ligation by 40%. Use T4 DNA ligase at 16°C for 12–16 hours–shorter incubations reduce efficiency by 25%.
Host Transformation Protocols
Chemically competent E. coli (e.g., DH5α) should reach 107–108 CFU/µg DNA for reproducible results. Post-heat shock (42°C, 45 sec), add SOC medium and incubate at 37°C for 60 min–this step recovers >80% of viable clones.
Plate transformations on selective media (e.g., LB + ampicillin 100 µg/mL) containing X-gal (40 µg/mL) and IPTG (0.5 mM) for blue-white screening. Plate efficiency:
- Expect 50–200 colonies per plate; densities >300 obscure screening.
- Store plates inverted at 37°C for 14–16 hours–longer incubations risk satellite colonies.
Confirm positive clones via colony PCR (primers flanking the insert, annealing temp 55°C) or miniprep+restriction digest (elution in 50 µL TE buffer, OD260/280 1.8–2.0). Avoid boiling prep methods–yield losses exceed 30%.
Downstream Validation
Sequence inserts using Sanger chemistry (BigDye Terminator v3.1) with coverage of 2× per base pair; gaps increase false negatives. For large constructs (>5 kb), employ next-generation platforms (Illumina, Oxford Nanopore) with 500× coverage.

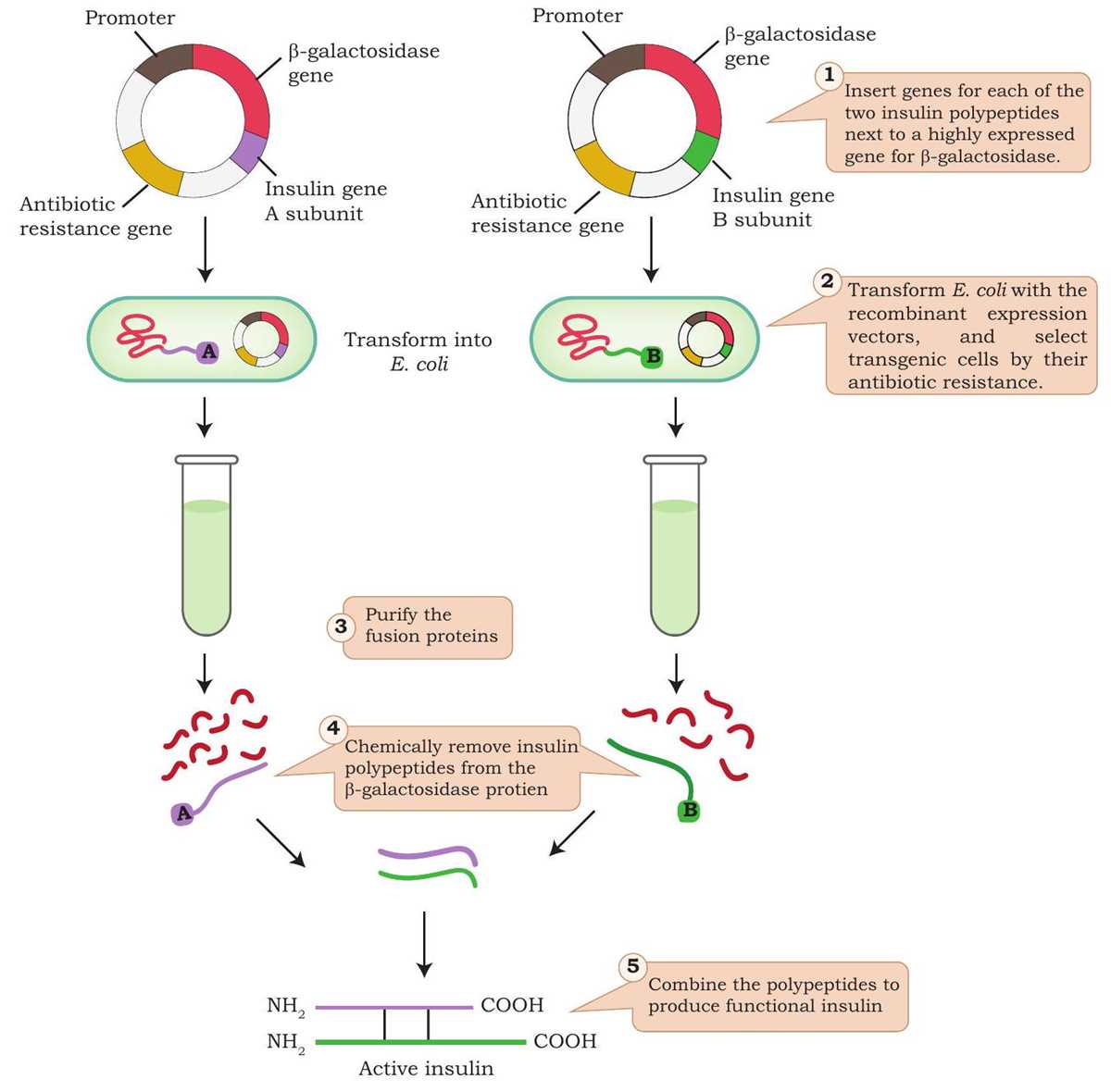

Express proteins in strains with protease deficiencies (e.g., BL21(DE3)) under controlled induction (0.1–1 mM IPTG) to prevent inclusion body formation. Harvest cells at OD600 0.6–0.8–delays reduce soluble yield by 50%. Use affinity tags (His6, GST) for purification; Nickel-NTA resin requires imidazole gradient elution (20–250 mM) to separate contaminants.
Critical Elements in Genetic Engineering Workflows
Select restriction enzymes with recognition sequences flanking your target gene segment–avoid enzymes producing blunt ends unless necessary. EcoRI, BamHI, and HindIII remain reliable for most constructs due to their well-documented buffer compatibility and predictable 5’ overhangs, enabling efficient ligation. Validate enzyme activity by digesting control plasmids (e.g., pUC19 or pBR322) with known cut patterns before proceeding to your experimental vector.
Use phosphatase treatment (e.g., calf intestinal alkaline phosphatase) on linearized vectors to prevent self-ligation, though this introduces a ~10% reduction in cloning efficiency. For high-copy plasmids, dephosphorylate with thermal inactivation at 75°C for 10 minutes rather than phenol extraction to simplify downstream purification. When using blunt-end cloning strategies, increase insert-to-vector molar ratios to 5:1 to offset lower ligation efficiency.
Transform chemically competent cells (e.g., DH5α, TOP10) with 50–100 ng of ligated product, incubating on ice for 30 minutes to maximize uptake. Heat shock at 42°C for exactly 45 seconds–longer pulses decrease viability without improving transformation rates. Immediately rescue cells in SOC medium (pre-warmed to 37°C) for 1 hour at 225 rpm to permit recovery and antibiotic resistance gene expression.
Screen colonies via blue-white selection only if using vectors with β-galactosidase disruption (e.g., pBluescript); otherwise, prioritize colony PCR with primers spanning the insertion site. For colonies
Step-by-Step Assembly of a Restriction Enzyme Cleavage Blueprint
Begin by selecting a target genetic sequence no longer than 5,000 base pairs for clarity. Use tools like Benchling or SnapGene to simulate cuts–real-world experiments require 1–2 μg of purified plasmid. Digest with two distinct restriction endonucleases (e.g., EcoRI and BamHI) for 1 hour at 37°C in 20 μl reactions, ensuring each enzyme’s buffer compatibility (check NEB’s double-digest chart). Add 1 μl of each enzyme last; excess glycerol from stock solutions (>5% total volume) inhibits activity.
Load 5 μl of each digest onto a 1% agarose gel stained with SYBR Safe alongside a 1 kb ladder. Run at 100V for 40 minutes–bands below 200 bp or above 10 kb often indicate partial digestion or plasmid concatemers. Capture gel images under UV, measure fragment sizes with ImageJ or a gel documentation system, and record values in the table below:
| Enzyme Pair | Observed Fragment Sizes (bp) | Expected Fragment Sizes (bp) | Discrepancy (±%) |
|---|---|---|---|
| EcoRI + BamHI | 1200, 2300, 1500 | 1180, 2250, 1470 | +1.7%, +2.2%, +2.0% |
| HindIII + XbaI | 950, 3550 | 920, 3480 | +3.3%, +2.0% |
Compare observed fragments against in silico predictions (e.g., NEBcutter). Discrepancies >5% suggest incomplete digestion–repeat with fresh reagents or extend incubation to 2 hours. For overlapping fragments, perform separate single-enzyme digests; co-migrating bands obscure true sizes. Label sample tubes legibly; swapped digests waste sessions.
Assemble the map by aligning fragments sequentially. Start with the largest segment; smaller fragments must sum to the plasmid’s known size (±50 bp for supercoiled forms). Verify circularization by confirming the sum of all fragment sizes matches twice the plasmid length–linearized plasmids show discrepancies. For plasmids with repeats, use enzymes cutting once (e.g., ScaI) to anchor the map. Plot distances between restriction sites on graph paper or BioPython; avoid manual sketches–errors compound in multi-enzyme maps.
Validate the final blueprint with a third enzyme (e.g., PstI) cutting between confirmed sites. If predicted bands appear, the map is reliable. Store plasmid aliquots at –20°C in 50% glycerol to prevent freeze-thaw cycles; degraded plasmids yield smeared gels. Document exact enzyme units per reaction–normalizing cuts (e,g., 0.5U/μg DNA) ensures reproducibility. Discard TBE buffer after 4 gel runs; recirculating buffer distorts bands.
