Begin with precise component placement: position the laser excitation source at a 45° angle to minimize reflection interference. Use a notch or edge filter (OD > 6) immediately downstream to eliminate Rayleigh scattering while preserving Stokes/anti-Stokes signals. Select fiber optic bundles (core ≤ 50 µm) for high-throughput signal collection–avoid multi-mode variants unless compensating for alignment drift.
For spectrometer integration, prioritize a Czerny-Turner monochromator with a focal length ≥ 500 mm to achieve sub-1 cm⁻¹ resolution. Pair it with a back-illuminated CCD detector (quantum efficiency > 90% at 532 nm) cooled to -50°C to suppress dark noise. Configure the grating (1200-1800 lines/mm) for optimal trade-offs between spectral range and resolution–shorter wavelengths demand higher line density.
Sample interfacing requires controlled focus: employ a confocal microscope with a 100x objective (NA ≥ 0.9) for micrometer-scale mapping. Use a piezo-driven stage (resolution
Power density management is critical: limit laser flux to beam expander (magnification 2–5x) to homogenize the focal spot and reduce thermal gradients in heterogeneous samples.
Data processing should include baseline correction via polynomial fitting (order 3–5) and noise filtering through Savitzky-Golay smoothing (window width ≤ 10% of spectrum). For quantitative analysis, normalize intensities to the reference band (e.g., 1332 cm⁻¹ for diamond) or external standards (cyclohexane at 801 cm⁻¹). Cross-validate peak assignments with density functional theory simulations for an error margin

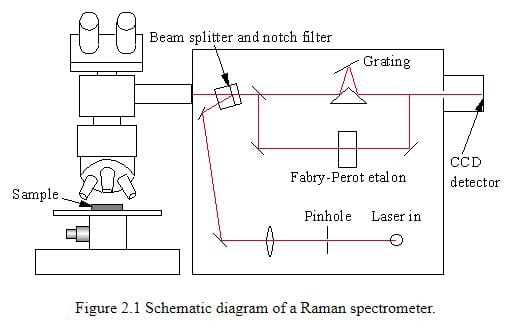

Visual Representation of Optical Scattering Analysis
Position the excitation laser source at a wavelength optimized for the sample’s molecular structure–typically 532 nm for carbon-based materials or 785 nm for biological specimens to minimize fluorescence interference. Ensure the beam passes through a clean, high-quality notch or edge filter angled at 45° to separate Rayleigh-scattered photons from inelastic signals, redirecting the latter toward the spectrometer’s entrance slit.
Critical optical components:
- Laser line filter (OD > 6) to eliminate plasma lines and stray light
- Objective lens (50×–100× magnification, NA ≥ 0.75) for tight focal spot confinement
- Holographic notch filter (cutoff within ±100 cm⁻¹ of excitation) for Rayleigh rejection
- Confocal pinhole (25–50 µm diameter) to suppress out-of-focus scatter and improve axial resolution
Align the collection optics so the scattered light forms a diffraction-limited spot at the spectrometer entrance slit. Use a back-illuminated CCD detector thermoelectrically cooled to −60°C to reduce dark noise–target <0.01 e⁻/pixel/s. For dispersion, select a grating blazed at the excitation wavelength (e.g., 1200 grooves/mm for 785 nm) to balance spectral resolution and throughput: ~2 cm⁻¹ FWHM is sufficient for most organic samples.
The layout must maintain collinearity between incident and scattered beams to maximize signal recovery. Place the sample on a vibration-isolated stage with sub-micron positional accuracy; piezo-driven stages achieve <10 nm repeatability. For polarization-sensitive measurements, insert a half-wave plate before the sample and an analyzer after to resolve oriented vibrational modes–critical for crystallographic analysis.
Spectral Acquisition Parameters
Defaults for solid samples: 10 mW incident power at sample plane, 10 s acquisition time, 5 accumulations. For aqueous solutions or sensitive materials, reduce power to 1–3 mW and increase acquisition time to 30 s. Use a spectral center near the laser wavelength (e.g., 800 cm⁻¹ for 785 nm) and span 200–3200 cm⁻¹ to cover fingerprint and high-frequency modes. Process raw spectra with baseline correction (polynomial order 5) and cosmic ray removal (median filter, 3-pixel window).
Calibrate the frequency axis daily using a silicon wafer’s 520 cm⁻¹ peak–shift >±0.5 cm⁻¹ from literature value indicates optical misalignment or temperature drift. Store reference spectra for NIST-traceable materials (e.g., cyclohexane, polystyrene) to validate intensity linearity across the detector’s dynamic range. For confocal depth profiling, increment z-axis in 0.5 µm steps; signal attenuation of >5% between steps confirms proper pinhole alignment.
Key Components of a Vibrational Analysis System
Select a laser source with a wavelength that minimizes fluorescence interference–typically 532 nm for inorganic samples or 785 nm for biological materials. Shorter wavelengths (e.g., 488 nm) offer stronger scattering efficiency but risk overwhelming weak signals in highly fluorescent specimens. Match the laser power to the sample’s thermal stability: use 1–10 mW for delicate organic compounds, up to 100 mW for robust oxides or metals. Overpowering causes local heating, distorting spectral lines or inducing photodecomposition.
Opt for a notch or edge filter with a spectral cutoff at least 100 cm-1 below the laser line to reject Rayleigh-scattered light while preserving low-frequency vibrational modes. Multi-stage monochromators provide superior stray light rejection but introduce signal attenuation; single-stage systems balance throughput and resolution for routine analysis. Ensure the detector, typically a CCD cooled to -60°C or lower, has a quantum efficiency >80% in the target spectral range to maximize sensitivity for faint peaks.
Sample Interface and Optics
Use a microscope objective with NA ≥ 0.75 for sub-micron spatial resolution when analyzing heterogeneous samples. Reflective optics (e.g., gold-coated mirrors) prevent wavelength-dependent aberrations that degrade spectral fidelity. For liquid samples, employ a quartz cuvette with 1 mm path length to minimize solvent absorption artifacts; solid samples benefit from an XYZ translation stage for precise alignment of micron-scale features.
Calibrate the system weekly using a silicon wafer’s 520 cm-1 peak–deviation exceeding ±0.5 cm-1 indicates misalignment or thermal drift. For polarization measurements, insert a half-wave plate before the sample to rotate incident polarization without altering the detection axis; verify extinction ratios >1000:1 with a Glan-Thompson prism. Temperature-controlled sample holders (±0.1°C stability) prevent spectral shifts from thermal expansion in low-frequency lattice modes.
Signal Processing and Validation
Average multiple acquisitions (5–20 scans) to improve signal-to-noise ratios, but limit exposure to avoid photobleaching in dyes or polymers. Subtract background spectra using a polynomial fit for broad fluorescence or a linear baseline for narrow-band interference. Validate peak assignments by comparing experimental data to reference spectral databases–matching tolerances should be within 1 cm-1 for sharp bands and 5 cm-1 for broader features to avoid misidentification.
Step-by-Step Signal Path in Optical Vibrational Analysis
Position the excitation source perpendicular to the sample surface to minimize stray light interference. Use a 532 nm laser for organic compounds or a 785 nm laser for fluorescence-prone materials–adjust power density to 1–5 mW/µm² to prevent sample degradation. Ensure the beam passes through a clean-up filter (bandwidth ±1 nm) to eliminate plasma lines before reaching the sample. For micron-scale spatial resolution, couple the source to a confocal microscope with a 50×/0.75 NA objective to focus the beam to a 1–2 µm spot. Verify alignment by checking the back-reflected signal on a CCD camera with
| Component | Critical Parameter | Tolerance | Failure Consequence |
|---|---|---|---|
| Laser clean-up filter | Transmission >90% at center wavelength | ±0.5 nm | Plasma line contamination |
| Notch/edge filter | Optical density (OD) >6 at laser wavelength | ±0.3° tilt | Rayleigh scattering overlap |
| Spectrograph slit | Width 50–100 µm | ±2 µm | Peak broadening >2 cm⁻¹ |
| CCD cooling | Dark current | -70°C ±2°C | Shot noise >10% of signal |
After sample interaction, collect the scattered signal at 180° (backscattering) or 90° (right-angle) geometry using the same objective or a separate collection lens. Route the signal through a dichroic mirror (cutoff = laser wavelength + 50 cm⁻¹) to reject Rayleigh-scattered light, followed by a notch or edge filter (OD >6) to suppress residual elastic scattering. Focus the filtered signal onto the entrance slit of a spectrograph with a Czerny-Turner or transmissive design–ensure f/# matching between collection optics and spectrograph (typical f/4 to f/8) to avoid vignetting. For spectra spanning 100–3500 cm⁻¹, select a grating with 1200–1800 grooves/mm (blazed at 500–800 nm) and calculate the spectral dispersion using:
dλ/dx = (d * cos β) / (f * m)
where d = groove spacing, β = diffraction angle, f = focal length, and m = diffraction order. Cool the CCD detector to -70°C (±2°C) to achieve dark current
Optimal Laser Wavelengths for Vibrational Scattering Analysis
Select a 532 nm Nd:YAG laser for most inorganic and organic samples due to its balance between scattering efficiency and fluorescence suppression. This wavelength achieves a 16-fold intensity increase over 785 nm for non-resonant samples, while minimizing thermal degradation in heat-sensitive materials like polymers or biological tissues. Avoid using it for colored compounds–chlorophyll or hemoglobin absorb strongly at 532 nm–where a 785 nm diode laser reduces background interference by an order of magnitude.
For deep-UV applications targeting aromatic rings or peptide bonds, deploy a 244 nm Ar+ laser. This wavelength enhances cross-sections for vibrational modes of C≡C, C=O, and N-H groups, yielding detectability thresholds down to 10-6 M for nucleotide bases in aqueous solutions. However, UV exposure risks photochemical damage; limit irradiation to 2 and use quartz optics to prevent signal attenuation from standard glass components.
Infrared alternatives, such as 1064 nm Nd:YAG, eliminate fluorescence entirely but demand higher power–typically 500 mW–to compensate for lower scattering efficiency. Use this for carbon-rich composites (e.g., graphene oxide) where visible lasers induce overheating. Pair with InGaAs detectors to capture the weaker signal; resolutions degrade to ~8 cm-1, sufficient for bulk material analysis but inadequate for peak splitting in crystalline structures.
For portable systems, 633 nm He-Ne lasers offer stability (±0.002 nm drift) and compact size but require notch filters with >OD6 suppression to isolate the shifted signal from Rayleigh scattering. Reserve 488 nm Ar+ for resonance studies–carotenoids or metal oxides exhibit 103-fold enhancement–though stray light management becomes critical; fiber-coupled setups reduce noise by 40% compared to free-space configurations.
