Begin by distinguishing structural differences at the molecular level. A microorganism’s blueprint lacks a defined nucleus–genetic material floats freely in the cytoplasm. Membrane-bound compartments are absent, reducing internal complexity to a minimal framework of ribosomes, plasma membrane, and often a rigid cell wall. This streamlined design enables rapid replication but limits functional specialization.
For organisms with compartmentalized architectures, locate organelles systematically: the nucleus houses genetic directives, mitochondria generate energy via oxidative phosphorylation, and the endoplasmic reticulum processes proteins and lipids. Highlight cytoskeletal elements–microtubules, microfilaments–that maintain shape and enable intracellular transport. Use contrasting colors to demarcate organelles from cytoplasm, ensuring immediate visual recognition.
Label components concisely: avoid abbreviations unless standardized (e.g., ER for endoplasmic reticulum). Specify dimensions where relevant–bacteria typically span 1–5 micrometers, while mammalian equivalents range 10–100 micrometers. Annotate functions directly on the illustration: flagella for motility in bacteria, chloroplasts for photosynthesis in plant variants.
Apply consistent scaling–if illustrating a bacterium at 1000x magnification, adjust eukaryotic structures proportionally. Verify proportions using electron microscopy references. Omit decorative elements; clarity takes precedence over artistic embellishment. Cross-reference with biochemical pathways (e.g., glycolysis in cytoplasm vs. Krebs cycle in mitochondria) to reinforce functional context.
Test legibility at half the intended display size. If labels overlap or become indistinct, simplify the layout–merge non-critical details or segment into layered illustrations. Prioritize accuracy over aesthetics; a flawed depiction propagates misconceptions. Validate against peer-reviewed ultrastructure studies, particularly for dynamic components like Golgi apparatus or bacterial nucleoid organization.
Visualizing Bacteria and Complex Life Forms: Key Structural Differences

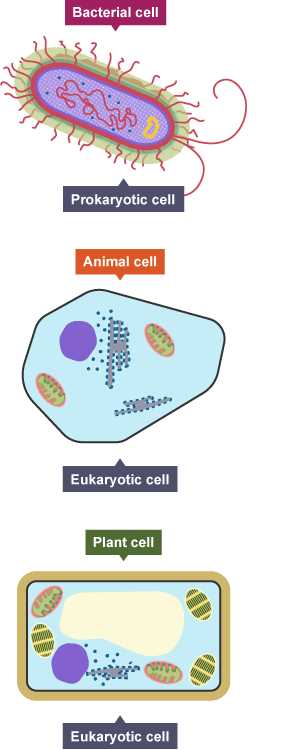

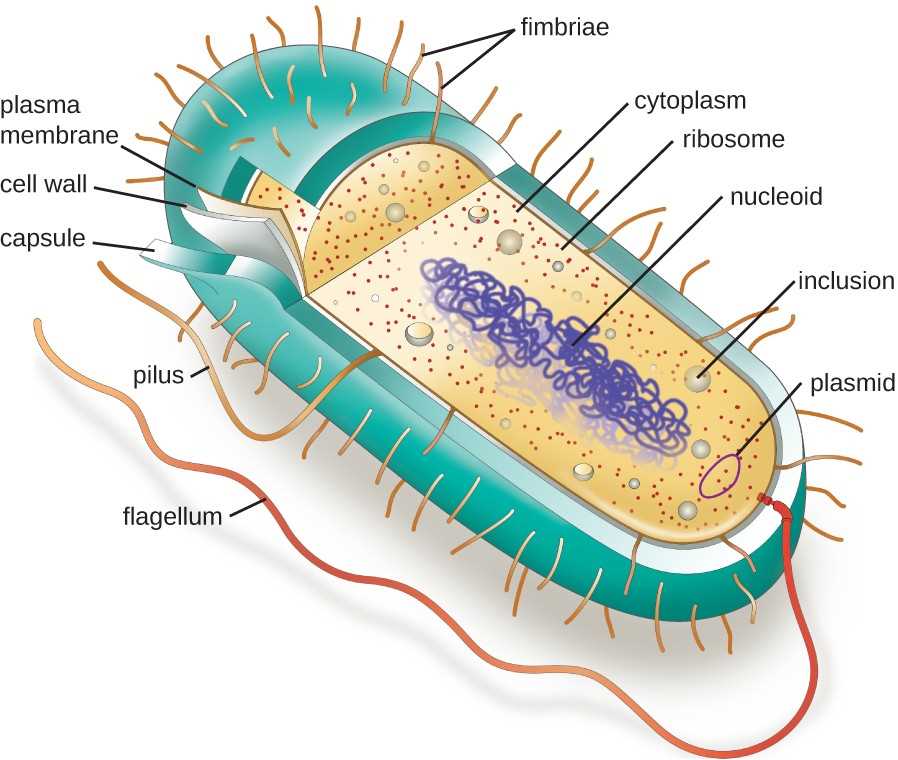

Start by sketching a simplified outline of each organism type side by side. For bacterial models, focus on a singular circular chromosome floating in the cytoplasm–no nuclear envelope separates genetic material from other components. Include plasmids as smaller loops near the main DNA strand. Label the ribosomes (70S), plasma membrane, and a rigid cell wall (peptidoglycan in gram-positives; outer lipid layer in gram-negatives). Flagella, if present, should extend outward with a hook basal body anchoring it to the membrane.
For animal-like or plant-like structures, draw a double-layered nuclear envelope encasing linear chromosomes–annotate nucleolus regions where rRNA synthesis occurs. Highlight membrane-bound organelles such as mitochondria (matrix and cristae), Golgi stacks (cis to trans polarity), and rough endoplasmic reticulum (studded with ribosomes). In photosynthetic variants, chloroplasts must show thylakoid stacks (grana) and stroma. Lysosomes in digestive variants should have a single bounding membrane.
Use distinct colors for clarity: grey for bacterial nucleoids, red for eukaryotic nuclei, blue for cytoskeletal filaments, and green for photosynthetic pigments. Circles often misrepresent compartmentalization–opt for irregular polygons or overlapping ovals to indicate non-spherical organelles like elongated mitochondria or flattened Golgi cisternae. Ensure membranes drawn as single or double lines reflect lipid bilayer structures rather than solid barriers.
Label all parts in sans-serif fonts directly adjacent to components, avoiding leader lines for primary structures (e.g., nucleus, chloroplast) but utilizing them for secondary details (ribosomal subunits, enzyme complexes). Include scale bars: 1–5 µm for bacterial versions, 10–100 µm for eukaryotic. Verify proportions–mitochondria should appear 2–8 µm in length, ribosomes 20–30 nm in diameter, and nucleoli 1–3 µm within nuclei.
Highlight critical absences in bacterial forms: no Golgi, no smooth ER, no microfilament networks–only FtsZ-based division rings. For eukaryotic counterparts, emphasize cytoskeleton components (actin microfilaments, tubulin microtubules, intermediate filaments) forming dynamic scaffoldings beneath the plasma membrane. Note extracellular matrices: cellulose walls in plant types, collagen-rich coatings in animal variants.
Cross-reference structural annotations with functional notes–ATP synthase embedded in mitochondrial cristae, plasmid exchange mechanisms in bacterial conjugation, vesicle trafficking pathways. Avoid overcrowding; if space permits, create inset enlargements for densely packed regions (e.g., thylakoid membranes, nucleoid packing). Export final vector-based illustrations in SVG format for crisp reproduction at any scale.
Critical Structural Variations Between Microbial and Complex Organism Blueprints
Begin by labeling genetic material placement distinctly: in simplified organisms like bacteria, DNA floats freely within the cytoplasm, unbound by membranes, forming a nucleoid region visible as a singular, coiled mass. Complex organisms, however, sequester their genetic code inside a double-layered nuclear envelope, creating a defined nucleus with pores regulating molecular traffic. This distinction directly impacts gene expression efficiency–direct access in nucleoid-based organisms accelerates transcription, while nuclear containment in advanced lifeforms introduces regulatory checkpoints, enabling alternative splicing and chromatin remodeling.
Highlight membrane-bound compartments in advanced lifeforms, absent in primitive types:
- Endoplasmic Reticulum: Rough (studded with ribosomes) and smooth (lipid synthesis) networks absent in bacteria; proximity to nucleus optimizes protein folding.
- Golgi Apparatus: Stacked cisternae modify, sort, and package proteins–bacteria lack this and rely on plasma membrane vesiculation.
- Mitochondria/Chloroplasts (in plants): Double-membrane organelles with own circular DNA (evidence of endosymbiotic origin); bacteria perform oxidative phosphorylation across their plasma membrane, lacking specialized energy hubs.
- Lysosomes/Peroxisomes: Acidic vesicles for digestion and detoxification absent in nucleoid-based life; bacteria instead use periplasmic space or extracellular enzymes.
Contrast cytoskeletal elements: bacteria possess homologs of tubulin (FtsZ) and actin (MreB) but lack intermediate filaments. Their filamentous proteins assemble linearly for shape maintenance or division. In contrast, complex organism cytoskeletons form dynamic, three-dimensional networks–microtubules guide vesicle transport, microfilaments enable motility and phagocytosis, while intermediate filaments provide tensile strength. This structural hierarchy enables advanced lifeforms to adopt asymmetric shapes, form multicellular layers, and internalize nutrients via endocytosis, processes foreign to primitive types.
Accurate Organelle Labeling in Bacterial Illustration Drafts
Begin with the nucleoid–depict it as an irregular central region without a bounding membrane, using a dashed or slightly blurred outline to distinguish it from plasmid DNA. Position it off-center, closer to one pole of the cell model, as fluorescence microscopy confirms its asymmetric localization in species like Escherichia coli. Label it “Nucleoid (single circular chromosome)” to specify both structure and genetic content.
Attach 70S ribosomes as small, dense granules scattered throughout the cytoplasm, avoiding clusters near the plasma membrane. Use a slightly darker shade than the cytosol to reflect their electron density in transmission electron micrographs. Include a brief annotation: “Ribosomes (protein synthesis sites)“–this clarifies function without visual clutter.
Plasma Membrane and Envelope Details
Outline the plasma membrane with a single continuous line, adding a thin periplasmic space only in Gram-negative models where it’s structurally significant. Use a lighter fill for peptidoglycan layers in Gram-positive variants, labeling them “Cell wall (thick peptidoglycan)” with a leader line pointing to the outer surface. Exclude detailed phospholipid bilayer imagery–simplify to a uniform line unless illustrating efflux pumps or electron transport complexes. For flagella, sketch a single helical filament extending from the basal body, anchored to the cytoplasm via a hook structure; mark it “Flagellum (rotary motility)” and avoid drawing multiple per cell unless listing peritrichous species like Proteus mirabilis.
Creating Accurate Illustrations of Complex Biological Structures at Precise Magnification
Begin with a nucleus, allocating 10–20% of your illustration’s total area. Draw a double-layered boundary at 7–10 nanometers thick, leaving 90-nanometer gaps for nuclear pores. Distribute chromatin strands unevenly–denser near the envelope, sparser in the center–using fine, irregular zigzags to mimic coiled DNA. Include a nucleolus at 0.5–3 micrometers, textured with granular clusters absent from surrounding regions.
Organelles Proportional to Whole-System Layout
Position mitochondria as oval shapes (0.5–1 micrometer wide, 1–3 micrometers long) spaced every 5–15 micrometers. Add inner membrane folds extending 0.3–0.5 micrometers inward, tapering sharply at cristae tips. Rough endoplasmic reticulum (ER) should form parallel layers 30–50 nanometers apart, dotted with ribosomes (20–30 nanometers) along cytoplasmic-facing surfaces. Reserve smooth ER for lipid-rich zones, omitting granules entirely.
Render vesicles at 50–500 nanometers in clusters near Golgi stacks, stacking 4–8 flattened cisternae (each 300–900 nanometers long) with concave edges facing the ER. Lysosomes appear irregular, 0.1–1.2 micrometers, with granular interiors–use sparse dot patterns to suggest hydrolytic enzymes. Peroxisomes mirror lysosomes in size but require crystalline cores shaded 20% darker.
Cytoskeletal Elements with Structural Precision
Microfilaments require 6–7-nanometer diameters, drawn as solid lines thickened at adhesion sites. Intermediate filaments appear 8–12 nanometers, forming loose networks with intermittent branching. Microtubules (25 nanometers) necessitate hollow tubes extending from centrosomes (0.2–0.5 micrometers), radiating radially with tapered ends disappearing into the periphery.
For plasma membrane detail, apply a 7–10-nanometer bilayer with outward-facing carbohydrate chains (3–5 nanometers). Glycocalyx projections should vary in length (5–200 nanometers), avoiding uniformity. Embed integral proteins as irregular blotches spanning both leaflets–avoid circular shapes to prevent oversimplification.
Scale extracellular components like microvilli at 0.1–0.5 micrometers wide, elongating 0.5–2 micrometers. Copy the membrane’s inner leaflet pattern but exaggerate filamentous actin cores by 15%. Cilia demand 9+2 microtubule arrangements visible in cross-sections at 0.2 micrometers, while flagella extend 10–20 micrometers, tapering toward distal tips.
Finalize surrounding matrix thickness–animal variants require 20–100-nanometer gaps filled with collagen fibers (30–300 nanometers diameter) in staggered arrays. Plant illustrations mandate cell wall layers at 0.1–1 micrometers, separating primary and secondary walls with plasmodesmata (20–50 nanometers) bridging adjacent cytoplasms.
