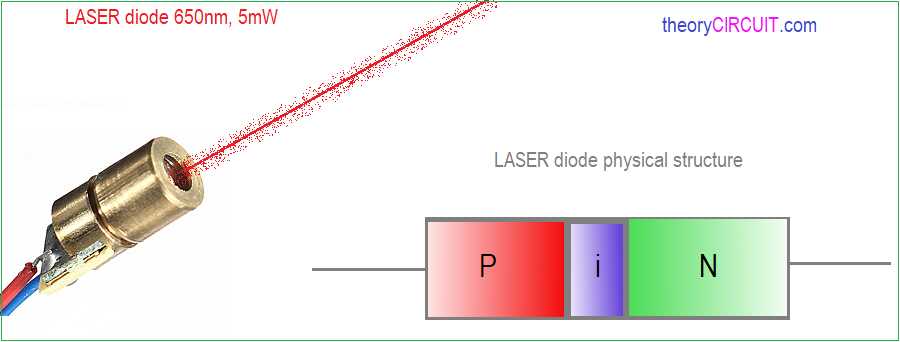

Begin by identifying the active region as the central component–typically a forward-biased p-n junction where electron-hole recombination generates coherent radiation. Ensure proper depiction of carrier confinement layers (e.g., double heterostructure or quantum wells) to minimize threshold current while maximizing output efficiency. The inclusion of a waveguide layer beneath the active zone is non-negotiable; this dielectric guide channels emitted photons along a defined path, preventing lateral divergence.
Connect the p-type and n-type cladding layers to form the injection pathways–these doped regions should be matched to the active region’s bandgap to facilitate minority carrier injection while blocking leakage. For thermal stability, place the heat sink directly beneath the chip, preferably copper or diamond-based substrates, to dissipate waste energy exceeding 50% of input power in high-power variants.
Label the facet coatings correctly: a high-reflectivity rear mirror (>90%) and a partially transmissive front facet (5-30% reflectivity) establish the optical cavity. Neglecting anti-reflective coatings risks back-reflections, destabilizing mode structure. Include a current spreading layer above the p-side to ensure uniform carrier distribution–a failure here leads to localized heating and premature degradation.
For vertical-cavity designs, stack distributed Bragg reflectors above and below the active medium, adjusting layer thicknesses to λ/4 for target wavelengths. Edge-emitting types demand precise ridge waveguide etching; misalignment reduces slope efficiency by 10-15%. Always verify polarization orientation–TE mode dominates due to higher gain in III-V compounds like GaAs or InP.
Integrate a monitor photodetector adjacent to the rear facet to enable closed-loop power regulation. Omitting this risks uncontrolled output fluctuations, particularly during thermal transients. Bond wires should connect the chip to a submount–prefer AuSn eutectic for reliability over solder, which softens above 85°C. Validate the equivalent circuit model: series resistance (
Key Components in a Semiconductor Light Emitter Structure
For precise assembly, start by identifying the active region–typically a thin quantum well layer sandwiched between n-doped and p-doped cladding. Ensure the heterojunction interfaces are abrupt, with lattice matching better than 0.1% to prevent defects that scatter photons and reduce output coherence. The waveguide core should be 1–3 µm thick, optimized for single-mode operation; deviations exceeding 0.5 µm will excite higher-order modes, degrading beam quality.
Thermal management dictates bond the chip to a copper or diamond heat spreader using indium solder with a reflow temperature below 180°C to avoid stress fractures in the gain medium. Apply anti-reflection coatings on the front facet with a target reflectivity under 0.1% to maximize emission; the rear facet should have high-reflectivity dielectric stacks (≥95%) to form the resonant cavity. Current confinement is achieved via proton implantation or etched ridges–ridge widths must stay within ±0.2 µm of the design specification to maintain lateral mode stability.
Verify electrical contacts with a four-point probe: series resistance below 2 Ω confirms low ohmic losses, while capacitance under 10 pF ensures rapid modulation up to 10 GHz. Optical alignment tolerances for coupling into fiber demand ±0.5 µm lateral and ±0.1 µm axial precision; misalignment beyond these limits drops coupling efficiency below 70%, increasing threshold current density above 1.5 kA/cm² and shortening device lifetime.
Core Components of an Optical Semiconductor Emitter Blueprint
Begin by identifying the active region–its material composition dictates emission wavelength. GaAs-based structures typically emit in the 780–980 nm range, while InGaAsP targets 1310–1550 nm. For precise wavelength control, ensure the epitaxial layers’ thickness matches the desired quantum well depth; deviations above ±5% introduce spectral broadening. Use a heterojunction design to confine charge carriers, minimizing non-radiative recombination losses.
Incorporate a current confinement mechanism to direct injection into the active zone. A ridge waveguide, etched to ±0.1 μm precision, outperforms oxide-isolated designs in thermal stability and beam quality. For high-power applications, opt for a buried heterostructure with InP regrowth to prevent current leakage at elevated temperatures (above 85°C). Avoid lateral current spreading by doping the cladding layers asymmetrically–p-side should be more heavily doped than the n-side to improve injection efficiency.
Critical Subsystems for Reliable Operation
- Thermal management: Mount the chip on a submount with thermal conductivity ≥180 W/m·K (e.g., diamond or copper-tungsten). Thermal resistance should not exceed 10 K/W for CW operation; pulsed modes tolerate ≤25 K/W. Use AuSn solder for void-free bonding to prevent localized hotspots.
- Optical feedback control: A built-in monitor photodiode (reverse-biased, InGaAs) must collect ≤2% of the rear output to avoid attenuating the primal beam. Place it within 200 μm of the facet for accurate power tracking. For single-mode stability, couple a fiber Bragg grating (FBG) with 95% reflectivity at the target wavelength, detuned ≤0.3 nm from the gain peak.
- Electrical interface: Series resistance below 2 Ω ensures efficient power conversion. Use Au wire bonds (25–35 μm diameter) with a loop height ≤1.5× the bond pad spacing to minimize inductance. Bypass capacitors (0.1 μF) on the driver PCB must be placed ≤5 mm from the bond pads to suppress transient voltage spikes.
Facet coatings are non-negotiable for device longevity. Apply an anti-reflective (AR) front coating targeting 1–3% reflectivity–SiO₂/TiO₂ multilayers (4–6 pairs) achieve R < 0.5% at 1310 nm. The rear facet should have a high-reflectivity (HR) coating (≥90%) using alternating Si/Al₂O₃ layers; miscalculations here reduce wall-plug efficiency by up to 18%. For hermetic sealing, use a nitrogen-purged TO-can with a sapphire window (≥99.9% transmission at the operating wavelength).
Alignment tolerances during packaging dictate long-term performance. A misaligned lens (e.g., Geltech aspheric) by just ±2 μm shifts the far-field pattern by ≥10°, increasing coupling losses in fiber-coupled modules. Use active alignment with a 3-axis stage (±0.1 μm resolution) and verify with a beam profiler–Gaussian fit (R² > 0.95) ensures diffraction-limited output. For free-space applications, integrate a thermoelectric cooler (TEC) with ΔT ≥40°C to offset wavelength drift (≥0.3 nm/°C).
Failure Modes and Mitigation Strategies
- Catastrophic optical damage (COD): Limit the optical power density to <5 MW/cm² at the facet. Non-absorbing mirrors (NAMs) using InAlGaAs quantum wells extend the COD threshold by 3×. Passivate the facet with H₂O₂ or (NH₄)₂S to reduce surface recombination velocity.
- Dark-line defects: Use low-dislocation substrates (EPD < 500 cm⁻²) and avoid mechanical stress during dicing. Apply a compressive strain (<0.2%) in the active layer to suppress dislocation propagation.
- Thermal rollover: Implement a pulsed driver with ≤10 μs pulse width and ≤1% duty cycle for high-power operation. CW modes require a heat sink with <0.1°C/W thermal impedance, often achieved via microchannel cooling in industrial-grade modules.
For wavelength stabilization, integrate a distributed feedback (DFB) grating with a coupling coefficient (κ) of 15–30 cm⁻¹. The grating pitch must align with the effective refractive index of the active region (±0.05% error); deviations cause side-mode suppression ratio (SMSR) drops below 40 dB. Test the device under accelerated aging (85°C, 150 mA) for ≥1000 hours–SMSR degradation >5% indicates poor reliability. Document all parameters in a fab-specific process control monitor (PCM) to trace failure origins.

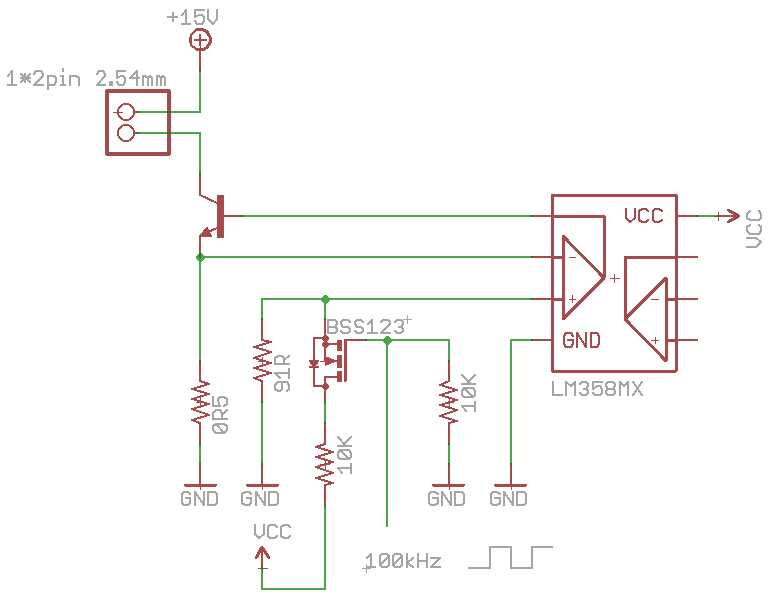

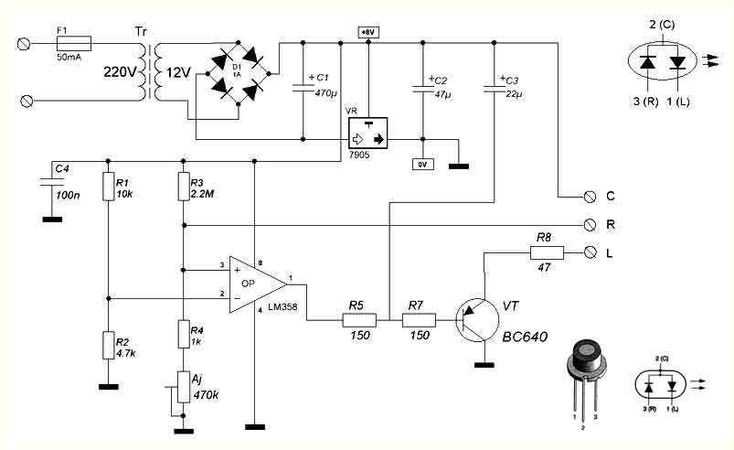

Step-by-Step Wire Connection for Semiconductor Light Emitter Circuits
Begin by identifying the anode and cathode terminals of the emitter. The cathode typically features a shorter lead or a flat edge on the device housing. Verify polarity using a multimeter in diode test mode–current flows from anode to cathode when forward-biased. Reverse connection risks immediate damage to the component.
Use tinned copper wire with a gauge between 22 and 28 AWG for signal paths. For high-current setups (above 500 mA), switch to 20 AWG or thicker to prevent voltage drop. Strip 3–4 mm of insulation from each wire end, then twist strands tightly to avoid fraying. Apply a
Required Tools and Components
| Item | Specification | Purpose |
|---|---|---|
| Temperature-controlled iron | 30–60 W, 350–400°C | Prevents thermal overload |
| Heat shrink tubing | Polyolefin, 2–3 mm diameter | Insulates joints |
| Current-limiting resistor | Ohmic value from datasheet, ¼ W minimum | Protects against overdrive |
| Bypass capacitor | 10–100 μF, 16 V | Filters power supply noise |
Attach the anode lead to the positive supply through a series resistor. For a 5 V source and a 3.2 V emitter, calculate resistance using R = (Vsupply – Vforward) / Ioperating. Example: (5 V – 3.2 V) / 0.2 A = 9 Ω. Select the closest standard value (e.g., 10 Ω) with a tolerance of 1% or better. Solder the resistor inline, ensuring the joint sits flush against the emitter’s lead to minimize thermal resistance.
Connect the cathode to the ground path via a low-inductance trace or wire. For pulsed operation, add a Schottky diode (e.g., 1N5817) anti-parallel to the emitter to clamp voltage spikes. Secure all connections with heat shrink tubing, applying heat evenly from the center outward. Test continuity with a multimeter–resistance should match the series resistor’s value, not exceed it.
Troubleshooting Common Errors
Avoid direct contact between the iron and the emitter’s case–use tweezers to hold wires during soldering. Excess flux residue near the junction can cause leakage current; clean with isopropyl alcohol (>90% purity). If the emitter fails to illuminate, check for reversed polarity, open circuits, or an incorrect resistor value. Use an oscilloscope to verify clean DC or pulsed waveforms at the supply input, with ripple under 50 mV peak-to-peak.
