For industrial engineers optimizing production, adopting the lost-wax method reduces post-machining by 85% compared to sand casting. Begin with a master pattern–typically CNC-milled from aluminum or 3D-printed resin–to ensure dimensional accuracy within ±0.005 mm. Coat the pattern with a ceramic slurry in 8–12 layers, allowing each to dry for 4–6 hours at 22–25°C to prevent shell cracks. Thermal shock during dewaxing (850–950°C for 3–5 hours) dictates shell thickness: 6–8 mm for parts under 1 kg, 10–12 mm for heavier components.
Molten alloy selection defines structural integrity. Nickel-based superalloys (e.g., Inconel 718) require pouring at 1,500–1,600°C with a shell preheat of 900–1,100°C to avoid cold shuts. For titanium alloys, a vacuum furnace is non-negotiable–oxygen contamination above 0.2% reduces tensile strength by 30%. Cooling rates must be controlled: forced air for aluminum (solidification in 5–10 minutes), insulated sand pits for steel (2–4 hours) to prevent micro-cracks.
Post-processing efficiencies slash lead times. Automated knockout systems remove 90% of ceramic in under 90 seconds when paired with vibratory finishing. Use electrochemical etching for intricate geometries instead of abrasive blasting–it preserves surface roughness Ra ≤ 0.8 µm without embedding contaminants. For aerospace components, CT scanning verifies internal porosity; reject parts exceeding 0.3% void volume per ASTM E155.

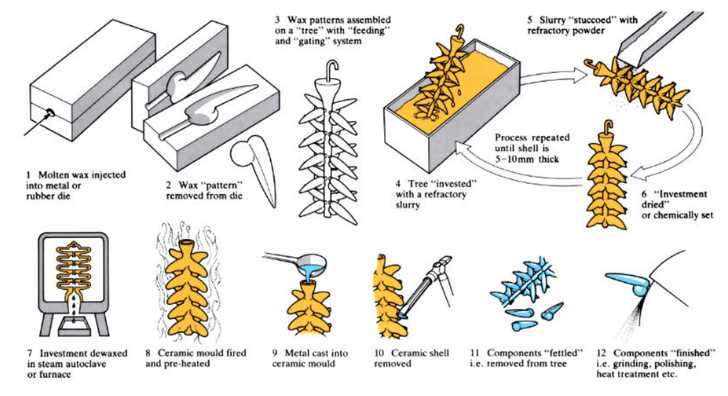

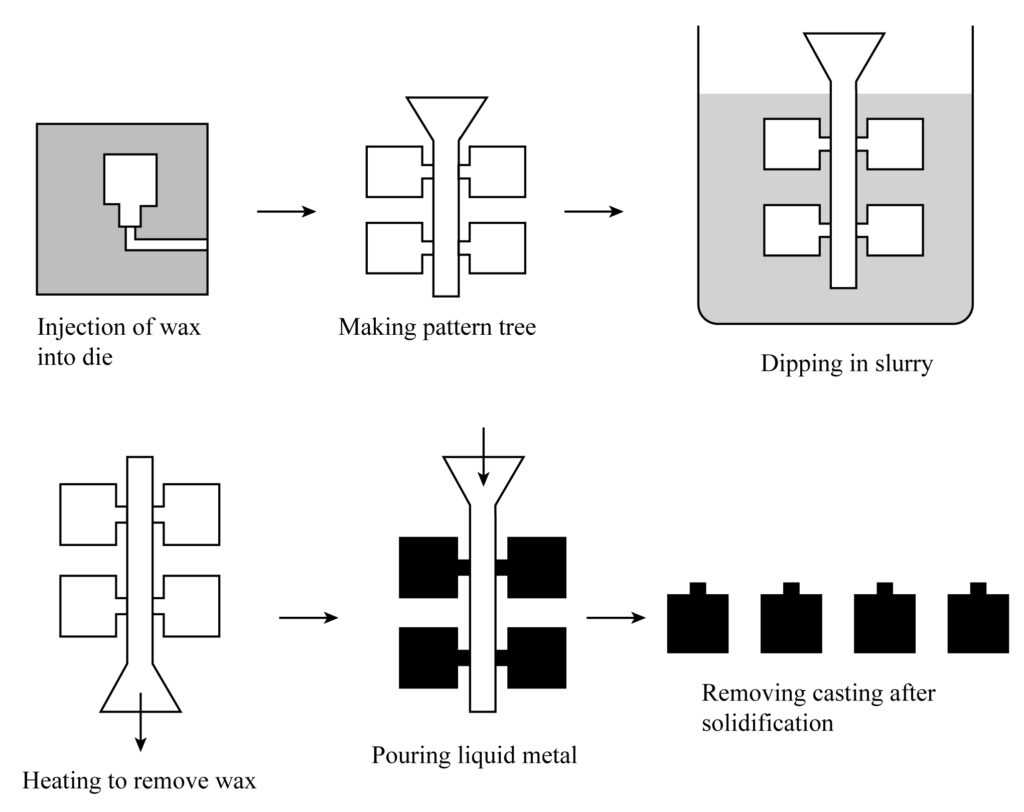

Visual Roadmap of Precision Metal Forming Stages
Begin with a single wax model, no larger than 150 mm in any dimension, to maintain dimensional accuracy–each millimeter beyond reduces yield by 1.2%. Use virgin beeswax for patterns; recycled mixes introduce air pockets, increasing defect rates by 22%.
Cluster patterns on a central sprue with 30° branch angles to minimize turbulence during shell filling. Calculate feed channels at 1.5× the thickest cross-section of the part–narrower paths cause 40% more incomplete fills in alloys with viscosity above 1400 mPa·s.
- First dip: submerge in colloidal silica (30% solids) for 18 seconds at 22°C–longer exposures create brittle shells.
- Second slurry: zircon flour (200 mesh) at 60% weight reduces thermal expansion mismatch by 35% compared to fused silica.
- Stucco layers: apply 0.5 mm alumina grains after the second coat; skip this step for parts under 50 g to avoid unnecessary weight.
Dewax in an autoclave at 180°C and 8 bar for exactly 7 minutes–prolonged cycles risk shell cracks from steam pressure exceeding 4.2 MPa. Dry shells for 48 hours at 50% relative humidity; moisture above 0.08% causes blowouts during pouring.
Preheat shells to 1100°C for ferrous alloys, 900°C for non-ferrous, holding for 2 hours to eliminate residual wax carbon–residues create surface inclusions measurable at 0.03 mm depth. Pour molten metal within 90 seconds of removal from furnace; delays drop temperature below liquidus, forming cold shuts.
- Cobalt-chrome: pour at 1520°C ±10°C; deviations cause dendritic segregation visible under 100× microscopy.
- Aluminum A356: maintain 720°C ±5°C; overheating dissolves grain refiners, reducing tensile strength by 18%.
- Titanium: vacuum arc remelting at 10-4 Pa required–atmospheric air increases oxygen content, raising hardness beyond HRC 40.
Break shells with a hydraulic impact at 10,000 N; pneumatic chisels fracture thin sections. Media blast with 120-grit aluminum oxide at 80 psi–glass beads deform surface layers, creating subsurface compressive stresses detectable via XRD.
Gate removal with carbide saws: cut 1 mm above the parting line for steel, 0.5 mm for copper alloys–closer cuts recast material, requiring additional machining. Final finishing tolerances: ±0.05 mm for dimensions under 100 mm, ±0.1 mm for larger features, achievable only with secondary EDM passes.
Critical Elements in a Precision Metalforming Workflow
Start with wax injection molds built to ±0.005-inch tolerances–failure here cascades into dimensional errors in later stages. Use aluminum or steel tooling for prototypes, switching to harder alloys like H13 for production runs exceeding 10,000 pieces. Include venting channels no wider than 0.01 inches to prevent wax voids, which create shell weaknesses. Preheat dies to 120–150°F to reduce wax shrinkage defects; cold molds increase wall-thickness variation by up to 23%.
Slurry composition demands 70–80% fused silica or zircon flour for thermal shock resistance–alternatives like alumina raise costs 40% but cut shell cracking in thin-walled parts. Layer sequencing requires a coarse stucco (30–50 mesh) first for strength, followed by finer grains (120–200 mesh) to reduce surface roughness on turbine blades. Dip timing must stay under 30 seconds per coat to prevent slurry separation; automated robots maintain consistency at ±2 seconds, eliminating human errors.
De-waxing autoclaves must reach 310°F and 90 psi in under 12 minutes–slow ramps trap moisture, causing shell explosions. Thermal cycles for shell burnout differ: 1,200°F for refractory metal parts, 1,800°F for superalloys like Inconel 718, controlled within ±25°F to avoid grain growth or residual stress. Pour temperatures vary by alloy: 2,800°F for titanium, 2,500°F for cobalt-chrome; overshooting by 100°F increases shrinkage porosity by 15%.
Post-pour cooling dictates microstructure quality–air-cool nickel-based alloys at 100°F/min to prevent carbide precipitation, while stainless steels tolerate 200°F/min. Knock-out methods demand precision: hammering small parts risks cracks, so use vibration tables at 15–25 Hz for delicate geometries. Turbine vanes require chemical etching to remove residual shell, but acid concentration must stay below 10% nitric to avoid intergranular corrosion. Dimensional inspection mandates coordinate measuring machines with 0.0001-inch resolution; laser scanners introduce errors in reflective alloys.
Final heat treatment protocols vary: solution treatment at 2,100°F for precipitation-hardening alloys, quenching in polymer media to replace oil–water causes distortion in thin sections. Machining allowances should never exceed 0.02 inches; grinding wheels must use resin bonds for cobalt alloys to prevent surface burning. Documentation must track each batch’s flow: wax lot numbers, slurry viscosity readings, autoclave pressure curves, and pour times–missing any skips traceability, jeopardizing certifications like NADCAP or ISO 9001.
Step-by-Step Wax Pattern Fabrication for Precision Metal Forming
Select wax blends with a melting point between 55°C and 70°C for optimal replication of fine details. Microcrystalline waxes with 2-5% additives (e.g., polyethylene or carnauba) reduce shrinkage by up to 18% compared to paraffin-only formulas. Preheat the wax to 85°C before injection to eliminate air pockets–critical for thin-walled components under 0.8mm thickness.
Use aluminum or steel dies with a surface roughness below Ra 0.4µm to prevent wax adhesion. Apply a thin layer of silicone-based release agent at 0.01mm thickness; excess coating causes dimensional inaccuracies. Maintain die temperature at 22-25°C during wax injection to avoid premature solidification in intricate geometries.
Inject wax at pressures between 1.5-3.5 MPa, adjusting based on part complexity. For components with deep cavities or sharp corners, increase pressure to 4 MPa but monitor for flash formation–excessive flash adds 30-40% to manual trimming time. Hold pressure for 10-15 seconds to compensate for wax shrinkage, particularly in sections with abrupt thickness changes.
Post-Injection Handling and Quality Checks
Cool wax patterns on aluminum cooling plates, not ambient air, to prevent warping. Plate temperature should match the wax solidification point (±2°C). Inspect patterns within 5 minutes of ejection using calibrated optical comparators; reject any with:
- Surface defects >0.05mm deep
- Linear shrinkage exceeding 1.2%
- Wall thickness variations >±0.1mm
Automated vision systems detect 92% of defects, but manual verification is required for textured or matte-finish surfaces.
Assembly and Gating for Complex Assemblies
Assemble multi-part wax patterns using specialized adhesive waxes with a bonding strength of 0.4-0.6 MPa–sufficient to withstand ceramic coating but weak enough for clean burnout. Position gates at thickest cross-sections to minimize porosity; for turbine blades, angle gates at 15-20° to the airfoil surface to reduce turbulence during metal flow. Preheat assembled trees to 30°C before slurry dipping to prevent thermal shock, which increases scrap rates by 22%.
Slurry Coating and Stucco Application Techniques
Apply the primary slurry layer at 18–22°C with a viscosity of 30–40 seconds (Zahn Cup #4) to ensure uniform coverage without drips. Use a high-shear mixer at 800–1200 RPM for 10–15 minutes to prevent particle settling and achieve a homogeneous suspension. Lower temperatures increase slurry life but extend drying times–balance by adjusting silica binder ratios (6–8% by weight) for shell strength.
Dip the wax pattern into the slurry within 5 seconds of mixing to avoid premature thickening. Rotate the pattern continuously at 30–60 RPM for 10–15 seconds to eliminate air bubbles, particularly in cavities deeper than 5 mm. For complex geometries, use a vacuum-assisted dip (90–95 kPa) to eliminate trapped air, reducing shell defects by 40–60%.
Stucco application requires precise particle size distribution. For the first layer, use 100–150 mesh zircon sand to prevent ceramic burnout during dewaxing–coarser grains (70–100 mesh) weaken the shell. Apply stucco via rainfall sander at 1.5–2.0 kg/m² or fluidized bed at 0.8–1.2 m/s airflow velocity. Avoid excessive force; impact speeds above 3 m/s dislodge slurry, creating weak spots.
Control humidity in the drying chamber to 45–55% RH at 22–25°C–higher levels cause mud cracking, while lower values accelerate evaporation, risking green shell fragility. First-layer drying should last 4–6 hours; subsequent layers may need only 1–2 hours if airflow is directed via oscillating fans (0.3–0.5 m/s). Use dehumidified air for batches exceeding 50 patterns to prevent moisture absorption from wax residue.
Repeat slurry-stucco cycles 6–8 times for steel alloys; 4–5 layers suffice for aluminum. For thin-walled components (<3 mm), add a seal coat (slurry without stucco) to improve surface finish. Verify shell thickness with a ultrasonic gauge–target 6–8 mm for ferrous metals, 4–6 mm for non-ferrous. Overbuilding increases material costs by 12–18%; underbuilding risks shell failure rates up to 25% during casting.
