Select a high-frequency switching transformer with a ferrite core for optimal efficiency–aim for a turns ratio between 1:5 and 1:10, depending on input voltage. Ensure the primary winding handles at least 30% more current than the nominal load to prevent saturation under transient conditions. MOSFETs with a breakdown voltage of 600V or above (e.g., IRF840, STW20NM60) minimize switching losses when paired with a gate driver IC like IR2110, operating at 20–100 kHz.
For output regulation, use a PWM controller (e.g., UC3843, SG3525) with a feedback loop incorporating a precision voltage divider–resistors should be metal-film with 1% tolerance. A 10μF electrolytic capacitor on the DC bus filters ripple, while a snubber circuit (1nF + 10Ω resistor) across the switching elements reduces voltage spikes. Overcurrent protection is critical: implement a shunt resistor (≤0.1Ω) with a comparator (LM393) to trigger a fault latch within 2μs.
Isolation is non-negotiable–opt for an optocoupler (e.g., PC817) between the feedback and control circuits to meet safety standards (EN 60950). For cooling, a TO-220 MOSFET mounted on a 3mm aluminum heatsink (thermal resistance ≤15°C/W) extends lifespan under continuous loads. Avoid polyester capacitors in high-stress nodes; instead, use polypropylene film types for longevity.
Test the circuit under full load with an oscilloscope–ringing on the switching node should not exceed 10% of the peak voltage. If efficiency drops below 85%, verify dead-time settings in the gate driver and adjust the gate resistors (typically 10–47Ω) to balance speed and EMI suppression. Short-circuit protection should cut output within 50ms, achieved via a dedicated latch circuit or microcontroller (e.g., STM32F030).

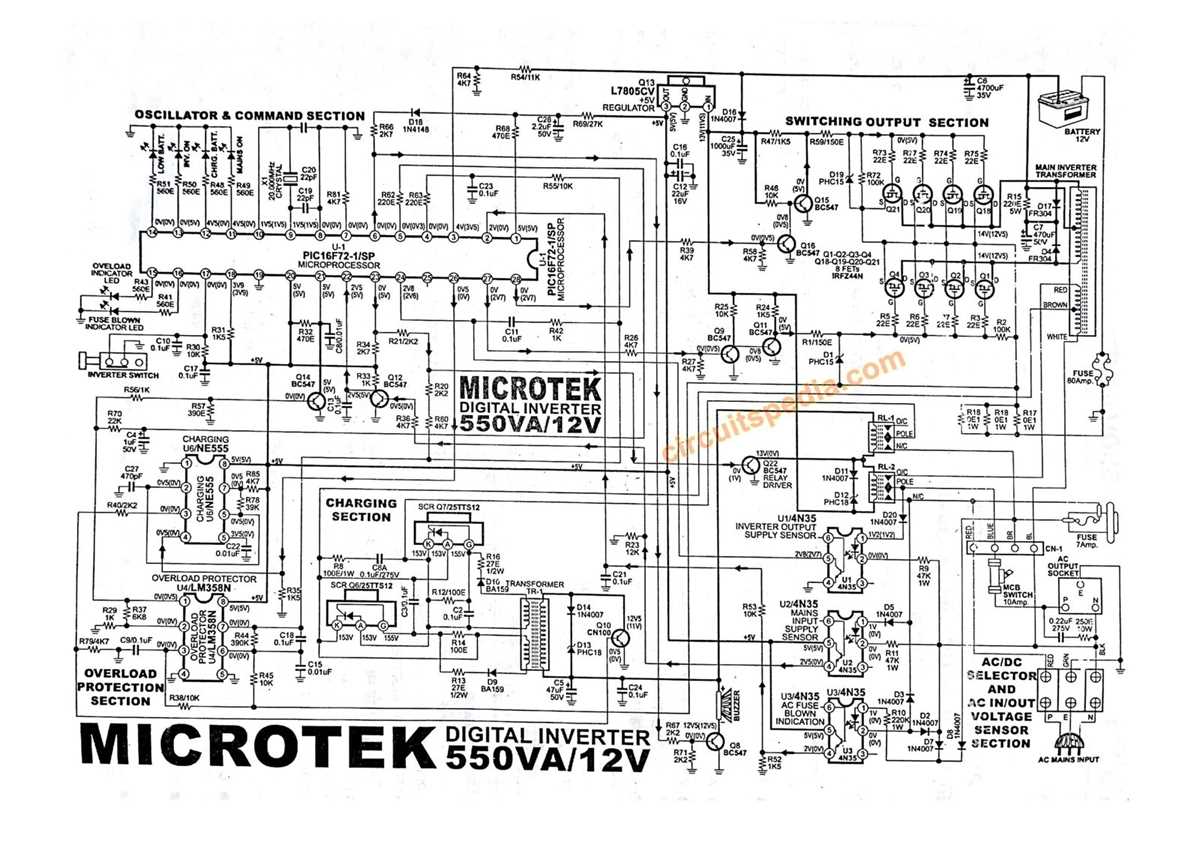

Key Components of a DC-AC Conversion Circuit
Begin by selecting low-loss MOSFETs (e.g., IRFP460 or STW20NM50) for switching–these minimize thermal dissipation at frequencies above 20 kHz. Pair them with ultrafast recovery diodes (UF4007) to clamp voltage spikes below 10% of the DC link, preventing shoot-through in half-bridge topologies. Use a ferrite core transformer (e.g., EE42/21/20) with a turns ratio of 1:3 for 12V-to-110V conversion; wind primary and secondary alternately to reduce leakage inductance to <2µH. Include a snubber circuit (10Ω resistor + 10nF polyester capacitor) across each switch to damp ringing at frequencies above 50 kHz.
Critical Parameter Configuration
| Parameter | Optimal Value | Tolerance | Justification |
|---|---|---|---|
| Gate resistor (Rg) | 22Ω | ±5% | Balances switching speed and gate oscillation |
| DC link capacitor (Cdc) | 470µF/25V | ±10% | Handles 2x nominal ripple current at full load |
| Dead time (td) | 1.2µs | ±0.1µs | Prevents cross-conduction in half-bridge |
| Feedback gain (Kp) | 0.85 | ±0.05 | Ensures <3% steady-state error |
For precision output regulation, implement a proportional feedback loop using an op-amp (LM358) with a pole at 10Hz to reject 50/60Hz noise. Use a 10kΩ potentiometer for voltage adjustment, ensuring linearity ±1% across the 90-130V AC range. Isolate feedback with an HCPL-3120 optocoupler to prevent ground loops; maintain CTR (current transfer ratio) above 80% at 10mA forward current. Size the heatsink for MOSFETs to keep case temperature below 70°C at 30W continuous load–thermal resistance junction-to-case should not exceed 1.5°C/W.
Core Elements of a DC-to-AC Conversion Board Layout
Position the MOSFETs or IGBTs within 5mm of the driver IC to minimize gate ringing–excessive trace length introduces parasitic inductance, degrading switching speeds by 15–20%. Use a continuous ground plane beneath these components to absorb high-frequency noise; stitch vias around the perimeter every 2mm for consistent impedance. For 600V+ applications, isolate high-side and low-side driver grounds with a Kelvin connection to prevent ground bounce during transitions.
Select capacitors with ESR below 10mΩ for bulk storage (e.g., 100µF 450V film capacitors) and NP0/C0G dielectric for snubber networks–ceramic values above 1nF should use X7R only if voltage derating exceeds 3x. Place local decoupling (0.1µF) directly across driver IC power pins; route traces on the top layer without vias to avoid added inductance. For resonant topologies, position the resonant tank (inductors + capacitors) less than 10mm apart to maintain phase coherence at 50–100kHz.
Prevent thermal runaway in the control section by spacing microcontrollers 20mm from heat-generating components; use copper pours with 2oz thickness for passive cooling of gate resistors. Route PWM signals away from analog feedback lines–cross talk above 20mV can destabilize regulation. For isolated designs, maintain a 3mm creepage distance between primary and secondary sides; reinforce clearance with slots or conformal coating for 2kV+ isolation.
Use staggered vias for high-current paths (e.g., 30A+) to distribute current density–four 0.3mm vias replace one 1mm via with 30% lower resistance. Terminate unused gates with 10kΩ pull-down resistors to prevent floating inputs during startup. For EMI suppression, wrap the switching node in a Faraday cage using a full ground plane on Layer 2, leaving no gaps wider than 1mm.
Test layouts under load with a thermal camera–hotspots above 85°C indicate insufficient copper weight or improper vias. For flyback designs, place the transformer within 30mm of the switching element to reduce leakage inductance; use Litz wire for windings above 100kHz to limit skin-effect losses. Document trace widths at 1A/mm² for internal layers and 2A/mm² for external layers, accounting for 20% derating at ambient temperatures above 50°C.
Step-by-Step Tracing of High-Voltage Circuit Pathways in Layouts
Begin by isolating the DC input rails at the primary switching stage. Locate the high-voltage capacitors–typically 400V or greater–positioned immediately after the bridge rectifier or PFC inductor. Measure their polarity markings; reversed connections here will cause immediate failure. Trace the positive rail to the first MOSFET or IGBT gate, confirming the presence of a gate resistor (usually 10–47Ω) and a pull-down resistor (typically 10kΩ) to ground. Verify the diode across the transistor’s drain-source terminals–its orientation must block reverse voltage during commutation.
Examine the snubber network, if present. Look for an RC pair connected in parallel with the switching element, with values around 1nF/1kV for the capacitor and 100Ω/5W for the resistor. This network suppresses voltage spikes exceeding the transistor’s breakdown limit. Cross-reference the node where the switching element drives the high-frequency transformer primary; confirm the winding polarity using the dot convention–incorrect alignment will invert the output phase or cause saturation.
Follow the secondary windings of the transformer to the fast-recovery diodes. For half-bridge configurations, expect two diodes per winding; full-bridge layouts use four. Check the diode ratings–minimum 600V for 230VAC input, with reverse recovery times under 50ns. Terminate the diode outputs at an output filter capacitor, typically low-ESR types (e.g., 1000µF/25V for 12V rails). Test continuity from the capacitor’s negative terminal to the system ground, ensuring no unintended resistance that could introduce common-mode noise.
Critical Failure Zones in DC-AC Conversion Circuits
Check the gate drive resistors first–values above 22Ω often cause delayed switching, overheating MOSFETs within minutes. Replace with precision 10Ω thin-film types if waveforms show slow rise/fall edges exceeding 100ns. Low-quality resistors degrade PWM accuracy, leading to uneven primary current distribution.
Snubber networks across primary switches fail when capacitors exceed 1nF or resistors drop below 10Ω. Ceramic 470pF/100V class-1 caps with 15Ω metal-film resistors prevent voltage spikes above 1.5× nominal input. Test with 50MHz scope–ringing beyond 20ns indicates compromised suppression.
Feedback optocouplers degrade with CTR drop below 50%. Replace PS2501 variants showing propagation delays over 3µs; use high-CTR (100-200%) versions like TLP291 for stable regulation. Failed isolation manifests as erratic output or shutdown under 70% load.
Examine rectifier diodes on secondary windings–fast recovery types must handle 3× steady-state current. 1N5822 replacements for lower voltage circuits cause excessive leakage, overheating transformers. Verify reverse recovery under 30ns; slower diodes create cross-conduction, reducing efficiency by 8-12%.
Primary-side current sense resistors below 0.02Ω introduce detection errors exceeding 15%. Use four-terminal Kelvin sensing for values under 0.01Ω; errors distort protection thresholds, tripping circuits prematurely. Check for oxidation on solder joints–resistance increases of 0.5mΩ trigger false overcurrent faults.
Solder joints on high-current paths crack under thermal cycling–inspect with 10× magnifier for hairline fractures. Reinforce with 63/37 SnPb for stress relief; lead-free alternatives require 5% silver content to prevent fatigue. Cold joints increase resistance by 20-40%, creating localized heating that cascades into transformer core saturation.
How to Interpret Switching Transistor Connections in Circuit Drawings
Locate the transistor’s base, collector, and emitter pins first–their arrangement defines operation mode. In most switched-mode designs, the base connects to a driver stage via a resistor or diode, while the collector links to either the primary transformer winding or a freewheeling path. Emitter placement varies: ground reference for NPN, high-side rail for PNP. Check adjacent components: a diode across collector-emitter often indicates transient voltage suppression.
Trace current flow directions. For NPN devices, current enters the collector, exits the emitter; PNP reverses this. If the transistor sits between a DC bus and an inductive load, expect a flyback diode in anti-parallel to handle back EMF during turn-off. Highlight these paths with colored annotations–conventional red for high potential, blue for return paths–to simplify analysis.
Common Connection Patterns
- Half-bridge topology: Two transistors share a midpoint node, alternating conduction to drive a load. The high-side device connects to the positive rail; the low-side to ground. Check for bootstrap capacitors or isolated drivers if the high-side gate lacks a direct ground reference.
- Push-pull: Paired transistors drive opposite ends of a transformer primary. Each transistor’s collector connects to one primary tap, with emitters joined to ground or a current-sense resistor. Identify turn-on sequencing from the gate drive signals–a 180° phase shift confirms push-pull operation.
- Flyback: A single transistor drives a transformer with a gapped core. The collector connects to the primary winding; emitter routes to ground via a current shunt. Note the snubber network–typically an RC pair–across the primary to clamp voltage spikes.
Measure voltage slew rates at the transistor terminals. A slow rise or fall time (below 50 ns) suggests excessive gate resistance or insufficient driver current. Use an oscilloscope with a differential probe to capture gate-source voltage–ringing here points to poor layout (long traces, no bypass capacitors near driver ICs). Compare against datasheet timings; deviations often trace back to parasitic inductance.
Verify transistor selection for the intended switching frequency. MOSFETs dominate above 100 kHz due to fast body diodes and low gate charge; IGBTs excel below 50 kHz for higher blocking voltages. Consult the bill of materials: a mismatch between rated VDS (or VCE) and the DC bus voltage (plus overshoot margins) risks avalanche breakdown. Allow 30% headroom for inductive loads.
Debugging Unusual Connections
- No gate drive signal? Check for a floating ground reference–isolated drivers (e.g., optocouplers) require separate return paths. Probe the driver IC’s enable pin; undervoltage lockout can silently disable switching.
- Excessive heat? Calculate power dissipation: P = VCE(sat) × IC for BJTs, P = RDS(on) × ID2 for MOSFETs. Overheating often stems from incorrect RDS(on) (e.g., logic-level MOSFET driven at 5V instead of 12V).
- Mysterious shutdowns? Scope the collector/drain node for voltage clipping–an improperly sized clamp diode can forward-bias unexpectedly during turn-off transients.
Document pin-to-package mapping. TO-220 and D2PAK packages often swap pinouts between manufacturers. Mark the exposed pad (if present) as it may require direct heatsinking or PCB via stitching to ground. Cross-reference silicium layout diagrams if thermal performance seems anomalous–parasitic bipolar effects in MOSFETs can emerge under high dV/dt.
Cross-check transistor symmetry in half- or full-bridge layouts. Mismatched device parameters (Vth, Ciss) cause current imbalance, leading to uneven heating. Measure on-state resistance with a milliohm meter at room temperature; differences exceeding 10% justify replacing the weaker device. For synchronous designs, ensure dead-time intervals prevent shoot-through–adjust gate resistor values to synchronize turn-on/turn-off delays.
