Begin diagnostics by isolating the torque converter circuit–trace the pressure line from the charge pump to the torque divider bypass valve. A drop below 2.1 MPa at 1,800 RPM signals failure in the relief valve or worn pump internals. Replace the relief spring if tolerance exceeds 0.3 mm; otherwise, debris buildup in the pilot-operated check valve (located adjacent to the output shaft) is the likely culprit. Flush the circuit with ISO 46 hydraulic fluid before reinstalling components to prevent premature wear on the clutch packs.
Focus next on the transmission control module (TCM) when shift delays exceed 1.5 seconds. Verify voltage drop across the solenoid outputs (pins 3, 5, and 7 on the 12-pin connector) during engagement–values below 8.5V indicate corrosion in the wiring harness or faulty ground bonding at chassis point G-17. Bypass testing with a 12V bench supply confirms solenoid failure if resistance deviates outside 18–22 ohms. Overhaul the valve body if contamination scoring exceeds 0.02 mm on spool surfaces, using torque specifications of 15–18 Nm for reassembly bolts.
Inspect the final drive reduction gears if track tension varies under load. Remove the cover plate and measure planetary gear backlash– readings above 0.1 mm necessitate replacement of the ring gear (part #PR-4289) or sun gear (PR-4312). Check for metal fragments in the housing; particles larger than 0.15 mm mandate a complete system flush, including the 3-micron return filter. Replenish the track adjuster with 250–300 mL of Mobil SHC 524 before resealing the pivot joint to prevent cavitation in the swing arm cylinders.
Calibrate the implement joystick neutral position after repairs–misalignment exceeding ±2° results in drift during operation. Use the onboard diagnostic tool to reset potentiometer values, ensuring the lift cylinder holds at mid-stroke without creep. If drift persists, replace the pilot control valve (PR-5107) and inspect the load-sensing compensator for cracks on the spring seat–the component tolerates no more than 0.05 mm deflection before performance degrades under high-pressure operations.
Technical Blueprint of Heavy-Duty Gear-Driven Tracked Vehicle Fluid Dynamics
Verify pump displacement values against load requirements using pressure gauges at key junctions–epicyclic gear train, swashplate angle, and relief valve inlet. The A4VG axial piston pump in closed-loop configuration must maintain 35–42 MPa under peak load (3000 rpm engine speed), with filtration rated at β₁₀ ≥ 200 to prevent cavitation in the charge pump section. Cross-reference flow rates with hydraulic motor specifications: the MF28 bent-axis units demand 120 L/min at 2400 rpm for optimal track propulsion; deviations exceeding ±5% indicate wear in piston shoes or rotational group imbalance.
Trace flow paths from the priority valve to steering clutches–prioritize bypass relief setting at 31 MPa to prevent hydraulic lock during articulation. For the counterbalance valve integrated into the blade circuit, ensure the pilot ratio is 3:1; incorrect ratios cause blade drift or abrupt descent under load. Use thermal imaging to identify hotspots in the heat exchanger; oil temperature must stabilize below 90°C during prolonged trenching operations to avoid viscosity breakdown in ISO VG 68 fluids.
Troubleshooting Pressure Fluctuations
Isolate pressure spikes by disconnecting pilot lines sequentially: start with the implement control valve block, then shift solenoid valves (SCV1–SCV4). Check for contamination in the spool-centering springs–particle sizes >15 µm disrupt modulation in proportional valves. If pressure relief valves chatter, replace cartridge assemblies; OEM parts tolerate ≤2% leakage at 28 MPa, aftermarket alternatives often fail prematurely under cyclic loads.
Critical Elements of the Gear-Driven Tracked Vehicle Fluid Dynamics Network
Prioritize the main pump–typically a variable-displacement axial piston unit–calibrated to deliver 250–350 bar at peak loads. Specify its control valve block to include a pressure-compensated flow regulator; this prevents cavitation during rapid directional shifts. Locate the charge pump, a fixed-displacement gear unit, adjacent to the inlet filter (40 μm absolute rating) to ensure contaminant-free oil reaches the closed loop before the piston pump engages.
Integrate a high-capacity heat exchanger, preferably a plate-type with 60 kW dissipation capacity, between the return line and the reservoir. Position temperature sensors on both inlet and outlet; set the control module to trigger auxiliary cooling fans at 85°C. Without this, thermal degradation of ISO VG 68 oil accelerates, reducing viscosity and increasing internal leakage by up to 18% under sustained load.
The directional control valves–typically proportional solenoid-operated spools–must feature individual position feedback sensors. Configure each spool with a 0–10 V signal range; this enables ±2% flow accuracy during multi-function operation. Avoid generic cartridges: specify valves with hardened 42CrMo4 steel sleeves and ceramic-coated spools to withstand abrasive wear from 120 mg/L SiO₂ contamination common in quarry environments.
Reservoir design demands a baffled construction to separate return and suction flows. Size capacity at 3.5× the maximum pump flow rate (usually 200–250 liters) to allow air release and sediment settling. Install a magnetic drain plug at the lowest point to capture ferrous particles >5 μm; replace every 500 operating hours to prevent pump wear. Use a breathable cap with desiccant filter to maintain
Pressure relief valves–primary and secondary–should be set at 360 bar and 380 bar respectively. Primary protects the main loop; secondary safeguards the charge circuit. Specify direct-acting valves with stainless steel springs and Viton seals for compatibility with bio-based fluids. Test relief valves quarterly by simulating blockage downstream; failure to vent excess pressure within 0.3 seconds risks hose rupture at the crimped joints, particularly in 3/4″ 3000 PSI-rated lines.

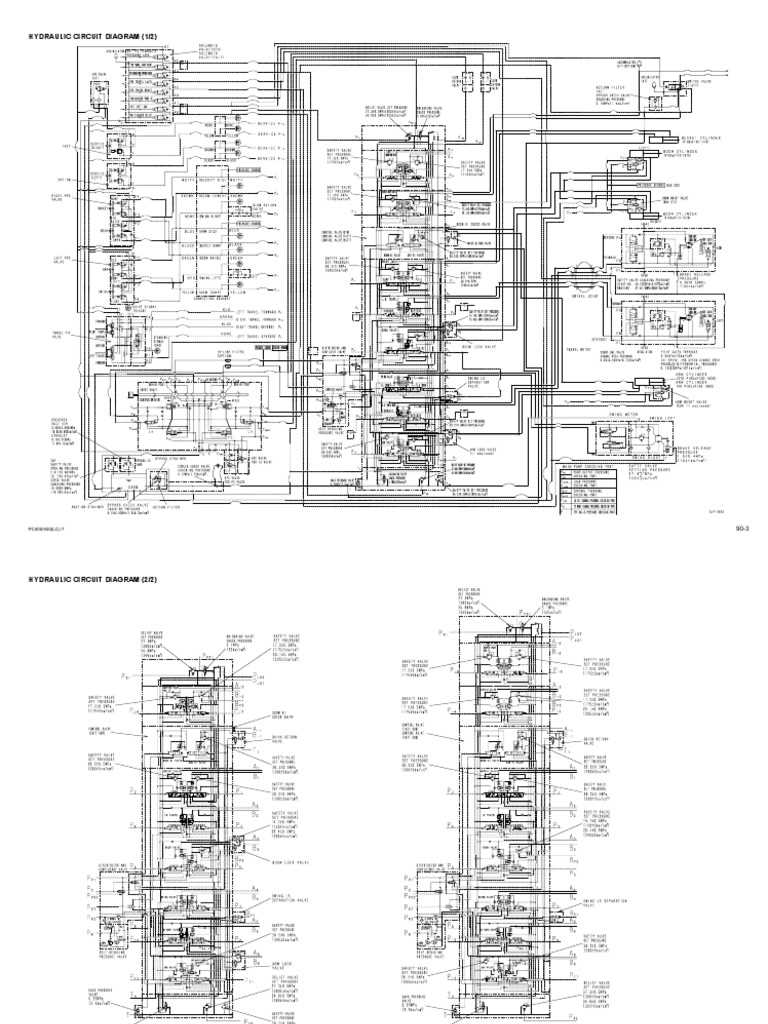

Decoding the Fluid Circuit Blueprint: A Methodical Approach
Begin by isolating the primary pump section–locate the tandem gear units at the lower left corner of the illustration. Verify their displacement values (typically 45 cc/rev for primary and 32 cc/rev for charge pumps) against the manufacturer’s specs; discrepancies indicate wear or calibration drift. Trace the pressure lines from the pumps to the priority valves: the 21 MPa relief on the main circuit and 3 MPa on the pilot must align with color-coded annotations–red for high-pressure, blue for return, and yellow for pilot. Deviations in these markings often signal misplumbed lines or degraded seals.
Flow Path Verification
Follow the flow through the directional control block: confirm the spool positions (A, B, and neutral) match actuator demands. For instance, when engaging propulsion, the left-hand joystick should activate solenoid SV1, diverting fluid to the track motors at 20 MPa–measure this with a 0-35 MPa gauge at test port T3. Check for parasitic losses: filter ΔP should not exceed 0.15 MPa; higher readings point to clogged 10-micron elements. Cross-reference the charge pump’s 3 MPa output with the closed-loop circuit–any drop below 2.5 MPa triggers cavitation in the hydrostatic transmission.
Examine auxiliary circuits last: the swing brake valve’s spring should hold 7 MPa, releasing only when pilot pressure from the accumulator reaches 5 MPa (monitor via port T8). If the tensioner cylinder retracts prematurely, suspect a cracked piston seal or incorrectly torqued relief valve (7 Nm for M10 bolts). Document every reading; baseline pressures prevent misdiagnosis of intermittent faults–store data in a structured log with timestamps and ambient temperature (viscosity shifts ±10% between 20°C and 80°C).
Common Pressure Control Valve Arrangements and Their Practical Roles
Use direct-acting relief valves for applications requiring rapid response under 50 ms–ideal for protecting circuits with sudden load spikes, such as lifting arms or quick-release mechanisms. Position them immediately downstream of pumps to prevent pressure overshoot; a 5-10% margin above the system’s working pressure ensures reliability without premature wear. For variable-displacement pumps, pair relief valves with anti-cavitation check valves to prevent suction side vacuum during unloading.
In pilot-operated relief configurations, install the main valve at the pump outlet and the pilot valve at a remote location for precise pressure control in multi-branch layouts. Adjust the pilot valve’s setpoint to 2-3% higher than the main valve to avoid instability during transient conditions. Use this setup for high-flow circuits (>100 L/min) where direct-acting valves would introduce excessive heat or pressure drop.
For sequence valves, mount them in parallel with the actuator’s primary line, ensuring cracking pressure is 10-20 bar above the secondary circuit’s required pressure. Example: In a bulldozer’s blade tilt and lift circuit, set the tilt sequence 50 bar above lift to ensure priority operation. Add a small accumulator (0.5 L) upstream to dampen pressure fluctuations during engagement.
Counterbalance valves must be installed directly on actuator ports to prevent uncontrolled descent in vertical loads. Set them at 1.3× the maximum load pressure to prevent hydraulic lock; use an external pilot line if load-induced pressures exceed 350 bar. For stability, integrate a 0.1-second delay orifice between the valve and pilot port to reduce chatter during abrupt load changes.
Pressure Reducing Valve Applications by Circuit Type
| Circuit Type | Reduction Target (bar) | Valve Type | Critical Parameters |
|---|---|---|---|
| Steering control | 80–120 | Pilot-operated, 3-way | Max inlet pressure: 250 bar; droop ≤ 5% |
| Brake assist | 50–70 | Direct-acting, cartridge | Response time |
| Attachment pilot | 25–40 | Balanced piston, modular | Temperature drift ≤ 2 bar/50°C; backflow check required |
| Cooling fan drive | 15–30 | Proportional, pressure-compensated | Repeatability ± 1 bar; hysteresis |
Unloading valves should bypass flow to the tank when system pressure reaches 90-95% of the relief valve setting–use this to reduce pump strain during idle periods. Pair with a 2-position solenoid to enable manual override for maintenance; add a 10 μm filter upstream to protect the valve seat from contaminants. For closed-loop circuits, mount the valve in the return line with a 1.5× safety factor on flow capacity to prevent backpressure buildup.
For proportional pressure control, select valves with linear flow characteristics (P/Q curves) and built-in feedback sensors to minimize overshoot. Calibrate them every 200 hours; replace seals if hysteresis exceeds 4%. In multi-actuator systems, use pressure-compensated flow control valves to maintain consistent speed regardless of load–install them in series with proportional valves, ensuring 5-10% higher flow capacity to avoid throttling losses.
Diagnostic Checks for Pressure Valve Malfunctions
Measure cracking pressure with a digital gauge (accuracy ± 0.5 bar) at the valve inlet–deviations > 5% from nominal indicate worn springs or contaminated seats. Test response times by applying a 50% load step and monitoring pressure spikes with an oscilloscope; normal values range 20-80 ms for direct-acting valves. For pilot-operated units, check pilot pressure upstream and downstream–consistent pilot pressure confirms proper damping orifice function.
Replace valves if internal leakage exceeds 0.5 L/min at 80% of set pressure after 1,000 cycles. Use thread-locking compound on fittings to prevent loosening from vibration; torque specifications vary–typically 40-60 N·m for M16 ports. Store backup valves in vacuum-sealed bags with silica gel to prevent seal degradation; rotate stock every 12 months to ensure readiness.
