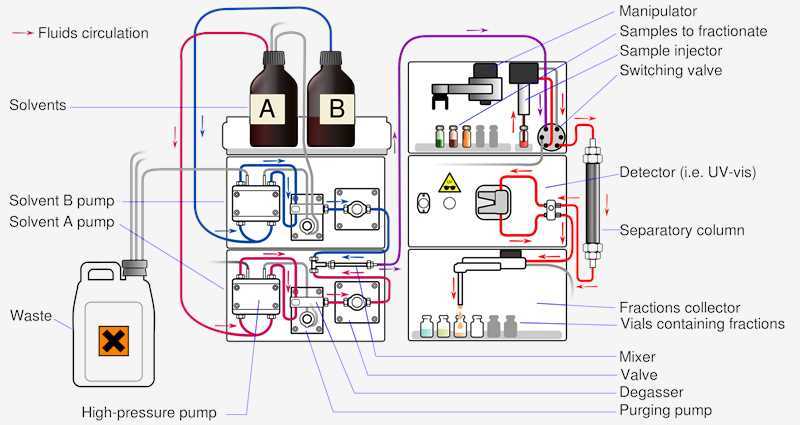

Start with the solvent reservoir–ensure it holds at least one liter of mobile phase per channel, using inert materials like PTFE or glass to prevent chemical interference. Position it at least 30 cm above the pump inlet to maintain consistent flow rates and avoid cavitation. Connect it to the high-pressure pump via 0.25-inch tubing, fitting stainless steel or PEEK filters with a 2–5 µm porosity at the line’s entry point to block particulates before they reach critical components.
The pump module must deliver 0–5000 psi with less than 0.2% flow variation. Choose a dual-piston design to eliminate pressure fluctuations; include pulse dampeners filled with compressible fluids like glycerin or fluorinated compounds. Keep the pump head cooled below 25°C–either through integrated heat exchangers or external chillers–to preserve seal integrity and extend piston life. Route inlet tubing upward to prevent air bubbles from settling in the pump mechanism.
Install an autosampler capable of injecting volumes as small as 0.1 µL with repeatability under 0.3% RSD. Place the injection valve immediately downstream of the pump to minimize dwell volume. Use a syringe-driven mechanism paired with a 10–100 µL sample loop, ensuring compatibility with both aqueous and organic solvents to avoid swelling or corrosion. Pre-heat the mobile phase to 30–40°C using a coiled heat exchanger before it enters the analytical column; maintain temperature stability within ±0.1°C using a column oven with forced-air circulation or Peltier-controlled metal block.
The separation column should measure 50–250 mm in length with an inner diameter of 2.1–4.6 mm, packed with 1.7–5 µm particles. Use guard columns containing the same stationary phase to protect the main unit from contaminants–replace them after 50–100 injections or when backpressure exceeds 200 bar. Connect the column outlet to the detector flow cell through minimal-length PEEK or stainless-steel tubing (≤13 µL total volume) to reduce band broadening. For UV-Vis detection, use a 10 mm pathlength flow cell with 8–12 µL volume; for fluorescence, a 5 µL cell with mirrored surfaces enhances sensitivity by reflecting emitted light toward the photomultiplier.
Integrate a backpressure regulator set to 10–20 bar downstream of the detector to prevent outgassing and maintain consistent flow through the system. Include a waste reservoir with solvent-resistant containment–label and dispose of it according to local regulations for acetonitrile, methanol, or halogenated solvents. Calibrate the system weekly using standard mixtures with 0.1–10 mg/mL analyte concentrations; monitor retention time drift, peak shape, and baseline noise to detect column degradation, leaks, or detector misalignment early.

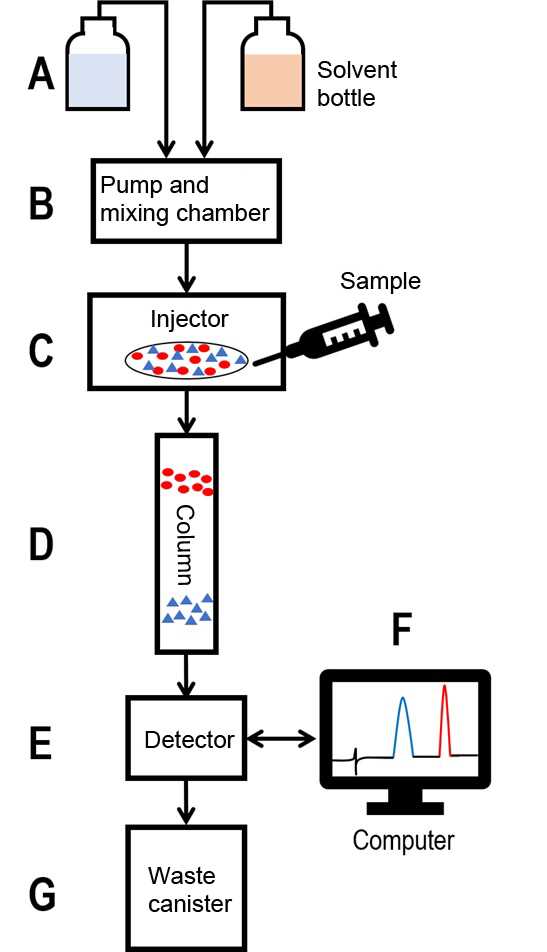

Primary Components of a Chromatographic Separation System
Begin by verifying the solvent delivery system’s flow precision–target 0.1–1.0 mL/min with 10%. Position the injector’s sample loop
Install a dual-wavelength UV detector with deuterium and tungsten lamps; align the flow cell every 6 months by injecting 0.1% acetone in methanol and adjusting the slit until absorption at 280 nm stabilizes at 1.0 AU. Configure the data acquisition software to record chromatograms at 10 Hz for gradients

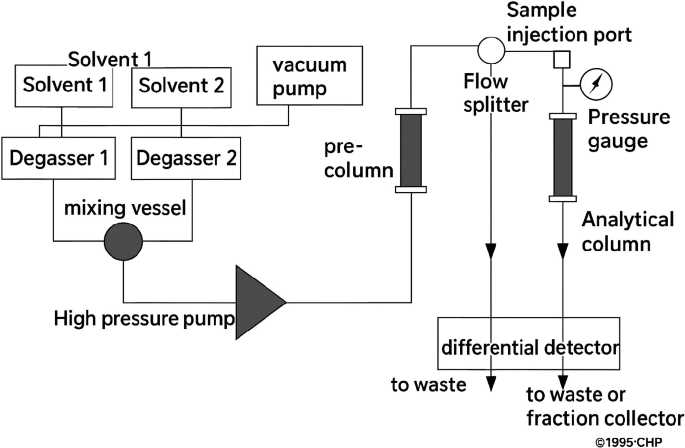

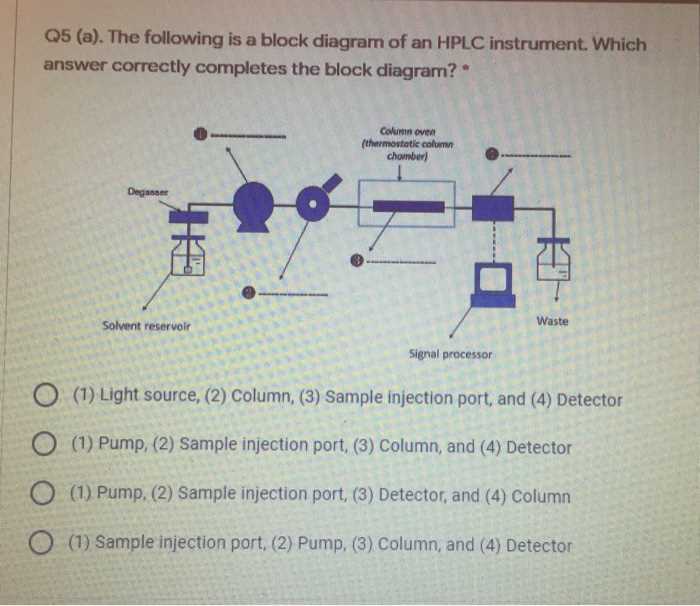

Key Components of a Liquid Chromatography Setup and Their Roles
Select a pump with a flow rate precision of ±0.1% or better to ensure consistent solvent delivery–critical for reproducible retention times and peak shapes. Avoid piston-based pumps below 10,000 psi for ultra-high-performance applications; opt for hybrid dual-piston or syringe pumps instead to eliminate pulsation and extend column lifespan. Pair the pump with solvent reservoirs made of borosilicate glass or PEEK to prevent leachables in gradient elution, particularly when using acidic (pH < 2) or basic (pH > 8) mobile phases.
The injector must handle volumes from 0.1 to 100 µL without carryover. Use a fixed-loop design for samples above 10 µL to eliminate volume-dependent peak shifts; for volumes below 5 µL, a micro-injection valve with PEEK or polyimide seals prevents adsorption of polar analytes like peptides or proteins. Flush the injector loop with at least 50× its volume between runs when switching between matrices with high organic content or salt residues–this reduces ghost peaks by 90%.
- Column oven: Maintain temperature stability within ±0.5°C to prevent retention drift. For thermally labile compounds (e.g., explosives, oligonucleotides), cap the oven at 40°C to avoid degradation while still improving efficiency by ∼15% compared to ambient runs.
- Detector: Use a diode-array detector with a 1 µL flow cell for UV/Vis measurements–this minimizes band broadening in narrow-bore columns. For sub-ng/mL sensitivity, switch to a fluorescence detector with excitation/emission bandwidths ≤ 15 nm to reduce background noise.
- Degasser: Install an inline membrane vacuum degasser for gradients containing volatile buffers like trifluoroacetic acid; this prevents baseline disturbances caused by outgassing at high organic percentages (>70% ACN or MeOH).
Backpressure regulators should be placed downstream of the detector to prevent bubble formation–critically, set the regulator at 20–30 bar below the pump’s maximum pressure rating (typically 600–1,000 bar for UHPLC). Use PEEKsil-lined tubing (0.005″ ID) upstream of the column to minimize extra-column volume; downstream, switch to stainless steel (0.007″) to handle post-column reagent addition without corrosion.
Autosamplers require wash vials with solvent mixtures matching the mobile phase to prevent precipitation–e.g., 5% isopropanol in water for aqueous-organic gradients. For viscous samples (e.g., 50% glycerol), preheat the needle at 40°C to reduce carryover by 70%. Schedule preventive maintenance every 10,000 injections: replace injector seals, flush the system with 10 mL of 1 M nitric acid followed by 50 mL of 5% methanol in water to remove metal oxides and siloxane deposits.

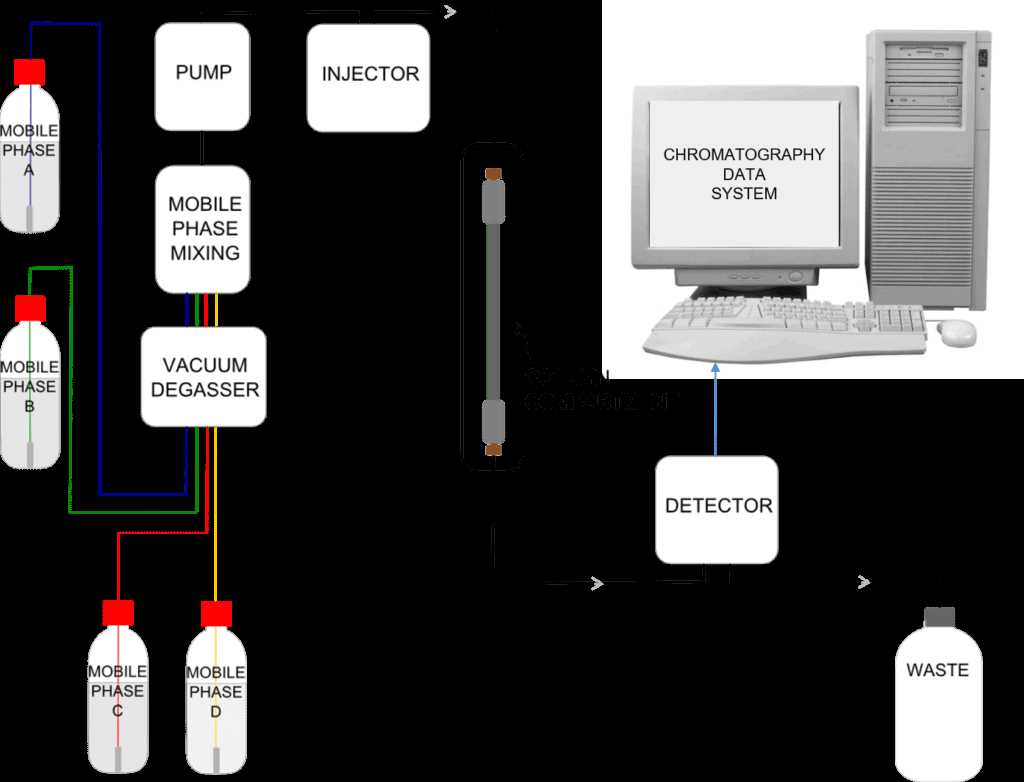

Precise Mobile Phase Flow Sequence in Liquid Chromatography Systems
Initiate the process by priming the solvent reservoir with degassed eluent–ensure dissolved gases are removed via helium sparging or vacuum filtration, as microbubbles disrupt baseline stability and detector performance. Verify solvent compatibility with column chemistry; acetonitrile-water mixtures corrode stainless steel if pH exceeds 8.0, while methanol-based phases accelerate PEEK tubing degradation over prolonged use.
Engage the high-pressure pump, setting the flow rate between 0.5–2.0 mL/min for analytical separations–adjust based on particle size (3–5 μm columns tolerate higher rates than sub-2 μm packings). Confirm system backpressure aligns with expected ranges (100–400 bar for standard phases; >600 bar for ultra-high-pressure variants) to detect leaks or blockages before sample injection. Overpressure triggers automatic shutdowns, protecting pump seals and chromatographic beds from irreversible damage.
Injection and Column Interaction
Load the sample loop with 1–100 μL of analyte solution, ensuring partial-loop overfills exceed loop volume by 2–3× to prevent carryover. Rotate the injection valve to position the sample in the mobile phase stream–timing this step avoids pressure spikes, which distort peak shapes in sensitive detectors like diode-array or mass spectrometers. For gradient elution, program the pump to deliver incremental solvent transitions (e.g., 5→95% organic over 10–30 minutes) to resolve polar and nonpolar compounds without co-elution.
The packed-bed column orchestrates separation via differential retention; nonpolar stationary phases (C18) retain hydrophobic analytes longer, while polar-embedded phases (amide or cyano) favor hydrophilic interactions. Monitor retention times against reference standards–shifts >0.2 minutes indicate column aging, contamination, or mobile phase inconsistencies. Replace guard columns every 500–1000 injections to prevent irrecoverable loss of resolution, particularly with biological or high-matrix samples.
Detection and Post-Column Considerations
Align detection wavelengths to analyte absorbance maxima–UV-Vis typically uses 210–280 nm for organic compounds, while fluorescence demands precise excitation/emission pairing (e.g., 280/340 nm for tryptophan-containing peptides). Post-column reactors enhance weak-signal analytes (e.g., derivatization with ninhydrin for amino acids), but introduce dead volume; minimize tubing diameter (0.1–0.25 mm ID) to preserve peak sharpness.
Collect fractions only after verifying detector linearity and dynamic range–overloaded signals (>1.5 AU) saturate photodiodes, requiring sample dilution or reduced injection volume. Purge the system with strong solvents (e.g., 100% MeOH or THF) between runs to elute highly retained components, followed by equilibration with initial mobile phase conditions for reproducibility. Store columns in 70% organic solvent to inhibit microbial growth in aqueous phases, and cap open ends to prevent drying-induced stationary phase collapse.
Detectors in Liquid Chromatography Systems and Core Signal Processing
Select a UV-Vis absorbance detector for compounds with conjugated π-systems or aromatic rings; set the wavelength 10–20 nm below the absorption maximum to boost sensitivity while cutting stray-light interference. Scan the diode array across 200–400 nm every 50 ms and store full spectra at 1 Hz–this yields spectral purity checks without sacrificing peak resolution. For fluorescent analytes, match excitation/emission maxima within ±5 nm and install a 50 mm path-length flow cell filled with fluoropolymer tubing to capture >90 % of emitted photons.
Electrochemical detectors operate in amperometric mode for redox-active species; polarize the glassy-carbon electrode at +0.8 V vs Ag/AgCl for phenols and catechols, then pulse to −0.1 V every 100 ms to strip fouling contaminants. Maintain flow-cell temperature at 30 °C ±0.1 °C to hold background current below 1 nA; use post-column addition of 0.1 M perchloric acid to stabilize mobile phase pH and reduce noise.
Detector Characteristics and Noise-Reduction Tactics
| Detector | Noise Floor (AU) | Linear Range (Decades) | Response Time (ms) | Optimal Sampling (Hz) | Temperature Coefficient (°C⁻¹) |
|---|---|---|---|---|---|
| UV-Vis (single-wavelength) | 1×10−5 | 4 | 10 | 50 | 0.001 |
| Diode-array | 5×10−5 | 3.5 | 50 | 20 | 0.002 |
| Fluorescence (Xe-lamp) | 5×10−12 mV | 5 | 20 | 100 | 0.005 |
| Electrochemical (glassy-carbon) | 1 nA | 4.5 | 5 | 200 | 0.01 |
Route detector output through a 10 Hz Butterworth low-pass filter to reject high-frequency spikes without distorting peak shapes; oversample at 5× the filter cutoff rate to satisfy Nyquist criteria. Scale the filtered signal so that 1 V corresponds to the upper end of the detector’s linear range, then digitize with a 24-bit ADC running at 3 V reference; this preserves ≥90 dB dynamic range from saturation to noise floor. Store raw data in IEEE 754 single-precision to save disk space while retaining 7-digit accuracy.
Calibrate detectors weekly by injecting 100 μL of 1 μM caffeine or 5 μM benzoquinone standard at 1 mL/min; monitor peak-area RSD–values above 3 % indicate lamp drift, flow-cell contamination, or temperature instability. For dual-channel setups, cross-correlate UV absorbance at 254 nm and fluorescence at 325/400 nm every 10 scans; a Pearson r
