A high-performance spectral emitter relies on precise electrode arrangement and gas-fill dynamics to generate narrow atomic emission lines. The core component, a cylindrical metal shell acting as the negative terminal, faces a centrally positioned positive electrode separated by an insulating sheath. Typical arc gaps range from 2 to 5 millimeters, adjusted based on target element volatility–narrower gaps suit low-energy transitions (e.g., mercury at 185 nm), while wider separations prevent excessive sputtering in refractory metals (e.g., tungsten, molybdenum).
Inert gas selection directly impacts signal stability and operational lifespan. Neon at 1–5 torr pressure dominates for non-reactive metals (copper, zinc), offering strong line intensity with minimal self-absorption. Argon, though cheaper, increases sputtering rates and shortens tube life for elements like lead or nickel. Helium, rarely used, enables ultra-vacuum sealing but demands tighter process controls due to higher ionization potential (24.6 eV vs. neon’s 21.6 eV). Always verify pressure specifications against manufacturer data–deviations above ±0.5 torr degrade reproducibility.
Current modulation determines spectral output quality. Pulsed direct current at 1–20 mA (50–400 Hz) optimizes signal-to-noise ratios for trace analysis, while continuous wave modes (≤ 10 mA) extend filament longevity. Overdriving above 25 mA accelerates metal deposition on the glass envelope, causing baseline drift. Use precision current regulators with ≤0.1% ripple for sub-ppm detection limits. For volatile elements (e.g., arsenic, selenium), reduce duty cycle to 30–50% to prevent thermal overload.
Material purity of the electrode dictates detection sensitivity. Zone-refined metals (99.999% purity) minimize matrix effects from transition elements like iron or chromium, which broaden emission profiles. Precondition new tubes at elevated currents (1.5× nominal) for 30–60 minutes to stabilize oxide layers on the metal surface. Failure to do so introduces erratic calibration shifts during initial runs. For multi-element designs, separate fill gases per cathode or risk cross-contamination–neon for copper/lead pairs, argon for cadmium/silver combinations.
Optical alignment requires strict geometric tolerances. The window aperture (typically 9–12 mm) must fully expose the active arc region without fringe effects. Collimating lenses with NA ≤ 0.2 reduce stray light, especially critical for far-UV lines (<250 nm). Replace fused silica windows if transmission drops below 80% at 200 nm–even minor contamination from sputtered deposits scatters photons asymmetrically. For dual-beam systems, ensure matched optical paths (±0.1 mm) to prevent intensity mismatches between reference and sample channels.

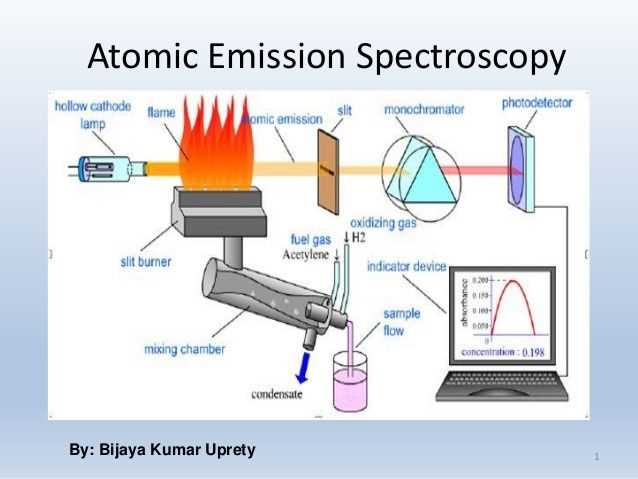

Visual Representation of Gas Discharge Light Sources
Begin by identifying the core components: the cylindrical electrode, commonly machined from high-purity metals like copper, zinc, or chromium, serves as the primary emission source. Position it at the center of a sealed glass enclosure, ensuring it aligns precisely with the anode ring–typically a tungsten wire–located at the opposite end. The gas filling, usually neon or argon at pressures between 1–5 torr, must be meticulously selected to match the target element to avoid spectral interference.
Use a regulated DC power supply, delivering 10–30 mA at voltages up to 500V, to sustain a stable glow discharge. The power input should be adjusted so the plasma confines itself within the electrode’s cavity, maximizing atomic excitation efficiency. Avoid exceeding 10% of the lamp’s maximum rated current to prevent cathode sputtering, which degrades performance and shortens lifespan.
Maintaining Optical Purity
Coat the inner surface of the glass envelope with a thin layer of magnesium fluoride or similar anti-reflective material to minimize stray light and enhance spectral line transmission. Ensure the optical window–often quartz–is free of scratches or residue, as these defects distort the emitted wavelengths, critical for spectroscopic accuracy.
For optimal signal-to-noise ratios, position the detector within 50 mm of the emission source. Use a monochromator with a bandpass narrower than 0.2 nm to isolate the desired spectral lines, particularly when analyzing trace elements where interference from adjacent lines can obscure results.
Troubleshooting Common Failures
If the discharge flickers or fails to ignite, check for gas leaks first–even a 0.01% contamination by air can quench the plasma. Test the seal integrity with a helium leak detector or by submerging the unit in water while monitoring for bubbles under vacuum pressure. Replace the lamp if sputtering deposits are visible on the glass, as this indicates irreversible cathode erosion.
To extend operational life, implement a duty cycle that limits continuous operation to 30-minute intervals, allowing the cathode to cool between uses. Store units in a dry, inert environment (e.g., nitrogen-purged containers) to prevent oxidation of metal components, which degrades emission intensity over time.
Key Components and Their Functions in a Spectral Light Source
Select a cylindrical metal electrode made of the target element–copper for copper analysis, nickel for nickel detection–to ensure emission lines match the sample’s absorption spectrum. Impurities in the electrode material distort measurements, so purity levels of 99.9% or higher are mandatory.
The glass or quartz envelope contains inert gas–typically argon or neon–at low pressure (1–5 torr). Argon enhances sensitivity for most metals, while neon improves stability for volatile elements. Prefer quartz for wavelengths below 300 nm to prevent absorption losses.
- Argon: Lower excitation energy, better for elements like iron, zinc.
- Neon: Higher excitation potential, ideal for alkali metals (lithium, sodium).
Apply 100–400 V DC between the inner electrode and the anode ring to initiate glow discharge. Current should stabilize at 5–20 mA–exceeding 30 mA risks electrode sputtering and shortened lifespan. Use a current-regulated power supply to maintain consistent photon output.
The anode, often a tungsten wire or ring, must be positioned to avoid obstructing the optical path. Its role is purely electrical: completing the circuit without interfering with emitted radiation. Inadequate spacing (less than 5 mm) leads to arc formation, while excessive distance increases voltage requirements.
- Position the anode 3–7 mm from the electrode.
- Ensure insulated mounting to prevent short circuits.
- Avoid sharp edges to minimize corona effects.
For multi-element analysis, use a composite electrode or a dedicated source for each element. Overlapping emission lines from different metals–e.g., lead and arsenic–can lead to false positives. Replace single-element sources every 1,000 operating hours or when intensity drops below 50% of initial levels.
Integrate a fused silica window with transmittance above 85% at the target wavelength. Common antireflective coatings–MgF₂ or SiO₂–improve efficiency but require cleaning with isopropyl alcohol every 100 hours. Scratches or deposits on the window reduce signal-to-noise ratio by scattering light.
Monitor intensity drift by observing the baseline signal. A stable source should fluctuate less than 1% over 30 minutes. If drift exceeds 3%, check for gas leakage (causes erratic output), cathode contamination (results in weak lines), or power supply instability (leads to inconsistent currents). Replace components only after isolating the fault via voltage-current checks and gas pressure readings.
Precision Guide to Building an Emission Source Device
Select a cylindrical glass envelope with a diameter between 20–35 mm and a length of 80–120 mm. Optical-grade borosilicate is critical–verify a thermal expansion coefficient below 3.3×10-6/K to prevent microfractures during thermal cycling. Clean the interior with ultra-pure acetone followed by isopropyl alcohol vapor degreasing; residual contaminants above 0.1 μg/cm2 distort spectral output.
Position the metal electrode–typically 99.99% pure–along the central axis, ensuring a clearance of 2–5 mm from the envelope walls. Secure it with tungsten rods (diameter 1.0–1.5 mm) brazed at both ends using a silver-copper eutectic alloy (72Ag/28Cu) applied at 780°C in an argon atmosphere. The brazing joint must withstand pulsed currents up to 40 mA without resistance drift exceeding 0.01 Ω. Verify alignment with laser interferometry–deviation beyond ±0.05 mm introduces mode-hopping artifacts in wavelength stability.
Gas Fill and Seal Protocol
- Evacuate the envelope to -6 Torr using a turbo-molecular pump backed by a dry scroll pump–rotary vane pumps introduce hydrocarbon backstreaming.
- Introduce neon or argon at 2–6 Torr, measured via a capacitance manometer with ±0.02% accuracy. Use Ne-20 (99.999% isotopic purity) for spectral lines below 300 nm; Ar-40 for broader emission profiles.
- Seal via localized CO2 laser heating at the pinch-off point–glass viscosity must drop to 104 Pa·s for a hermetic fusion bond. Post-seal helium leak testing should confirm -9 atm·cm3/s leakage.
Mount the assembly in a thermally conductive aluminum block (5–8 W/m·K) with beryllium oxide spacers at the electrode feedthroughs. Apply a 30-minute burn-in at 1.5× rated current (e.g., 20 mA for a 10 mA device) to stabilize sputtered metal deposition on the envelope interior–monitor spectral shift in real-time with a Fabry-Pérot etalon. Post-burn-in drift should not exceed 0.1 pm/hour for reference-grade stability. Store in nitrogen-purged containers; moisture above 5 ppm accelerates electrode oxidation.
