Begin by verifying solvent delivery accuracy–fluctuations above ±0.5% reduce retention time reproducibility. Use a dual-piston pump with 10 µL stroke volume for gradient stability, particularly at low flow rates (0.1–0.5 mL/min). Pre-columns (3–5 µm particle size) eliminate particulate contamination before the analytical column, extending its lifespan beyond 500 injections without pressure spikes.
Select a chemically bonded phase column based on analyte polarity: C18 for non-polar compounds (logP > 2), phenyl-hexyl for aromatic rings (π-π interactions), or cyano for mid-polarity separations (logP 0–2). Column dimensions (100×4.6 mm, 3 µm) offer a balance between resolution (Rs ≥ 1.5) and analysis time (under 10 minutes for simple mixtures). Temperature control (±0.1°C) prevents retention drift; use a Peltier-controlled column oven for sub-ambient separations.
UV-Vis detectors should operate at ≤ 0.0005 AU noise level for reliable quantification. For compounds lacking chromophores, employ refractive index (sensitivity ~10-6 RIU) or evaporative light scattering detectors (mass-sensitive, independent of chromophores). Set detector time constant to
Mobile phase composition critically impacts selectivity. For reversed-phase separations, start with water/acetonitrile (50:50 v/v) adjusted to pH 3.0 with formic acid (buffer capacity ≥0.1 M). Avoid phosphate buffers above pH 7.5–silica dissolution accelerates, degrading column performance. Replace solvents weekly if stored at room temperature; dissolved gases form bubbles, causing pump cavitation.
Sample preparation matters more than instrument tuning. Use 0.2 µm PTFE filters to remove particulates; contaminants co-eluting with analytes distort peaks. For biological samples, protein precipitation (acetonitrile 3:1 v/v) followed by centrifugation (10,000×g, 10 min) reduces column fouling. Autosamplers with

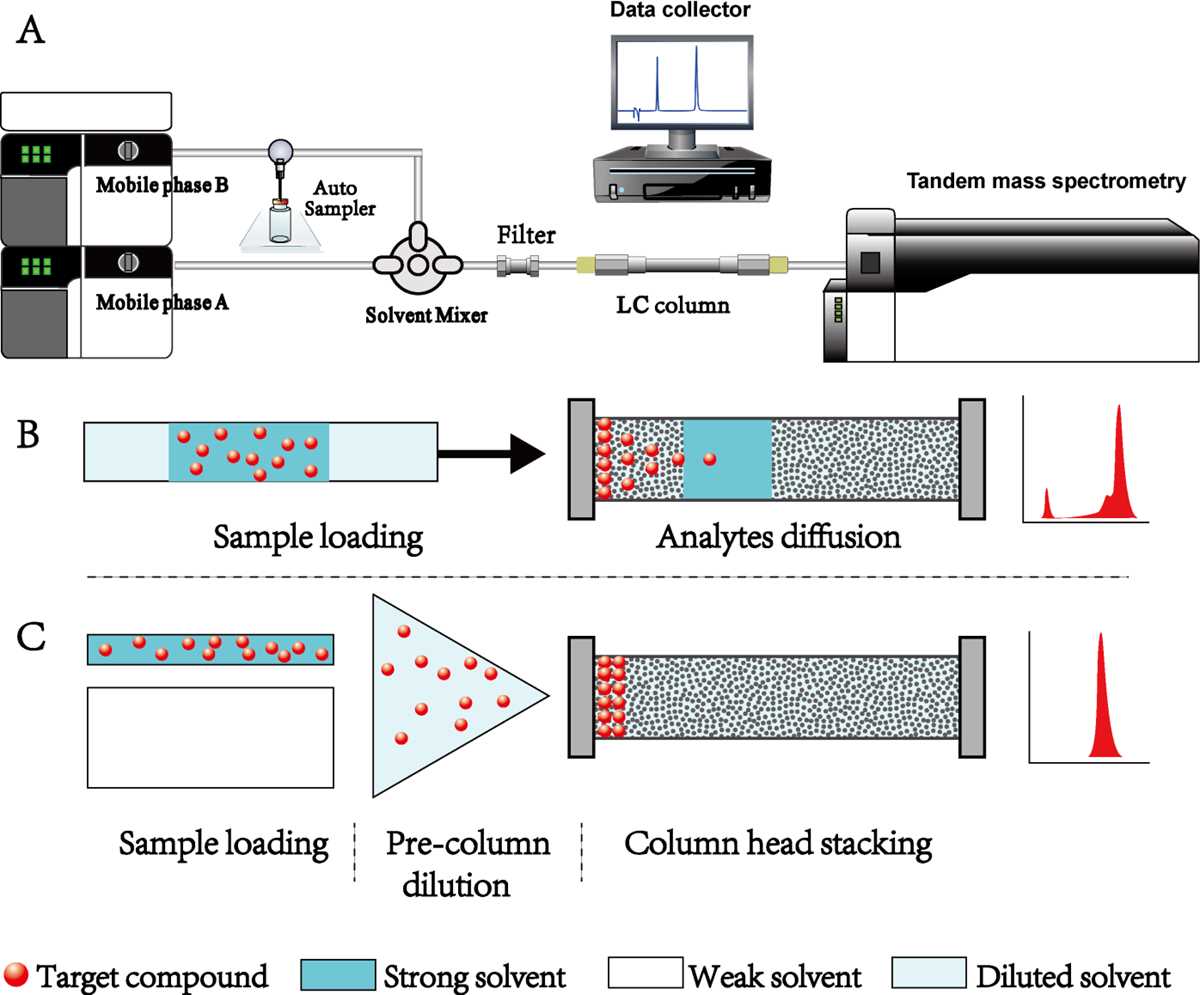

Visual Representation of HPLC Components
Position the mobile phase reservoir at the inlet of the system–ensure tubing connects directly to a degasser to eliminate dissolved gases that distort retention times. Use a pulsation-free pump (preferably dual-piston) to maintain constant flow rates between 0.1–10 mL/min, critical for reproducible separations. Install an in-line pressure gauge immediately downstream to monitor backpressure; spikes above 6,000 psi indicate column blockages or improper solvent compatibility.
Place the autosampler injector valve upstream of the analytical column–opt for a fixed-loop design with 1–20 µL capacity to minimize sample carryover. For gradient elution, program the pump to mix solvents A and B at ratios defined by method requirements (e.g., 5–95% organic modifier over 20 minutes). Preheat mobile phase to 35–45°C using a column oven to enhance efficiency and peak symmetry, reducing viscosity effects.
Column Selection and Detector Placement
Select a stationary phase based on analyte properties: C18 for nonpolar compounds (100–300 mm length, 2.1–4.6 mm ID, 1.7–5 µm particle size), HILIC for polar metabolites, or ion-exchange for charged species. Connect the column outlet to a UV-Vis detector with 8–12 µL flow cell for optimal sensitivity; for low-wavelength detection (
Route waste to a collection vessel labeled with solvent compatibility–segregate acetonitrile and methanol streams to simplify disposal. For method validation, inject standards at 0.1–1% of column load capacity to avoid overload; calculate resolution (Rs) between critical pairs using Rs = 2(t₂–t₁)/(w₁+w₂), targeting Rs ≥ 1.5 for baseline separation. Store data acquisition parameters (e.g., sampling rate >10 Hz) to capture narrow peaks (
Core Elements of a Precision Separation System and Their Roles
Select a solvent delivery unit with dual-piston pumps to eliminate pulsation and maintain flow precision at ±0.1%. Use inert materials like PEEK or titanium for wetted parts to prevent corrosion when analyzing acidic, basic, or reactive samples. Configure gradient elution with high-pressure mixing valves for binary or quaternary solvent systems–avoid low-pressure configurations if reproducibility below 0.5% RSD is required. Install inline filters (2–5 µm) before the column to trap particulates, extending column life by 30–40%.
Critical Modules and Specifications
| Component | Function | Optimal Specifications | Failure Impact |
|---|---|---|---|
| Degasser | Removes dissolved gases (O₂, N₂) from mobile phase | Vacuum membrane type; 4-channel; 0.5 mL/min flow rate | Baseline noise, ghost peaks, column damage |
| Injector | Introduces sample with minimal dispersion | Fixed-loop autosampler; 0.1–100 µL; | Peak tailing, irreproducible retention times |
| Column | Separates analytes via chemical interactions | Stainless steel, 2.1–4.6 mm ID, 3–5 µm particle size (sub-2 µm for UHPLC) | Poor resolution, backpressure fluctuations |
| Detector | Converts analyte concentration to electrical signal | UV-Vis (190–700 nm); diode array for spectral confirmation; | Undetected low-concentration compounds, false negatives |
Thermostat columns at 30–60°C (±0.1°C) to stabilize retention times–temperature deviations above 1°C cause 2–5% shifts in peak elution. Replace UV lamp annually or when energy output drops below 80% to prevent decreased sensitivity. For electrochemical detectors, use glassy carbon electrodes and polish weekly with alumina slurry to remove fouling. Implement 0.22 µm in-line filters post-column if using ion-pairing reagents or buffers with high salt concentrations to prevent detector cell blockage.

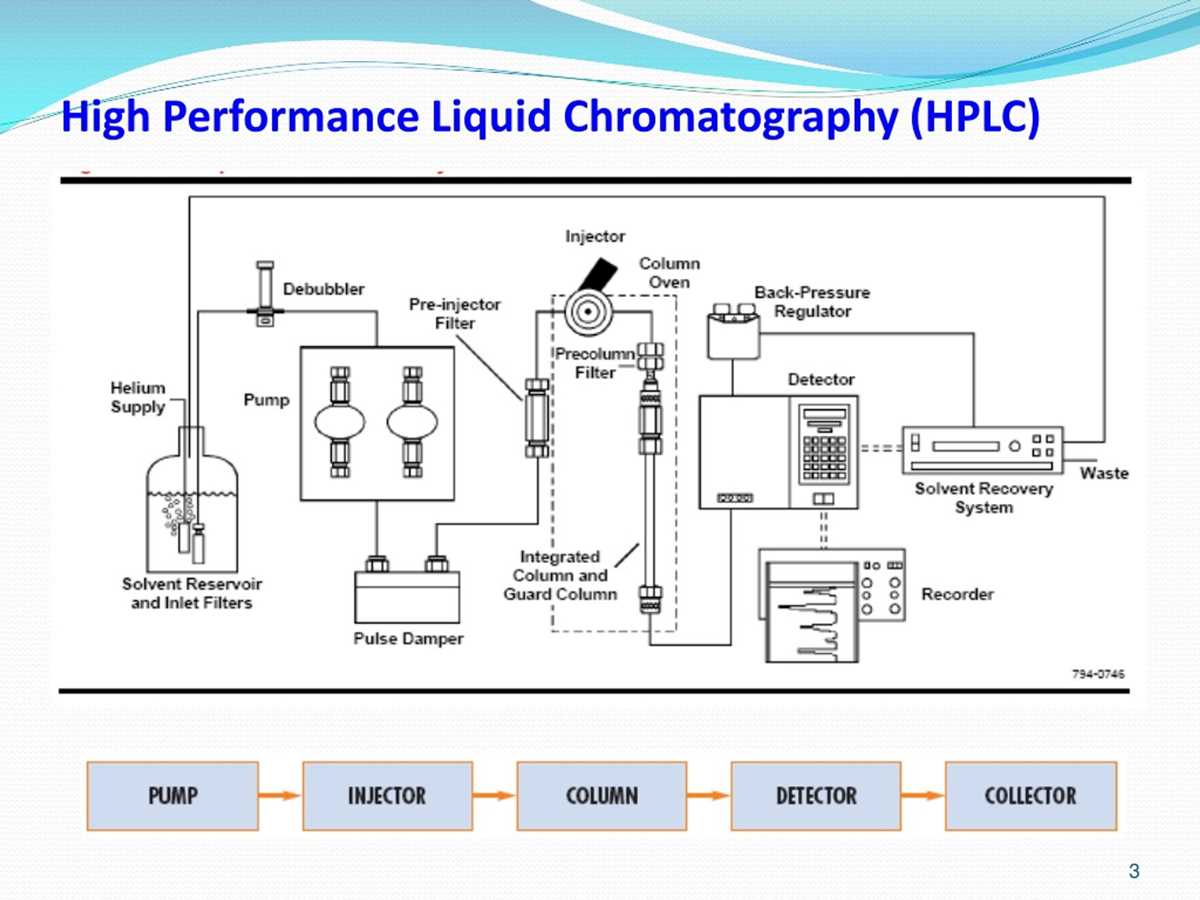

Mobile Phase Journey Through Separation System Components
Start with solvent reservoirs–select vessels resistant to chemical corrosion (borosilicate glass or PTFE-coated stainless steel). Two or more separate containers allow gradient elution; ensure each holds at least 500 mL for prolonged runs. Label them distinctly to prevent cross-contamination, especially when switching between polar and non-polar solvents.
Position the pump downstream of the reservoirs–dual-piston reciprocating pumps are industry standard. Set flow rates between 0.1 and 5.0 mL/min with precision: deviations exceeding ±0.5% compromise retention time consistency. Use inline degassers or helium sparging to eliminate dissolved gases; trapped air bubbles distort baseline stability and reduce detector sensitivity.
Injection and Sample Introduction
Connect the injector to the pump’s outlet. Manual injectors require fixed-loop configurations (common loop volumes: 5–100 µL) or autosamplers for high-throughput assays. Clean syringe needles between samples–residual carryover below 0.01% necessitates needle wash cycles with solvent blends matching the mobile phase composition. In autosamplers, program three washes: organic, aqueous, and a final flush at 1:1 ratio.
Route the sample into the column’s inlet–guard columns protect analytical columns from particulate matter. Choose columns based on analyte polarity: C18 for reversed-phase separations, amine-bonded for saccharides, or HILIC for polar metabolites. Maintain column temperature via a controlled oven (±0.1°C), as temperature shifts alter retention factors unpredictably.
- Entering the column: Mobile phase viscosity influences backpressure (
- Within the column: Stationary phase particle size ranges from 1.7 µm (sub-2 µm for UHPLC) to 5 µm (standard bore). Smaller particles improve resolution but require higher operating pressures. Monitor column efficiency via theoretical plates; values below 50,000/m indicate bed degradation.
- Exiting the column: Post-column, add scavenger solvent (if applicable) to stabilize reactive analytes–common additives include 0.01% formic acid or ammonium acetate for ion suppression. Delay volumes between column and detector must be minimized (

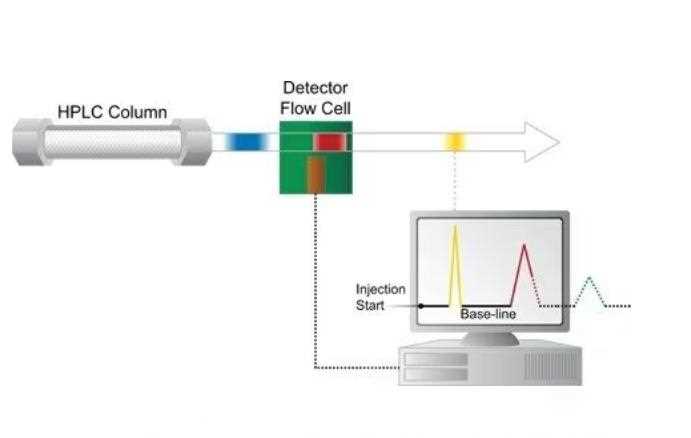

Detectors follow the separation path–UV-Vis spectrophotometers dominate (wavelength range: 190–800 nm). Set absorbance units to milli-absorption units (mAU) with time constant ≤0.1 sec for sharp peak definition. Refractive index detectors offer universal response but lack sensitivity; evaporative light scattering detectors suit non-volatiles lacking chromophores.
Final waste disposal: Collect fractions in pre-cleaned glass vials if analyte recovery is required. Route non-target eluents to dedicated waste containers–chlorinated solvents demand separate disposal per regulatory protocols. For gradient runs, equilibrate the system back to initial conditions (minimum 5 column volumes) before subsequent injections to ensure reproducible baselines.

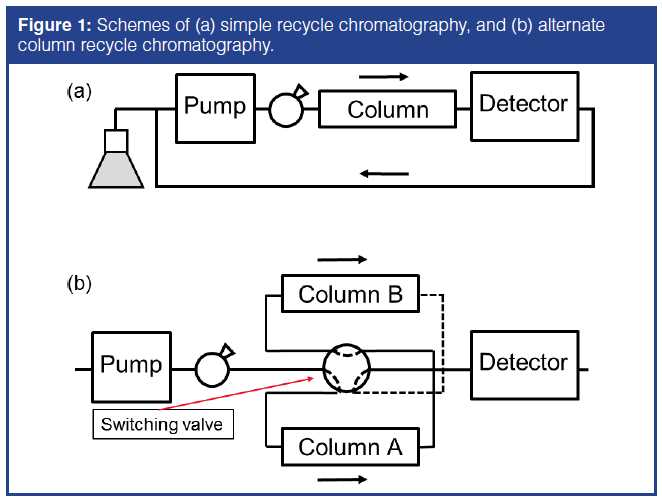

Decoding Pump and Injector Symbols in Analytical Flow System Blueprints
Identify pump symbols by their standardized representations: a circular motor icon with a piston or diaphragm symbol inside. Single-head pumps show one piston, while dual-head models display two staggered pistons to indicate continuous flow delivery. Check for directional arrows–these specify the path of the mobile phase, critical for troubleshooting flow disruptions.
Locate the pressure transducer symbol adjacent to the pump output. It appears as a diagonal line intersecting a circle, often annotated with “kPa” or “bar” units. This component monitors system pressure; deviations from expected values signal blockages in the solvent line or faulty check valves. Compare observed pressure with the method’s target range immediately.
Injector symbols typically combine a syringe icon with a rotary valve illustration. A six-port valve shows numbered positions–align the sample loop volume with the method requirements. Position 1 (load) directs the sample into the loop; Position 2 (inject) routes the mobile phase through the loop, flushing the sample onto the column. Verify the valve’s position against the run method to avoid misinjections.
Examine the following common injector symbols and their implications:
- Fixed-loop: Shows a single sample loop; volume is static, requiring precise syringe calibration.
- Variable-loop: Depicts an adjustable loop, often with a micrometer screw symbol; allows flexible sample volumes but demands recalibration after adjustments.
- Autosampler: Illustrated with a robotic arm or vial tray icon; confirm the sampling sequence matches the method’s programmed injections.
Check for fluidic resistance warnings near the injector. Symbols like jagged lines or a resistor icon indicate restricted flow zones–proactively replace worn rotor seals or clean blocked channels. Ignoring these can cause retention time shifts or peak splitting in the detector output.
Avoid interpreting symbols in isolation. Trace the flow path from the solvent reservoir through the pump, injector, column, and detector. Confirm each component’s connection aligns with the blueprint’s annotated tubing IDs (e.g., 0.17 mm for narrow-bore systems). Mismatched IDs alter backpressure and separation efficiency.
Troubleshooting Symbol Annotations
Recognize these critical warnings embedded in symbols:
- Red dagger: High-pressure threshold breach; reduce flow rate or inspect for clogged guard columns.
- Yellow exclamation: Leak detection at tubing fittings; tighten or replace ferrules.
- Dashed circle: Degasser unit; ensure it’s active for gradient methods to prevent air bubble artifacts.
Cross-reference the blueprint with manufacturer manuals. Pumps may use proprietary symbols–for example, a gear icon might denote a gradient proportioning valve, absent in isocratic systems. Document all discrepancies between the blueprint and physical setup, especially for audited workflows.
