Before assembling equipment, define the column volume needed–1 mL per 1 mg of sample ensures optimal resolution. Pre-swell stationary phase in buffer matching the final separation conditions to prevent void shifts mid-run. Packing at 0.5 mL/min with a syringe pump reduces channeling, critical for maintaining symmetry in elution peaks.
Attach the column vertically, securing inlet tubing 2 cm above the packed bed to minimize turbulence. Use PTFE tubing (0.3 mm ID) for connections; larger diameters introduce band broadening. Equilibrate with 2–3 column volumes of buffer before sample injection–residual salts distort molecular weight estimates by altering osmotic gradients.
Apply sample in a volume <2% of total column volume; larger injections merge adjacent peaks. Elute at linear flow rates of 10–15 cm/hr–slower speeds improve resolution but increase dilution, while faster rates compress separation between high- and low-molecular-weight species. Monitor absorbance at 280 nm; aromatic residues produce sharp signals, while polysaccharides require 214 nm detection.
For molecular weight estimation, calibrate with standards spanning 10–600 kDa. Plot retention volume against log(MW); deviations from linearity indicate nonspecific interactions with the matrix. Replace the matrix after 5–10 runs if resolution degrades–fouling by lipids or nucleic acids reduces pore accessibility by up to 40%.

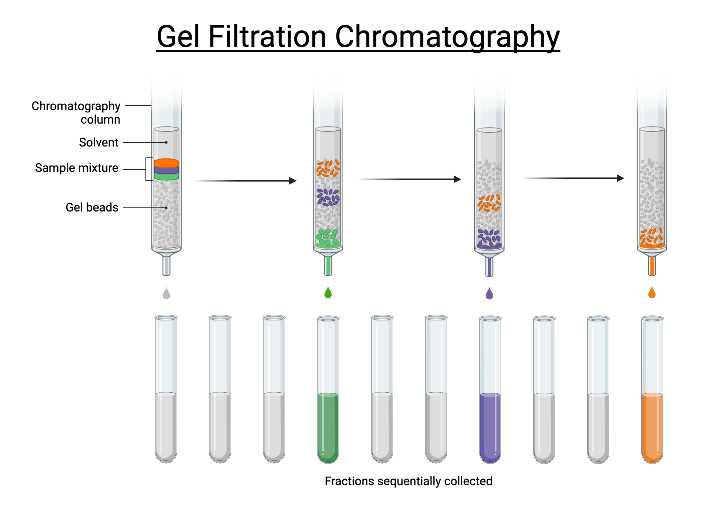

Visual Representation of Size-Exclusion Separation Technique
Begin by sketching the column as a vertical cylinder with clearly defined inlet at the top and outlet at the base–this forms the core of the separation workflow. Label the stationary phase medium as a porous matrix packed uniformly, ensuring pore sizes correspond to the molecular weight range of target analytes.
Depict sample introduction by illustrating a concentrated band of mixed molecules entering the column’s upper section. Use distinct colors or shapes for molecules: larger particles (e.g., >500 kDa) should bypass pores entirely, while mid-sized (10–500 kDa) and smaller (
Show elution order with arrows: largest components exit first, followed by mid-range, then smallest. Indicate this staggered progression along the column’s length, emphasizing how residence time inversely correlates with molecular dimensions. For accuracy, label retention volumes (Ve) for each fraction, referencing standard curves of known standards.
Critical adjustment: Scale pore exclusion limits to your sample’s properties–e.g., Sephadex G-75 resolves 3–80 kDa, while Superdex 200 targets 10–600 kDa. Overlay calibration data directly on the illustration to correlate elution peaks with hydrodynamic radii.
Include a detector at the outlet, illustrating absorbance (280 nm) or refractive index signals as Gaussian peaks. Peak separation should reflect baseline resolution (≥1.5 Rs) for optimal purity. Annotate void volume (V0) where non-interacting species elute, typically 30–40% of total column volume.
For troubleshooting, add annotations on common artifacts: tailing (poor packing), leading (sample overload), or merged peaks (inadequate pore size). Specify flow rates–0.3–1.0 mL/min for analytical scales, adjusted for pressure limits (
Integrate buffer composition (e.g., 50 mM Tris-HCl pH 7.4, 150 mM NaCl) to maintain ionic strength, preventing non-specific interactions. Highlight additives like 10% glycerol for labile proteins or 0.1% sodium azide for long-term storage.
Conclude with fraction collection zones: large molecules in early tubes, small components in later volumes. Add a reference to recovery calculations–typically 90–98% for well-optimized runs–and note sensitivity to injection volume (≤2% of column volume to avoid band broadening).
Core Elements of a Size-Exclusion Separation System
Select a resin with pores calibrated to the 5–500 kDa range for optimal fractionation of proteins. Cross-linked dextran, agar, or acrylamide matrices offer distinct resolution windows: Superdex™ (1–300 kDa), Sepharose™ (4–20 MDa), and Bio-Gel® P (1–400 kDa). Match the bead diameter–typically 25–150 μm–to balancing flow rate and backpressure; smaller beads improve resolution but require lower linear velocities (0.1–1 mL/min).
Pack the column to a bed height of 15–100 cm to achieve baseline separation between analytes differing by ≥10 % in molecular weight. Use a 1–2 cm diameter tube for lab-scale runs; industrial prep columns scale up to 10–50 cm widths. Validate packing uniformity by injecting a 1 % acetone pulse and monitoring UV absorbance symmetry at 280 nm; asymmetry factor (As) must fall between 0.9–1.2.
Equilibrate the bed with 2–5 column volumes of running buffer before sample injection. Phosphate, Tris-HCl, or HEPES buffers (pH 6–8, 20–150 mM) minimize non-specific adsorption. Add 0.1–0.5 M NaCl to suppress ionic interactions if resin carries residual charges. Degassing buffer under vacuum or sonication prevents air bubble formation during extended runs.
- A peristaltic pump delivering 0.1–5 mL/min ensures pulse-free flow; dual-head models synchronize sample injection and fraction collection.
- Inline UV detector set at 215 nm (peptide bonds) or 280 nm (aromatic residues) tracks elution profiles; diode-array detectors enable simultaneous multi-wavelength scans.
- Conductivity and pH probes verify running buffer consistency; abrupt shifts (>2 %) indicate leaks or buffer depletion.
Sample viscosity must not exceed twice the running buffer viscosity to avoid band broadening. Inject 1–5 % of the bed volume (50–500 μL for a 10 mL column) at a concentration below 20 mg/mL to prevent overloading. If viscosity is unavoidable, pre-filter through a 0.2 μm membrane to remove aggregates that skew elution volumes.
- Fraction collector programmed in time (0.5–5 min/tube) or drop-count mode (50–200 drops/tube) captures 1–5 mL fractions.
- Autosamplers with cooling (4 °C) prevent protein degradation during overnight runs.
- Post-run cleaning: flush with 1 M NaOH for 30 min, then re-equilibrate with 3 column volumes of water followed by running buffer.
Temperature control at 4–25 °C stabilizes labile analytes. A jacketed column or ambient air-conditioned cabinet prevents thermal drift; every 1 °C shift alters the Stokes radius by ~1 %. For DNA-protein complexes, reduce temperature to 0–4 °C to minimize dissociation.
Calibrate the system weekly using a standard mix: bovine thyroglobulin (670 kDa), bovine γ-globulin (150 kDa), chicken ovalbumin (44 kDa), equine myoglobin (17 kDa), and vitamin B12 (1.35 kDa). Plot Kav = (Ve – Vo)/(Vt – Vo) against log Mw to generate a calibration curve; regression (R² ≥ 0.98) confirms pore size functionality.
Step-by-Step Assembly of the Column Packing Process
Use a slurry reservoir with a volume at least 2–3 times the column bed height to prevent resin settling during transfer. Pre-swell the separation matrix in degassed buffer (20 mM Tris-HCl, pH 7.5, 150 mM NaCl) under gentle agitation for 3–4 hours at 4°C–avoid stirring to prevent bead fracture. Before assembly, sanitize the column (borosilicate glass or PEEK) with 0.5 M NaOH for 1 hour, followed by a 10-column-volume rinse with ultrapure water to remove traces of alkali.
- Secure the column vertically using a clamp stand; check for air bubbles in the lower flow adapter by inverting it while submerged in buffer. Bubbles larger than 0.2 mm diameter compromise resolution–tap the adapter sharply to dislodge.
- Attach the bottom flow adapter, ensuring the opening is fully submerged in buffer to avoid air entrapment. Tighten the adapter but leave a 1° rotational slack to allow fine positional adjustment later.
- Pour the pre-swelled slurry into the reservoir in a single, continuous motion, avoiding splashing. Let the matrix settle under gravity for 5 minutes before opening the outlet valve at a linear flow rate of 5 cm/h–monitor the meniscus decline with a ruler; deviations exceeding ±1 mm indicate uneven packing.
- After initial settling, increase the flowrate to 20 cm/h for 1 hour to compress the bed. Observe the bed height; it should stabilize within 1–2% of the column diameter. If shrinkage exceeds 3%, stop immediately–re-evaluate slurry concentration (ideal: 30–40% settled bead volume).
- Equilibrate the packed bed with 5 column volumes of running buffer (10 mM phosphate, 100 mM KCl, pH 6.8) at 15 cm/h while checking UV absorbance at 280 nm. Baseline drift >0.02 AU signals incomplete equilibration–prolong rinsing until stable.
Maintain a packing temperature between 18–22°C; deviations alter bead compressibility, risking channel formation or overpacking. For columns >2 cm diameter, layer the bed in increments of 1.5x column height; pause 10 minutes between additions to allow intermediate stabilization. Store the packed column at 4°C in 20% ethanol if not used immediately–PEG 8000 (0.02%) may be added to prevent microbial growth, but exclude sodium azide if downstream applications involve sensitive proteins or enzymatic assays.

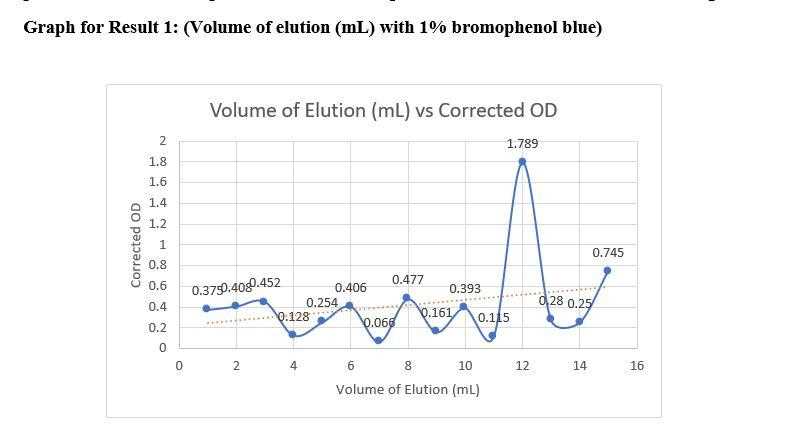

Interpreting the Elution Profile and Peak Identification
Begin by analyzing the retention volume (Ve) of each peak relative to the column’s void volume (V0) and total bed volume (Vt). A peak eluting at ~1.0×V0 indicates high-molecular-weight species excluded from the porous matrix, while those appearing between 0.2–0.8×(Vt–V0) correspond to molecules penetrating pores to varying degrees. Verify peak symmetry: fronting or tailing suggests adsorption artifacts or sample overloading–recent studies show reducing sample mass by 30% often restores Gaussian distribution. For multi-component mixtures, label peaks sequentially as P1 (earliest) through Pn (latest), then cross-reference with molecular weight standards (e.g., dextrans, proteins) run under identical conditions.
Resolving Overlapping Peaks
When peaks partially coalesce, apply deconvolution using nonlinear least squares fitting (e.g., Gaussian or Lorentzian models). A resolution (Rs) below 0.5 warrants intervention: increase column length by 50% or switch to a smaller particle size (e.g., 10 μm → 5 μm) to enhance separation efficiency. Monitor peak purity via on-line detectors–UV absorbance ratios at 220/280 nm reveal protein contaminants, while refractive index shifts indicate polysaccharide impurities. For complex samples, fractionate eluent into 0.3–0.5 CV aliquots and re-analyze offline to confirm component identity.
Normalize peak areas by plotting absorption (A280 or A215) against Ve/V0. For oligomeric assemblies, expect peak splitting: a monomer-dimer equilibrium typically yields two peaks with a 2:1 area ratio, while higher-order species follow predictable quaternary stoichiometry. Validate using orthogonal methods–dynamic light scattering or analytical ultracentrifugation–where hydrodynamic radii (Rh) should correlate with elution order: earlier peaks correspond to larger Rh values. Document unexpected deviations: early elution of small analytes may signal ionic interactions with the matrix, while late elution suggests hydrophobic adsorption–adjust buffer ionic strength (≥50 mM) or pH (±0.5 units) to disrupt these interactions.
