For accurate force-to-voltage conversion, integrate a load cell with a Wheatstone bridge configuration. Use four strain gauges arranged in a full-bridge setup: two gauges in tension and two in compression. This eliminates thermal drift and self-canceling nonlinearities. Select gauges with a gauge factor of 2.0 ±0.1% and resistance values between 350Ω and 1kΩ to balance sensitivity and noise immunity. Power the bridge with 5V DC for stability–avoid higher voltages to prevent self-heating errors exceeding 0.02% FS/°C.
Amplify the differential output with an instrumentation amplifier, preferably an AD620 or INA125, offering 120dB CMRR at 60Hz. Set gain between 100 and 1000 using a precision resistor network–±0.1% tolerance resistors (e.g., RN60C) minimize ratio errors. Add a 20Hz low-pass filter to the amplifier output to suppress electromagnetic interference from nearby transformers or motors, which can introduce ±0.5µV noise per volt of excitation.
Digitize the analog signal with a 24-bit delta-sigma ADC like the ADS1232. Configure the ADC’s data rate to 10 samples/second–faster rates increase quantization noise, while slower rates risk missing transient loads. Include a 1nF polyester film capacitor between the ADC’s reference pins to stabilize the voltage reference against short-term fluctuations. For power supply decoupling, use a 10µF tantalum capacitor in parallel with a 0.1µF ceramic capacitor near the ADC’s VDD pin to suppress ≤50mVpp ripple.
Route signal traces with ≥0.2mm width and ≥0.3mm clearance from high-current paths to avoid capacitive coupling. Use a ground plane beneath analog components to reduce loop area and maintain impedance below 0.1Ω. Separate analog and digital ground planes beneath the ADC and microcontroller, connecting them at a single star point near the ADC’s AGND pin–this prevents ground bounce from disrupting measurements.
Calibrate the system by loading the 0% FS (no load) and 100% FS points with traceable masses. Apply linear regression to the ADC counts to derive coefficients for offset and span correction. Store these in EEPROM–factory defaults often drift ±0.1% FS/year due to hysteresis in the load cell. Implement a 10-point moving average in firmware to smooth readings: abrupt changes exceeding 0.2% FS may indicate mechanical binding or electrical faults.
Key Components in a Precision Weight Measurement Circuit
Begin with a high-precision load cell, preferably a strain gauge type with a sensitivity of at least 1 μV/V per gram. Select a wheatstone bridge configuration to maximize linearity and minimize thermal drift–opt for models with built-in temperature compensation if the application spans extreme environments. Pair this with an instrumentation amplifier with a gain ranging from 100 to 1000, ensuring it has a common-mode rejection ratio (CMRR) above 120 dB to reject noise.
For analog-to-digital conversion, integrate a 24-bit delta-sigma ADC like the AD7190 or LTC2440, which achieves effective resolution down to 0.1 μg in controlled setups. Clock the ADC at a stable frequency between 50 kHz and 200 kHz–higher speeds reduce conversion time but may introduce jitter; lower speeds improve noise performance but slow readings. Use a low-dropout regulator (LDO) to supply 3.3V or 5V to the ADC, ensuring ripple stays below 1 mV peak-to-peak.
Grounding strategy separates analog and digital returns, merging them only at a single star point near the power source. Route high-impedance sensor traces away from switching regulators and microcontroller I/O to avoid capacitive coupling. Shield all signal paths with copper pours tied to analog ground, reducing electromagnetic interference by up to 30 dB in noisy environments.
Critical Signal Chain Parameters
| Component | Specification | Tolerance | Impact If Exceeded |
|---|---|---|---|
| Load Cell Excitation | 5 VDC ± 0.01 V | ± 0.2% | Linearity error > 0.05% |
| Instrumentation Amp CMRR | > 120 dB | ± 6 dB | Noise floor rises 5× |
| ADC Sample Rate | 10–50 Hz | ± 5% | Update lag > 200 ms |
| Temperature Coefficient | ± 1 ppm | Drift > 5 μg per 10 °C |
Microcontroller selection hinges on interrupt latency–avoid cores slower than 72 MHz if displaying dynamic results. Implement an IIR filter in firmware to smooth readings; a first-order Butterworth at 2 Hz cutoff rejects power-line hum while preserving step response under 150 ms. Calibration requires at least four reference masses–two near zero, two near full scale–to correct for both offset and gain errors algorithmically using least-squares fitting.
Mechanical integration mounts the load cell on a rigid aluminium plate, preferably 10 mm thick, to prevent flex-induced errors. Vibration damping employs Sorbothane pads with durometer 40–70, reducing settling time to under 500 ms after a 100 g load change. For portable units, a single LiPo cell suffices if coupled with a buck-boost converter maintaining output within ± 2 mV–battery sag below 3.6 V corrupts ADC readings.

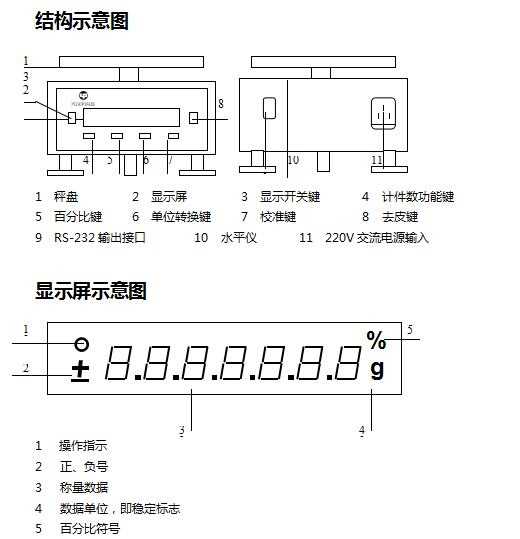

Identifying Critical Parts in Precision Weighing Device Circuits
Begin by locating the load cell–the core sensing element transforming mechanical force into electrical signals. Verify its placement near the platform where samples rest, ensuring it connects to four wires: excitation (+/-) and signal (+/-). Measure resistance between excitation terminals; typical values range from 350Ω to 700Ω, confirming functionality. If readings deviate, check for microfractures in the strain gauges or oxidation on solder joints.
Trace the signal amplifier–usually an operational amplifier (op-amp) like the LM358 or INA125–directly downstream of the load cell. This component boosts millivolt-level signals to volt-scale outputs. Probe the output with a multimeter set to DC: expect 0-5V for a 0-200g range. Noisy output? Shield the input lines with twisted-pair cables and add a 0.1μF ceramic capacitor across the op-amp’s power pins to suppress high-frequency interference.
The analog-to-digital converter (ADC) follows, translating amplified signals into digital data. Look for ICs like the ADS1231, featuring 24-bit resolution for microgram precision. Confirm the reference voltage–commonly 5V–via the VREF pin. If resolution drops, bypass VREF with a 10μF tantalum capacitor to stabilize fluctuations. For 4-wire connections, ensure differential signals remain isolated from ground loops by using a separate analog ground plane.
Examine the microcontroller unit (MCU)–often an 8-bit AVR or 32-bit ARM–responsible for calibration, tare processing, and display updates. Check crystal oscillator stability (e.g., 8MHz-20MHz) with a frequency counter; drifts cause weighing errors. Firmware glitches? Reflash using ISP pins (SCK, MISO, MOSI) and verify clock configuration matches the original schematic–incorrect prescalers distort timing loops.
The power regulation module–typically a buck converter (e.g., MP2307) or linear regulator (e.g., AMS1117)–supplies stable 5V or 3.3V. Test output under load: ripple should stay below 50mVpp. High ripple? Add a 22μF electrolytic capacitor at the output and a 100nF ceramic at the input. Avoid grounding issues by separating power and signal grounds at the regulator’s star point.
Inspect keypad inputs if present–matrix or direct-switch types–for debounce circuits. Tactile switches often pair with a 10kΩ pull-up resistor and a 0.1μF capacitor to filter noise. Test continuity with a diode tester; erratic readings indicate worn contacts or cold solder joints. Replace oxidized switches rather than reworking them–lateral force during pressing accelerates wear.
Check the display interface–segmented LCDs or OLEDs–connected via SPI/I2C or direct segment drivers. For 7-segment displays, verify the driver IC (e.g., TM1637) receives correct data codes; inverted or missing segments suggest incorrect initialization sequences in the MCU firmware. Backlight issues? Measure current limiting resistors (typically 100Ω-1kΩ) and replace failed LEDs one-to-one to avoid brightness mismatches.
Lastly, scrutinize EMI suppression components: ferrite beads on signal lines, 10pF capacitors across inductors, and ground pours under noisy ICs. Radiated noise from switching regulators can couple into load cell signals–use shielded enclosures and star grounding. For transient protection, place TVS diodes (e.g., P6KE6.8CA) across the power input; voltage spikes during plug-in often destroy ADCs without warning.
Step-by-Step Signal Flow Analysis from Load Cell to Readout
Begin by isolating the strain gauge bridge output–typically a low-level differential voltage (±5–20 mV/V excitation). Verify excitation stability (±5 V or ±10 V DC) before measuring; fluctuations exceeding 0.01% degrade linearity. Attach a precision instrumentation amplifier (e.g., INA125) with a fixed gain (G = 100–500) to boost the signal above noise floor thresholds (≥50 µV RMS). Ensure input impedance >1 GΩ to prevent loading the sensor.
Gain Optimization and Filtering
Route the amplified signal through a dual-pole active low-pass filter (cutoff 10–50 Hz) to eliminate power-line harmonics and mechanical vibration artifacts. Use a Sallen-Key topology with 1% tolerance resistors/capacitors; mismatches >0.5% introduce phase distortion. Insert a multiplexer (e.g., CD4051) if handling multiple channels–settling time
Digitization demands a 24-bit delta-sigma ADC (e.g., ADS1232) sampling at ≥10 SPS/channel to capture dynamic loading transients. Configure the ADC reference voltage (2.5 V or 5 V) to match the amplifier’s output swing; mismatch >0.1% clips resolution. Include a calibration routine–apply known masses (10%, 50%, 100% of scale) to map ADC counts to display units, storing coefficients in non-volatile memory (EEPROM).
Display Processing and Output Conditioning
Transmit ADC data via SPI/I²C to a microcontroller (e.g., STM32F103) running a 1 ms interrupt-driven routine. Implement a moving average filter (window size 8–16 samples) to smooth data without latency >50 ms. Convert filtered values to engineering units (grams/kilograms) using pre-loaded calibration tables. For 7-segment displays, drive segments via shift registers (e.g., 74HC595) using current-limiting resistors (220–470 Ω per segment) to prevent LED burnout. Isolate digital outputs (e.g., RS-232, USB) with galvanic barriers (ADuM1400) to block ground loops.
Final validation: simulate 0.1% overload conditions to confirm the system rejects out-of-range inputs without hanging. Log raw ADC values alongside tare/calibration events for audit trails. Update firmware only after verifying checksums against golden images to prevent corruption. Store parameters in flash sectors rated for ≥100,000 write cycles to ensure longevity under daily recalibrations.
