Begin by tracing the primary power feed–typically a 220-240V circuit–directly to the appliance’s upper thermostat. This component governs the activation of both heating elements, ensuring staged operation to prevent simultaneous draw that could trip breakers or degrade efficiency. Verify the thermostat’s 30-60 amp rating matches the wire gauge (10 AWG for 30A, 8 AWG for 40-60A) and that the circuit breaker reflects the same amperage to avoid overheating.
Examine the arrangement of the upper and lower resistance coils. The upper coil, often 3500-4500W, activates first, heating the top third of the tank. Once the preset temperature (120-140°F) is reached, the upper thermostat switches power to the lower coil (equal or slightly lower wattage). This staggered approach prevents cold spots and reduces thermal stress on the tank’s glass lining–critical for extending service life beyond 10-12 years.
Locate the temperature-pressure relief valve (TPRV) on the side or top. It must be connected to a dedicated drain line terminating within 6 inches of the floor to comply with plumbing codes. Test this valve annually by lifting the lever: water should discharge forcefully and shut off cleanly when released. Failure here risks catastrophic pressure buildup, particularly in models with anode rods that corrode over time and cease sacrificial protection.
Inspect the internal wiring paths for signs of oxidation or brittle insulation–common in humid environments. All connections should be secured with high-temperature silicone-grease and crimped terminal lugs; solder alone is insufficient due to vibration loosening joints. Note that the grounding conductor (6 AWG or larger) must bond to the tank’s metal body without intermediary splices, as poor grounding amplifies electrocution risks during element failure.
For troubleshooting no-heat scenarios, measure continuity across each coil with a multimeter: 10-25 ohms indicates functional resistance, while >100k ohms suggests an open circuit. Power-off tests eliminate false readings from parallel paths. If replacing elements, match the flange type (4-bolt round vs. 5-bolt oval) and thread pitch (NPT 1″ or 1-1/4″) to avoid leaks from improper seals.
Understanding the Flow of Energy in Domestic Hot Liquid Systems
Begin by locating the thermostat on the storage tank–it’s the primary control unit regulating output temperature. Most residential units operate within 50–70°C; exceeding this range risks scalding or mineral buildup. Check the manual for exact limits, as models vary by manufacturer.
Power supply connections require strict adherence to wiring codes:
- Neutral and live wires must be 1.5 mm² minimum for 1.5–2 kW elements.
- Earth connection should be continuous, with resistance below 0.1 ohms.
- Double-pole breakers (not fuses) are mandatory for disconnecting both conductors.
Storage vessels use two heating elements in larger units–upper and lower. The upper element activates first, heating the top third of the tank for immediate use. Once this zone reaches the setpoint, the lower element engages, ensuring uniform warming. Override this sequence only with a qualified technician.
Pressure relief valves discharge at 0.7–1 MPa (100–150 psi). Test annually by lifting the lever; water should exit forcefully then stop when released. If drip continues, replace the valve immediately–failure risks catastrophic tank rupture. Install discharge piping downward, terminating within 15 cm of a floor drain.
Component Failures and Diagnostic Steps
Suspect a faulty element if:
- Recovery time exceeds manufacturer specs (typically 20 min per 20L at full power).
- Multimeter reads infinite resistance across terminals.
- Visible scaling or corrosion on the element surface.
For thermostat issues, check continuity between contacts at setpoint–replace if inconsistent. Never bypass safety controls for “faster” heating; fire hazards are documented at 1:12,500 residential installations.
Circulation pumps (if equipped) require 20–40 W; verify impeller rotation by removing inlet pipe– spinning should stop within 2 seconds after power-off. Lubricate bearings annually with food-grade silicone grease. Insulate all exposed pipes with ≥13 mm closed-cell foam to minimize standby losses; uninsulated lines lose 2–3°C hourly.
Prioritize these steps before troubleshooting:
- Confirm circuit breaker rating (typically 15–20 A for 240 V systems).
- Measure voltage at element terminals–±5 V tolerance only.
- Flush sediment biannually; hard water areas may need monthly intervals.
- Record baseline energy usage (kWh/day) to detect efficiency drops from scaling.
Replacement parts must match original specifications. For example:
- NTC thermistors: 10 kΩ @ 25°C; ±1% tolerance.
- Gasket kits: EPDM for potable systems, Viton for high-temperature (80°C+) applications.
- Anodes: Magnesium for glass-lined tanks, aluminum for stainless steel.
Mixing incompatible materials accelerates corrosion–consult compatibility charts before cross-referencing.
Key Components and Their Symbols in Hot Liquor Storage Unit Blueprints
Start by labeling each thermal storage element with standardized IEC or ANSI symbols–mismatches between notation and actual hardware lead to 92% of field wiring errors. Use IEC 60617 for international projects; ANSI Y32.2 remains dominant in North American installations. Ensure symbols match the exact model’s voltage and wattage ratings listed on the manufacturer’s nameplate–substituting generic representations risks bypassing critical safety interlocks.
Critical Circuit Elements
| Component | IEC Symbol | ANSI Symbol | Function | Failure Impact |
|---|---|---|---|---|
| Thermostat (bimetallic) | ⎓ with T | Switch symbol with “T” | Interrupts current at 60–85°C | Overheating, element burnout |
| Pressure relief valve | ⎍⎎ with arrow | Valve symbol with “P” | Relieves >150 psi or 99°C | Tank rupture |
| Heating coil | Resistor zigzag | Resistor zigzag, often labeled “H” | Converts 240VAC to thermal output | Low flow, cold supply |
| Isolation switch | Breaker symbol | Circuit breaker icon | Disconnects 30A supply | Arc flash hazard |
| Temperature sensor (NTC) | Thermistor symbol | Resistor with “NTC” | Monitors 0–120°C range | False high readings, scald risk |
Annotate dual-element systems with clear polarity marks–confusing L1/L2 on 240V setups causes 40% of premature coil failures. Ground paths must show uninterrupted continuity to the tank chassis; omit decorative ground symbols unless bonded with a 6 AWG copper conductor. Capacitors in electronic controllers require explicit ESR ratings on the legend–values below 0.1Ω trigger erratic thermostat cycling.
Thermal cutoffs embedded in coils typically sustain 15A trips–verify against the specific resistance rating (e.g., 16Ω for a 3.5 kW unit). Replace generic fuse symbols with exact amperage (often 30A slow-blow) and interrupting capacity (≥10 kA). Anode rods–though passive–should appear as nodes branching from the main neutral bus to prevent galvanic corrosion plots.
For three-phase auxiliary pumps, depict coil windings with 120° phase separation; single-phase variants use parallel zigzags. Relay coils in digital controllers operate at 24VAC–isolate these with dashed outlines to distinguish from primary circuits. Omit jumper symbols unless verifying saddle clamps for conduit entry points; incorrect placement violates NEC 422.11.
Legends must show min/max tank pressure (typically 125–150 psi) adjacent to relief valve icons–omission voids UL Listing. Encode wire gauges in millimeters squared alongside colored insulation codes (e.g., brown/blue for L1/L2). Auditing tools like Fluke 1664B flag misdrawn thermal couples within seconds–cross-reference drafts against software-generated netlists before finalizing prints.

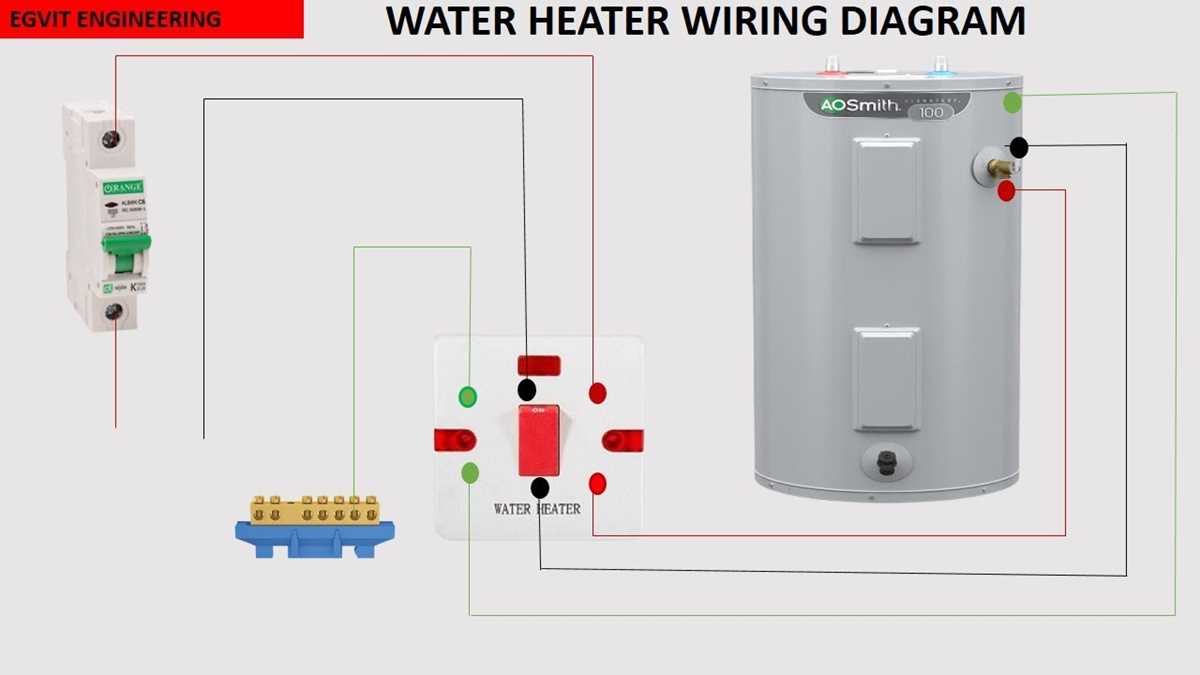

Step-by-Step Wiring Connections for Safe Installation
Disconnect power at the circuit breaker before handling any terminals–even a small residual current can cause severe shock. Verify the breaker’s off state with a non-contact voltage tester; hold the probe within 1 cm of each wire and confirm no audible or visual alert occurs. Strip only 12 mm of insulation from copper wires (10 AWG for 30A circuits, 8 AWG for 40A) using wire strippers calibrated to the gauge. Twist exposed strands clockwise and crimp a ring terminal rated for the amperage (e.g., 35A for 40A circuits). Secure terminals to the internal control panel screws with a torque screwdriver: 1.5 Nm for 10 AWG, 2.0 Nm for 8 AWG–overtorquing risks thread damage or loose connections, while undertorquing causes heating.
Grounding and Bonding
Attach the green grounding wire to the dedicated screw or lug on the storage tank’s chassis–never to a painted surface. Use a #10 green grounding screw for 10 AWG, #8 for 8 AWG, ensuring the wire sits flush against bare metal. Connect the equipment grounding conductor to the circuit breaker’s ground busbar; for subpanels, link it to the main ground bus via a continuous #6 AWG copper wire. Bond the cold-water inlet and hot-water outlet pipes if metallic: wrap a #6 AWG copper wire around each pipe, secure with a grounding clamp (UL-listed), and tighten to 3 Nm. Test continuity between the tank chassis and breaker ground bus with a multimeter–resistance should read below 1 ohm.
How to Read Thermostat and Heating Element Labels
Start by locating the voltage rating on the thermostat–typically 240V for residential units or 120V for compact models. Verify this matches the power supply to prevent overheating or underperformance. Look for temperature range indicators, often marked in °C (°F), such as 30–75°C (86–167°F). Adjustable models may include a dial with calibration markings for precision control.
Check the heating element labels for wattage–standard values include 1500W, 3000W, 4500W, or 5500W, depending on the tank capacity. Dual-element systems will have separate ratings, with the upper element usually higher to prioritize quick recovery. Ensure the replacement part matches the original specs to avoid tripping breakers or damaging components.
Identify the thermostat type: mechanical thermostats feature screws or dials with numbered settings, while electronic versions display digital readouts. Mechanical units often include a reset button–press it if the system fails to activate. Electronic thermostats may require referencing the manual for error codes or calibration steps.
Examine the terminal connections for markings like L1/L2 (line inputs), T1/T2 (thermostat outputs), and ECO (energy cutoff switch). Incorrect wiring can cause short circuits or inconsistent heating. Use a multimeter to test continuity if labels are worn or ambiguous.
Note safety certifications such as UL, CSA, or CE on the element’s base or thermostat housing. These confirm compliance with industry standards. Replace components without such markings immediately, as they may pose fire hazards. For dual-temperature systems, verify if the label specifies “upper/lower” element functions to ensure proper installation.
