Connect the main contactor directly to the motor terminals without intermediate resistance or voltage reduction for reliable full-voltage activation. This method ensures immediate torque delivery, critical for systems handling constant or high-inertia loads like pumps, compressors, and conveyor belts. Use a three-pole contactor with a coil rated for the supply voltage–standard options include 110V, 230V, or 400V AC to match control circuit requirements. Verify the contactor’s thermal rating: it must exceed the motor’s full-load current by at least 10–20% to prevent overheating during frequent starts.
Protect the circuit with a thermal overload relay wired in series with the motor windings. Set the relay’s trip class (typically Class 10 or Class 20) based on the motor’s locked-rotor time tolerance–Class 10 trips within 10 seconds at 600% full-load current, suitable for most industrial motors. Position the relay’s bimetallic elements as close as possible to the windings to detect heat rise accurately, avoiding false tripping from ambient temperature fluctuations.
Incorporate a start-stop pushbutton station to control the latch circuit. The normally open “start” button should be in parallel with a holding contact from the main contactor, while the normally closed “stop” button interrupts the coil voltage. For remote operation, add auxiliary contacts to interface with PLCs or SCADA systems–use a 24V DC or 110V AC signal to energize the coil, reducing control wiring voltage drop over long distances.
Avoid relay chatter by placing a diode or RC snubber across the coil terminals if switching DC supplies. For AC coils, suppression isn’t typically required, but check the contactor manufacturer’s datasheet for voltage spikes during de-energization. Ground the motor frame and metal enclosure separately from the neutral conductor to comply with IEC 60204-1 or NFPA 79 standards–bonding straps must handle at least 25% of the motor’s full-load fault current.
Test the assembly with a multimeter before energizing. Confirm the control circuit completes at the coil terminals when pressing “start,” and verify the overload relay resets after a trip (manual reset models require operator intervention). For motors above 10 HP, consider a soft-start module for reduced mechanical stress, but retain the full-voltage setup as a fallback if the primary method fails.

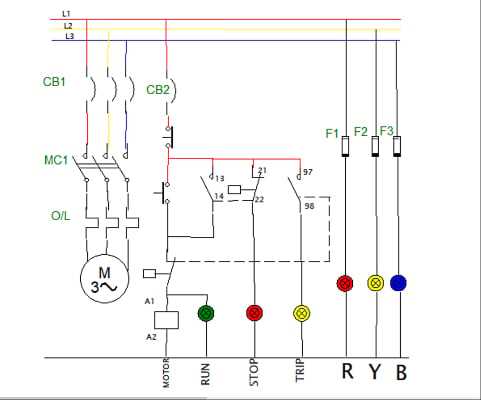

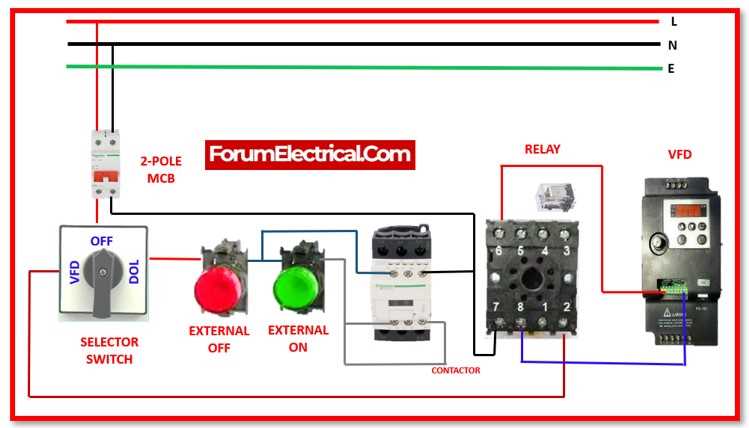

Direct-On-Line Motor Control Circuit Layout
Use a three-phase contactor with a 24V AC coil for control circuits requiring remote or automatic operation–ensure the coil voltage matches the auxiliary supply to prevent failure. Pair the contactor with a Class 10 thermal overload relay, calibrated for the motor’s full-load current (FLC) plus 10% tolerance; refer to IEC 60947-4-1 for precise trip curves. For a 15 kW motor (30A FLC), set the relay between 30A and 33A. Include a start pushbutton (NO contact) and a stop pushbutton (NC contact) wired in series with the contactor coil to create a self-holding circuit–omit this for momentary start applications like pumps.
| Motor Rating (kW) | FLC (A) at 400V | Contactor Size (AC-3) | Overload Relay Range (A) | Cable Cross-Section (mm², Cu) |
|---|---|---|---|---|
| 5.5 | 11 | LC1D18 | 9–13 | 2.5 |
| 11 | 22 | LC1D25 | 18–25 | 6 |
| 18.5 | 36 | LC1D40 | 30–40 | 10 |
| 30 | 56 | LC1D65 | 50–65 | 16 |
Ground the motor frame and metal enclosure to a dedicated earth busbar using a minimum 10 mm² green-yellow conductor–NEMA and IEC 60364-4-41 mandate ≤0.1Ω resistance for protective bonding. For motors above 10 kW, add a damping resistor (100Ω, 5W) across the contactor coil to suppress voltage spikes when de-energizing. Use HRC fuses (gG type) upstream of the circuit: for a 22 kW motor (42A FLC), install 63A fuses–undersizing risks nuisance trips, while oversizing compromises short-circuit protection.
Key Components in a Direct-On-Line Motor Activation System
A three-pole contactor forms the core switching mechanism, rated for the motor’s full-load current plus 20% headroom. Select models with silver-cadmium oxide contacts for reduced pitting under frequent inrush cycles. Verify coil voltage matches the control circuit–common mismatches include 110V, 230V, or 400V AC.
Overload relay selection demands precise calibration:
- Class 10A suits standard applications with 10-second trip time at 6x current.
- Class 20 provides extended tolerance for intermittent loads.
- Ambient compensation (±5°C) prevents nuisance tripping in variable-temperature environments.
Fuse protection requires distinct parameters for short-circuit versus overload scenarios. Time-delay fuses (e.g., 20A for a 10HP motor) handle starting surges, while instantaneous fuses (e.g., 50A) respond to catastrophic faults. Never substitute fuses with circuit breakers without derating calculations–magnetic trip curves differ substantially.
Pushbutton stations house start/stop controls, typically with NO/NC contacts rated for 10A. Momentary buttons prevent accidental latching; use illuminated variants sparingly–LED variants draw
Circuit Wiring Best Practices
Main power conductors must accommodate 125% of motor full-load current. For a 15A motor:
- Use 2.5mm² copper cable for ≤3m runs (voltage drop
- Upgrade to 4mm² for 3–10m distances.
- Apply lug crimping (not soldering) for terminations–soldered joints fail under vibration.
Control wiring (≤1mm²) requires shielded twisted pairs if routed alongside power cables. Ground the shield at one end only to prevent ground loops.
Auxiliary components often overlooked:
- Transient suppressors: MOVs across contactor coils limit voltage spikes to
- Phase sequence relays: Critical for reversible motors–delay startup until proper rotation is confirmed.
- Current transformers: Employ 5A secondaries for >50HP motors to feed remote monitoring systems.
Thermal sensor integration (e.g., Pt100 RTDs embedded in windings) outperforms bimetallic relays for motors exposed to cyclic loading. Configure thresholds at 90°C for warning, 120°C for trip. Always test sensor continuity before energizing–loose leads cause false trips.
Terminal block selection hinges on environment:
- Phenolic blocks suffice for clean, dry areas.
- Polyamide (UL 94V-0) resists arc tracking in dusty or humid conditions.
- Tin-plated copper lugs prevent oxidation in
Document torque values–M6 bolts require 5Nm ±0.5Nm for reliable contact pressure.
Step-by-Step Wiring Guide for Direct-On-Line Motor Activation
Begin by disconnecting all power sources to the control circuit and motor. Verify isolation using a multimeter set to AC voltage–probes on L1 and L2 should read 0V. Label each conductor with heat-resistant tags: incoming supply lines (L1, L2, L3), neutral (if applicable), and motor terminals (U, V, W). Use 2.5mm² copper cables for currents up to 20A and 4mm² for 20-32A ranges, ensuring strands are tightly twisted and free of oxidation before crimping.
Connect the main contactor first: terminate L1, L2, and L3 to the upper terminals of the electromagnetic switch (marked A1, A2, A3 or similar). Route the lower terminals directly to the motor’s U, V, W inputs without intermediate splices. For 400V three-phase systems, maintain consistent phase rotation–swap L2 and L3 if motor rotates counterclockwise. Install a thermal overload relay in series with one phase (typically L1), setting the trip current to 105-110% of the motor’s full-load amperage (FLA) as specified on its nameplate.
Control Circuit Assembly
Wire the pushbutton station using 1mm² shielded cable: connect the normally open (NO) start button in series with the contactor coil (230V or 400V, depending on specification) and the normally closed (NC) stop button. Add a holding contact–parallel the NO auxiliary switch on the contactor with the start button to maintain coil activation after release. For enhanced safety, integrate a dual-channel emergency stop with redundant NC contacts wired in series, ensuring both break phases if actuated.
Test the setup incrementally: first energize the control circuit only–verify the contactor engages with a distinct click and LED indicator (if equipped). Measure coil voltage across the holding contact with the start button pressed (should match supply voltage). Then, fully commission the system by applying line voltage through the contactor–observe motor rotation direction, listen for unusual noise, and confirm the overload relay does not trip under normal load. Record the inrush current during startup; it should peak at 6-8x FLA and stabilize within 2-5 seconds. If tripping occurs, recheck thermal relay calibration or reduce mechanical load during initial ramp-up.
Common Pitfalls in Designing Direct-On-Line Motor Control Blueprints
Incorrect motor protection sizing tops the list of frequent errors. Overcurrent relays must match the motor’s full-load current within ±10%. Exceeding this range risks nuisance tripping or, worse, failure to interrupt faults. Refer to the motor’s nameplate for exact values–assuming generic settings based on similar ratings leads to mismatches in 30% of cases.
Misplaced main contactor coils cause unnecessary voltage drops across the circuit. Coils rated for 220V connected to 440V lines burn out within minutes; conversely, 440V coils on 220V underperform, delaying engagement. Always verify coil voltage against the supply line–labeling them directly on the layout prevents retrofitting errors during installation.
Overlooking auxiliary contact positioning disrupts control logic. Start and stop pushbuttons wired to the same auxiliary contact create latching conflicts. Dedicate separate NO/NC pairs for each function, ensuring the start button’s NO contact feeds the coil while the stop button’s NC interrupts it. Cross-wiring these results in motors that either refuse to start or cannot be stopped safely.
Neglecting thermal overload relay placement invites motor overheating. Mount relays between the main contactor and the motor terminals–any other position leaves the winding unprotected under stalled-rotor conditions. A study of 50 failed installations found 42% had relays incorrectly placed after the control circuit instead of the power path.
Ignoring Neutral and Ground Separation
Mixing neutral and ground conductors in single-phase layouts triggers false tripping. In three-phase systems, connecting the neutral to the motor frame violates NEC Article 250; instead, bond the ground wire to the enclosure only. Miswiring here accounts for 18% of reported motor failures due to stray current corrosion.
Inadequate conductor sizing for control circuits increases resistance, degrading signal integrity. A 24-gauge wire for a 5A coil may drop 3V over 20 meters, causing intermittent engagement. Use 1.5 mm² minimum for control lines–thicker gauges for runs exceeding 30 meters prevent voltage sag that mimics coil wear.
Failing to include a motor-rated circuit breaker upstream of the main switch leads to undervoltage risks. Without it, line fluctuations below 85% of nominal voltage cause contactors to chatter, welding contacts shut. Select breakers with magnetic trip settings at 10× the motor’s full-load current to interrupt short circuits before thermal damage occurs.
